After-sales Service Provided: | Field maintenance and repair service; | Warranty: | 2 Years; |
Mounting: | Free Standing; | Voltage: | 110V 220V 12V 24V; |
Supply Ability: | 800000 Piece/Pieces per Month toyon waterproof industrial sution blower fan 220v; | Keywords: | dc cross flow fan; |
life time: | 50000hours; | Port: | SHENZHEN YANTIAN; |
Blade Material: | Stainless Steel; | Payment Terms: | L/C,T/T; |
Brand Name: | toyon; | Packaging Detail: | toyon waterproof industrial sution blower fan 220v 10pcs /carton; |
voltage: | 24v or 12v or 48v; | type: | cross flow fan; |
mounting: | free standing; | Power: | 33w; |
certification: | ce/ul; | Type: | Cross Flow Fan; |
bearing: | ball bearing; | Air Volume: | 192cfm; |
function: | RD,FG,PWM; | name: | TE06030-H; |
Certification: | CCC,CE,ROHS,UL; | Place of Origin: | Guangdong China (Mainland); |
Product name: | cross flow fan; |

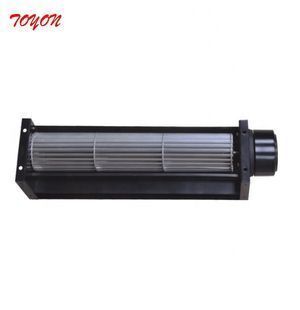

Model TD06030-H
hot sale 12v 24v dc fan 90x375 mm cross flow fan high quality tangential fan air flow 277m3/h
Advantages:
1. Good quality, low noise
2. Good balance, Longer life time
3.OEM, Best solution provider
4.With us, Save your money
Product Description
Voltage : 12v 24v
Insuation:Class B
Certifications:UL/CE/UL/CCC
Function options: FG signal; PWM Speed control; RD function; Thermal Control; CW and CCW;
Type of protection: IP42~IP66
Operation Temperature:-20~70 degree
Control input:0~10VDC
Product conforming to standard:EN 60950-1
Interference immunily acc.to EN6100-6-2
Material: PA66 UL-94 V0 / ABS/ Metal Sheet
Fan specs
Model | Bearing system | Voltage V | Voltage Range V | Current A | Power W | Speed RPM | Noise DBA | Airflow M3/H (CFM) | Static Pressure Pa / mmH2O | Weight G |
TD0603012HB-H | Ball | 12 | 6-13.2 | 2.0 | 24 | 3000 | 56.2 | 277(163) | 63.4/6.46 | 1130 |
TD0603024HB-H | Ball | 24 | 12-26.4 | 0.91 | 33 | 3000 | 56.2 | 277(163) | 63.4/6.45 | 1130 |
Drawing & Layout
Related Products
DONGGUAN XUHENG ELECTRONICS CO.,LTD
Dongguan XuHeng Electronics CO., LTD was established in 2001 which reaches 10000 square meters of our workshop, 400 staffs. located in Dongguan City , China. We’re a professional manufacturer of different series of BLDC/AC cooling fans and brushless motor ,with integrated design , production, sales, quality service and Best solution & ideal. TCL, HP, Midea, Foxconn well-known enterprise are all our long term partner.
Our company continuously on innovating and development in many years, we work close with market's need
and established Toyon brand, for our products such as,:Axial Fan, Cross flow fan, dc blower; centrifugal fan,
DC brushless motor and ventilation unit etc. which are widely covering computer, communication production,
automobile electronics equipment, refrigerator, industrial equipment ; ventilation and purify equipment field etc..
in high quality & lower price.
We also provide best solution , accordingly by understanding of the customer needs, our engineers design
the customized products by customers’ idea and comments till customer satisfied with the products.
We has passed I S O 9 0 0 1, CE, UL, RoHS and other international approvals.
Join us, we will be your best supplier and long term partner!
Shipping Description
1. Carton box or according to customer requirement.
2. Fans can be dispatched by our truck driver if your factory is in Shenzhen, Dong guan or Guangzhou City.
3. Fans could be delivered by express ( FedEx, DHL, DHL or TNT ) for under 100 kg, our shipping agent have discount with these express company.
4. Large Measure are shipped by sea or air as customer's requirements.
Q: Why you choose us?
A: Toyon brand has a very good reputation in this kind business area, with focus on improvement of quality & research,
flexiable service, best solution providers, brushess cooling fan & brushless motor leader manufacturer in Dongguan, China.
Q: What information do you need to provide in order to get a quotation?
A: Generally, information about Size,Air Flow,Voltage of required fans is needed in order to select a right fan for you
and provide you a quotation.
Q: Can I have samples for testing before ordering products?
A: Yes, we sincerely suggest that customers should have some samples of required fans for testing because the truly performance of fans can be fully demonstrated after testing is conducted.
Q: Can I have a discount for the quoted price?
A: The quoted price is based on annual usage quantity. If annual usage quantities increase, please provide
the information to our sales. We will provide you a further discount.
