Cylindrical mill with high precision for sale

Supplier: Zhengzhou Timeway Machine Tool Co., Ltd.
Region: Henan, China
Contact: Mr David Cheung
Price: $48000.00 / 1 - 1 sets
$45000.00 / 2 - 9 sets
$33600.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Place of origin:	China	Surface roughness (μm):	0.32 micron
Applicable industries:	manufacturing plant	diameter. Ground (outer diameter):	30-630

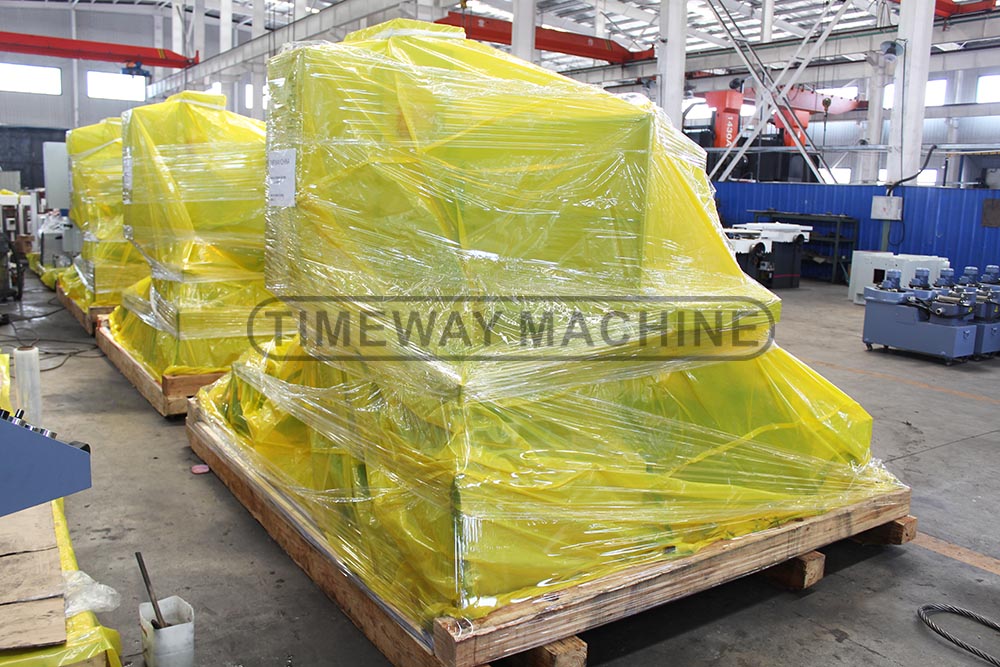

port:	port of china	Packaging details:	Wooden box (can be fumigated)
diameter. Ground (ID):	30-250	Warranty:	1 year
Working head rotation angle:	3000	load capacity:	320
Center height:	350 (370)	Health status:	new
Dimensions (lengthwidthheight):	2600x2000x2220	payment terms:	L/C, Western Union, T/T
Core component warranty:	1 year	Grinding length (mm):	500
Package preview:		Worktable travel (X) (mm):	Chapter 475
Main selling points:	High accuracy	Marketing type:	normal product
Supply capacity:	150 sets per month	Weight (kg):	26000
Distance between centers:	2000	Grinding wheel frame spindle speed:	14-140
External grinding wheel size:	750x75x305	Workbench size (mm):	75075350
Core components:	Motors, bearings, pumps	Wheel size (mm):	750
Table spindle taper:	90°	Worktable travel (Y) (mm):	Chapter 475
Mechanical test report:	if	Grinding length (outer diameter):	2000/3000/4000/5000
Showroom location:	Vietnam, Morocco, South Africa, South Korea, Canada, Uzbekistan, Italy	brand:	Timak
Whether CNC:	normal	Power (kW):	15
Video outbound inspection:	if	Voltage:	220V/380V

Product Description

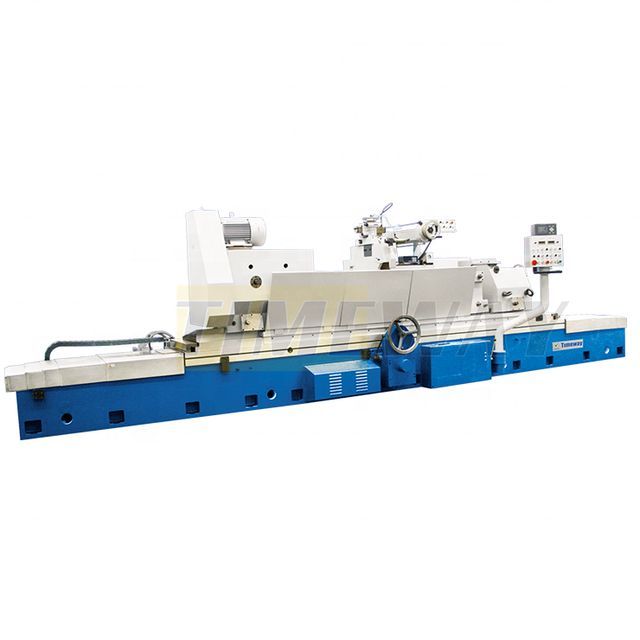

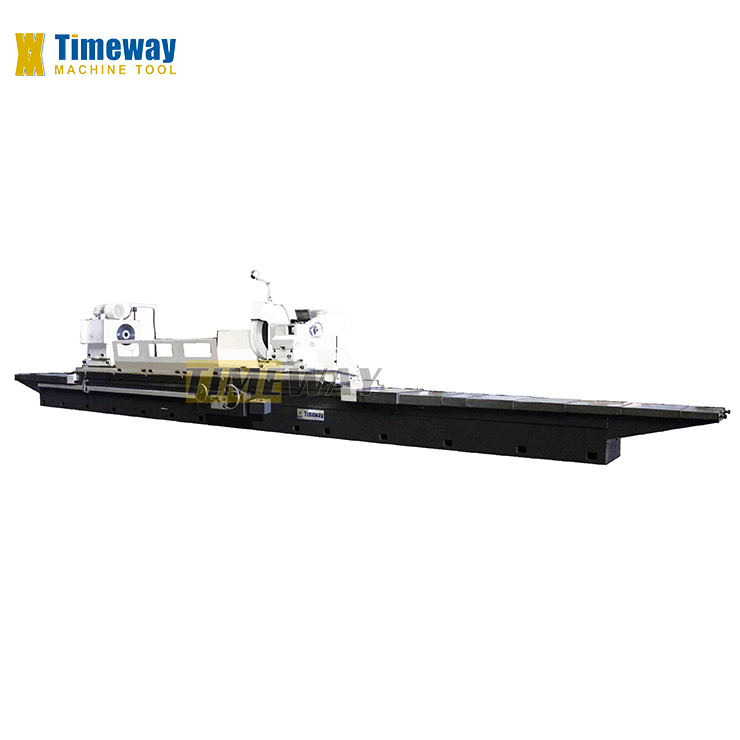

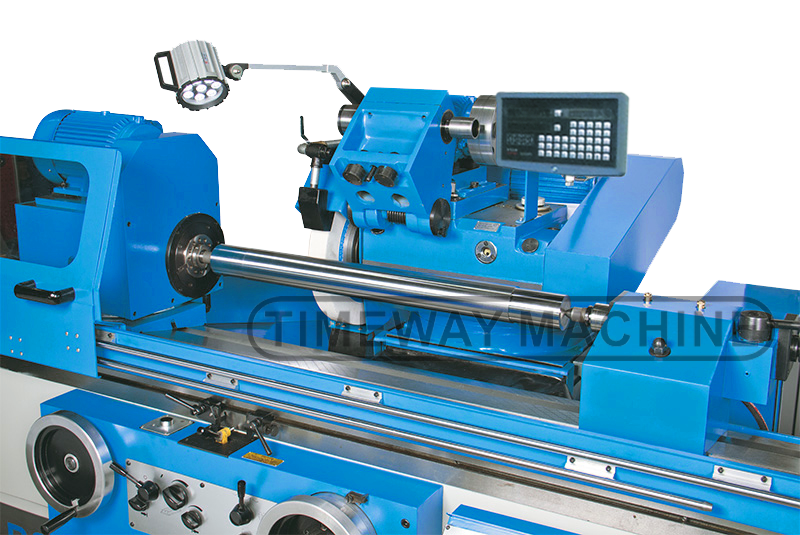

***G-630/G-800 cylindrical grinder is suitable for grinding the outer surface of cylinders and cones; UG-630 universal cylindrical grinder is suitable for grinding the outer and inner surfaces of cylinders and cones.

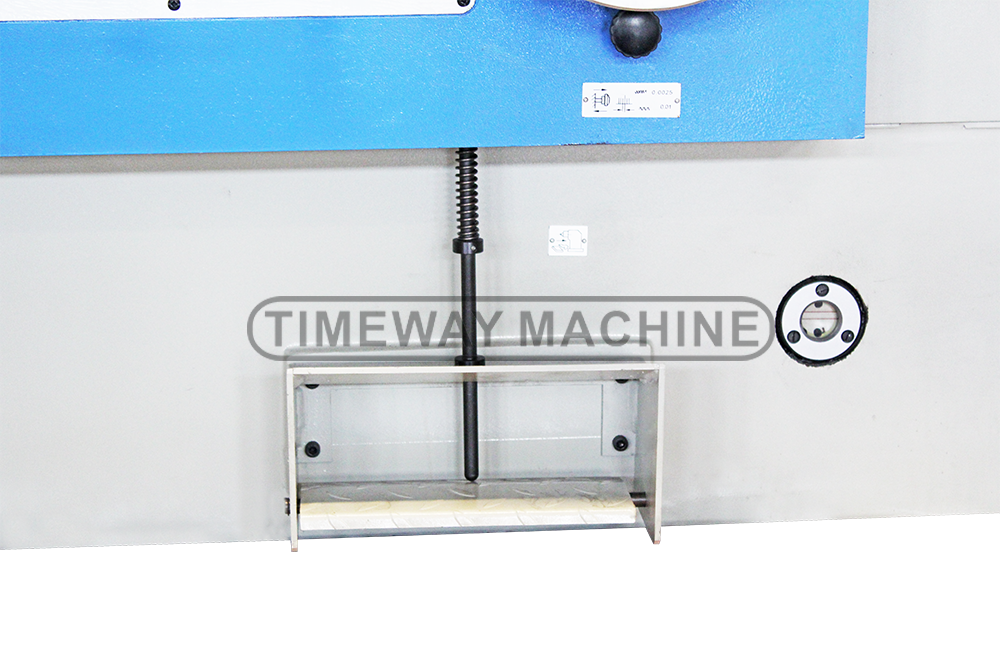

***The longitudinal movement of the workbench is driven by hydraulic pressure or hand wheel. The workbench can rotate at a certain angle and is suitable for grinding tapers.

***The transverse feed of the grinding wheel frame is hydraulically driven to achieve automatic periodic feed and rapid feed. Coarse and fine feeding can also be carried out through the handwheel. The workbench and grinding wheel frame guide rails are lubricated by static pressure, and the low-speed movement is smooth.

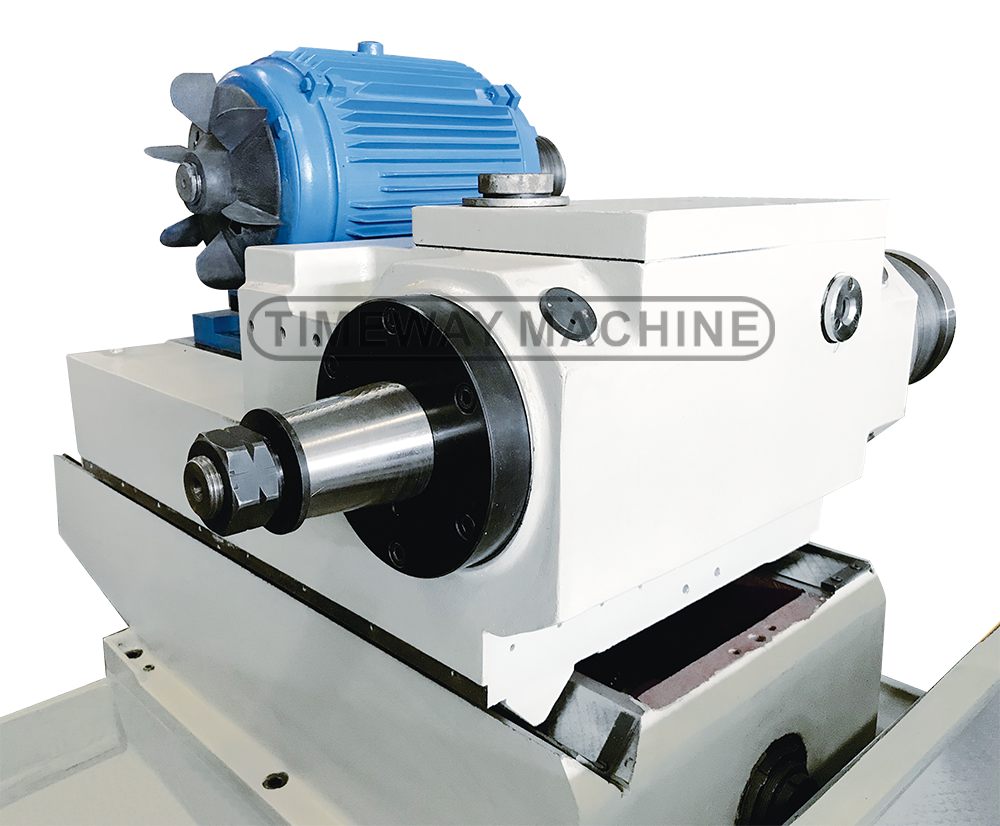

***The main shaft is supported by high-rigidity static pressure and dynamic pressure bearings, so that the main shaft has high rotation accuracy and perfect rigidity.

*** The workbench uses a variable frequency motor to achieve stepless speed regulation. The spindle of the UG-630 workbench adopts a sliding bearing structure.

***Front bearing clearance adjustable to suitCenter or chuck for grinding. With the UG-630, the work head can be rotated to any position within 90° of its counterclockwise direction, so it can be suitable for grinding the inner or outer surface of a cone. For UG-630, the cylindrical grinder has an internal grinding device, and the internal grinding spindle is supported by precision rolling bearings. ***The worktable spindle, grinding wheel frame spindle, internal grinding spindle, coolant pump, dynamic pressure oil pump and static pressure oil pump are driven by separate motors.

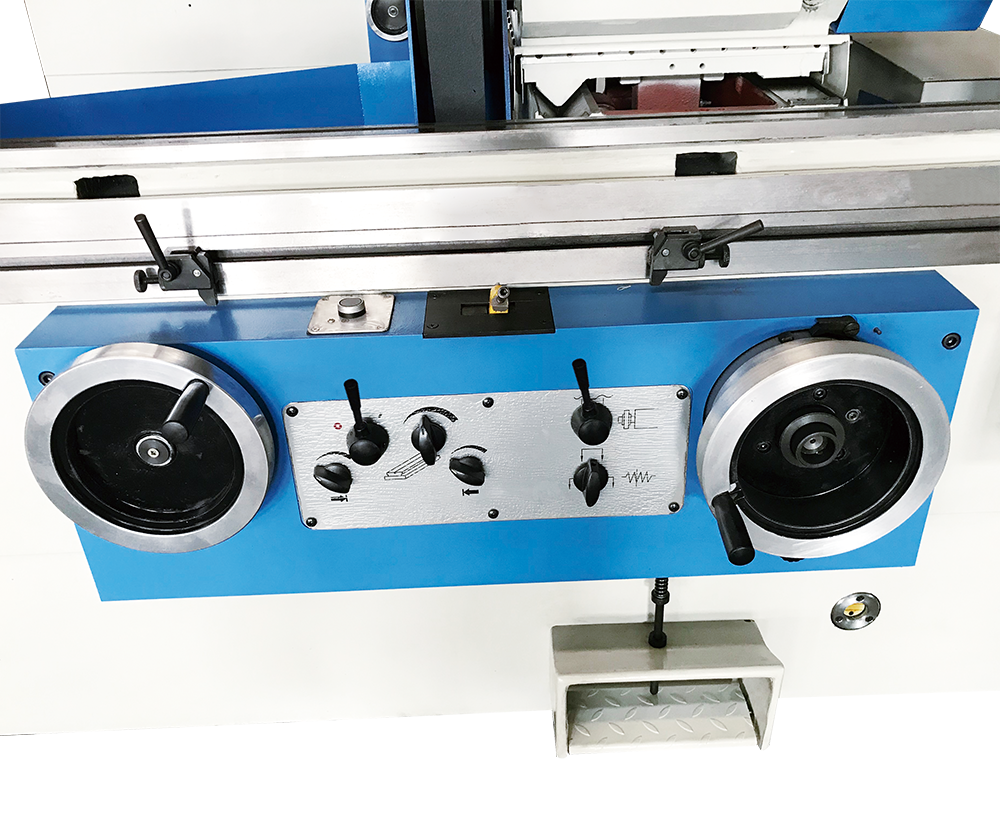

*** Each moving part of the machine is equipped with electrical, hydraulic, and mechanical interlocking structures. The machine is well designed and beautiful in appearance. All joysticks are concentrated on the panel, making it easy to operate.

***The grinding wheel dresser can be installed on the work surface of the tailstock.

Specification	unit	G-630	UG-630	G-800
distance between centers	mm	2000/3000/4000/5000	2000/3000/4000/5000	3000/4000/5000
Center high	mm	350 (370)	370	500
diameter. Ground (outer diameter)	mm	30-630	30-630	50-800
diameter. Ground (ID)	mm	-	30-250	-
Grinding length (outer diameter)	mm	2000/3000/4000/5000	2000/3000/4000/5000	3000/4000/5000
Grinding length (inner diameter)	mm	-	320	-
Loading capacity	Kilogram	1500 (3000)	3000	3000
Working head rotation angle	°	-	+90°	-
Table spindle taper	-	MT6 (metric 80)	MT6	Metric 80
Worktable spindle speed	Rotating speed	10-100	14-140	10-100
Grinding wheel frame spindle speed	Rotating speed	Chapter 870	1100/550	Chapter 870
Grinding wheel carriage rapid feed stroke	mm	100	100	100
Grinding wheel carriage lateral travel	mm	438 (475)	450	550
Grinding wheel frame rotation angle	°	-	±30°	-
Grinding head feed amount per handwheel revolution (coarse/fine)	mm/rev	4/0.5	4/0.5	4/0.5
Grinding head feed per gram by hand wheel. (coarse/fine)	mm/g	0.02/0.0025	0.02/0.0025	0.02/0.0025
External grinding wheel size	mm	750x75x305	600x75x305	900x75x305
maximum. Grinding wheel peripheral speed	multiple sclerosis	35	35/17.5	35
Internal grinding spindle speed	Rotating speed	-	10000	-
Internal grinding wheel size	mm	-	Maximum: 175x32x32; Minimum: 30x25x10	-
Feed amount of worktable per hand wheel rotation	mm	5	5	5
Table rotation angle (clockwise)	°	2°/1°/1°/1°	2°/1°/1°/1°	1°/1°/1°
Table rotation angle (counterclockwise)	°	4°/3°/2°/1.5°	4°/3°/2.5°/1.5°	3°/2°/1.5°
Workbench longitudinal feed speed	m/min	0.1-3 (0.1-2.5)	0.1-2.5	0.1-2.5
Tailstock sleeve taper	-	MT6 (metric 80)	Metric 80	Metric 80
Tailstock sleeve travel	mm	70	70	70
Cylindrical grinding motor power	kilowatt	15 (22)	7/11	number 22
Internal grinding motor power	kilowatt	-	1.5	-
Workbench motor power	kilowatt	5.5 (15)	15	15
gross weight	Ton	18/22/23/26	18/19/24/26	26.22.23
Packing size (length x width x height)	centimeter	695/890/1100/1500x242x226	695/890/1100/1500x242x226	890/1100/1500x260x230

Measuring the bridge	balance frame
open center frame	Magnetic separator
rim	paper filter
wheel extractor	Center grinding accessories
balance spindle	Close the center frame
Grinding wheel	End wheel dresser
coolant tank	radius wheel dress
Carbide Trip Center	digital display device
driving dog
Grinding wheel dresser (without diamond pen)
working lamp
Leveling wedge
Internal grinding accessories (UG)
Three-jaw chuck (UG)
Extended shaft (UG)
Internal grinding wheel (UG)
Full set of tools
Operation manual (English version)

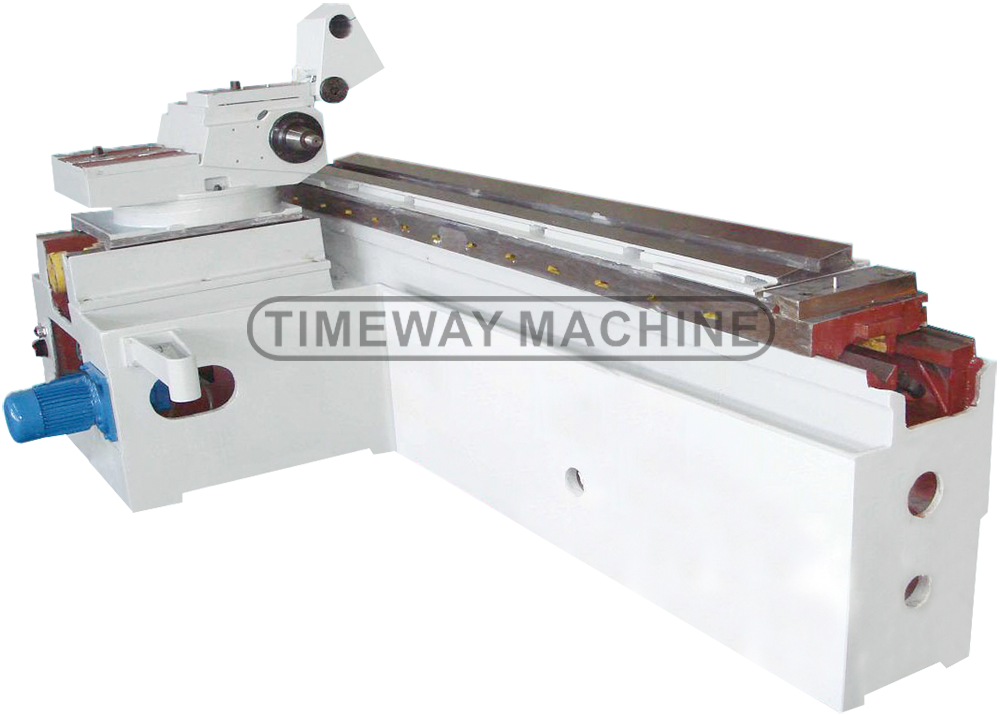

The one-piece machine bed is made of high-quality cast iron, and the surface of the guide rails is hardened and precision ground for high stability and rigidity. Time has proven: the carefully designed structure guarantees excellent processing capabilities.
The abutment slideway is made of TF material and has been precisely scraped by hand; the grinding wheel head guide rail is a V-shaped flat rail equipped with linear rollers, which has high precision and low motion friction.

Cylindrical grinding of rotating parts

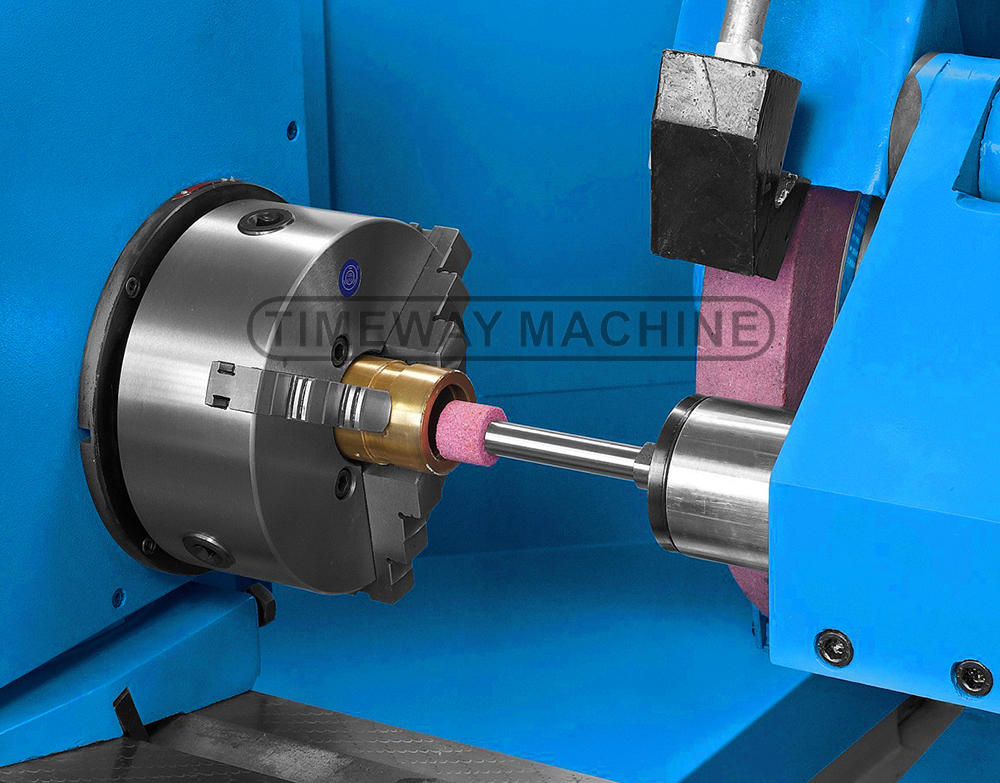

Comes with removable internal grinding device.

The grinding wheel frame spindle is supported by bimetal shell bearings, which gives the spindle high rigidity and stability, ensuring heavy-duty, excellent finishing surfaces.
