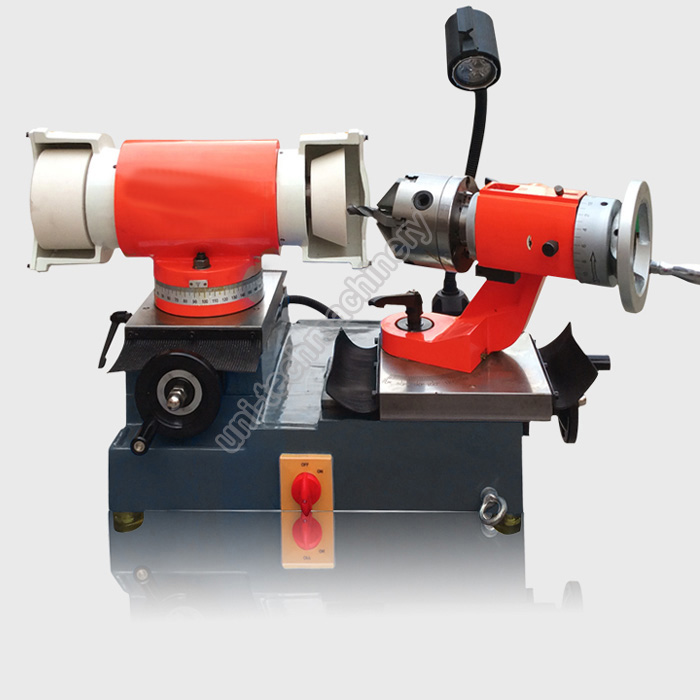

TG32N Multifunctional Drill Tool Grinder
-
Supplier: Tengzhou Uni-Tech Co., Ltd. -
Region: Shandong, China -
Contact: Mr SHIMING ZHONG -
Price: $3400.00 / 1 - 2 sets
$1000.00 / >=3 sets -
Min. Order: 1 set
| engine: | 3/4HP,380V | Voltage: | 220V/380V |
| Dimensions (L*W*H): | 1680x1140x17600mm | Certification: | CE ISO9001 |
| Name: | TG32N Multifunctional Drill Tool Grinder | strength: | 1100 |
| type: | surface grinder, surface grinder | Wheel Size: | 125*50*32mm |
| brand: | Unitech | Wheel rotation angle: | 360 degrees |
| Origin: | Shandong China | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| weight: | 700 kg | maximum. Grinding diameter: | 220mm |
| Package Size: | 800*550*670mm | Health status: | new |
| maximum. Grinding length: | 530mm | Operating table horizontal travel: | 150mm |
| After-sales service provided: | Engineers available to service machinery overseas | Wheel speed: | 3600 rpm |
| Operating table longitudinal travel: | 90mm | Supply capacity: | 50 sets/month TG32N multifunctional drill tool grinder |
| Packaging Details: | TG32N multifunctional drill bit tool grinder Packing: standard export plywood/box Packing size: 800*550*670mm | port: | Qingdao, Shanghai, any port in China |
| Drill tip angle: | 90 - 180 degrees | CNC or not: | normal |
TG32N Multifunctional Drill Tool Grinder
Main features of TG32N multifunctional drill tool grinder:
1) Quickly and accurately grind drill bits, step drills, taps, end mill faces, round rods.
2) Grinding capacity: Dia.3mm-Dia.32mm/76mm
(straight shank: 3mm-32mm; tapered shank MT5#: 3mm-76mm)
3) Adopt precision six-jaw self-centering chuck.
4) After removing the six-jaw chuck, the MT5# spindle hole can hold a tapered shank drill bit up to 76mm.
5) Double cams are used to save time for wheel changing and repairing.
End mills, R-type cutters, etc.
Technical parameters of TG32N multifunctional drill tool grinder:
| Model | TG-32N |
| Operating table longitudinal travel | 90mm |
| Operating table horizontal travel | 150mm |
| wheel rotation angle | 360° |
| Drill front angle | 90°-180° |
| wheel size | 125*50*32mm |
| Wheel speed | 3600 rpm |
| engine | 3/4HP,380V |
| Package size/GW | 800*550*670/120kg |

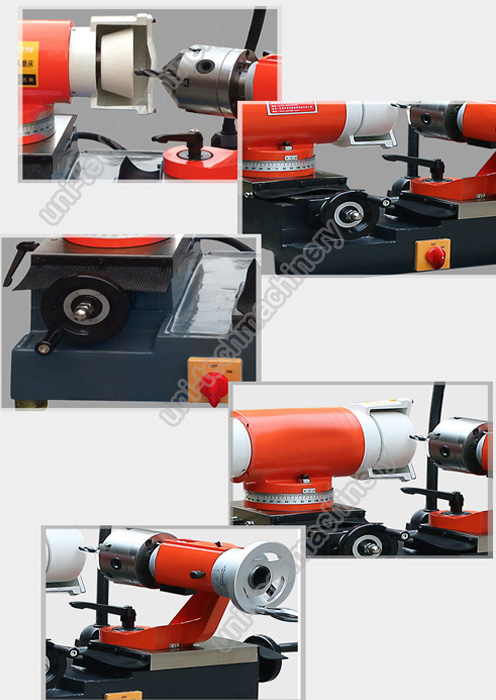

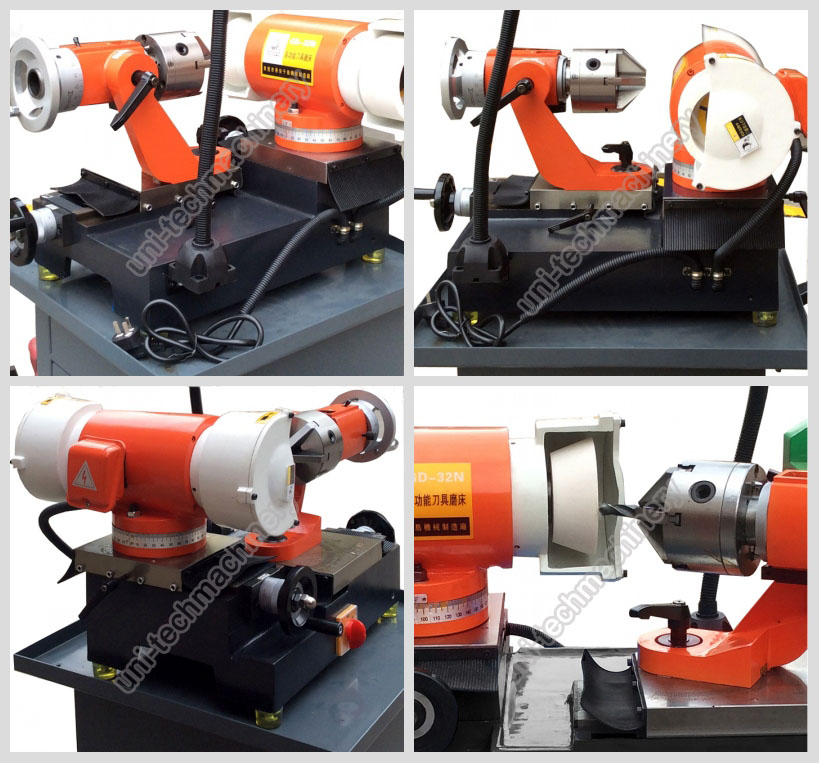

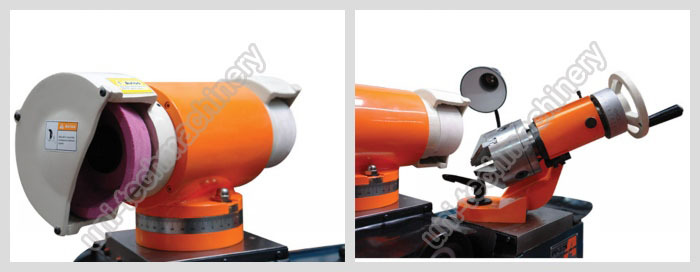

The detailed pictures of TG32N multifunctional drill bit tool grinder are as follows:
Standard accessories:
1. One wrench 8-10mm
2.17-19mm 1 piece
3. Hex wrench M4x1pc
4. M6x1; M8x1; M10x1
5. Chuck frame 1
6. Phillips screwdriver 1
7. One cup wheel Ø150x50xØ32mm
8. One cup wheel Ø150x50xØ32mm
Optional accessories:
TG32N Multifunctional Drill Tool Grinder
Packing: standard export plywood/carton
Packing size: 800*550*670mm
We would also like to let you know that our warranty on our TG32N Multi-Purpose Drill Tool Grinder is as follows:
== About machine failure, usually our policy will be as ongoing
1) Our quality guarantee time is 12 months after the machine is on board
2) During this period, if the machine breaks down due to the quality problems of our machine itself, we will prepare spare parts and send them to you for free within 5 days. All of these are free.
3) If the failure is caused by improper operation, of course we will provide you with spare parts, but we have to charge you the cost price.
-
