Light hydraulic press JMDY

Click here to contact

Product details

Weight (ton):	1 ton	Nominal force (kN):	1000 kN
Applicable industries:	Machinery repair shop, manufacturing plant	payment terms:	L/C, D/P, Western Union, Trade Assurance
Main selling points:	automatic	After-sales service provided:	Online support, free spare parts, video technical support
Certification:	CE certification	Voltage:	380V
Hydraulic (Mpa) electric/manual:	20,20-25.5	Resilience (kN):	1000 kN
system:	normal	Health status:	new
Rod stroke (mm):	200-300	Packaging Details:	In wooden case or steel pallet
Local service location:	not any	Warranty:	1 year
Motor power(kw):	1.1-4	Showroom location:	not any
place of origin; place of origin:	China	After warranty service:	Video technical support, online support
power supply:	custom made	net weight/kg):	190-3190
Key words:	Hydraulic Press	Motor power (kW):	3 kW
Table adjustment distance (mm*n):	1504, 2004	Maximum pressure (KN):	150-2940
port:	Qingdao, Shanghai or any other Chinese port	Type of machine:	Hot forging hydraulic press
Supply capacity:	80 sets per month	Working speed (mm/s):	3/H4,1.2/H1.7
product name:	hydraulic press

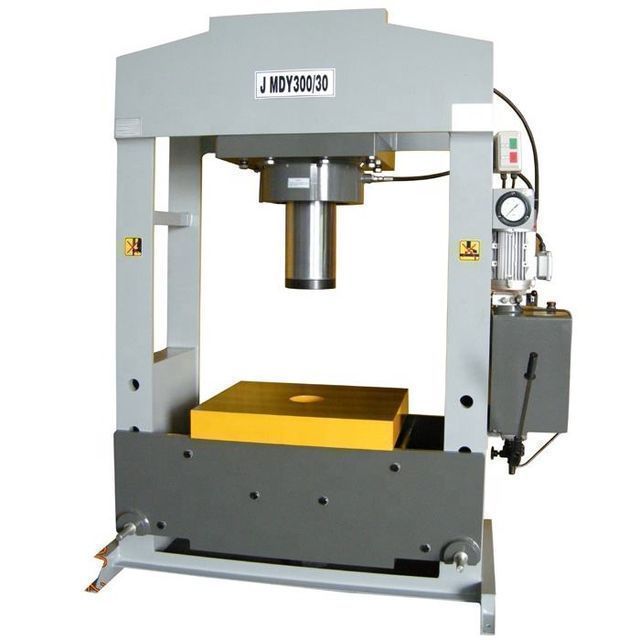

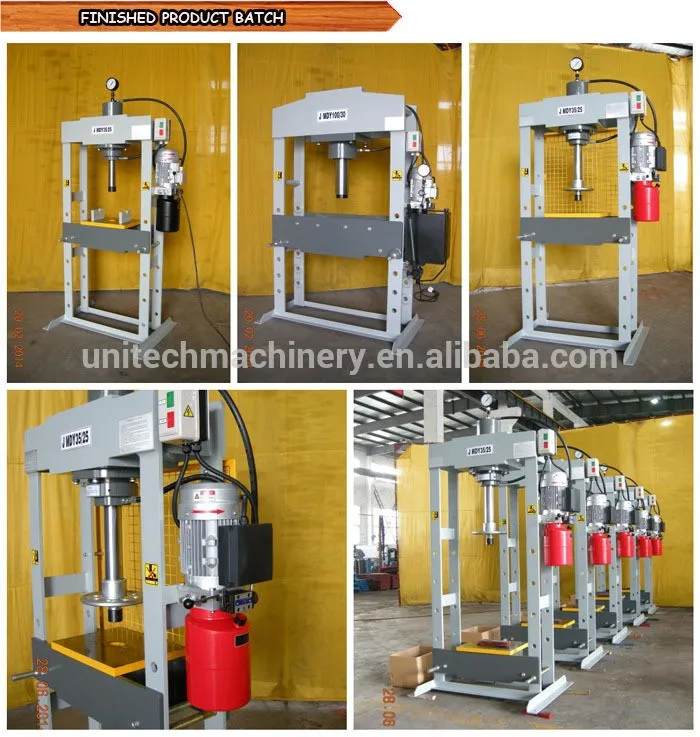

Light hydraulic press JMDY

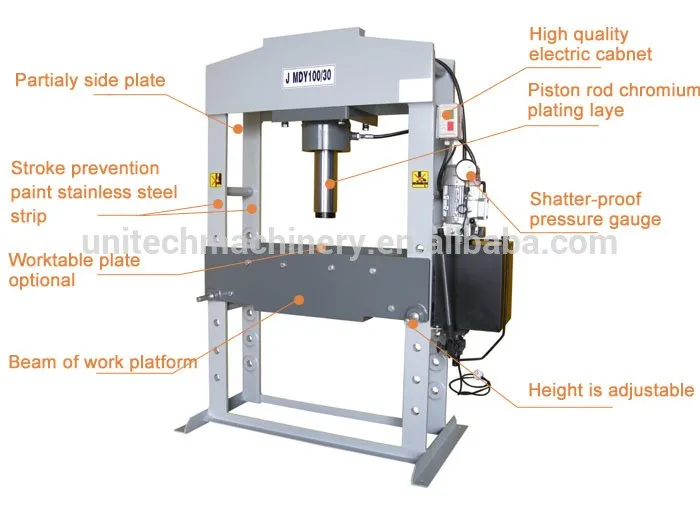

main feature:

1. Optimized steel frame structure, strong and durable

2. Single-piston double-acting hydraulic cylinder, durable

3. Manual control of cylinder rod up and down stroke, convenient and flexible

4. The lifting device moves the workbench beam up and down, which is convenient and simple

5. Electric pump, manual compensation, easy to operate

6. Electric pump, manual compensation, easy to operate, chrome-plated layer of piston rod 3μm

7. Sealing element class B

Model	greatest pressure (kN)	Water pressure (Mpa) electric/manual	Rod stroke (mm)	Speed of work (mm/s)	Table adjustment distance (mm×n)	Motor Power (kilowatt)	net weight/kg)	One	Second	C	Ding	Second
JMDY15/20	150	20	200	\	180×4	1.1	190	860	550	1930	500	910
JMDY25/25	250	20	250	\	200×3	1.5	285	960	650	2050	550	840
JMDY35/35	350	20	250	\	200×4	1.5	380	1060	700	2085	650	1030
JMDY50/25	490	20/25.5	250	3/H4	150×4	2.2	520	1026	700	1805	700	304
JMDY60/25	588	20/26	250	2.6/H3.6	150×5	2.2	730	1076	700	1863	750	368
JMDY100/30	980	20/25.5	300	2.5/H3.5	150×5	3	990	1380	760	2030	1000	185
JMDY160/30	1568	20/25.5	300	2.4/H3.6	150×5	4	1653	1376	870	2200	1000	283
JMDY200/30	1960	20/24.5	300	1.8/H2.7	150×5	4	2450	1586	900	2290	1200	267
JMDY300/30	2940	20/23.5	300	1.2/H1.7	200×3	4	3190	1626	1020	2320	1200	334
