Hydraulic Press / Frame Type Gantry Forging Press / Forming Machine Small 30 Ton 60 Ton Metal Press H Frame Hydraulic Press

Supplier: Jiangsu Cowardson Machinery Technology Co.,ltd
Region: Jiangsu, China
Contact: Mr Lee
Price: $900.00 / 1 - 1 sets
$800.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Function:	metal processing	Applicable industries:	Food & Beverage Stores, Manufacturing Plants, Food & Beverage Plants, Grocery Stores, Restaurants, Print Shops, Retail, Energy & Mining
Name:	Hydraulic punch	Health status:	new
product name:	Gantry hydraulic press	Mechanical test report:	if
Warranty:	2 years	type:	four pillars
usage:	metal stamping machine	system:	normal
Energy source:	hydraulic	Return force (kN):	500kN
Type of machine:	H frame hydraulic press	Video outbound inspection:	if
Local service locations:	U.K.	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Core components:	Bearings, motors, pumps, engines	Core component warranty:	2 years
Showroom location:	not any	Marketing Type:	New product
Main selling points:	high accuracy	Weight (ton):	0.4 tons
color:	Customization	application:	car parts
Origin:	China	Key words:	Mechanical metal punching machine
Motor power (kW):	5.5 kW

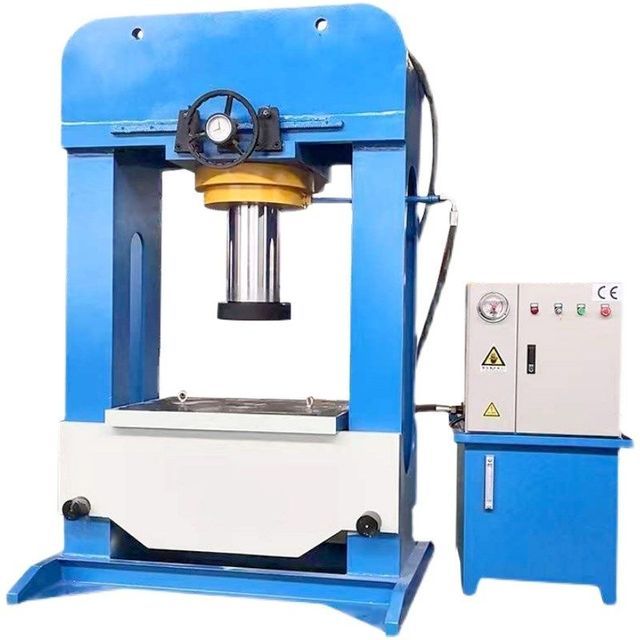

H type gantry hydraulic press

Product Description

The machine adopts an all-steel structure gantry frame, and the mechanical deformation is small after vibration aging treatment. The frame design adopts finite element design, which has high rigidity and high precision. The workbench of the gantry hydraulic press can move up and down, which greatly expands the opening and closing height of the machine, making it more convenient to use. It consists of master cylinder, hydraulic power system and electrical system. The workbench is welded with high-quality steel plates, reliable and durable

Specification

Technical Parameters	20TA	30 tons	40TB	60TB	80TB
Stroke (mm)	200	200	200	200	240
Gantry span(mm)	Chapter 420	520	520	520	520
Table size (mm)	360*400	400*460	400*460	400*460	500*450
Motor power (kW)	2.2	3	5.5	5.5	5.5
Oil pump displacement (ml/R)	6	5	10	10	25
Falling speed (mm/s)	12	6.5	14	12	twenty three
Return speed (mm/s)	No. 19	9.5	No. 19	16	34
net weight/kg)	240	370	370	380	860

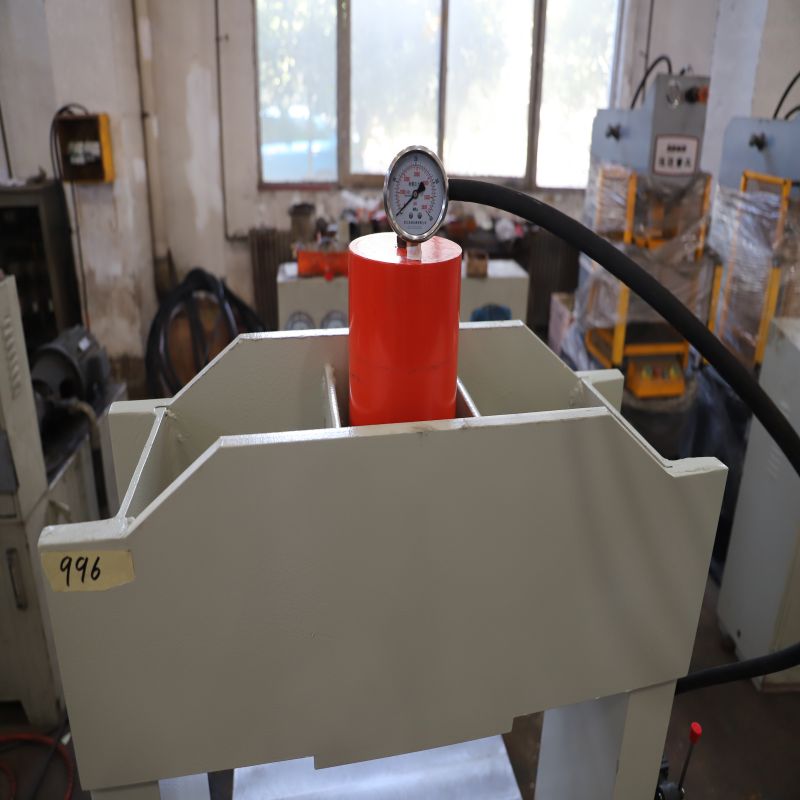

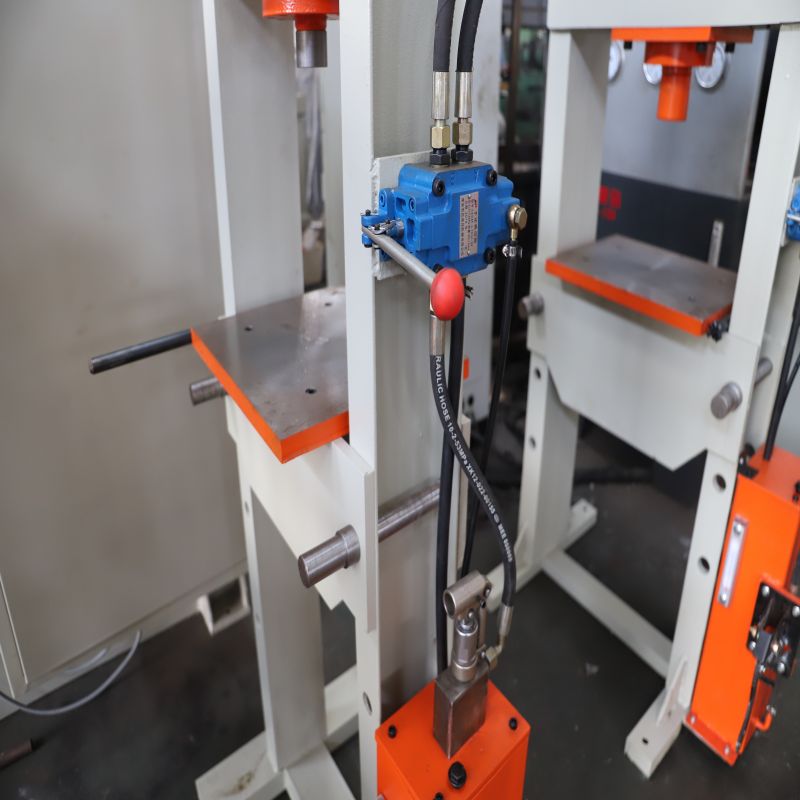

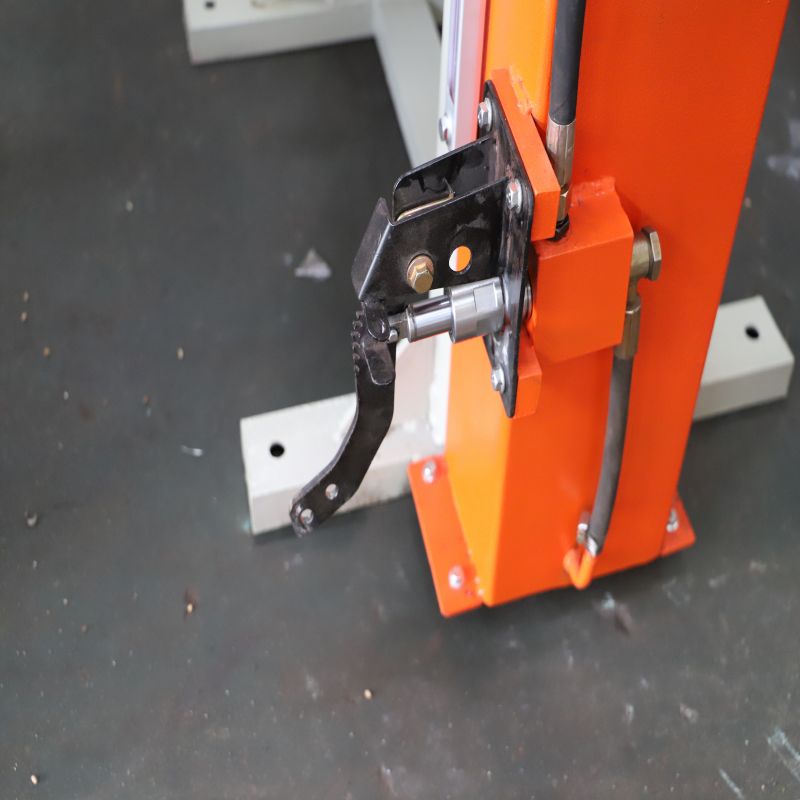

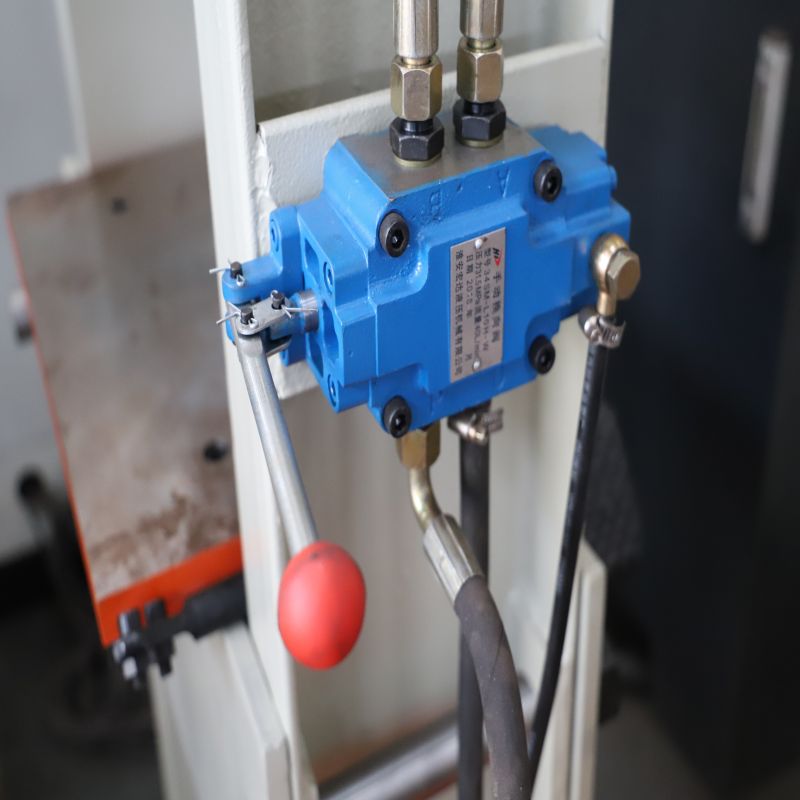

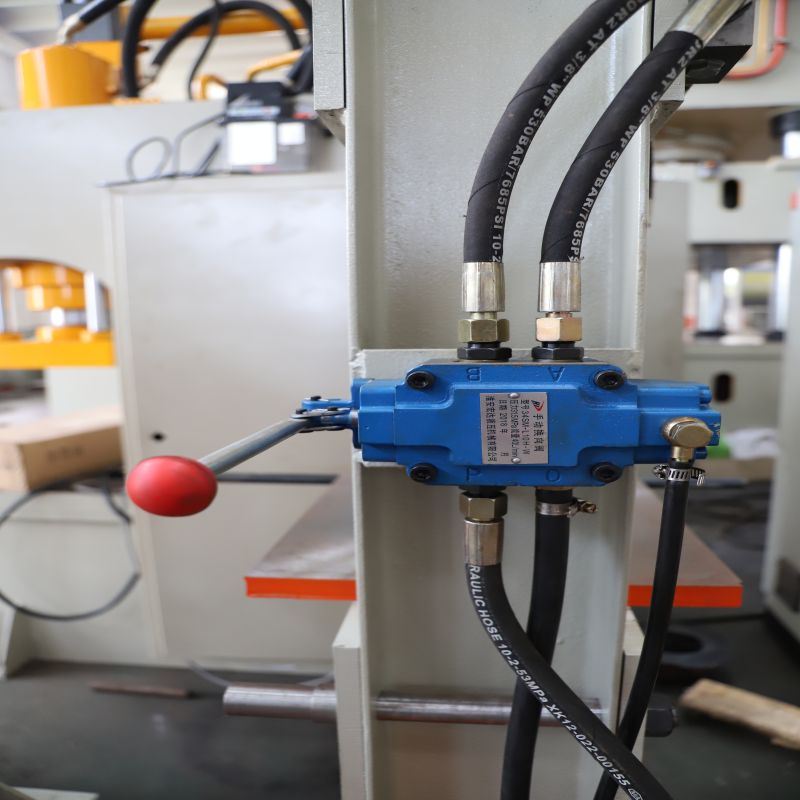

Details

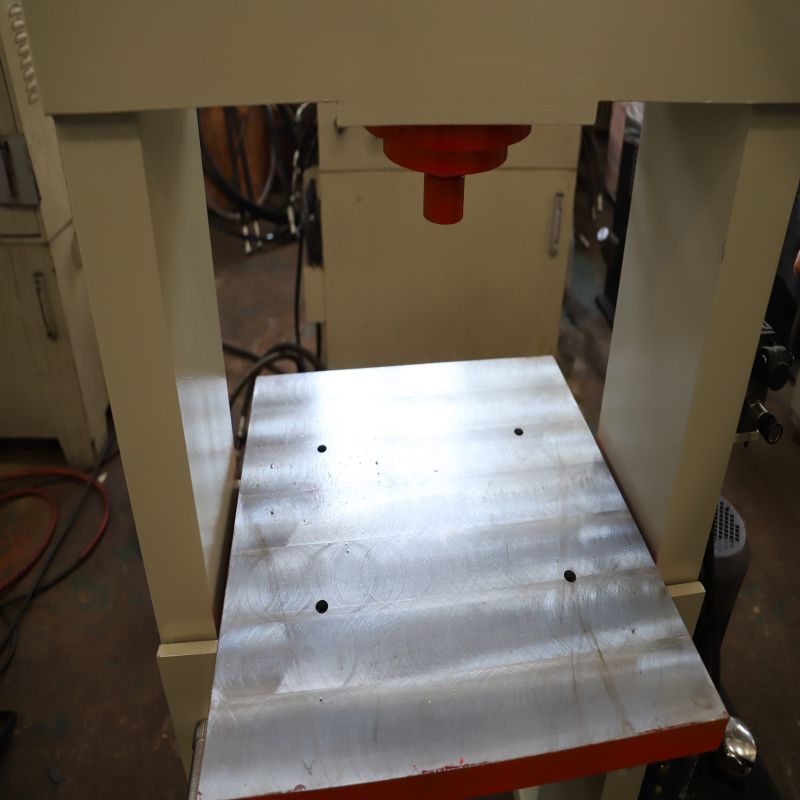

The gantry hydraulic press adopts all-steel structure, and the mechanical deformation is small after vibration aging treatment. Through finite element analysis, the frame design has high rigidity and high precision. The workbench of the gantry hydraulic press can move up and down, which greatly expands the opening and closing height of the machine, making it more convenient to use.

product

It is widely used in pressing work such as disassembly, forming, straightening, stretching, and sheet metal forming in the machinery industry, and can be used for one-time cold riveting of split-angle teeth. It is an indispensable pressure-bearing equipment in the modern automobile maintenance industry.
