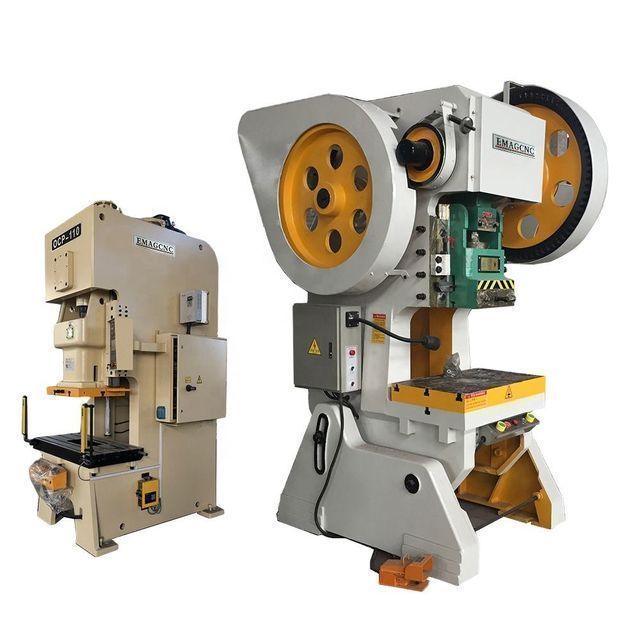

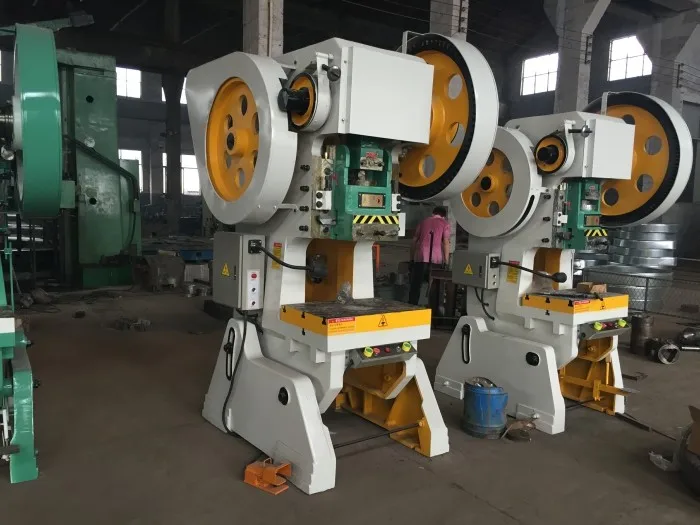

10Ton C Frame Punching Machine Small Hydraulic Press Machine

 feature:

Overall structure
(1).C-frame provides maximum rigidity and minimum deflection for precision parts and long tool life.
Steel welded frame, high rigidity, small deformation and compact. Slabs and Columns Provided
Gives you the stable platform you need for demanding applications.
(2). Wide body frame eliminates vibration, improves IDE life and machine, which means economical
practical. The operating space is wide, and the movable backing plate can be moved out of the rack for setting
mold. The structure is simple, and the appliance is also beautiful.
(3). High precision, high efficiency, simple and convenient operation, good performance and favorable price
and the best service.
Transmission Control and Braking Systems
(1). Combination of dry friction clutch and pneumatic brake, rigid interlock, reliable disc
Friction material Semi-metallic friction material SMFM88, less pollution and long life. With the transmitted torque,

Small moment of inertia, stable transmission, flexible operation, convenient installation and maintenance
(2). The sliding block mold adjustment adopts manual mode, and the scale is displayed. Extended by four triangular rails,
Easy to adjust.
(3). Double safety valves are used to ensure the accurate execution of clutch commands.
(4). The electrical control adopts PLC and 8 groups of cam controllers, and the action is reliable.
(5). The electrical control adopts Omron PLC centralized control to improve the reliability of the machine
(6). Proximity switches composed of 8 groups of Schneider cam controllers are used, and the synchronization is reliable.
detection and monitoring.
(7). The machine adopts two-hand buttons and foot switches, which can realize continuous, single and inching exercises.
(8). The ram can be moved up slowly, which is convenient for the operator to control the mold adjustment.
RAM Tuning and Structure
(1). Adjustable stroke machine, the stroke of the slider reaches a certain level within the adjustable range, and the body
Steel plate welded structure, tempered as a whole, adopts secondary transmission, transmission

The crankshaft is arranged horizontally, and the flywheel and gears are all open, which is convenient for maintenance.
(2). The slider is a cast box structure with good rigidity. Crashing slider mount pressure overload

Protection device, simple structure, if the slider is overloaded,
The fuse is blown and damaged, and then protects the machine tool and mold from damage.
Electrical system and safety interlocks
(1). The electrical components are imported or Sino-foreign joint ventures, in line with international standards

Standard, safe and reliable, long life, strong anti-interference ability, and a radiation unit is installed in the electrical cabinet.
(2). Guardrail and safety interlock to ensure safe operation. It has a movable one-handed foot switch, which is easy to operate.

scope:

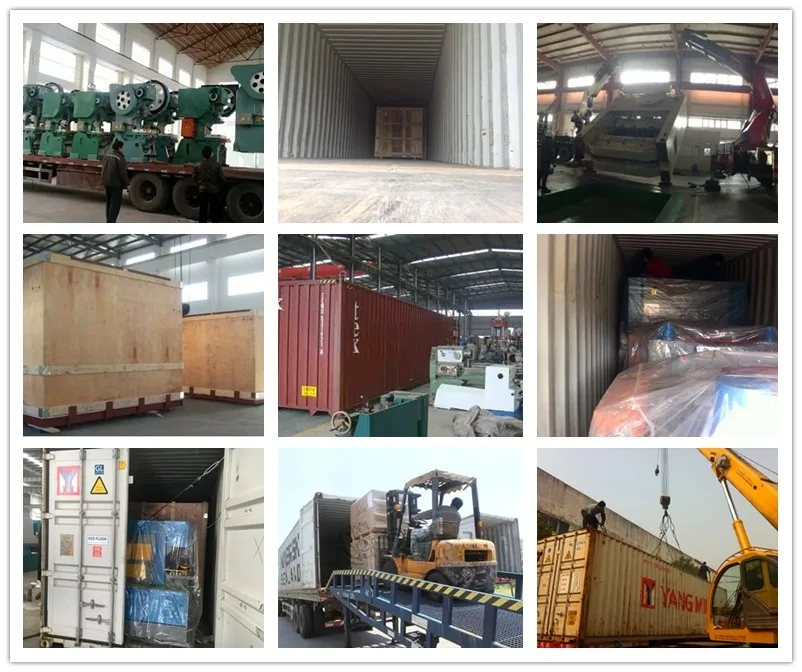

Packaging and Shipping:
