3d A4 size vacuum sublimation film oven

Supplier: Shenzhen Caseblanks Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Stanley Lee
Price: $420.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Dimension(LWH):	470670570mm;	After-sales Service Provided:	Overseas third-party support available;
Port:	Shenzhen;	Configuration of Plate:	4pcs;
Type:	Drying Oven;	Key word:	3d sublimation oven;
Condition:	New;	Certification:	CE;
Power(W):	1000;	Heating system:	Hot Blast;
Supply Ability:	1000 Piece/Pieces per Month;	Delivery Detail:	after payment done 15 days;
Packaging Detail:	wooden case packaging each unit, shipping by express;	Payment Terms:	L/C,D/P,T/T,Western Union;
Application:	dry sublimation film;	Warranty:	1 year;
Voltage:	110V/220V;	Accept film size:	A4 size;
Product name:	Film oven;	Place of Origin:	Guangdong China (Mainland);
Film dry temperature:	30℃/15mins;	Weight:	50kg;

Product Description

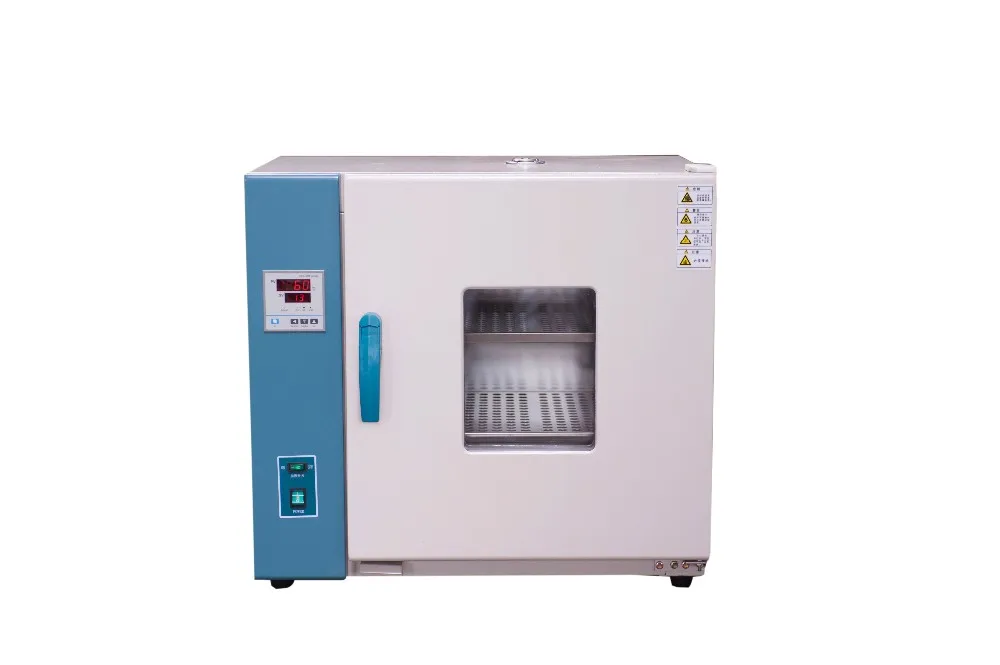

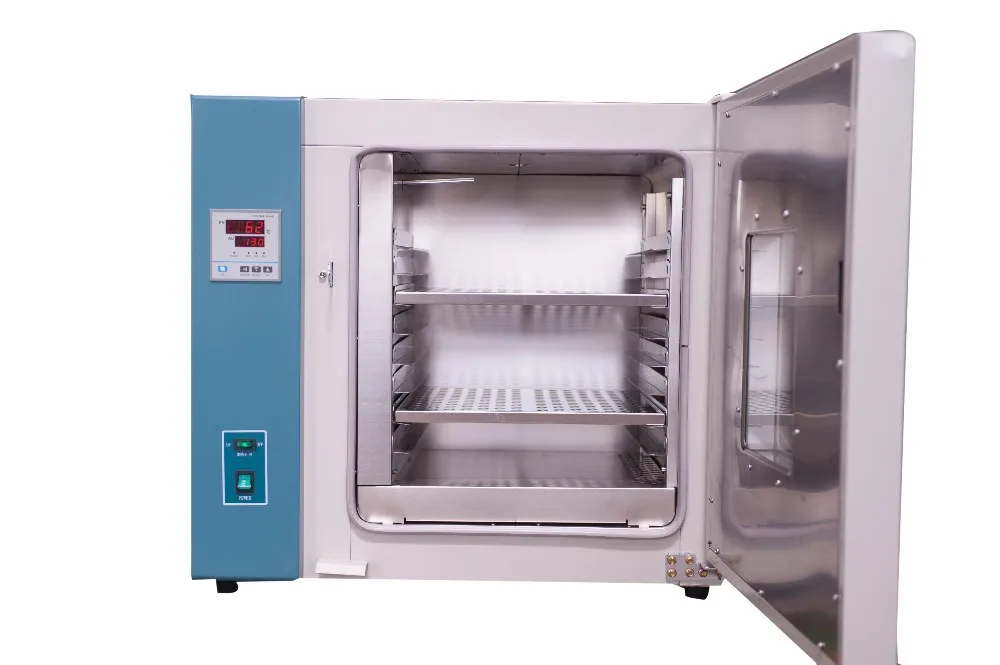

3d A4 size vacuum sublimation film oven

The vacuum sublimation film oven is Perfect for drying sublimation film that apply on printing sublimation phone case.

If you don't use oven to dry the film, then you need to put it dry naturally 30 mins. But it takes long time to print a case. Otherwise, the color printed on the case would be lighter or other problem. So if you use the oven, only 15 mins would be done. And nice printing.

We have A3 and A4 size of vacuum sublimation oven for you to choose.

Machine Model	OV350
Accept film Size	A4

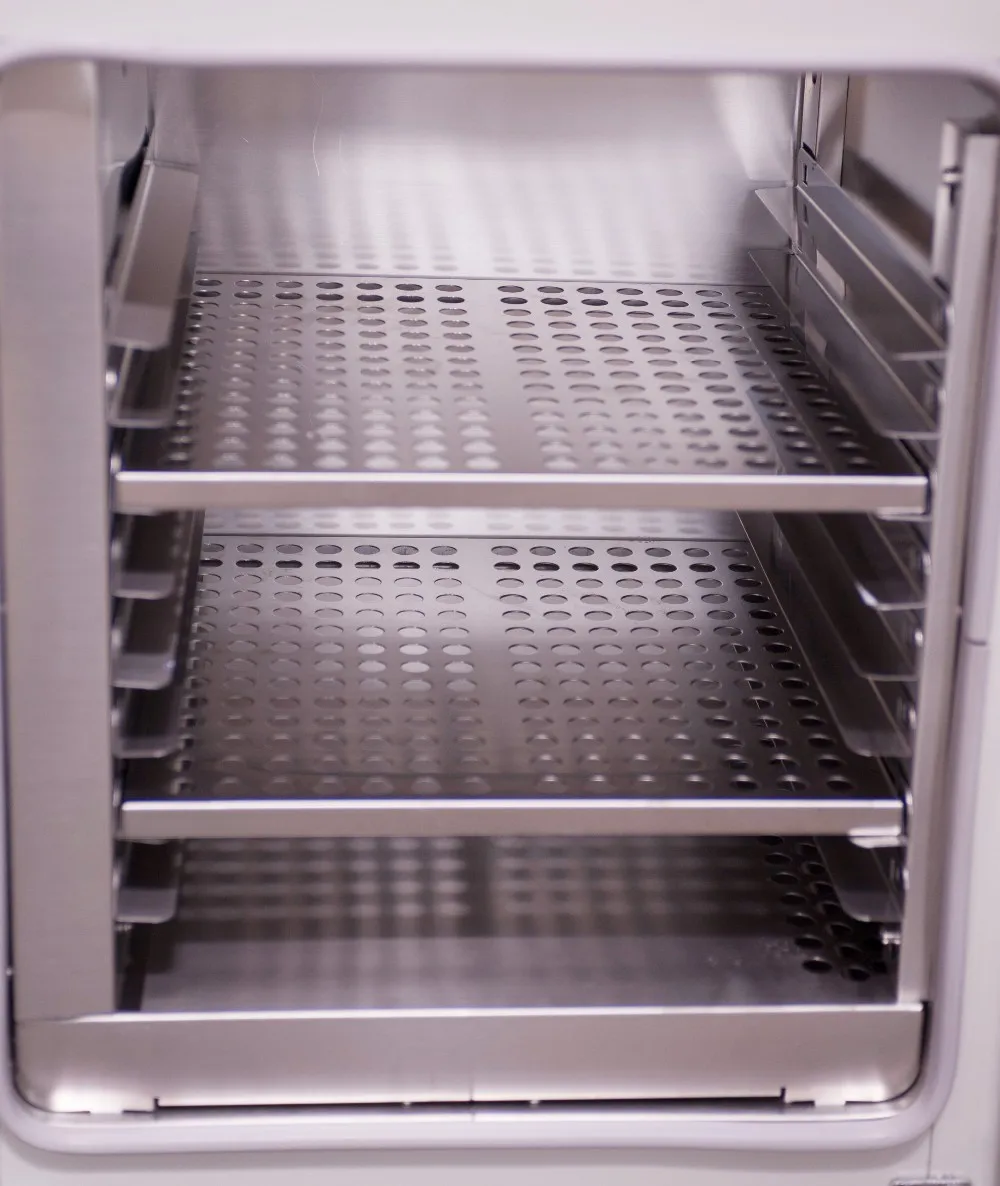

Max Number of Plate	8pcs

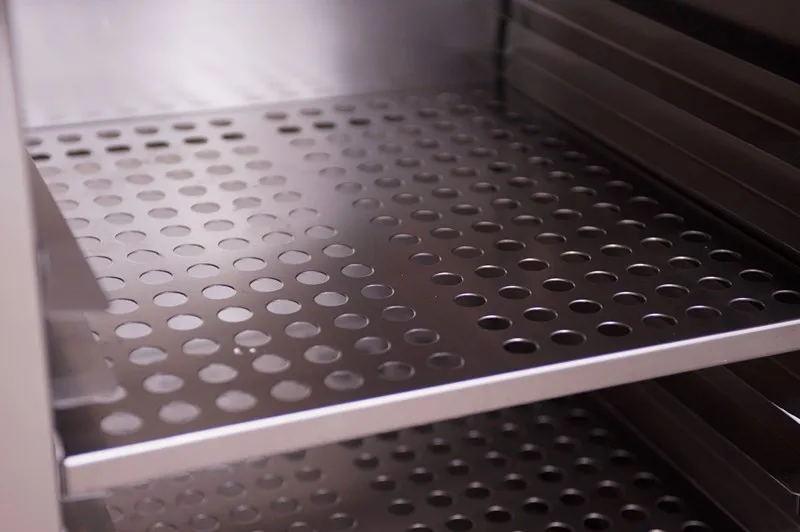

Configuration of Plate	4pcs
Power	1000W
Film Dry Temp	30℃/15 mins
Inside Dimension	350360350mm
Outside Dimension	470670570mm
Heating system	Hot Blast
Material	Metal
Voltage	110V/220V
N.W.	42kg
Certificate	CE

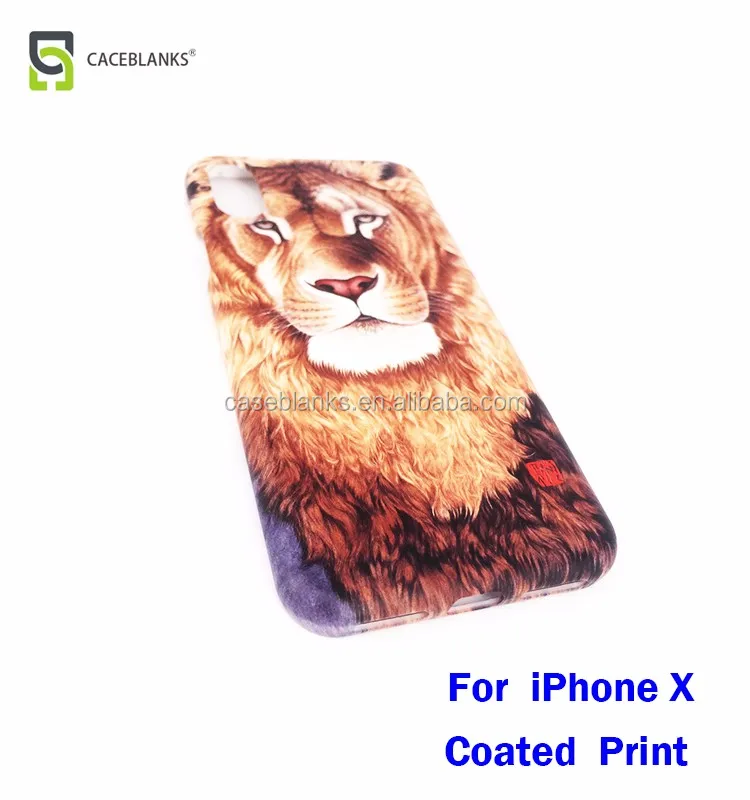

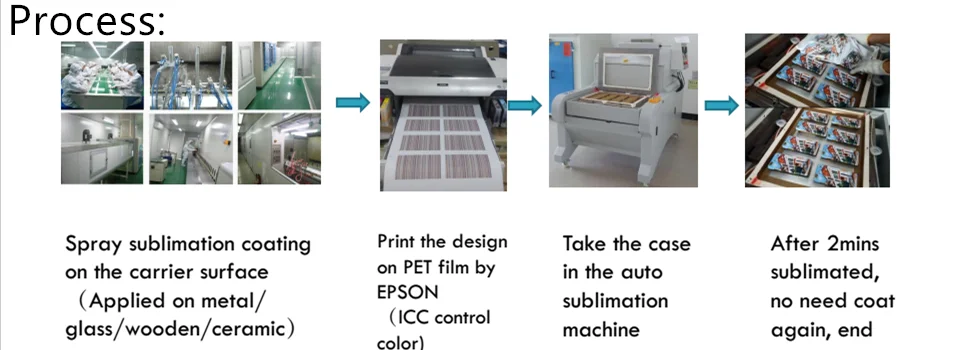

The Process of Printing 3D Sublimation Coated Phone Case (Shenzhen Caseblanks Technology Co., Ltd)

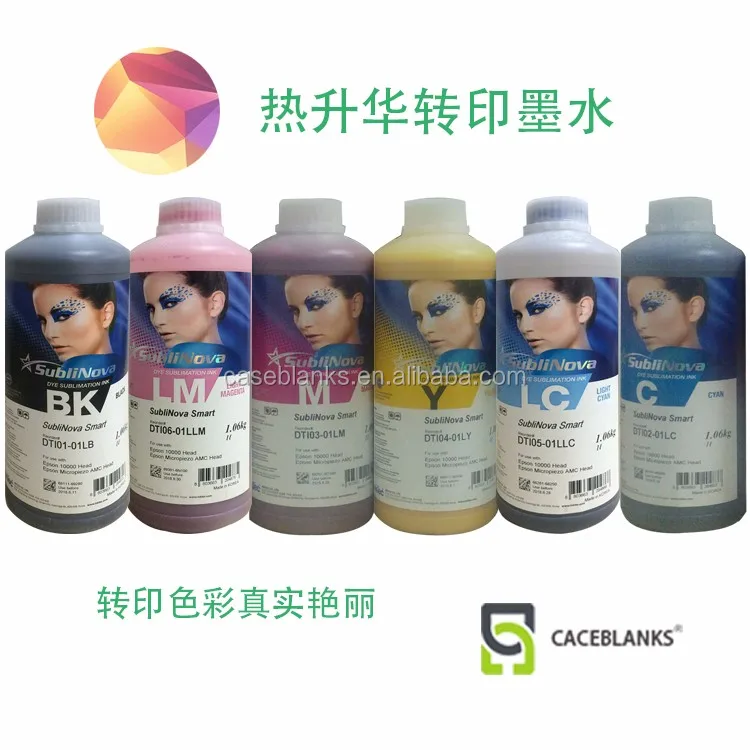

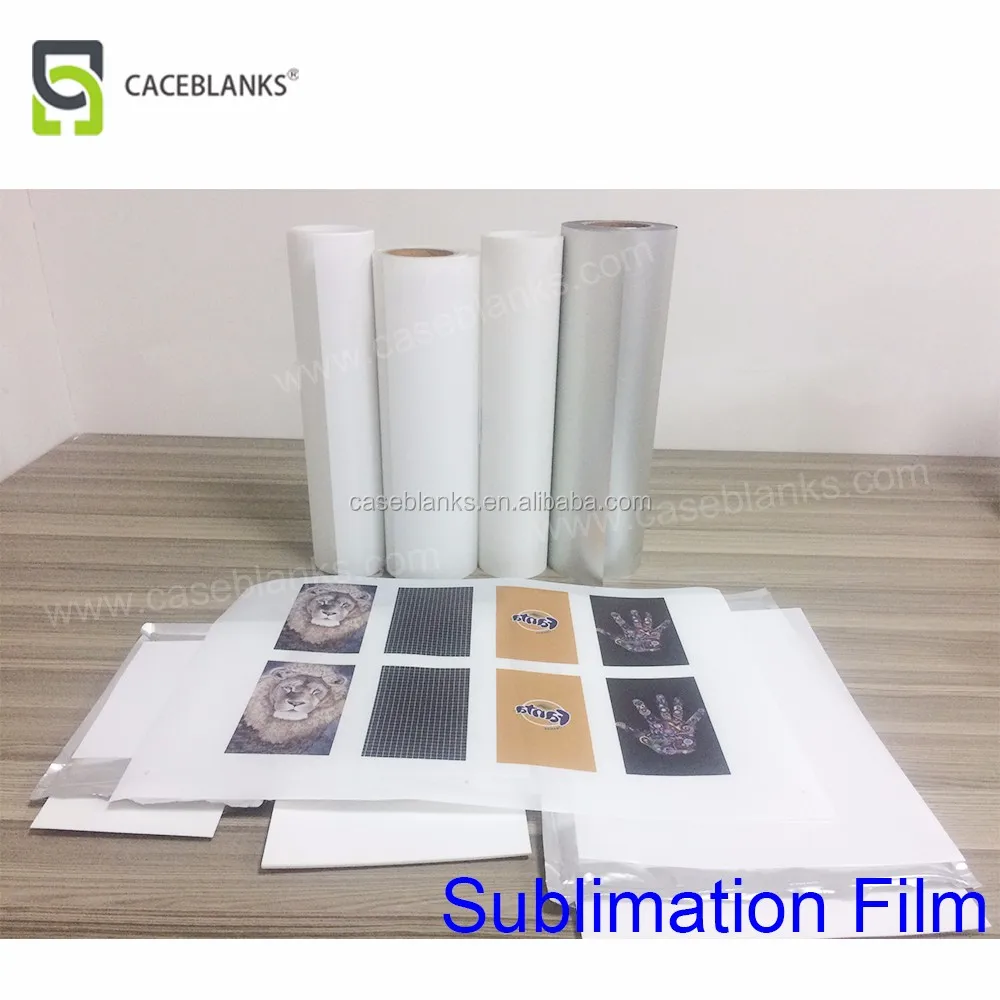

1,Printing the images onto the 3D sublimation film with low-temperature sublimation ink;
2, Put the sublimation film into the vacuum sublimation film oven for drying the film. 10-15 mins.

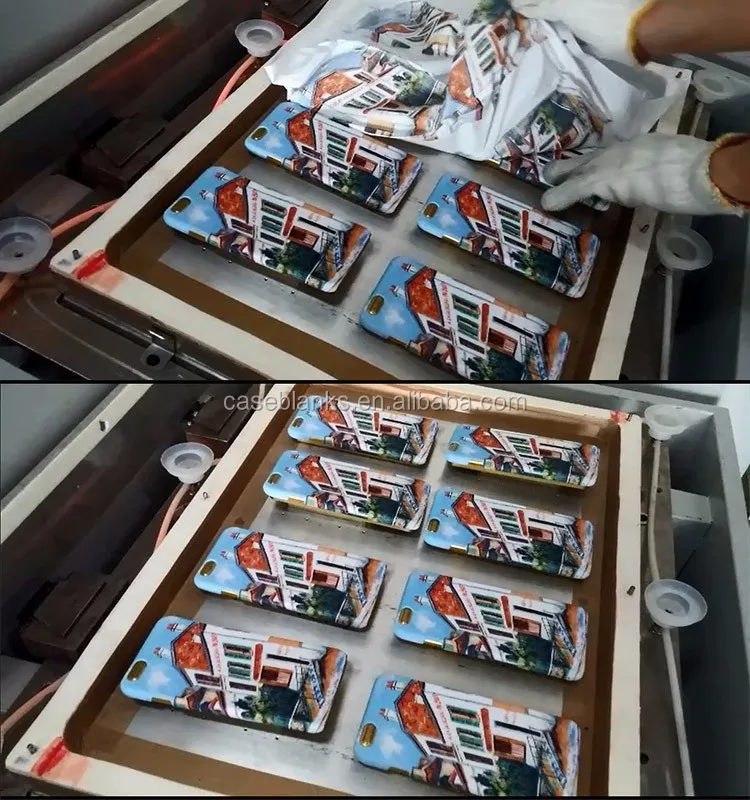

3, Put the 3D phone case onto the jig, and put the 3D sublimation film on to the tray, close the tray and lock it;

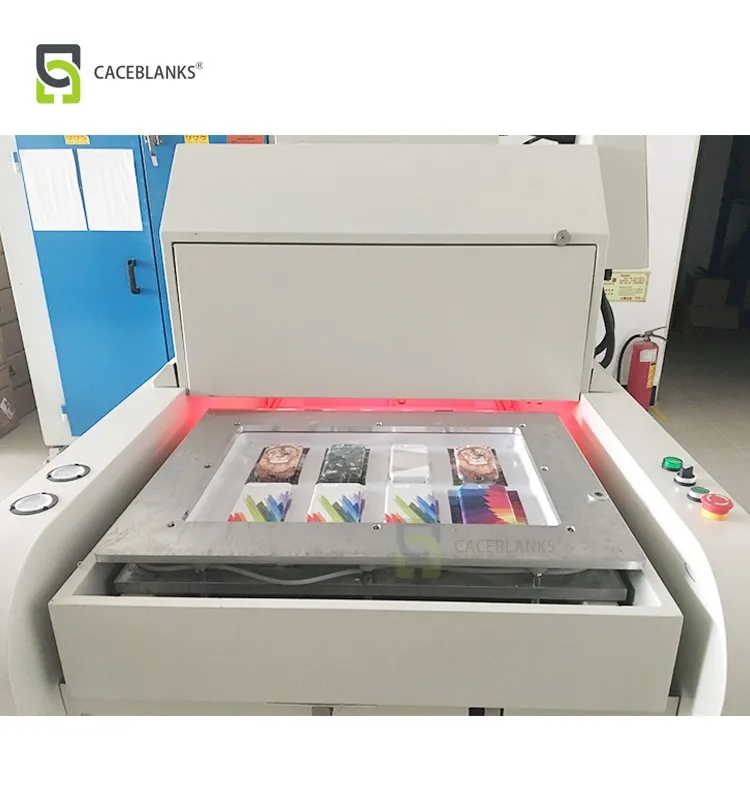

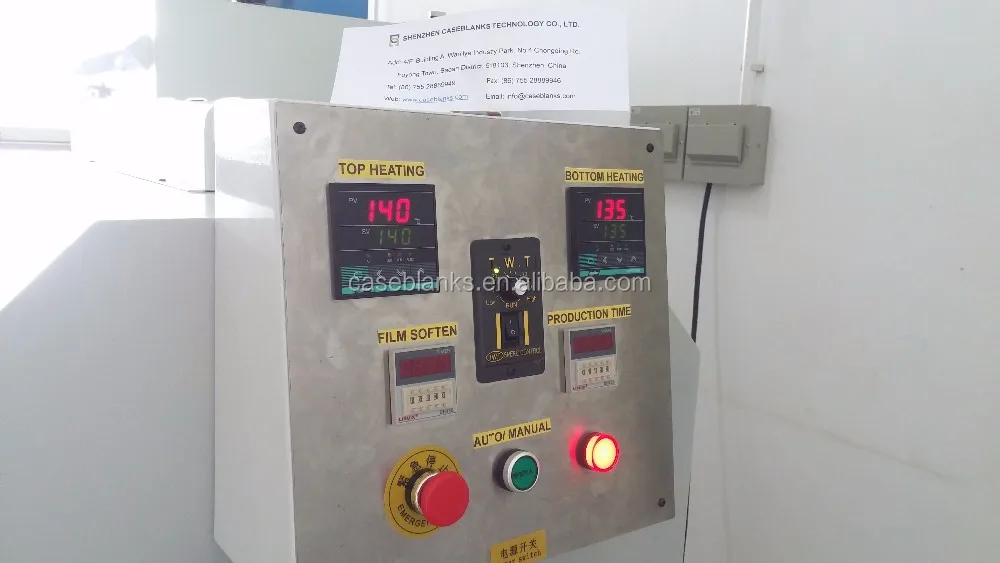

4, Put the tray into the middle of the machine, pre-heat 15 seconds, then press vaccum, and sublimating with 6 minutes @ 140 centigrade;
5, After sublimation, take off the 3D sublimation film, and cool in natural environment in 1 minute, no need cooling jig because it is no shrinking.
