plastic pyrolysis plant cost with ISO

Supplier: Henan Barui Environmental Protection Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Andy Lee
Price: $28000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Machine Type:	Automatic;
Type:	Tire Machine;	Dimension(LWH):	2600mm*6600mm;
delivery time:	12 days after advance time;	After-sales Service Provided:	Engineers available to service machinery overseas;
cooling mode:	water cycle;	Condition:	New;
Power(W):	18kw;	Voltage:	380V;
Name:	Automatic waste tire plastics pyrolysis machine;	Brand Name:	baruie;
Weight:	35-40 Ton;	Model Number:	TF-20;
Place of Origin:	Henan China (Mainland);	Supply Ability:	12 Set/Sets per Quarter pyrolysis machine;
manufacturing time:	28 days;	life:	5 year;
Port:	QINGDAO;	Delivery Detail:	With in 30 days after the the first deposit;
Warranty:	1 Year;	Tire Machine Type:	Tire Recycling Machine;
work need:	3~4;	installation time:	25~30 days;
Certification:	ISO;	after serive:	Engineers available to service;
heating mode:	coat fuel oil fuel gas;	Packaging Detail:	All goods are packed with export standard package to make sure no damage during transportation.;

main charatetistic

With the rapid development of the automobile industry, the number of scrapped tires is increasing every year.If the waste tires are not properly handled, they can cause serious pollution to the environment, and also cause serious problems for the fire.
The current environmental treatment of waste tires is to use regenerative technology,one side the project can reduce the exploitation of non-renewable resources and protect the environment,on the other hand the project have handsome profit when the pyrolysis machine extracts fuel,and the The government will also have subsidies

Our products have these characteristic:
1.The design scheme is the lastest, the equipment is more refined, the area is less, the oil rate is higher, production process is more safe and environmentally friendly
2.provide the complete set of equipment, technical support and after-sales service

3.corrosion and reduce the pollution

4. inner of the pyrolysis line irun in micro neagive pressure ,the process can prevent gas leakage

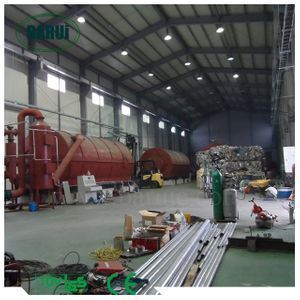

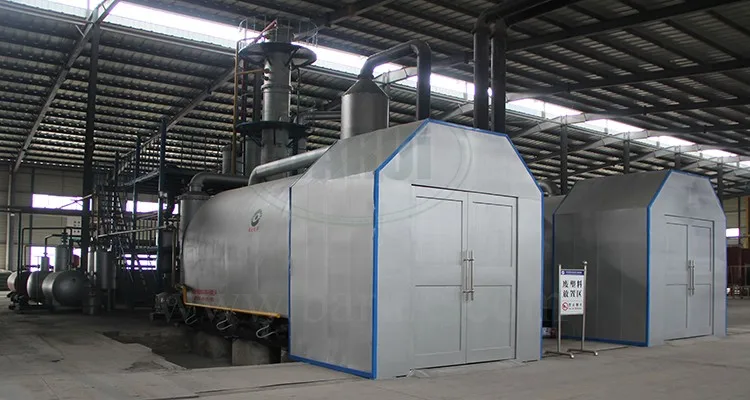

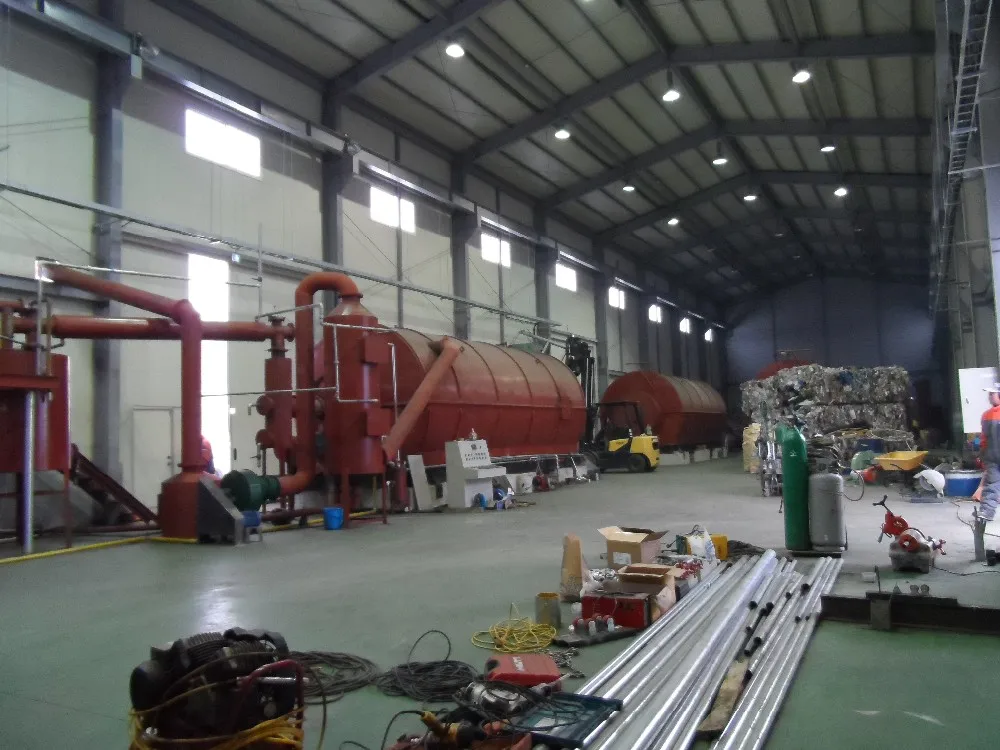

Products Show

production process:The machine is divided into ten tons and five tons, and the main raw materials are used waste tires with a diameter of 2.2 meters.

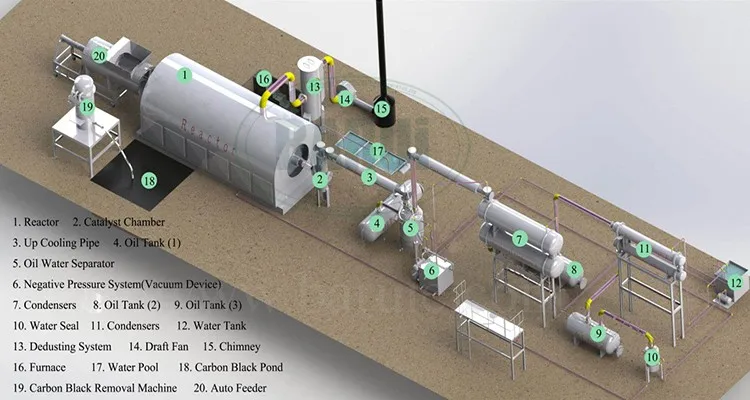

The main process flow is as follow: the waste tire is send to the the reactor by the auto feeder, then the temperature of the reactor will keep rise by the furnace (the maximum temperature can reach 400 degrees), the high temperature turn waste tires into fuel oil and oil gas, then they enter the up cooling pipe and through oil water separator the fuel oil and some fuel oil which is preliminary condensed store into the first oil tank, the other oil gas will continue to condensation by the condensate system (the whole The whole process is under negative pressure though negative pressure system)

With the help of the condenser , The oil gas through cool pipe store into oil tank step by step, The oil gas will continue to be condensed twice at least, make sure that we can get the best fuel conversion rate.

Economic benefits

pyrolysis machine

cost
item	consumption	unit price	TF-20	amount
cost of tires	1 ton	$60.00/mt	$60*1t	$60.00
electricity	9 kwh	$0.15/kwh	$0.15*9kwh	$1.35
fuel cost	0.08 ton coal	$150.00/h	$150.00*0.08t	$12.00
salary	3 workers (0.1day)	$20.00/day	$2030.1	$6.00
total manufacturing cost/day				$79.35

profit:
item	unit price	quantity	amount
pyrolysis oil	$0.8/l	450L	$360.00
carbon black mixtures	$0.02/kg	350KG	$7.00
total profit/day			$367.00
net profit/ton			$287.65

Our Company

Henan Baruie Environmental Protection Equipment CO.,LTD

Henan Baruie Environmental Protection Equipment CO.,LTD, locates in China (henan) Pilot Free Trade Zone, Zhengzhou economic and technological development zone. That is a high-tech enterprise, which does environment plant, machinery research and marketing, integration of sales and after sales service.
The independent research and development of interactive turbulent pipe reactor is the new star of biodiesel industry. With this technology, the quality of biodiesel finally breaks the limit of European standard biodiesel.
