Tenghong TH-658A Hydraulic Computer Automatic Gluing Fully Automatic Side Heel Upper Machine

Supplier: Guangdong Tenghong Machinery Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Miss Wei
Price: $22000.00 / 1 - 2 pieces
$21000.00 / >=3 pieces
Min. Order: 1 piece

Click here to contact

Product details

Dimensions (LWH):	170013001750	Mechanical test report:	if
Packaging Details:	Standard export wooden case packaging	Core component warranty:	1 year
Warranty:	1 year,1 year	brand:	Teng Hong
Applicable industries:	Manufacturing plant, other, shoe equipment, shoe factory, shoe industry	Marketing Type:	normal product
Video factory inspection:	if	weight:	1045 kg,1045
Automatic:	automatic	After-sales service provided:	Engineers can provide services for overseas machinery
Health status:	new	Key words:	Shoe Machinery
product name:	Computer automatic heel lasting machine	strength:	2.2 kW, 2200
port:	Shenzhen, Guangzhou	Production capacity:	1800
payment terms:	Letter of Credit, Telegraphic Transfer	application:	Shoe Factory
Core components:	PLC, engine, motor, pump	Exhibition Hall Location:	Egypt, Türkiye, Indonesia, Pakistan
color:	customizable	Origin:	Guangdong, China
aspect:	1700x1300x1750 mm	Supply capacity:	1000 pieces per day
Package Preview:		Voltage:	380v/50HZ (according to customer requirements), 380v
Keyword 2:	Upper Machine

Product Description

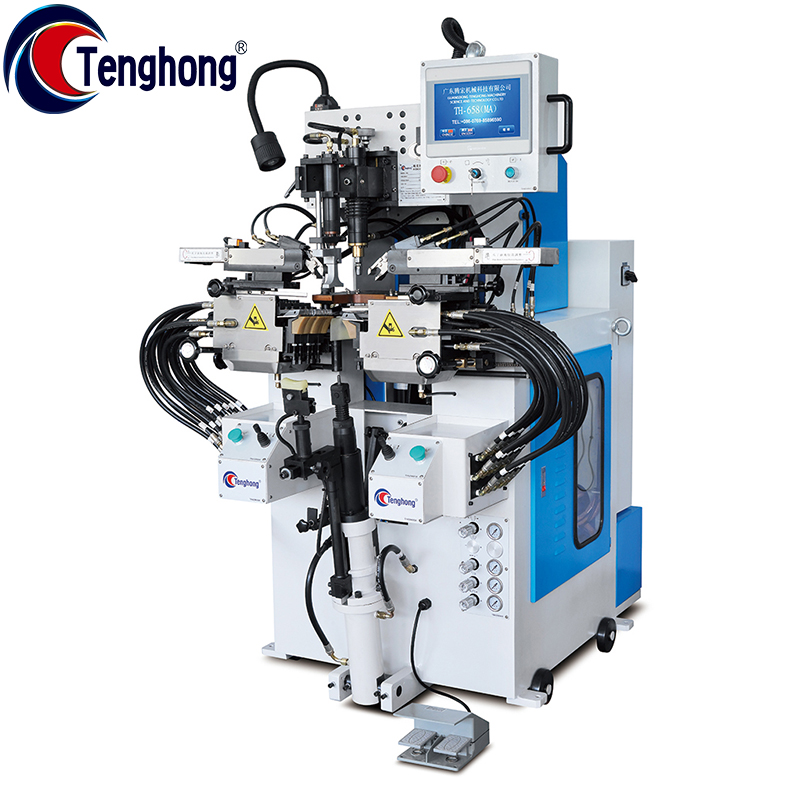

TH-658A/B Computerized Automatic Heel Lasting Machine

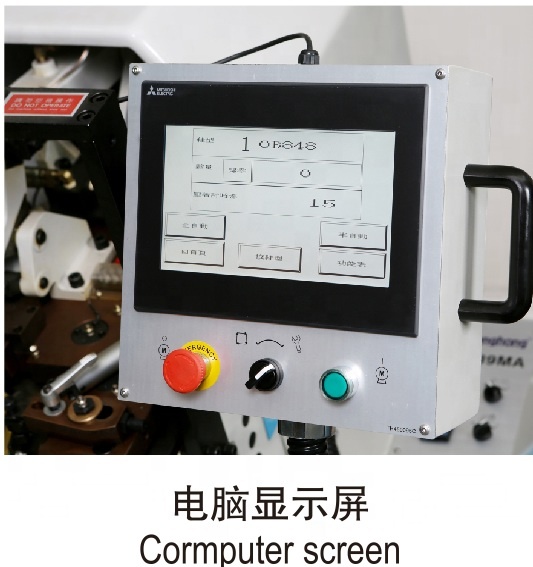

This machine can complete the shoe upper and the back of the shoe in one go. The PLC system is equipped with a touch screen to operate the machine with graphic symbols. The setting of parameters (time and stroke) is entered via numeric keys. It has key switch protection to prevent unauthorized personnel from reading or changing it. Error diagnosis can be read on the touch screen.

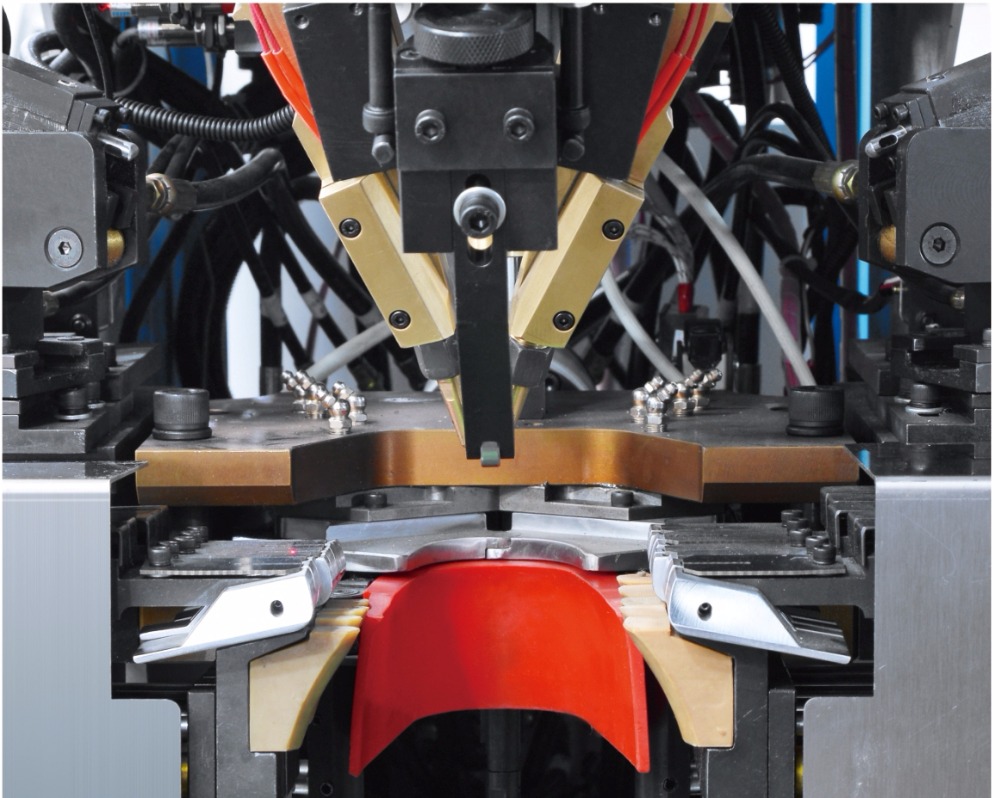

The heel belt transmission adopts a chain mechanism, the side help device adopts a four-finger help structure with overlapping help area design function, the finger help mechanism is designed with left and right balance adjustable, and has two-level operating pressure settings to achieve special reverse pull on the side help and heel area, the heel help device and the top cylinder adopt double sensors, and the machine operation is safer.

This machine can save 4-6 people of labor.

Specification

Model	TH-658A/B
capacity	1300-1600 pairs/8 hours
power supply	380V/50Hz
strength	2.2 kW
Pneumatic supply	5 MPa
Elektrave	1.3 kW
northwest	1045 kg
aspect	170130175cm
