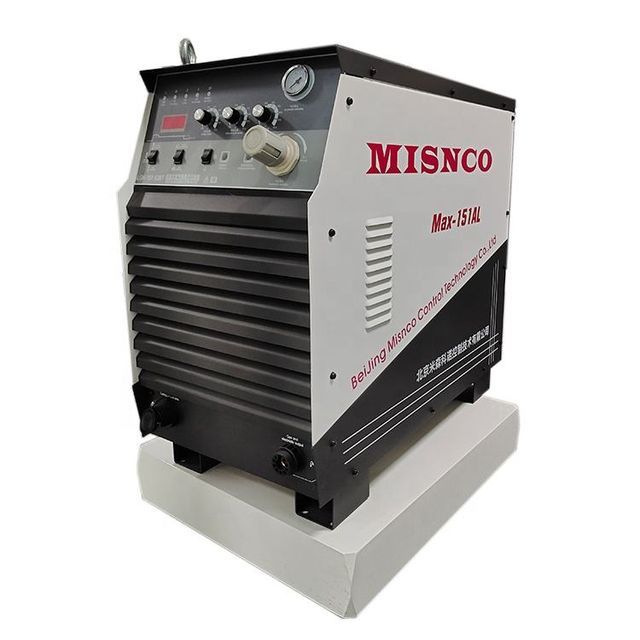

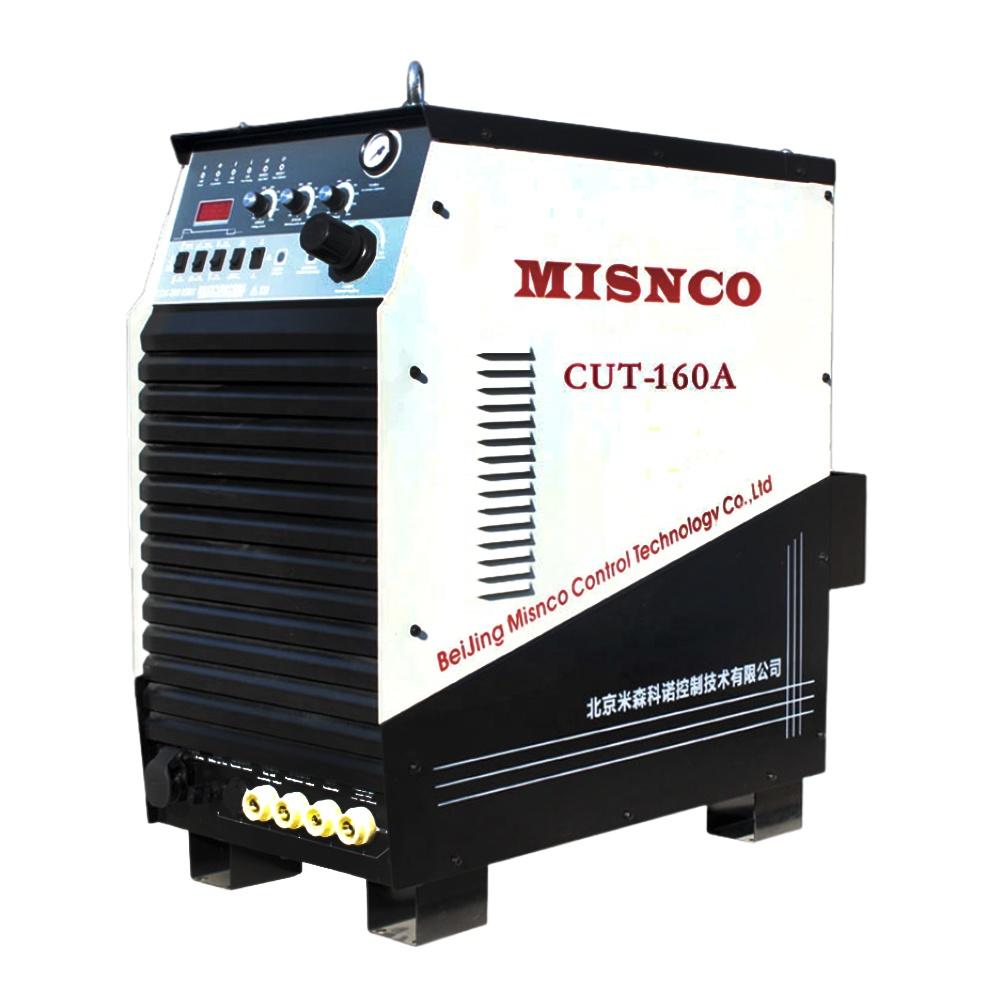

Best Brand Plasma Power Supply for CNC Plasma Cutting Machine

Click here to contact

Product details

Product Description

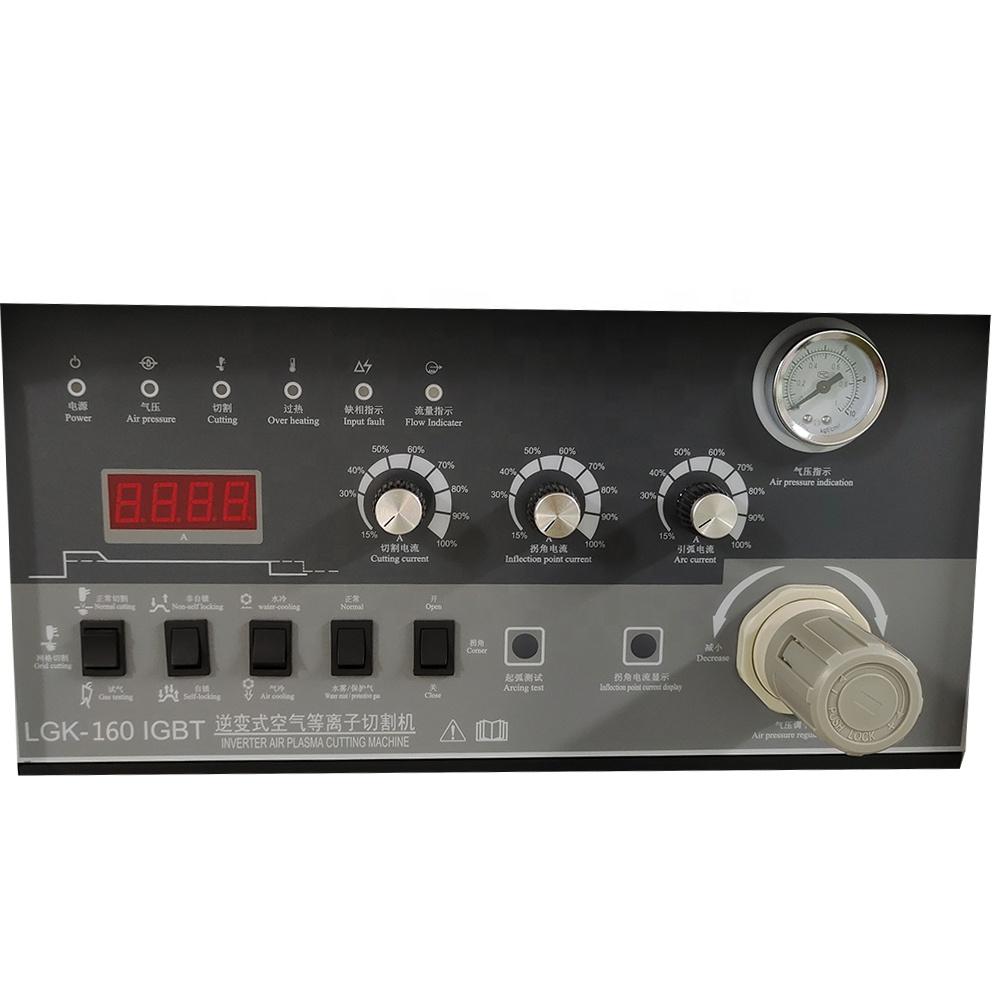

Specification	LGK-160IGBT
Power specifications	300～380V/50Hz±10%
Input power	32.2KVA
Rated output current	160A
Rated output voltage	140V
Rated working cycle	100%
open circuit voltage	315VDC
Current adjustment range	30~160A
Enter the cross-sectional area Copper core wire (mm²)	≥6 square GB
Fuse (A)	160
Switching capacity	160
Quality perforation thickness (steel)	0.3～20mm
Maximum piercing thickness (steel)	20mm
Use plasma gas	compressed air
Working plasma gas pressure	0.4～0.6MPa
Cutting torch cooling method	water cooling
arc method	Non-contact ignition (high frequency arc ignition)
Insulation level	F
Housing protection level	IP21S
Net weight/packing weight	74kg/89kg
Dimensions (lengthwidthheight) mm	785385770
Packaging size mm (lengthwidthheight)	855460880
