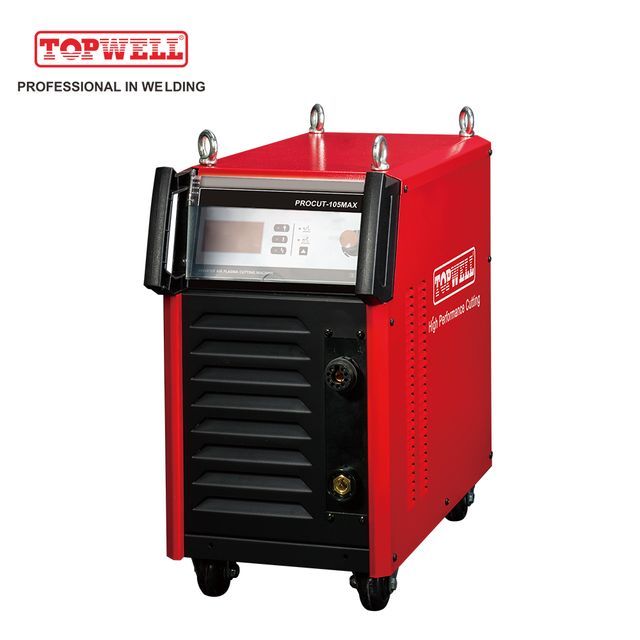

Non-high frequency ignition 105A plasma cutting machine PROCUT-105MAX, suitable for mechanized and manual cutting

Supplier: Hangzhou Topwell Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Robin Yan
Price: $3600.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

After-sales service provided:	Overseas service center	Name:	PROCUT-105MAX
payment terms:	Western Union, Wire Transfer, MoneyGram	Operating temperature:	0-10℃~40℃
Video outbound inspection:	if	Open circuit voltage (OCV):	350VDC
rated power:	136KVA	brand:	topwell
Applicable industries:	Building materials stores, machine repair shops, manufacturing plants, restaurants, home furnishings, retail, construction projects	Core component warranty:	1 year
Year:	2023	Rated input voltage:	220V 380V 400V three-phase
Package preview:		Weight (kg):	58kg
maximum. The output voltage:	160VDC	Health status:	new
port:	Shanghai	Mechanical test report:	if
Rated duty cycle at 40°C:	380V/400V: 100%@105A	Open circuit voltage:	220V~400V
Core components:	engine	Place of origin:	Zhejiang, China
Gas preflow/delay time:	Default	Rated load@100%:	380V/400V: 100%@105A
Warranty:	1 year	type:	Plasma power supply
High-quality cutting thickness (500mm/min):	1mm to 15mm	maximum. Output current:	105A
Marketing type:	2020 new products	Dimensions (lengthwidthheight):	540240480mm,680x310x650mm
Gas supply:	Clean, dry, oil-free air or nitrogen	Showroom location:	not any
Voltage:	380V	weight:	55
Packaging details:	carton

Product Description

Product105MAX

Specification

system	Product105MAX
Input voltage (±10%)	380V, three-phase, 50/60Hz
kilowatt output	16.8kW
Input current@16.8kW	380V, three-phase, 44A
Output current	105A
Rated output voltage	160V DC
Duty Cycle @ 40°C (104°F)	105A@100%
Open circuit voltage (OCV)	350 VDC
Dimensions with handle	Depth 680 mm; width 310 mm; height 650 mm
Weight (including 7.5 m cutting torch)	55kg
torch	CNC: TP 105/7.5 M
Air supply	Air
Recommended gas inlet flow/pressure	217 l/min (460 scf/h) @ 6.5 bar (94 psi)
Engine drive requirements	30 kW for full 105 A output
Certification	EU CE, ROHS

Superior mechanized cutting capabilities

*Quick, clean cuts (without slag) up to 18mm, maximum piercing of mild steel up to 25mm.

*It offers versatility for portable automation, XY table cutting, wide range cutting and robotic cutting.

*Relative cutting performance of mild steel.

maximum productivity

*Cuts up to five times faster than oxyfuel cutting on 12 mm (1/2 in.) mild steel, completing jobs faster.

*Superior cut quality means you spend less time sanding and edge preparation.

*100% duty cycle maximizes your cutting time.

*A variety of easy-to-use torch styles let you use the same system for a variety of jobs.

Reduce operating costs

*Consumable parts life is four times longer than other systems in this amperage range.

*Electrode end-of-life detection protects electrodes
Automatically protecting the cutting torch and workpiece from damage is more reliable and stable.

*100% duty cycle maximizes your cutting time.

*Designed for the most demanding production environments with 100% duty cycle.

*Designed and tested to the TOPWELL PROCUT family of products for superior reliability in the most demanding cutting environments.

CNC operation data

product name	Product105MAX
Material thickness(mm)	Cutting current(A)	Cutting speed (mm/min)
6	105A	4110
8	105A	3220
10	105A	2410
12	105A	1810
16	105A	1050
20	105A	780

Operational capability

product name	Product105MAX
capacity	thickness	speed
For CNC
No slag	16mm	900mm/min
pierce*	22mm	700mm/min
For manual cutting
respected	32mm	500mm/min
Severance pay	50mm	125mm/min
for gouging
metal removal rate	21.7 pounds per hour
groove profile	0.25" deep x 0.29" wide

*Puncture rating for handheld use or CNC torch height control

Manual cutting

Thanks to its portability and high power, the PROCUT system can also be equipped with a handheld or machine cutting torch to suit the application, leaving good cut edge quality.
