Rated Output Current (TIG): | 250A; | Color: | Red; |
Welding Current/Voltage Range: | 5A/10.2V-250A/20V; | Rated Duty Cycle: | 60%; |
Voltage: | 220V-240V; | Warranty: | 3 Years; |
Pulse Frequency: | 0.2-20Hz; | Single package size: | 58X26X57 cm; |
Usage: | Professional Purpose; | Brand Name: | TOPWELL; |
Rated Input Voltage: | 220V; | dimension: | 490x230x385mm(LxWxH); |
Motor Type: | AC Motor; | Single gross weight: | 32 KG; |
Rated Duty Cycle @40°C (TIG): | 60%; | Cooling type: | Fan cooling, but water cooling unit optional.; |
Package Type: | carton box; | Package Preview: | https://sc01.alicdn.com/kf/HTB1dRhHafvsK1Rjy0Fiq6zwtXXau.jpg_640x640.jpg; |

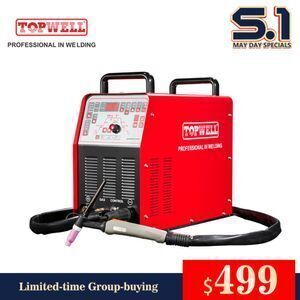

Mastertig-250AC: | 250a AC/DC TIG welding machine; | Certification: | CE, LVD,EMC; |
Material / Metal Processed: | Carbon Steel,Stainless Steel,Aluminium Alloy; | open circuit voltage: | 10V; |
Place of Origin: | Zhejiang China (Mainland); | Condition: | New; |
weight: | 23kg; | Power(W): | 7.1KVA; |
Output Polarity: | AC/DC TIG; | Efficiency: | 80% Inverter Welders; |
Max. Load Power Capacity: | 7.81KVA; | power factor: | 0.73; |
Arc Current: | 5-250A; | Selling Units: | Single item; |
After-sales Service Provided: | Free spare parts,Online support,Video technical support; | brand: | TOPWELL; |
Pilot Arc Current: | 5-250A; | Dimensions: | 517x230x451mm; |
efficiency: | 80%; | Delivery Detail: | 0 days after payment; |
Rated Output Voltage (TIG): | 20V; |
AC Frequency control
control the width of the arc cone. Increasing the AC Frequency provides a more focused arc with increased directional control.
Note: Decreasing the AC Frequency softens the arc and broadens the weld puddle for a wider weld bead.
AC Balance Control
Controls arc cleaning action. Adjusting the % EN of the AC wave controls the width of the etchingzone surrounding the weld.
Note: Set the AC Balance control for adequate arc cleaning action at the sides and in front of the weld puddle. AC Balance should be fine tuned according to how heavy or thick the oxides are.
Independent AC Amperage Control
Controls arc cleaning action. Adjusting the % EN of the AC wave controls the width of Allows the EN and EP amperage values to be set independently. Adjusts the ratio of EN to EP amperage to precisely control heat input to the work and the electrode. EN amperage controls the level of penetration, while EP amperage dramatically effects the arc cleaning action along with the AC Balance control.
Item No | MASTER TIG-250AC | ||
---|---|---|---|
Rated Input Voltage | 1PH ~ 230V ±15% | ||
Max. Load Power Capacity | TIG: 7.81KVA | ||
MMA: 8.75KVA | |||
Rated Duty Cycle(40℃) 60% | TIG: 250A/20V | ||
MMA: 200A/28V | |||
100% | TIG: 200A/18V | ||
MMA: 160A/26.4V | |||
Welding Current/Voltage Range | TIG: 5A/10.2V ~250A/20V | ||
MMA: 20A/20.8V~200A/28V | |||
Open Circuit Voltage | 70V~80V | ||
Power Factor | 0.8 | ||
Efficiency | 80% | ||
TIG | Pulse | Peak Current | 5A~250A |
Pulse Frequency | 0.2Hz~200Hz | ||
Pulse Width (Ratio) | 1~100% | ||
AC TIG | AC Frequency Range | 20Hz~250Hz | |
AC Clean Width (AC Balance) | +40~-40 | ||
AC Clean Ratio (AC Bias) % | +30~-50 | ||
MIX TIG | MIX Frequency | 1Hz~5Hz | |
DC Balance (%) | 20~80 | ||
Arc-starting Current | 5A~250A | ||
Crater-filling Current | 5A~250A | ||
Current Up-slope Time | 0.1S~15S | ||
Current Down-slop Time | 0.1S~15S | ||
Pre-Gas Time | 0.1S~15S | ||
Flow-Gas Time | 0.1S~15S | ||
Spot Arc Time | 0.1S-10S | ||
MMA | Arc Force | 10A~200A | |
Hot Start Time | 0.1~3S | ||
Hot Start Current | 10A~200A | ||
Dimension (LxWxH) | 490x230x440mm | ||
Weight (KG) | 23KG |
