energy saving industrial dehumidifier liquid desiccant air conditioning

Supplier: Aolan (Fujian) Industry Co., Ltd.
Region: Fujian, China
Contact: Mr Aren Lin
Price: $50000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Weight:	3080;	Power Source(kw):	3PH-380V-50Hz;
Certification:	ISO9001: 2008;	Place of Origin:	Fujian China (Mainland);
Port:	Fuzhou;	Delivery Detail:	35days;
Moisture(kg/h):	40;	Power(W):	13.6;
Payment Terms:	L/C,T/T;	Dimension(LWH):	300014002200;
Dehumidification(kg/h):	128;	Fresh Air Rate(m3/h):	6000;
Voltage:	220V;	Warranty:	1 Year;
Weight(KG):	3080;	Cooling Capacity(Kw):	128;
Condition:	New;	Heating(kw):	85;
Supply/Exhaust air type:	The Outer Rotor Centrifugal Fan;	After-sales Service Provided:	No overseas service provided;
Compressor Type:	Full Closed Scroll Compressor;	Brand Name:	Aolan;
Refrigerant type:	R22/R407C;	Supply Ability:	200 Unit/Units per Month industrial dehumidifier liquid desiccant air conditioner;
Packaging Detail:	export carton;

Aolan Advantages

Product Description

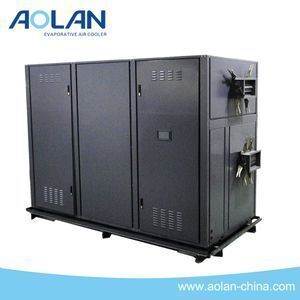

energy saving industrial dehumidifier liquid desiccant air conditioning

Introduction

Liquid desiccant air conditioning with purified air function can be widely applied in air conditioning system which allow heat recovery, such as fresh air treatment for office, R&D building, transportation hubs, exhibition centre, hotels, apartment, hospital, and factories, ect; especially suitable for independent temperature and humidity control air conditioning system combined with other dry-table and equipment.

Application

Suitable for indoor ventilation, and rate≥70%

Application environment temperature -5℃~40℃

Working Principle

Specification

Model (Txx-xx)		03	04	05	06	08	10	12	15	20
Power Source		3PH-380V-50Hz
Fresh Air Rate	m³/h	3000	4000	5000	6000	8000	10000	12000	15000	20000
Cooling Capacity	kW	65	85	108	128	172	215	255	325	430
Dehumidification	kg/h	65	85	108	128	172	215	255	325	430
Heating	kW	40	55	70	85	110	140	170	210	280
Moisture	kg/h	20	25	30	40	50	65	80	100	130
Power	kW	13.6	17.5	23.2	27.2	36.9	45.8	54.0	67.8	90.2
Noise	dB(A)	61	61	62	62	63	63	63	63	64
Compressor type		Full Closed Scroll Compressor
Throttle type		The Balance Type Thermal Expansion Valve
Refrigerant type		R22/R407C
Filtration grade		Primary (G4)
Supply/Exhaust air type		The Outer Rotor Centrifugal Fan
over-bottom pressure	Pa	150	150	180	180	210	240	250	300	350
Weight	kg	2050	2200	2650	3080	3580	4350	5250	6010	6820

Notes: 1.Nominal cooling and dehumidification working conditions: fresh air dry bulb temperature 36℃, relative humidity 60%,; returned air dry bulb temperature 26℃, relative humidity 60%; supply air dry bulb temperature 18℃, wet bulb temperature 13.3℃. 2. Nominal heating and humidification working conditions: fresh air dry bulb temperature -5℃, relative humidity 50%,;returned air dry bulb temperature 20℃, relative humidity 50%; supply air dry bulb temperature 18℃, wet bulb temperature 13.7 3. The above section and setting are only for reference. Please choose and adjust based on actual project requirement, or provided y customer.

Dimension Drawing

1,AHLD-Txx-03,04,05,06,08,10,12

2,AHLD-Txx-15,20

Model (Txx-xx)			03	04	05	06	08	10	12	15	20
L		mm	3000	3000	3100	3100	3200	3200	3400	3200	3200
W		mm	1400	1400	1850	1850	2250	2250	2250	4800	4800
H		mm	2200	2250	2400	2400	2400	2550	2800	2400	2550
Supply Air Outlet	A	mm	310	363	406	406	467	467	467	496	496
	B	mm	275	275	338	338	420	420	420	445	445
	Amount		1							2
Exhaust Air Outlet	C	mm	310	363	406	406	467	467	467	496	496
	D	mm	275	275	338	338	420	420	420	445	445
	Amount		1							2
Fresh Air Outlet	E	mm	700	700	900	900	1300	1300	1300	1300	1300
	F	mm	550	650	550	700	700	800	900	700	800
	Amount		1							2
Return Air Outlet	J	mm	1100	1100	1500	1500	1900	1900	1500	1900	1900
	K	mm	350	450	450	500	500	550	650	500	550
	Amount		1							2

Note:As our products are improved continuously, specifications in the tables are subject to change without notice.
