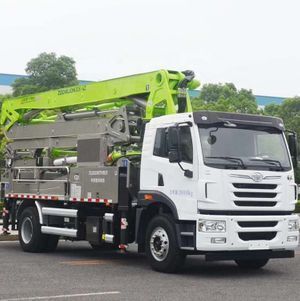

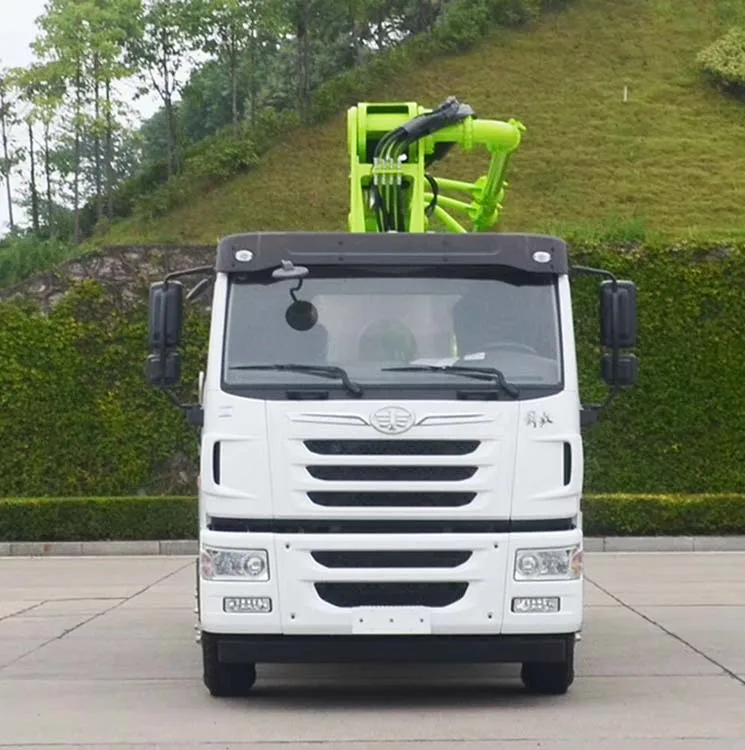

Zoomlion 38m Small Truck Mounted Concrete Truck Pump

Supplier: Newindu Construction Engineering (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Ken Ye
Price: $182000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Brand Name:	Zoomlion;	Place of Origin:	Hunan China (Mainland);
Condition:	New;	Port:	Shanghai Port;
Packaging Detail:	nude;	Upper Structure Mass:	15260kg;
Color:	Green and White;	Weight:	15260kg;
Placing depth:	38m;	Applicable Industries:	Manufacturing Plant;
Dimensions(LWH):	984525003596;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Certification:	ISO CE;	Power Type:	Diesel;
Dimension(LWH):	984525003596mm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Warranty:	1 Year;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;
Supply Ability:	210 Unit/Units per Month;

Zoomlion 52m Portable Truck Mounted Concrete Pumps

Product Description

•• Compact in design, 38m pump mounted on a 3-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 5 arms with unfolding height 9.61m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control.

Main Parameters

Pump Unit	Max. Theor. output	m³/h	140/90
	Rated working pressure	MPa	35
	Pumping frequency	min-1	27/17
	Hopper capacity	L	550
	Filling height	mm	1540
	Hydraulic system type		opened loop
	Distribution valve		S valve
	Oil cylinder dia.×stroke	mm	φ130×2100
	Concrete cylinder dia.×stroke	mm	φ230×2100
	Hydraulic oil cooling		Wind cooling
	Recommended concrete slump	cm	12~23
	Max. aggregate dimension	mm	40
Boom Section	Structure type		38X-5RZ
	Placing depth	m	38
	Max. horizontal distance	m	34
	Max. placing depth	m	24.9
	Slewing angle		±270°
	Boom number		5
	The length of boom section	mm	8890/8100/8105/5405/3500
	Sections folding angle		90°/180°/180°/250°/90°
	Pipe diameter	mm	125
	End hose length	mm	3000
	Min. height of opening placing boom	mm	9610
	Outriggers span (front×rear×side)	mm	6190×8345×7045
Upper Structure	Upper Structure Mass	kg	15260
Upper Structure	Dimensions(L×W×H)	mm	9845×2500×3596
