12m fire truck vehicle locking pneumatic mast

Click here to contact
Product details
Condition:New;Single gross weight:140 KG;
Fuel Type:Diesel;Place of Origin:Tianjin China (Mainland);
Product name:12m fire truck vehicle locking pneumatic mast;Type:Rescue;
Extended Height:12m (40ft);Emission Standard:Euro 4;
Lift Type:pneumatic lift model;Max Wind load:65km/h;
Tank Capacity:3001 - 5000L;Material:aluminum alloy 6063;
Max. Work Height:12m;Package Preview:https://sc02.alicdn.com/kf/HTB1HGD.B2iSBuNkSnhJq6zDcpXal.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1gBEmKf5TBuNjSspcq6znGFXaF.jpg_640x640.jpg;
Color:bronze;Transmission Type:Automatic;
Package Type:one set mast with aceessories will be packed into a plywood case, inner space of case filled with the foam to protect the mast.;Horsepower:150 - 250hp;
Brand Name:talents;Size:2.6m;
Single package size:280X50X55 cm;Selling Units:Single item;
Fixed type:vehicle mounted(with;OEM.ODM:acceptable;
Drive Wheel:4x2;Retracted height:2.6m(8.6ft);
Max head-load:20kg;
Product Description

What is a Pneumatic Mast?

           Pneumatic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion

of air- more appropriate for short time using.

Classification of masts

Model"AT8"---no cable and no lock, for Short time using and small head load.
Model"AT9"---with lock. for long time using and large head load.
Model"AT7"---with cable. for mounting camera, lights or antenna.

Common application

Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.

Mast specification

Available Extended height:2m to 30m
Head load capacity:5kg to 300kg.


Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.

If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.

Specification
                                                       12m fire truck vehicle locking pneumatic mast
Model No.
TAL-P12.0-2.6-20-AT9
Material
aluminum alloy
surface treatment
Hard anodizing
Color
Bronze
Extended height
12.0m
Retracted height
2.6m
Max head load
20kg
Sections
Number
7 sections
each section tube OD& thickness
1# 140/5.0mm   2# 118/4.0mm
3#  98/4.0mm    4#  82/3.5mm
5#  66/3.0mm    6#  51/3.0mm
7#   36/3.0mm
Mast net weight
85kg( without  accessories)
Max wind load
100km/h ( with guy wire fixed)
top flange
150mm/10mm (diameter/thickness)
bottom base
235mm/22mm(diameter/thickness)
accessories
air hose/air compressor/tripod/guy wire/ steel stakes
Detail

12m fire truck vehicle locking pneumatic mast

Mast material is aluminum alloy 6063-T5

Tube surface treatment is Hard anodizing

Color:Bronze and origin silver color for choose.

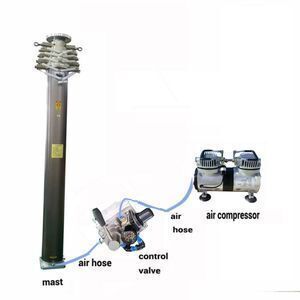

Acessories for 12m vehicle locking pneumatic mast.

Operation steps

1.check the mast in good condition
2.fixed the mast on the truck with the car clamps.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..

Packing & Delivery
Package information based on different specifitation
extended height less than 9m
also weight less than 70kg
packed into a  carton, inner space filled with foam to protect mast.
 wooden case if customer request.
extended height more than 9m
also weight more than 70kg
packed into plywood case, inner space filled with foam to protect mast.
Certifications
Other Specification
Pneumatic telescopic mast
MODEL No.
Extended
Height
(m)
Retracted
Height
(m)
Bottom
OD
(mm)
TOP
OD
(mm)
Section
NO.
Head-load
(KG)
TAL-2.0-1.3-150-AT8
2
1.3
118
98
2
150
TAL-3.0-1.5-50-AT8
3
1.5
98
66
3
50
TAL-4.0-1.3-20-AT8
4
1.3
87
43
4
20
TAL-4.5-1.65-50-AT9
4.5
1.65
118
66
4
50
TAL-5.0-1.7-40-AT8
5
1.7
98
51
4
40
TAL-5.0-1.75-30-AT9
5
1.75
98
51
4
30
TAL-6.0-1.7-30-AT8
6
1.7
118
51
5
30
TAL-6.0-1.75-12-AT8
6
1.75
87
28
5
12
TAL-6.0-2.0-50-AT9
6
2
118
66
4
50
TAL-6.0-1.95-30-AT8
6
1.95
87
43
4
30
TAL-6.0-1.5-25-AT9
6
1.5
118
51
5
25
TAL-7.0-1.95-40-AT8
7
1.95
118
51
5
40
TAL-8.0-1.8-50-AT9
8
1.8
160
51
7
50
TAL-8.0-2.2-60-AT7
8
2.2
140
66
5
60
TAL-8.0-2.0-25-AT8
8
2
118
36
6
25
TAL-9.0-2.15-30-AT8
9
2.15
140
51
6
30
TAL-10.0-2.4-30-AT7
10
2.4
140
51
6
30
TAL-12.0-2.7-250-AT8
12
2.7
279
140
7
250
TAL-15.0-3.5-150-AT9
15
3.5
229
98
6
150
TAL-16.0-3.0-30-AT8
16
3
180
51
8
30
TAL-18.0-3.0-100-AT8
18
3
279
66
10
100
TAL-20.0-3.3-55-AT8
20
3.3
229
66
9
55
TAL-30.0-4.0-30-AT8
30
4
316
51
13
30

NOTE:

above specification does not include all we can do.

Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company


       Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
      Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans
       Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers
an one for one timely information feedback, we have organized an expert team for quality control and inspection system,
we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We
think outside the box and are continually developing new products to meet customer requirements, what you are asking
for is our motive power of task, we wish one of our products will well-meet what you demand.
