manure pellet machine waste to fertilizer machine pellet machine line

Supplier: Zhengzhou Aix Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Susan Jane
Price: $4300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	Customized;	Dimension(LWH):	1.50.91.6m;
Single package size:	1500X900X1600 cm;	Capacity(T/H):	0.1-10;
After-sales Service Provided:	Field installation, commissioning and training;	Product Type:	Fertilizer;
Machine Type:	Granulator;	Color:	According to the needs of customers;
Voltage:	220v/380vCUATOMIZED;	Brand Name:	AIX;
Package Type:	manure pellet machine 1.The machine will be packed by wooden package/export standing package ,suitable packing for extruding granulator fertilizer granule making machine according to the clients' requirements. 2. Delivery Time:Within 7 days for sample order after receipting downpayment.Upon order quantity for batch order requirement.;	Place of Origin:	Henan China (Mainland);
Single gross weight:	1.2 KG;	Material:	High corrosive resistance and wearing resistence steel;
Warranty:	2 Years;	Condition:	New;
After-sales Service Privided:	Engineers available to service machinery overseas;	Product Name:	manure pellet machine waste to fertilizer machine pellet machine line;
Certification:	CE;	Weight:	refer to the model;
Keywords:	manure pellet machine;	Power(W):	1.5-30KW;
Name:	Pan type fertilizer making machine city waste pellet machine;	Selling Units:	Single item;
Application:	Fertilizer Pellet Making Machine;

manure pellet machine waste to fertilizer machine pellet machine line

15 YEARS PROFESSION

Product Description

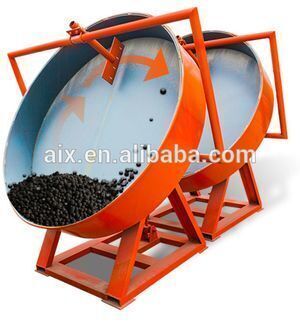

manure pellet machine

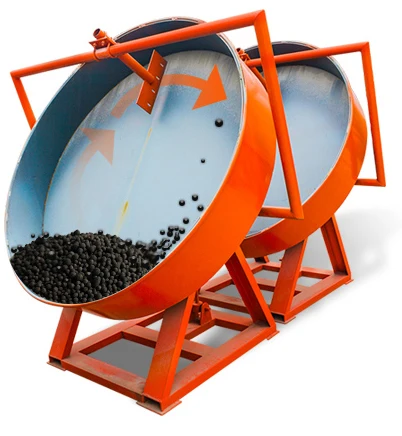

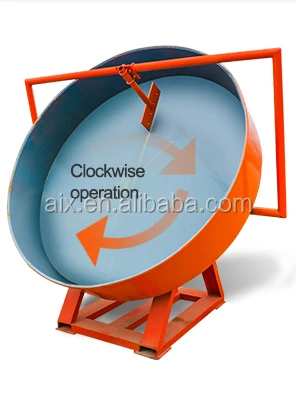

The disc granulator machine adopts the overall arc structure. After the anti-corrosion treatment, it is durable and has a granulation rate of over 95%. The thickened, weighted and sturdy base design does not require anchor bolts and runs smoothly.

The main gear of the granulator is quenched by high frequency, and the service life is doubled. Uniform granulation, high granulation rate, stable operation, sturdy and durable equipment, long service life and so on.

Product Usage

Suitable for individuals, farms, enterprises, etc., used in farmland, fruit trees, flowers, landscaping, high-grade lawns, soil improvement, etc.

Model	Inner diameter(mm)	Disc edge height(mm)	Volume(m3)	Rotary speed(r/min)	Motor power(kw)	Production capacity (T/h
DM08	800	200	0.25	24	1.5	0.1~0.2
DM10	1000	220	0.4	21	2.2	0.3~0.5
DM15	1500	300	1.1	17	5.5	0.5~0.8
DM25	2500	500	2.5	13.6	7.5	1-1.5
DM28	2800	550	3.7	13.6	11	1-2.5
DM30	3000	550	4.2	11	11	2-3
DM32	3200	600	4.8	10	11	2-3.5
DM36	3600	600	6.1	10	15	3-5
DM45	4500	600	6.1	12.28	30	10

Equipment component

The disc granulator consists of a large plate, a large gear, a transmission part, a frame, a base, a scraper frame and an unpowered scraper.

Production materials: ammonium chloride, ammonium sulfate, calcium, monoammonium, calcium magnesium phosphate, potassium sulfate, feces, etc.

Used alone: powdered raw material - disc granulation - finished product

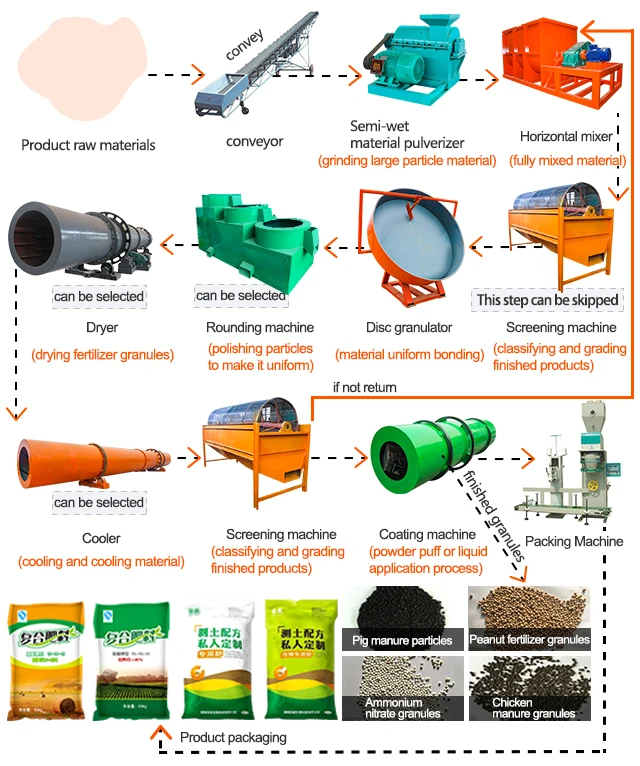

The production line process is used as follows:

1. crushing and mixing

2. Disc granulation

3. Drying organic fertilizer particles (optional)

4. Cooler cooling organic fertilizer particles (optional)

5. Screening machine to screen out qualified organic fertilizer particles

6. The film of the coating machine is smoother and smoother.

7. Packing scale automatically fills organic fertilizer granules

8.Sealing

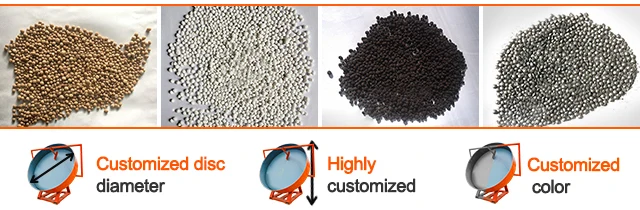

Customize the products that match your satisfaction

As an important part of the fertilizer production line, the disc granulator plays an irreplaceable role and has become the first choice for more and more production line customers.

Production line process

The following machines can be selected according to different situations of customers.

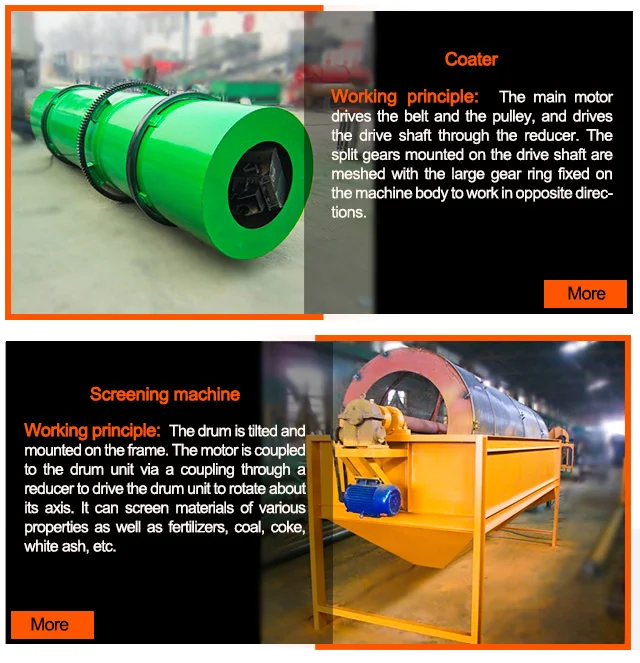

Production line equipment

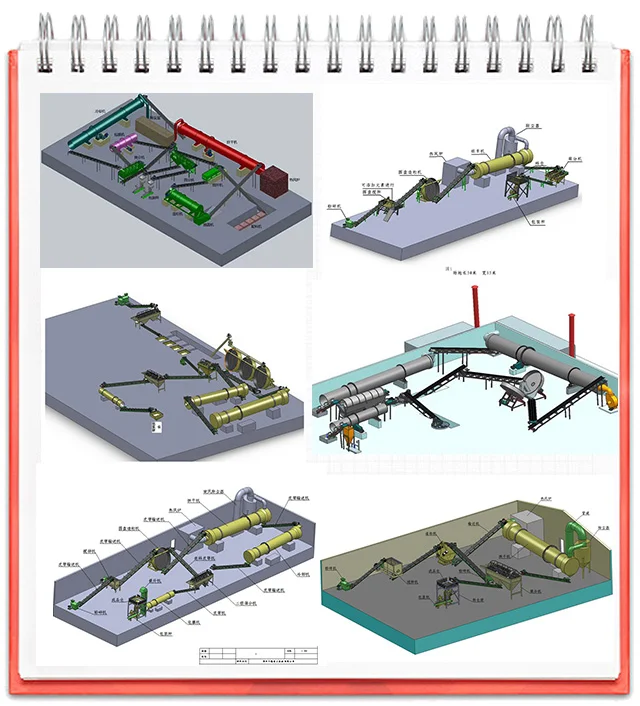

Customer program application

guest Department

Aix products are exported to 13 countries and regions

Customer visit

Welcome new and old customers to visit our factory

Logistics delivery

Choose a convenient shipping channel based on your intentions

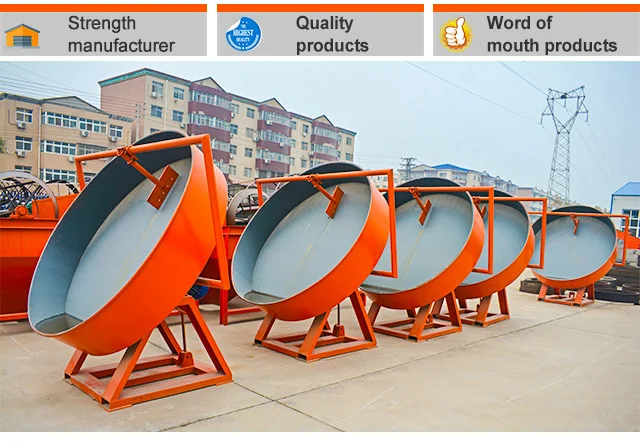

Company qualification

Zhengzhou Aix Machinery Equipment Co., LTD is an enterprise mainly specializing on the manufacture of agriculture machinery.Our products range from rice reaper harvest machine,grain threshing machine,wheat flour processing machine,rice processing machine,maize processing machine,chaff cutter ,grinding machine and other animal feed machine,ect. All of these products have been used all over the country and exported to Malaysia,Indonesia,Austria,etc.Our company has high-quality employees, with the strong technical force....

If you have any questions ,please be free to contact me!
