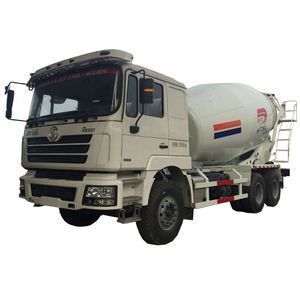

SHACMAN 6*4 Cement mixer truck 9m3 concrete mixer truck

Supplier: Hubei Runli Special Automobile Co., Ltd.
Region: Hubei, China
Contact: Ms Kilen Chan
Price: $39980.00 /set
Min. Order: 1 set

Click here to contact

Product details

Keywords:	SHACMAN mixer truck;	Brand Name:	Shacman;
Condition:	New;	Certification:	CCC, ISO9000;
Applicable Industries:	Manufacturing Plant,Construction works ;	After-sales Service Provided:	Overseas third-party support available;
Packaging Detail:	Standard export package;	Payment Terms:	L/C,D/P,T/T,Western Union;
Power(W):	247kw;	color:	optional;
After-sales Service Provided:	Video technical support,Field maintenance and repair service,Free spare parts;	Port:	shanghai;
chassis brand:	optional;	Warranty:	1 Year;
Weight:	32500kgs;	Supply Ability:	200 Set/Sets per Month;
skype:	kilen.automobile;	Place of Origin:	Hubei China (Mainland);
Dimension(LWH):	904024963850;

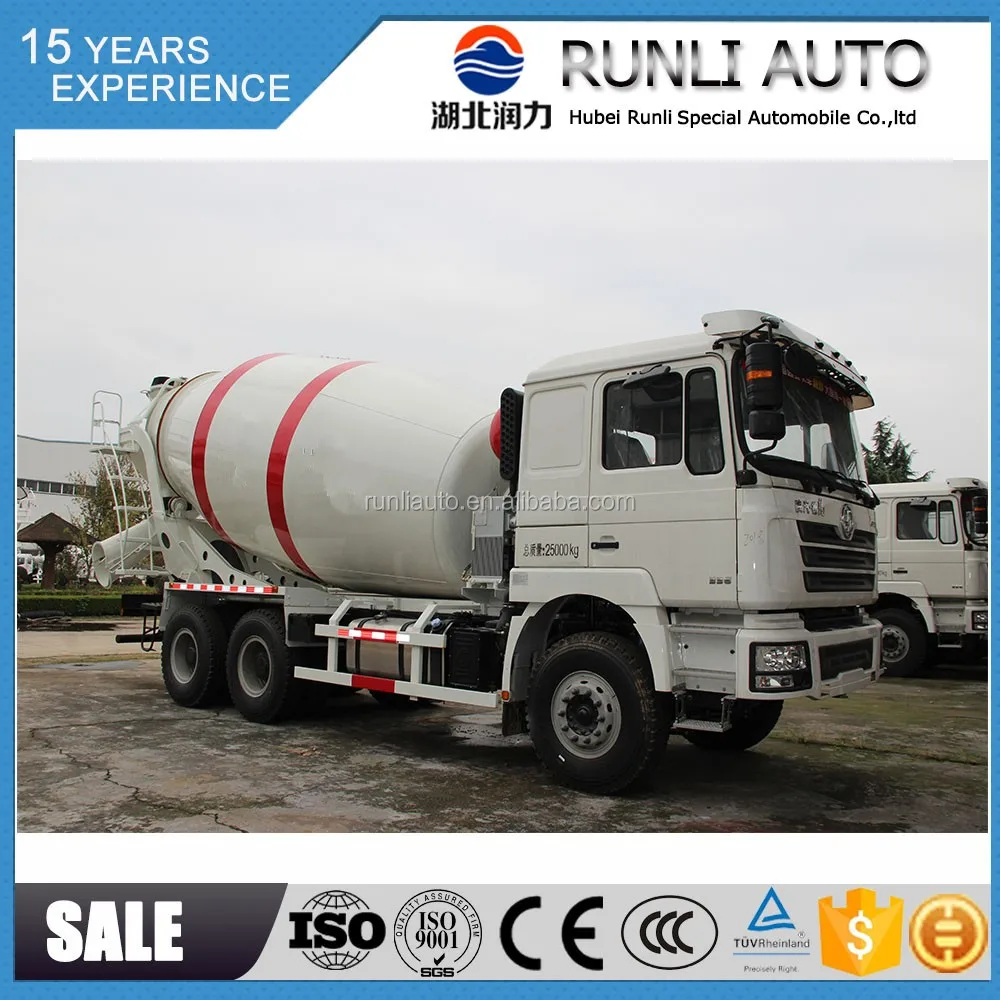

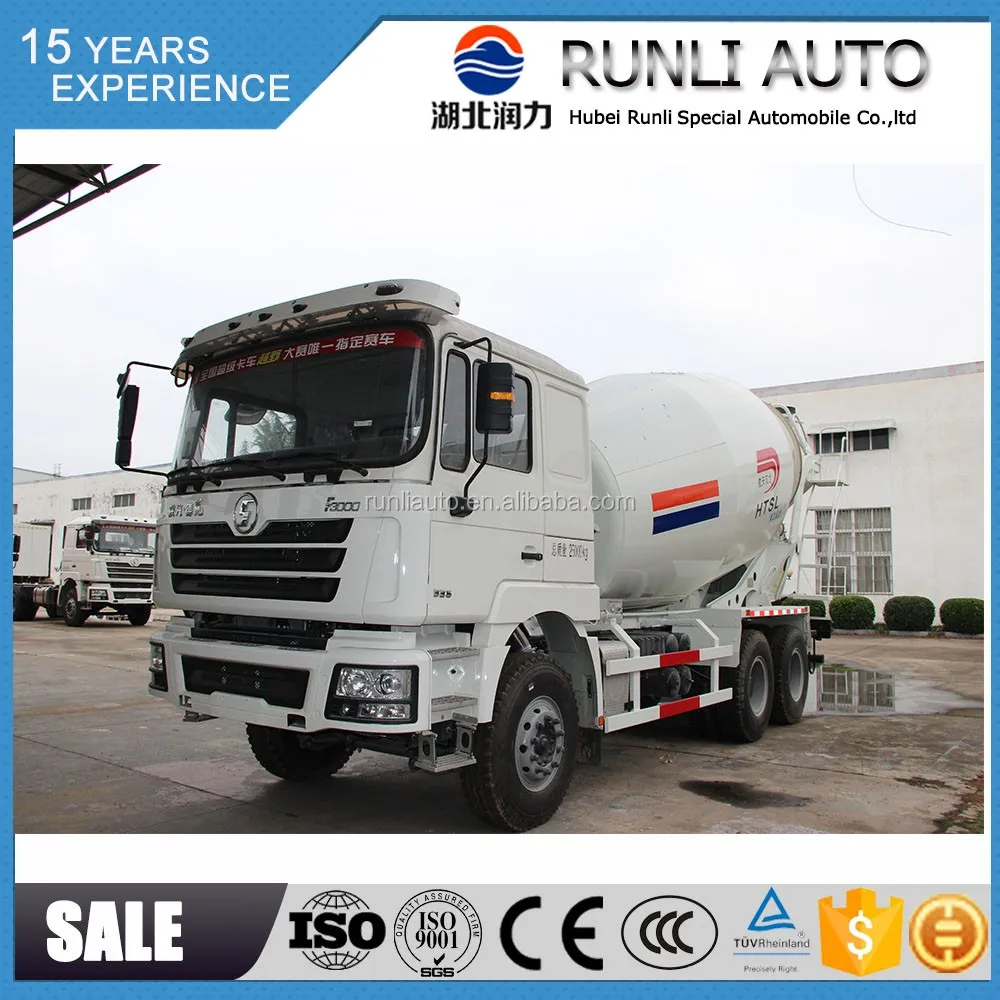

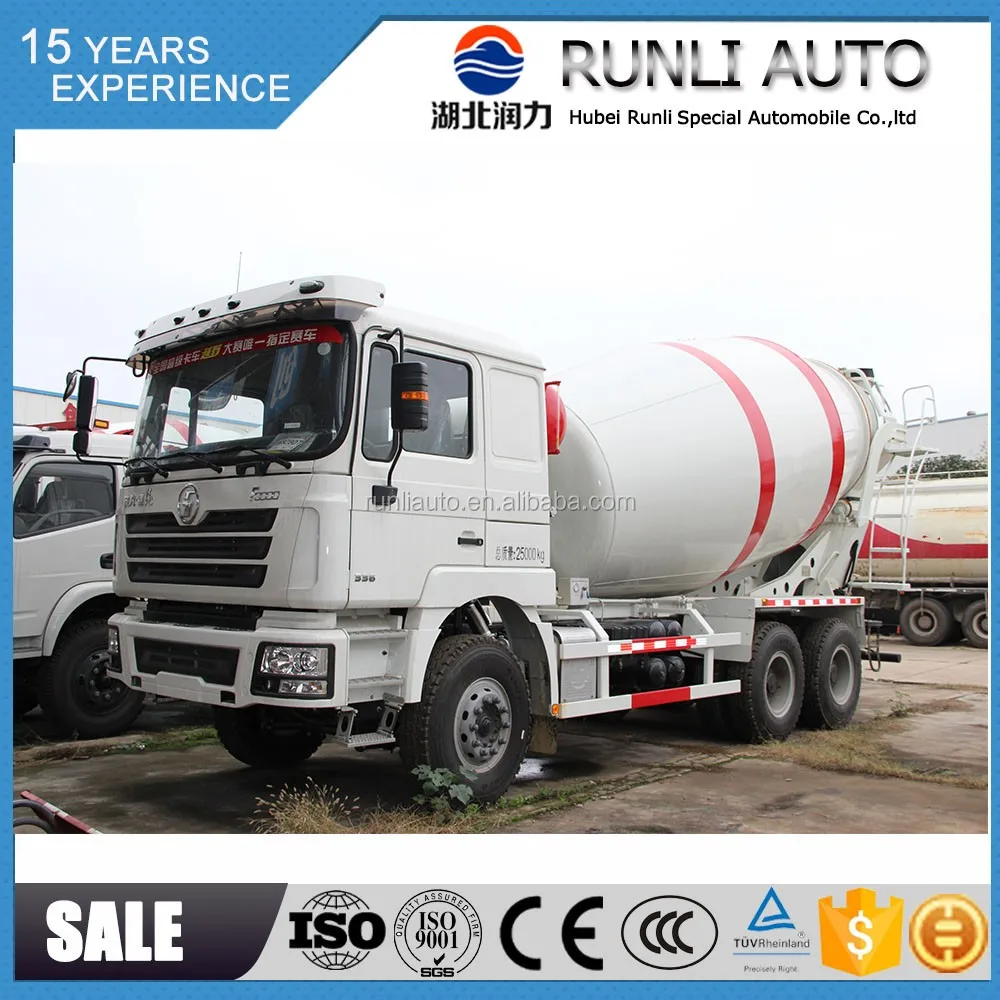

SHACMAN 6*4 Cement mixer truck 9m3 concrete mixer truck

Transportation medium:conerete

Product Description

Tank body material: It adopts 16 manganese steel and has large intensity and wear-resisting character.

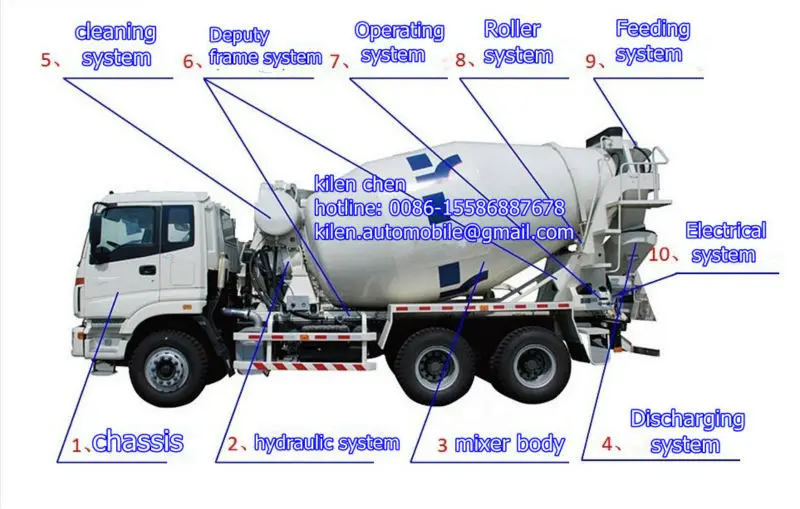

Function and structure:It adopts important parts, slchas hydraulic pump, hydraulic motor, gearbox and radiator(Italy AKG and wrestile of german). It's to churn equality, fast discharge the goods and little residual material during transport.

Model	SX5257GJBJR384
Drive type	6×4
Weight
Complete kerb mass (kg)	13600
GVW (kg)	32500
Dimensions
*LWH (mm)*	9135X2490X3900
Front / Rear overhang (mm)	1525/2435
Wheel base(mm)	3775+1400
Track width(mm)	2036/1850
Performance
Max.speed (km/h)	70
Min.turning circle(m)	17
Min.ground clearance(mm)	315
Approach / Departure angle(°)	20/20
Max.gradeability(%)	31
Engine
Brand	WEI CHAI
Model	WP10.336
Power(kw/HP)	247/336
Max.Torque (N.m )/rpm	1250/1200-1600
Displacement (L)	9.726
Emmission Standards	Euro III
Transmission
Brand	FAST
Model	9JS135
Control type	manual
Gear Shift	9-forward and 1 reverse speeds
Clutch
Type	Spring plate,diaphragm spring
Diameter (mm)	φ430
Action	Mechanical type,hydraulic and pneumatic operation
Brakes
Type	Drum
Service brake	With dual-circuit compressed air brake
Park brake	Power spring brake acting on rear wheel
Auxiliary brake	Exhaust brake
Steering
Type	Integral circulating ball power steering
Option	ZF8098
Chassis
Type	Ladder structure with parallel straight
Dimensions (mm)	300×80×(8+7)
Suspension
Front Suspension	Longitudinal leaf spring
Rear Suspension	Inverted leaf spring stabilizator suspension
Axles
Brand	HANDE
Front axle	7500kg
Rear axle	16000kg(each other)Double reduction driving axle with inter-wheel differential and differential lock.
Ratio	5.92:1
Option	9500kg front axle
Tyres
Type (Standard)	11.00-20
Option	12.00R20/12.00-20/11.00R20/12R22.5
Fueltank
Tank capacity (L)	300
Material	Aluminum
Electrics
Type	24V
Starter	5.58kw(24V)
Generator	2.0kw(28V 70A)
Battery	2×135Ah
Cab
Type	MAN F3000,Lengthened flat roof
Equipments	2 rear window, mechanical clerestory, hydraulic suspension cab, A/C, hydraulic chair with seatbelts, one sleeping bed,hydraulic reversal cab, metal bumper, with USB, can play radio with MP3 format
Option	electric windows,electricity heated, GPS or CD,rear-view mirror,Tachograph;electricity reversal cab
Other
Effective tank volume	9
