Brand Name: | LEADWIN; | Power: | Manual; |
Handle Material: | PVC for 40,50,63,75.Aluminum for 90,110,160; | Payment Terms: | L/C,T/T,Western Union; |
Product defect rate: | 1%; | Size: | 40mm-160mm; |
Place of Origin: | Zhejiang China (Mainland); | Material: | Plastic; |
Paddle Material: | ABS for 40,50,63,75. 202C2-13 for 90,110. PVC for 16; | Supply Ability: | 80000 Piece/Pieces per Month; |
Temperature of Media: | Normal Temperature; | Port Size: | 40,50,63,75,90,110,160MM; |
Standard or Nonstandard: | Standard; | Power/Actuator: | Manual; |
Material: | Plastic; | Pressure: | Low Pressure; |
Application: | Other; | Model Number: | Knife gate valve; |
Pressure: | Medium Pressure; | Temperature of Media: | Medium Temperature; |
Media: | Water; | Structure: | Gate; |
Port: | Tianjin or Ningbo; | Packaging Detail: | Inner box,exporting carton.; |
Standard: | DIN,ANSI Standard; |

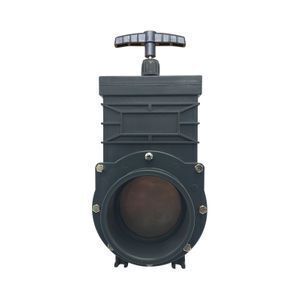

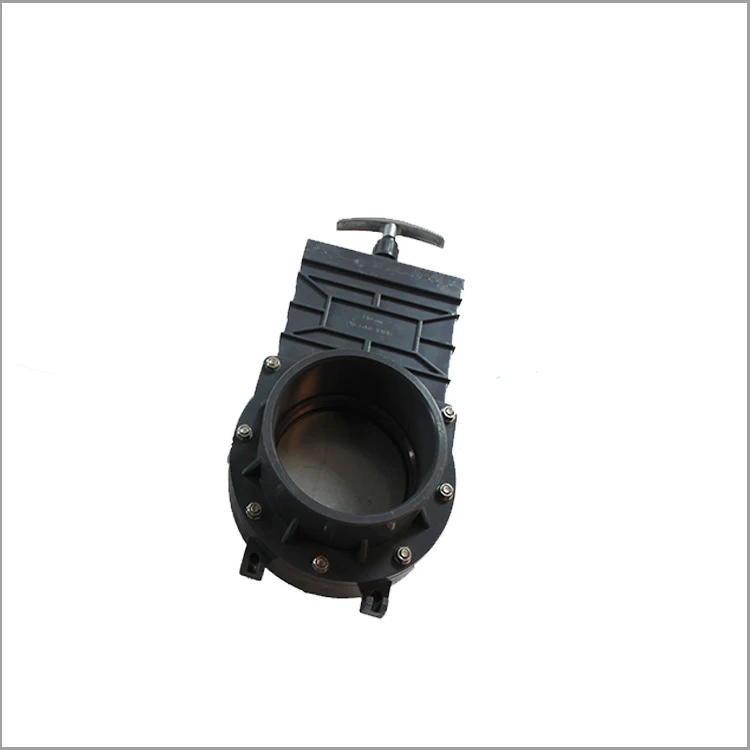

Cheaper First Choice 2 6 4 8 12 inch flange plastic upvc pvc water knife gate valve

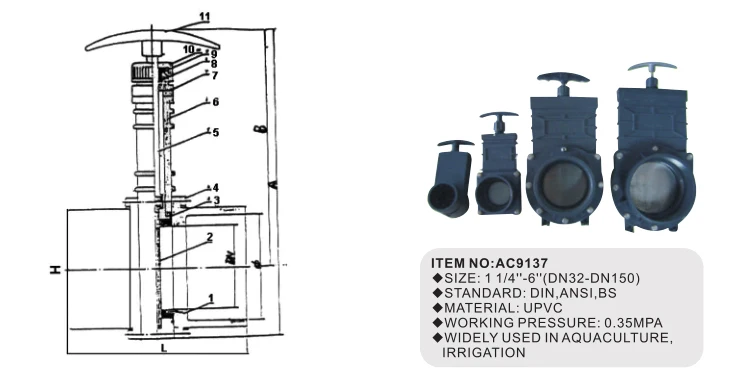

Specification of material
specification of material | ||
NO. | Part | Material |
1 | Faucet | UPVC |
2 | Valve Gate | PP,1Cr13 |
3 | Seat | EPDM,NBR |
4 | Bolt | A2 |
5 | STEM | 1Cr13 |
6 | Body | UPVC |
7 | Cap | UPVC |
8 | O-Ring | EPDM,NBR |
9 | Bushing | UPVC |
10 | Key | UPVC |
11 | Handle | ABS,ZL106 |
