Automatic juice beverage mixing machine

Product details
Brand Name:KE YUAN;type:juice,tea,beverage;
Certification:CE,ISO;Processing:juice,tear,beverage;
Weight:based on production;Warranty:one year;
application:automatic beverage mixer;Processing:Mixer;
Capacity:Ranges;Voltage:380V/ 3PH / 50Hz;
After-sales Service Provided:Engineers available to service machinery overseas;Payment:T/T;
material:stainless steel304;Port:shanghai;
Condition:New;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Package:Wooden Cases;Dimension(L*W*H):based on production;
condtion:new;Processing Types:Carbonated Beverage;
Supply Ability:5 Set/Sets per Month;Place of Origin:Jiangsu China (Mainland);
Packaging Detail:automatic beverage mixer packaging:film&wooden;

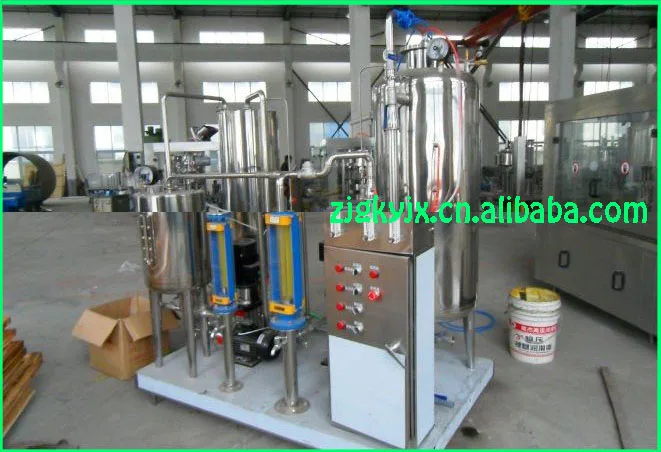

automatic beverage mixer



Specifications

This auto injecting gas-water mixer is specially designed for soda and non-soda drinks such as lemonade, cola and juice.



Product Description



Beverage Mixer/Drink mixer/Csd mixer
The pre-cooled and pre-carbonized liquid flows through the inlet valve into the pot, in which, there is carbonic acid gas as well. The liquid flows out the groove and turns into a liquid curtain for better cooling and good carbonic acid gas absorption. Finally, the treated beverage liquid, powered by the carbonic acid gas pressure, flows into the filling machine.

Quality materials are used for this machine. Especially polished and sanitary steel is used for parts directly contacting the liquid. The machine is designed for various beverage productions. Besides the two-step carbonization, high CO2 content and low production temperature ensures the volume ratio of CO2 and 1L water to be 3.5 to 4.0, or higher.

Model

QHS-1500

QHS-2500

QHS-3500

QHS-5500

Production Capacity(kg/h)

1000-1500

2000-2500

3000-3500

5000-5500

Mixing production scale (water:sugar)

3:1-6:1

3:1-6:1

3:1-6:1

3:1-6:1

content of carbon dioxide

2.5-3.5

2.5-3.5

2.5-3.5

2.5-3.5

Mixing temperature

<5

<5

<5

<5

power consumption (kw)

1.5

2.97





Overall Size(mm)

1000×800×2000

1500×1000×1900

1700×1000×2200

2000×1500×3000

when you send inquiry,please also included the capacity you need to work on the machine, it is easy and accurately for us to recommand a right machine!

If any special,our manufacture also can design the machines according your requirement.




Packaging & Shipping


Our Services

1.Products since the acceptance inspection, one year warranty, life-long maintenance;
2.Free for the buyer personnel to technical training, (or on-site technical training)
3.The quality problem or the supplier of parts and equipment damage caused by careless operation and equipment failure, the 4.Supplier provide high quality, favorable service;




Company Information

    Zhangjiagang Keyuan Machinery Co., Ltd. is a modern technical enterprise set up to meet the 21st century's development demand regarding beverage packing machinery and all sorts of water treatment facilities. Our company has production experience of more than 20 years. Our company is a professional enterprise producing full sets of beverage packing machinery and all sorts of water treatment facilities, integrating product development, scientific research & design, production, technical service and marketing.

At present, our company provides the following production lines:
Complete sets of gas containing drink production lines
Complete sets of Mineral water and spring water production lines
Complete sets of Pure water production lines
Complete sets of Fruit juice production lines
Bean milk & protein drink production lines
Complete sets of white spirit, soy and vinegar filling production lines

Keyuan would like to move forward together with you and will spare no effort. Welcome to Keyuan
