1t Free standing monorail bridge crane 1000kg 1ton

Supplier: Beijing Tianheng Kairui Hoisting Machinery Co., Ltd.
Region: Beijing, China
Contact: Mr Frank Lux
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Rated Lifting Moment:	100KN;	Application:	Warehouse, factory, workshop and other places needed lifting;
Warranty:	1-2 year;	Max. Lifting Load:	550ton;
Packaging Detail:	Packed bubble film first, then put into the wooden case or packed with the steel pallet for 1t Free standing monorail bridge crane 1000kg 1ton;	Crane feature:	Single Girder Oveherd Crane;
Condition:	New;	Span:	7.5-31.5m;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	After-sales Service Provided:	Engineers available to service machinery overseas;
Material:	Steel or Aluminum Alloy;	Power Source:	3 Phase 380V 50hz;
Delivery Detail:	WITHIN 30 DAYS AFTER RECEIVING THE DEPOSIT;	Brand Name:	KLD;
Port:	Tianjin;	Place of Origin:	Beijing China (Mainland);
Supply Ability:	100 Set/Sets per Month Free standing monorail bridge crane 1000kg;	Warranty:	12 Months;
Keywords:	lightweight monorail cranes;	Feature:	Bridge Crane;
Main electrical parts:	Schneider Brand;	Max. Lifting Height:	6m~30m;
Certification:	CE, ISO;	Type:	Hoist Single Girder Bridge Crane;
Control method:	Electric;	Product Name:	Free standing monorail bridge crane 1000kg;
Rated Loading Capacity:	1~20t;	Lifting mechanism:	Eliectric Hoist;
Model Number:	PH-1;

Free standing monorail bridge crane 1000kg 1ton

Product Description

This type is used for covered transportation in the enclosed factory floor area.Portable mobile bridge crane can provide the simple and unrestricted connections for the working points.You can install several bridge cranes in the gantry crane in order that each working point can use respective hoist.

Because this type have the specific overhead structure and bearing rod, then this it is used for the minimum ground thickness is 150mm.Also it can be extended to any length.

Concrete ceiling or steel plate for welding connections with enough reinforcing bar,diameters and squares. The minimum concrete thickness is 150mm,the mass index is C/20/25(B25).

Technical Parameters:

The following technical parameters is for the common size(Most of clients need). Pls check the rated load, the span and the lifting height is suitable for your requirements.

Type	Rated load(ton)	Motion Type	Height Range Instruction
PH-1-1	0.5	Electric control type	According to the actual use requirements to increase the lifting height and height of the body
PH-1-1	1
PH-1-2	2
PH-1-5	5
PH-1-10	10

If the common size is not suitable for you, pls provide us the detailed data titled in the following X-Y Scheme

Appreciated providing the details, then our professional R&D team will provide you the best project as your situation.

Also if you do not know the specific data clearly, pls tell us the problem you meet now and you need to lift which things.Also you can see the video showed in this page. Then you may get more information about our products( Advantages, function, appearance and the handling method). We think you will have a better knowledge of our products and you will provide us the right data for our personnel.

Pls see the pictures as follows, we usually use the same color hoist to attach the bridge crane, but this effect showed as the following pictures are much better than before. You may find it has really good looking. And as you know, we can also accept customized color. Feel free to contact us about your ideas. You ideas are good for our next development.

Applications

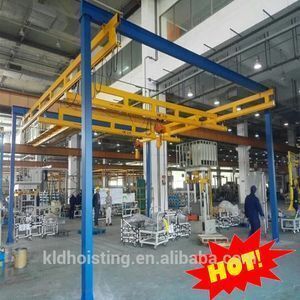

PH-1 Portable mobile bridge crane is used for covered transportation in the enclosed factory floor area.

Pls check the following picture that we have done for our clients:

Company Profile

Beijing Tianheng Kairui Hoisting Machinery Co.,Ltd

Our company was established in 2009 located in Beijing which is capital of China. Our company has the professional technical team to provide you the best solution if you want the customized products. Our company has always focused on research, development and innovation. Our watchword is "Providing the best product with the most competitive price; not only providing the professional pre-sale service but also providing the best after-sale service.
