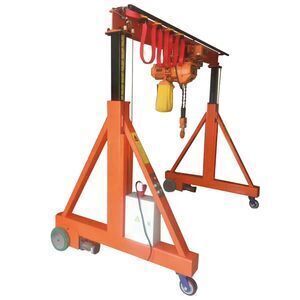

Made in China 1 2 3 5 10 15 20 ton workshop portal gantry crane / 5000kg mini small electric mobile hoist gantry crane

Supplier: Beijing Tianheng Kairui Hoisting Machinery Co., Ltd.
Region: Beijing, China
Contact: Mr Frank Lux
Price: $1999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	ISO CE;	Color:	Yellow or as your requirement;
Warranty:	24 months;	Single gross weight:	68 KG;
Single package size:	200X20X30 cm;	Brand Name:	KLD;
Warranty:	12 Months;	Control Method:	Hand control or electric control;
Lifting mechanism:	Chain Hoist;	Package Type:	Packedwith bubble film firstly, then put into the wooden case or packed with the steel pallet for Made in China 1 2 3 5 10 15 20 ton workshop portal gantry crane / 5000kg mini small electric mobile hoist gantry crane;
Span:	OEM;	Place of Origin:	Beijing China;
Condition:	New;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support;	Crane feature:	Heavy duty;
Selling Units:	Single item;	Power Source:	Manual;
Name:	3 Ton Gantry Crane;	Application:	Warehouse, factory, workshop;
Feature:	Gantry Crane;	Rated Loading Capacity:	5-500t;
Keyword:	5000kg Gantry Crane;	Max. Lifting Height:	3-5M;
Type:	Adjusting Height;	Rated Lifting Moment:	Load Capacity;
Crane type:	Single Beam Light Duty Gantry Crane;

Made in China 1 2 3 5 10 15 20 ton workshop portal gantry crane / 5000kg mini small electric mobile hoist gantry crane

Product Description

Features:

1: Small package volume, convenient disassembly and transport

2: Selecting electric trolley assembly can realize trackless weight-bearing and greatly improve the work efficiency, steerable.

3: We accept customized size and rated load. Hot sale portable mobile rubber tyre gantry crane can make you save more strength to lift heavy things.

Pls see the basic type as follows:

Type	Rated load(t)	Adjustable Height(m)	Span(m)	Beam Height(mm)	Motion Type	Height Range Instruction
PT2-1-0.5	0.5	2.6-3.8	3-9	140	Hand push type and electric controlled universal castor with brake device	According to the actual use requirements to increase the lifting height and height of the body
PT2-1-1	1	2.6-3.8	3-9	160
PT2-1-2	2	2.6-3.8	3-9	160
PT2-1-3	3	2.6-3.8	3-9	200
PT2-1-5	5	2.6-3.8	3-9	250

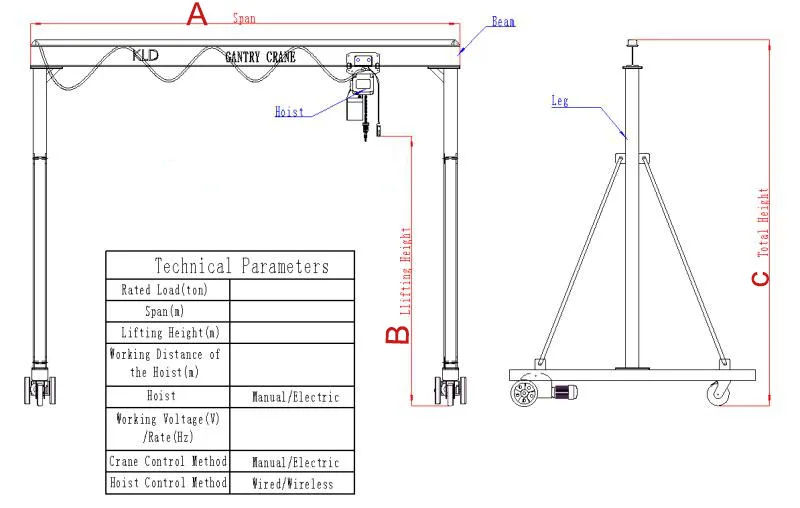

If the common size is not suitable for you, pls provide us the detailed data titled in the following X-Y scheme, including the span, the rated load, the lifting height and the other technical parameters( the other data in the table)

Appreciated providing the details, then our professional R&D team will provide you the best project as your situation.

Also if you do not know the specific data clearly, pls tell us the problem you meet now and you need to lift which things.Also you can see the video of 3D drawing showed in this page. Then you may get more information about our products( Advantages, function, appearance and the handling method). We think you will have a better knowledge of our products and you will provide us the right data for our personnel.

Pls see the pictures as follows, we usually use the same color hoist to attach the gantry crane, but this effect showed as the following pictures are much better than before. You may find it has really good looking. And as you know, we can also accept customized color. Feel free to contact us about your ideas. You ideas are good for our next development.
