Usage: | Polishing and Making diamond tools; | D50um: | 0.11-0.20 um; |
mesh: | 60000; | Name: | Synthetic Diamond Micro-powder; |
Abrasive Grain Sizes: | 0-0.25 to 0-0.5grit; | Single gross weight: | 0.03 KG; |
Application: | Polishing Workpiece; | Brand Name: | HNHONGXIANG; |
Grit: | 20,36,40,46,54,60,80,100,120,150,170,other; | Payment Terms: | Negotiate; |
Manufacturer: | HNHONGXIANG; | Sample: | Paid sample; |
Model Number: | 0-0.25 to 0-0.5grit; | Certificate: | ISO9001:2008; |
Usage: | making diamond tools; | Single package size: | 3X3X3 cm; |
Package Type: | Package of Brazed Black Diamond Segment Core Drill Bits For Hard Rock: in plastic bag then in carton; | Material: | synthetic diamond; |
Place of Origin: | Henan China (Mainland); | Product name: | diamond polishing powder; |
Selling Units: | Single item; | Type: | other; |

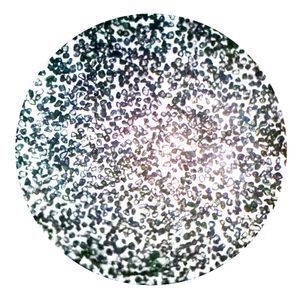

HNHONGXIANG synthetic diamond powder is made of the high-quality synthetic diamond as raw material, through many different and strict production processes. Our diamond powder can be processed and applied to the different industries for cutting, grinding, drilling and polishing usage, in order to match the different requirements.
General grade diamond micron powder for multi-purpose Manufactured on the basis of the diamond industry standard, which is the multi-purpose product.
Relatively regular crystal form, good hardness and impact resistance, and few impurities, comparatively narrow particle size distribution.
Diamond micron powder for diamond wire is specifically for silicon, sapphire cutting diamond wire saw. Through Yang's control of particle size, removal of small particles and large particles in the product, the consumption of cutting materials is reduced, and the product quality and processing efficiency of the customer's products are improved.
Diamond micron powder for PDC, Based on high-grade wear-resistance and high-efficiency type, it is processed and processed to remove impurities from the product and maintain product purity.
It is mainly used in the production of polycrystalline diamond compact sheets.
Standard of China | Standard of International | Mesh | D50um | Standard of China | Standard of International | Mesh | D50um |
W0.25 | 0-0.25 | 60000 | 0.11~0.20 | W0.5 | 0-0.5 | 30000 | 0.20~0.30 |
W1 | 0-1 | 15000 | 0.6~0.8 | W1.5 | 0-2 | 13000 | 1 |
W1.5 | 1-2 | 12000 | 1.1~1.3 | W2.5 | 1-3 | 10000 | 1.6`1.8 |
W3 | 2-3 | 7000 | 1.9~2.1 | W3.5 | 2-4 | 6500 | 2.2~2.6 |
W3.5 | 2-4 | 6000 | 2.6~3.0 | W4 | 2-5 | 5000 | 3.1~3.4 |
W5 | 3-6 | 4000 | 3.5~4.2 | W6 | 4-6 | 3500 | 4.4~5.0 |
W7 | 4-8 | 3000 | 5.0~6.0 | W10 | 4-9 | 2500 | 6.1~6.5 |
W10 | 5-10 | 2000 | 6.5~7.3 | W10 | 6-12 | 1800 | 7.3~8.3 |
W12 | 8-12 | 1600 | 8.3~9.0 | W14 | 7-14 | 1500 | 9.1~10.5 |
W14 | 8-16 | 1300 | 10.0~12.0 | W20- | 10-20 | 1200 | 12.5~15.0 |
W20 | 12-22 | 1000 | 15.0~17.0 | W20+ | 15-25 | 800 | 18.0~20.0 |
W28 | 20-30 | 700 | 20~23 | W28+ | 22-36 | 600 | 23~26 |
W40- | 20-40 | 500 | 26~29 | W40 | 30-40 | 450 | 29~32 |
W40+ | 35-45 | 400 | 32~36 | W50 | 36-54 | 37~43 | |
325/400 | 320 | 43~48 | 270/325 | 280 | 48~55 | ||
230/270 | 240 | 56~64 | 200/230 | 200 | 65~73 |
