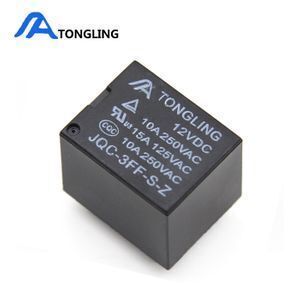

5V / 6V / 9V / 12V / 18V / 24V 10A miniature electromagnetic T73 PCB relay 5 pin JQC-3F
-
Supplier: Donghai Tongling Electric Appliance Co.,Ltd. -
Region: Jiangsu, China -
Contact: Ms Wenwen Zhang -
Price: $0.14 / >=100 pieces -
Min. Order: 100 pieces
| Certifications: | TUV CQC CE RoHS SGS; | Brand Name: | tongling; |
| Usage: | PCB; | Long * width * height: | 19.2*15.4*15.4; |
| Single gross weight: | 0.06 KG; | Contact material: | Silver Alloy; |
| Single package size: | 34X24X32 cm; | Protect Feature: | Sealed; |
| Contact form: | 1A;1B;1C; | Selling Units: | Single item; |
| Model Number: | JQC-3F (T73); | Delivery Detail: | 2 days after payment; |
| Color: | Black; | Size: | Miniature; |
| Theory: | Electromagnetic Relay; | Package Type: | standard packing or customized upon your demands; |
| Place of Origin: | Jiangsu, China (Mainland); | Product name: | relay; |
| Package Preview: | https://sc01.alicdn.com/kf/HTB17xRHFXOWBuNjy0Fiq6xFxVXab.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB1TsAllbZnBKNjSZFKq6AGOVXaV.jpg_640x640.jpg; | Place of Origin: | Jiangsu China (Mainland); |
| Load Current: | 10A 250VAC; | OEM: | yes; |
| Contact Load: | Low Power; | Coil power: | 0.36W; |

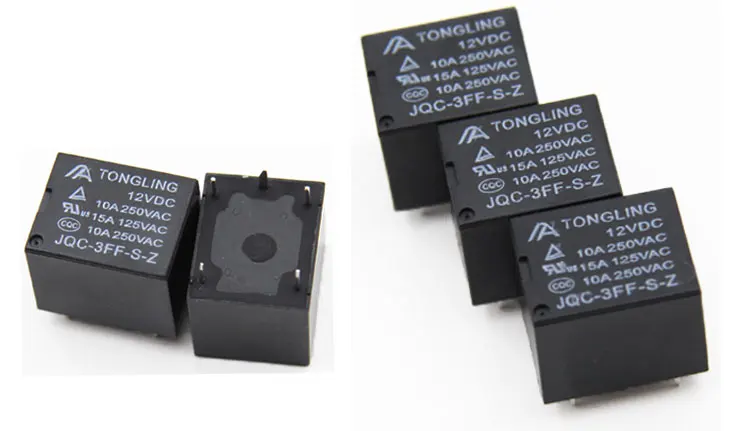

5 p3in 5V/6V/9V/12V/18V/24V miniature electromagnetic T73 relay

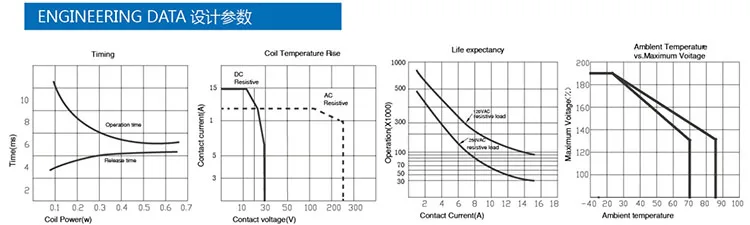

♦COIL DATA(at 20℃)
Nominal Voltage(VDC) | 3 | 5 | 6 | 9 | 12 | 18 | 24 | 48 |
0.36W
|
Coil Resistance (Ω±10%) | 25 | 69 | 100 | 225 | 400 | 900 | 1600 | 6400 | |
Rated Current(mA) | 120 | 71.4 | 60 | 40 | 30 | 20 | 15 | 7.5 | |
Max Operate Voltage (VDC) | 2.25 | 3.75 | 4.5 | 6.75 | 9 | 13.5 | 18 | 36 | |
Min Release Voltage(VDC) | 0.15 | 0.25 | 0.3 | 0.45 | 0.6 | 0.9 | 1.2 | 2.4 | |
Max ApplicableVoltage | 130% of nominal voltage at 70℃ 170% of nominal voltage at 23℃ | ||||||||
♦CONTACT DATA
Contact Form | 1H/1Z |
Contact Material | Silver Alloy |
Load | Resistive load(COSΦ=1) |
Contact Ratings | 1H:10A 250VAC 15A 125VAC |
Minimum load | 100mA 5VDC |
Max Switching Voltage | 250VAC/30VDC |
Max Switching Current | 15A |
Max Switching Power | 2770VA/240W |
Contact Resistance | 100mΩMax at 6VDC 1A |
Life Expectancy | Electrical : 100,000 Operations(at30Operations/minute) |
Mechanical: 10,000,000 Operations(at300Operations/minute) |
♦CHARACTERISTICS DATA
Insulation Resistance | 100MΩMin at 500VDC |
Dielectric Strength Between Open Contacts | 750VAC(50/60Hz for one minute) |
Between Contacts and coil | 1500VAC(50/60Hz for one minute) |
Operate Time | 10ms |
Release Time | 5ms |
Temperature Range | -40℃to+85℃ |
Shock Resistance | Operating Extremes: 10G |
Damage Limits: 100G | |
| |
Vibration Resistance | 10-55Hz, 1.5mm |
Max. switching frequency | Mechanical: 18,000 operations/hr |
Electrical: 1,800 operations/hr | |
| |
Humidity | 40-85% |
Weight | Approx 10g |
Safety Standard | CE CQC UL TUV SGS |
