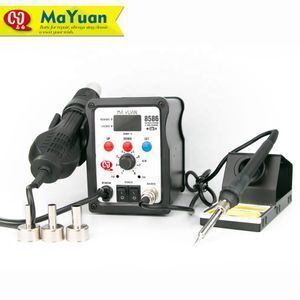

8586 Soldering and Hot Air Gun 2 in 1 Rework Station

Supplier: Guangzhou Mayuan Electronic Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Vincent Jiang
Price: $29.41 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Brand Name:	Mayuan;	Model Number:	8586;
MOQ:	1;	Place of Origin:	Guangdong China (Mainland);
Payment Terms:	L/C,T/T,Western Union,MoneyGram,PayPal;	Current:	4A;
Supply Ability:	1000 Set/Sets per Month;	dBA:	>52DB(A);
Warranty:	12 months;	Temperature Control Accuracy:	± 2°c;
Tip Type:	Knife,Needle,Straight;	Port:	Guangzhou;
Type:	Digital;	Packaging Detail:	Carton;
Voltage:	120v,220V/50HZ;	Application:	Soldering / Desoldering;

Features
Hot air station and soldering station set (the two of them can work separately without mutual interference).
Digital LED temperature display, so that the operation more convenient and accurate.
Self-examine and errors check, with screen reminding to guide people to repair.
Adopts Closed-loop control sensors for temperature accuracy and stability.
Ideal for safe demolition solder QFP, PLCC, SOP, BGA and other chips and components which are temperature-sensitive.
Intelligent cooling system, after the shutdown delay completion of the work of air, air temperature lower than 100 °c automatically cut off power supply.
Use of imported air pump for low vibration, noise-free design and maintain a quiet working environment.
Static elimination design, prevent PCB board damage due to static or electric leakage.

Rework Station Description:
Hot air station and soldering station set (the two of them can work separately without mutual interference).
Digital LED temperature display, so that the operation more convenient and accurate.
Self-examine and errors check, with screen reminding to guide people to repair.
Adopts Closed-loop control sensors for temperature accuracy and stability.
Ideal for safe demolition solder QFP, PLCC, SOP, BGA and other chips and components which are temperature-sensitive.
Intelligent cooling system, after the shutdown delay completion of the work of air, air temperature lower than 100 °c automatically cut off power supply.
Use of imported air pump for low vibration, noise-free design and maintain a quiet working environment.
Static elimination design, prevent PCB board damage due to static or electric leakage

Technical Specifications:
Voltage: AC 220V ±10% 50Hz
Whole Power: 750W
Hot Air SMD Reworks Station
Voltage: AC 220V ±10% 50Hz
Output power: 700W
Temperature range:100°c-55°c
Temperature stability:± 5°c
Air output: 120L/min (The MAX.)

Soldering Station
Voltage: AC 26V 50Hz
Output power: 50W
Temperature range:200°c-480°c
Temperature stability:± 2°c Static (No wind, no load)
Leak resistance of soldering tip :< 2Ω
Leak voltage of soldering tip :< 3mv
