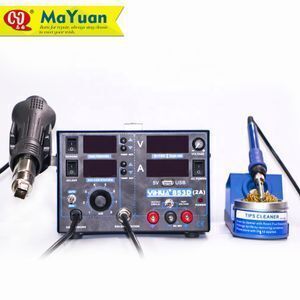

YiHua 853D 2A 3 in 1 Soldering Iron, Power Supply,Hot Air Gun Rework Station

Product details
Type:Digital;Payment Terms:L/C,T/T,Western Union,MoneyGram,PayPal;
Port:Guangzhou;Place of Origin:Guangdong China;
Tip Type:Knife;Voltage:220V/50HZ,110V-240V;
Temperature Control Accuracy:± 1°C;MOQ:1;
Supply Ability:10000 Set/Sets per Month;Brand Name:YiHua;
Current:2A;Model Number:853D 2A;
Application:Soldering / Desoldering;Packaging Detail:Plastic bottle;
Product Description

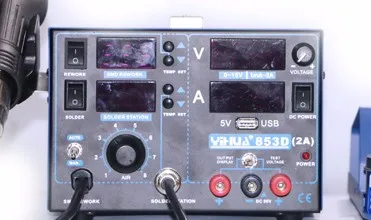

YiHua 853D 3 in 1 Soldering Iron, Power Supply,Hot Air Gun Rework Station
Hot air gun + soldering station + power 3 in 1
Hot air gun manual / automatic optional function
5V USB fast output interface
Soldering iron into sleep mode after fixed 10 minutes
Power output / test conversion

Hot Air Gun
Output Power
650w
Temperature Range
100-480°C
Air Supply Mode
Brushless-Motor Fan
Airflow
120L/min (MAX)
Display Mode
LED Digital Display
Temperature Stability
± 1°C (Static)
Soldering Iron
Output Power
60w
Temperature Range
200-480°C
Display Mode
LED Digital Display
Temperature Stability
± 2°C (Static)
Heating Core
Imported high-powered heating core
Tip-to-Ground Impedance
<2Ω
Tip-to-Ground Voltage
<2mV
Power Supply
Operating Voltage
0-15V
Operating Current
0-2A
Protection Mode
Short circuit Overcurrent
Voltage Display Mode
LED Digital Display
Current Display Mode
LED Digital Display
Load Stability
<0.01 ±2 mV
Rupple and Noise
<1mvrms (SMS)
Products Show

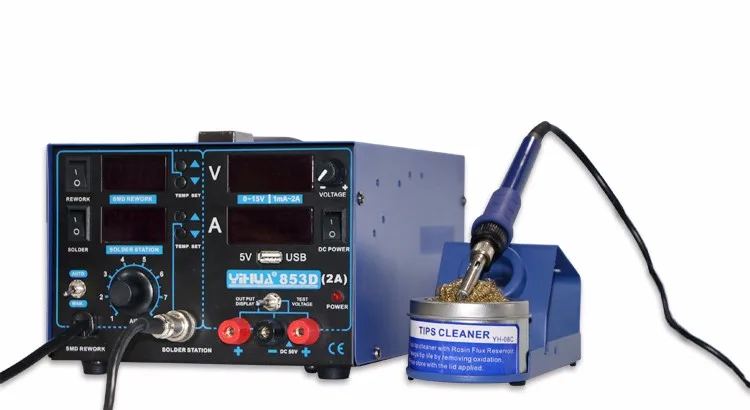

No more distressed repairing with a 853D.

YIHUA-853D USB 2A version 3 in 1 (air gun + soldering iron + power supply) multi-function machine,each part will be much better than the general independent hot air gun,soldering iron or power supply.With richer related features, more leading technology, and advanced workmanship! Especially its power supply part with optional 2A models,which able to charge mobile phones, including phones or tablet with big screen.
.

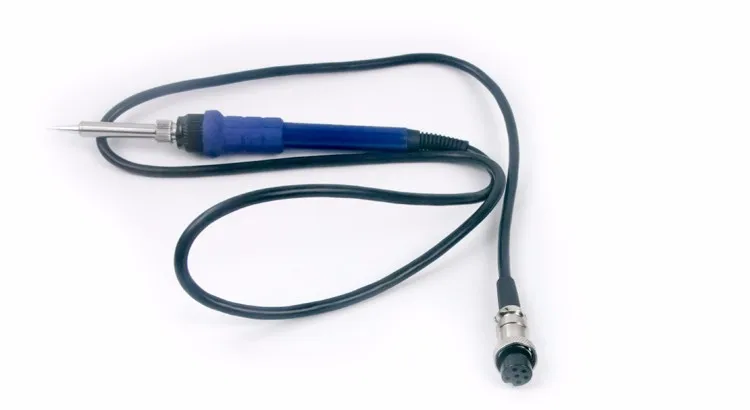

High-power imported heating core soldering iron

Heating up quickly, rapid temperature compensation.
Not only able to meet general solder joints, but also easy to achieve on the large solder joints, thick terminals, unsolder complex joints.

Excellent quality

Latest PID program temperature control system
Fiberglass double panel, bonding technique

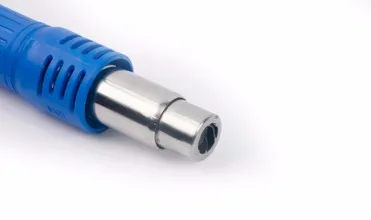

Hot air gun make of drop resistance nickel chrome skeleton winding heating core
Four digits accurate display of current
Heat-resistance silicone wire for hot air gun handle.

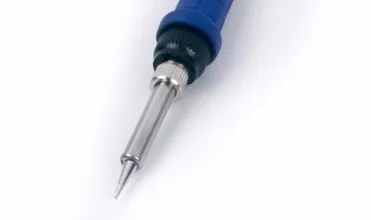

Soldering iron is made of high power imported heating core.

Hot air gun manual / automatic function

Automatic sleep mode:
1.When the hot air gun handle is put back onto the handle frame
2.Automatically power off the heating element to cool down
3.Effectively improve service life of the heating element, energy saving and environmental protection
4.Highl re-boot safety factor
5.Can effectively prevent of unknown boot
6.In case of fire breaking out or other security incidents due to hot air guns out of place.


Manual Mode:
1.The hot air gun wont cool down after put back to handle frame
2.Suitable for frequent operation
3.Spend less time on cooling or warming , improve efficiency.
Kindly recommend to switch back to the automatic function after finish your work by using manual function.

Silicone wire

Immune to high temperature injury: high temperature resistance in a short time.
Flexible, easy to operate: not deformed after long time service, not damaged; smooth grab, wont form a pull when using the handle.

Can adapt to ultra-low temperature working environment,when working in ultra-low temperature ,the general handle wire will become brittle, and easy to break, silicone can work in the ultra-low temperature environment for a long time,
Always remain super-flexible.
