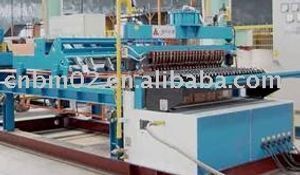

wire mesh welding machine
-
Supplier: CNBM International Corporation -
Region: Beijing, China -
Contact: Ms Jane Cheng -
Price: $50000.00 /set -
Min. Order: 1 set
| Port: | China Main Port; | Payment Terms: | L/C,T/T; |
| Brand Name: | CNBM/CMAX; | Supply Ability: | 200 Set/Sets per Quarter; |
| Delivery Detail: | about 25 days; | Place of Origin: | China (Mainland); |
| Packaging Detail: | According to container shipment requirements; |
Introduction & Application areas:
For the production of high accurate small diameter ,and small specification mesh in sheet or rolls, such as cage mesh.
Machinery Features:
For the production of high quality fencing mesh in large batches, the material can be cold drawn wire, stainless steel wire and galvanized wire.
Line wire straightening system is suitable for processing different raw material.
Line wire loop and balancing system keeps the line wires fed smoothly and continuously.
Control system: Industrial PC, PLC and other electronics components are international famous brands. Mesh sheet specification, production data and welding parameters can be easily input and edited by using the touchable screen display.
High speed mesh cutter: automatic start-stop control, sync with the welding line, max. speed can be up to 120 times per minute.
Technical Parameters:
Model Item | CMAX900 | CMAX1200 | CMAX1500 |
Max Mesh Width(mm) | 900 | 1200 | 1500 |
Line Wire Spacing(mm) | ≥ 25, can be adjusted steplessly | ≥ 50 can be adjusted steplessly | ≥ 75, can be adjusted steplessly |
Cross Wire Spacing(mm) | ≥ 20 can be adjusted steplessly | ||
Line Wire Diameter(mm) | 1.8-3 | ||
Max Working Speed (row/min ) | 30-60 | ||
Max Welding Joint Unit | 18 | 24 | 30 |
Installed Power (KVA) | 125 | 150 | 175 |
Materials Feeding Materials | Cold-rolled wire, stainless wire, galvanized wire | Cold-rolled wire, stainless wire, galvanized wire |
|
Suitable Raw Materials | Straight wire or wire-rod | Straight wire or wire-rod |
|
-
