Working Humidity: | ≤95%; | Condition: | New; |
Port: | Xingang, China; | Supply Ability: | 1000 Unit/Units per Month industrial air conditioner; |
Mounting: | Wall / Window Mount; | Payment Terms: | L/C,T/T; |
Certification: | CE; | Max Noise Level: | ≤65dB; |
Type: | Cabinet Air Conditioner; | Packaging Detail: | plywood case; |
Place of Origin: | China (Mainland); | After-sales Service Provided: | No overseas service provided; |
Cooling Capacity: | 600W (L25 L35); | Name: | DC air conditioner; |
Operating Voltage: | 48vdc; | Model Number: | TC06-60ZEH/01; |
MTBF: | 60000h; | Model: | TC06-60ZEH/01; |
Brand Name: | Shiyu; | Working Temperature: | -20°C~55°C; |
Power Supply: | DC48V; | Rated Current: | 5.2A (L25 L35); |
Power Consumption: | 250W (L25 L35); | Delivery Detail: | Shipped in 25 days after payment; |

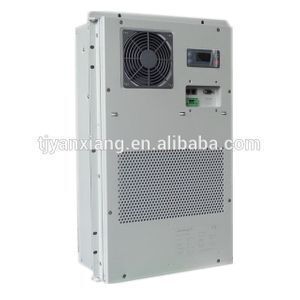

LCD outdoor totem air conditioner/Outdoor or electric cabinet air conditioner/600W industrial air conditioner
1. Introduction
TC06-60ZEH/01 is a fully automatictemperature control equipment products, the product uses the intelligent controller to control the entire systemproducts, intelligent controller based on the change of environmental temperature and automaticdetection, automatic operation,and record the entire system uptime, power consumption, event and historical data, can store 100 event records, 1280 historical data records,can inquiry log information of 256 days. The productsused in communications cabinets, small room, UPS room, Outdoor LCD Totem, etc.
2. Technical Data
Name | Temperature Regulator |
Modal | TC06-60ZEH/01 |
Power Supply | DC48V |
Cooling Capacity | 650W (L35 L35) |
600W (L25 L35) | |
Power Consumption | 268W (L35 L35) |
250W L25 L35) | |
Rated Current | 5.6A(L35 L35) |
5.2A(L25 L35) | |
Working Temperature | -20°C~55°C |
Working Humidity | ≤95% |
Max Noise Level | ≤65dB |
MTBF | 60000h |
Dimension | L483*W100*H657mm |
Surface Treatment | Outdoor type powder coating, standard color RAL7035 |
CE&RoHS Compliant | YES |

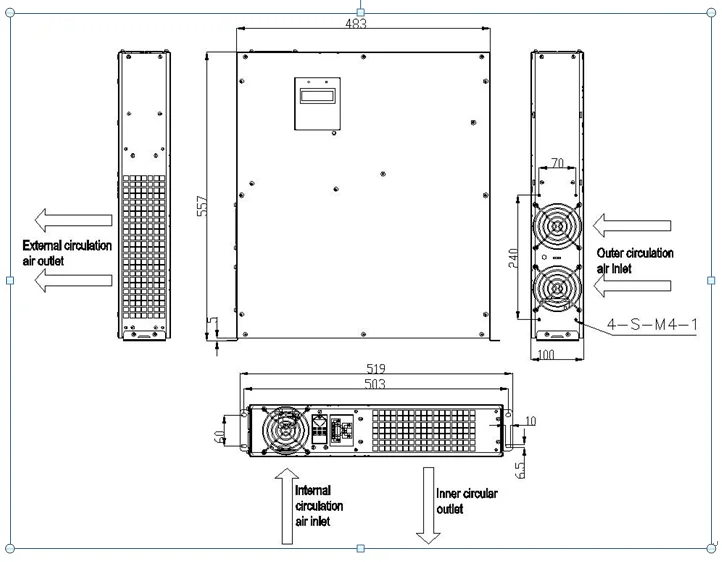

3. Outline Dimension
4. Other products
5. Factory Introduction
Tianjin Yanxiang Electronic Science and Technology Co., Ltd., registered in Tianjin Binhai Hi-Tech industrial Zone. It is a high-tech company with technology R&D and service combination as well as information and industry. Meanwhile it is a High State Authenticated and New Technology Enterprise , Excellent Private Enterprise of Tianjin. The company passed the ISO9001 International Quality System Certification in 2004 January. We have acquired multiple software copyrights and invention patents. Several product technologies are listed as National Key and New Product Project , Tianjin Science and Technology Support Plan Project.
We own 20 national patents,including 5 inventions patent , other 5 techniques obtained Tianjin Science and technology achievement. Our company is granted as Tianjin Outstanding Privately Owned Enterprise .Besides, we got Chinese Privately Owned Science and Technology Enterprise Technology Innovation Award.
The company focus on the telecommunications cabinets, battery cabinets and communication engineering heat exchanger production and sales, from 2006 we begin to supply products to Huawei technology company, at present, out main customers including China Mobile, China Unicom, Huawei Technology Company and Naval Communications Department. Foreign customers from Europe, Asia, Africa, South Asia and North America and other countries speak highly of our products.
In the future, Yanxiang will stick to the aim of providing good quality products, excellent service, advanced management and pioneering technology, It will be our honor to provide clients with quality electronic science and technology products .We will reward the support from cooperative companies and concern of social circles with more excellent achievements.

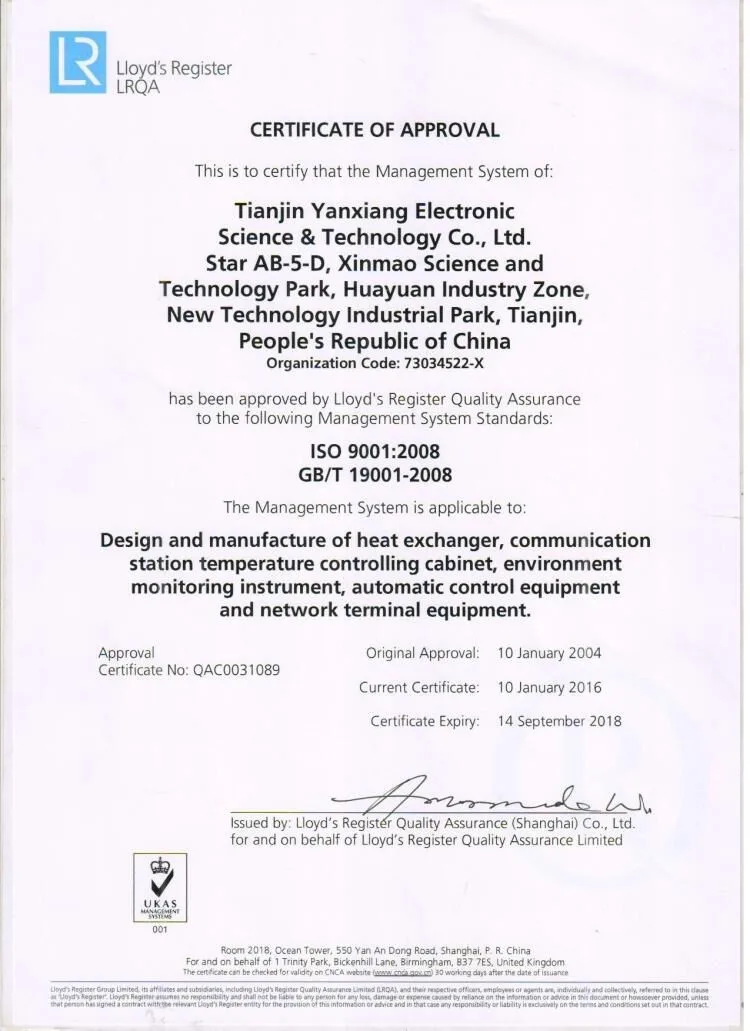

6. Certification
7. Contact Info
Thank you for visiting us, have a nice day!
