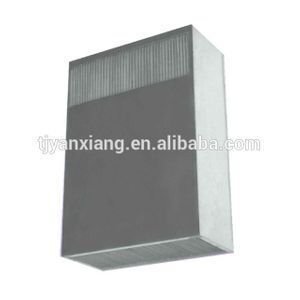

HC-03-121 Heat exchanger core for air heat exchanger Counter flow/Cross flow core/plate

Product details
Liquid Flow Rate:2.5m/s;Power(W):30W/K-220W/K;
Weight:3KG-15KG;Structure:Plate Heat Exchanger;
Place of Origin:Tianjin China;Port:Xingang Tianjin;
Payment Terms:L/C,T/T,Western Union;Supply Ability:500 Piece/Pieces per Month;
After-sales Service Provided:No overseas service provided;Voltage:220V/50Hz;
Certification:ROHS;Condition:New;
Warranty:12 Months;Place of Origin:Tianjin China;
Model Number:HC-03-121;Packaging Detail:wooden case with carton;
Delivery Detail:15-20 working days;Brand Name:SHIYU;
Material:aluminum plate/copper plate;Dimension(L*W*H):DESIGNED;
Maximum Working Pressure:3.0MPa;

HC-03-121 Heat exchanger core for air heat exchanger Counter flow/Cross flow  core/plate



1. Technical Specification :



Counter flow heat exchanger core/plate

According to RoHS and WEEE

Patent protection

According to customer demand





+

2. Advantages :



The heat exchanger core is designed with our invention patent technology,

the structure of which reduces air flow stagnation between heat exchange

plates, and has less short flow.Its heat exchange capacity is 5-12% higher than that with the current technology.





+

3. Materials :



Core plate: aluminum foil/aluminum foil with epoxy coating

Frame:zinc-plated metal sheet,or aluminum alloy material





+

4. Parameter:



Specification Dimension(mm)

30W/K 90*300*300

80W/K 140*300*440

80W/K 335*330*145

100W/K 335*440*145

110W/K 140*500*440

120W/K 600*390*190

190W/K 600*485*190

220W/K 615*675*240





+

5. Payment terms:



TT 100%, 50%/50%, AT SIGHT LC





+

6. Packing information:



Wooden case or according to your requirement





+

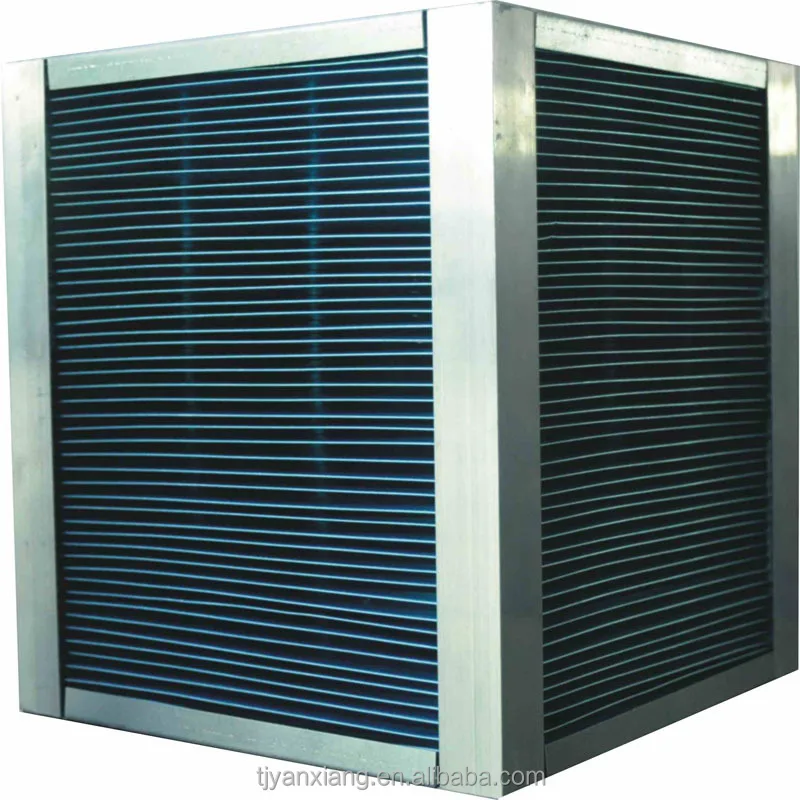

7Pictures :















+

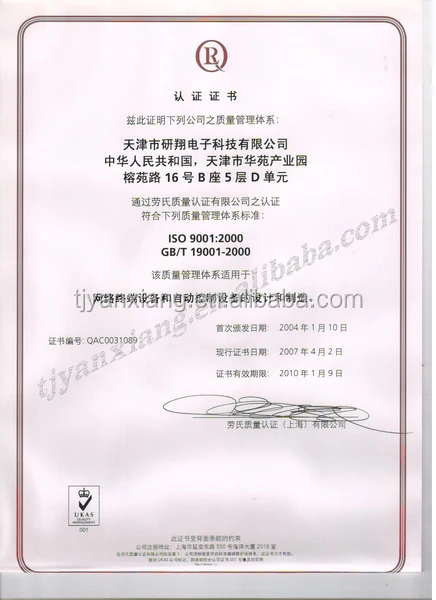

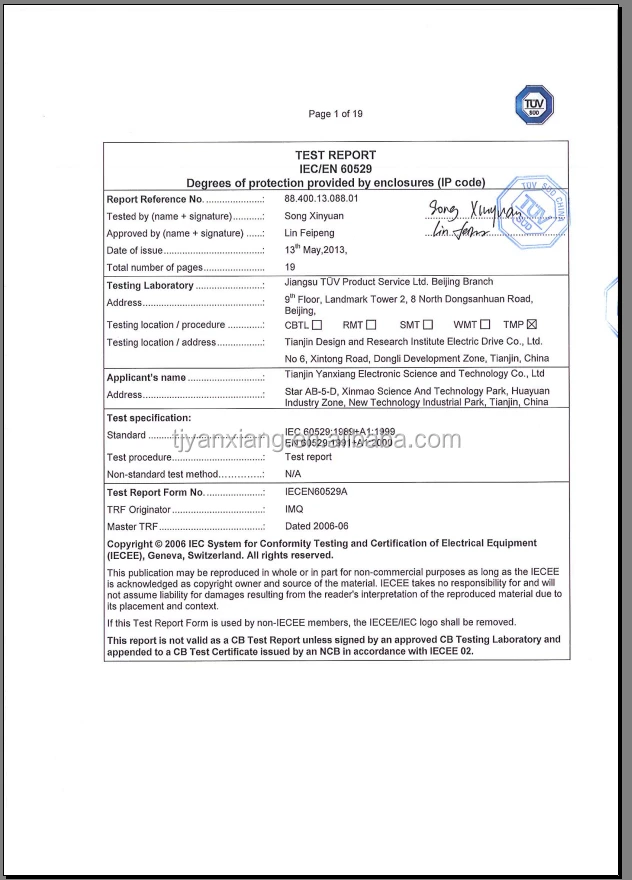

8. Certificates and patent:















+

9. Our service:



Your inquiry related to our product & price will be replied within 24 hours

Well-trained & experienced staff are to answer all your inquiries in English

Our professional engineering overseas for installation and maintenance

Your business relationship with us will be confidential to any third party

We offer high and new technology consulting and transfer service

We do Custon-made, OEM & ODM, welcome to visit our Factory







+

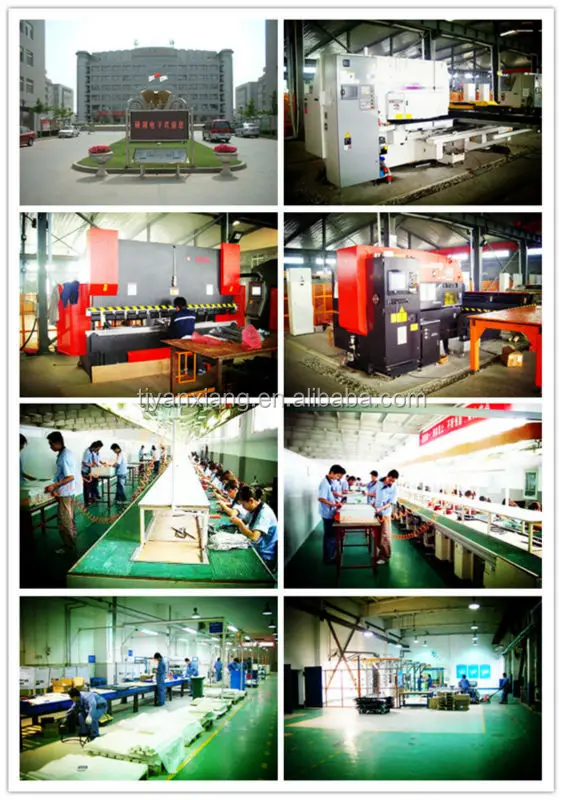

10. Company Information:



Yanxiang professional in power swichboard, power battery cabinet, distribution

cabinet, telecom network distribution box, high voltage substation cabinet,

telecommunication equipment, electrical accessories, telecom rack cabinet,

Industrial solar air conditioning, Industrial heat exchanger etc, which can

be widely used in the telecommunication, Power, energy, engineer industries.

With 13 years manufacturer and solutions experience with ISO and TUV

certificated. Over 50000 sets cabinet can be produced each month.

We also offer high and new technology consulting and transfer service.









+

11. Why Choose Us?



13 years manufacturer selling

Wholesale/Customize sample/OEM ODM are available

Competitive price

High product quality, Strict quality control

Best service





+

12. Contact information:
