Industrial Bread Baking Machine rotary oven pizza baking oven

Product details
MOQ:1 set;Product name:Industrial Bread Baking Machine rotary oven pizza baking oven;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Port:Tianjin,guangzhou,shanghai and so on;
Electric Part:Schneider;Packaging Detail:1, mechanical surface coated with preservative solution (to protect stainless steel). 2, the plastic cushion packing machine (prevent bump), 3, plastic film packaging (to prevent ventilation), 4, wooden case/frame packaging (easy to transport) 5, tie the bandage outside of the wooden case (reinforcement overall).;
Raw material:Milk,Corn,Fruit,Wheat,Nuts,Soybean,Flour,Vegetables,Water;Output product name:Rotary oven;
Application fields:Commercial catering,Dairy products factory,Snack food factory,Bakery,Frozen food Factory;Dimension(L*W*H):1810*2270*2755mm;
Tray number:32 trays;Voltage:220/380V;
Weight:1900KG;Machinery Function:Rotary oven;
Material:stainless steel 304;Power(W):3.5KW;
Certification:CE ISO;Supply Ability:10 Piece/Pieces per Week;
burner:Olympia;Energy:Electricity;
Brand Name:BAKR;After-sales Service Provided:Field installation, commissioning and training;
Warranty:2 Years;Style:European style;
Place of Origin:Hebei,China;Temperature Range:Room Temperature~400℃;
Tray size:400*600mm&460*660mm&460*720mm;
Product Description

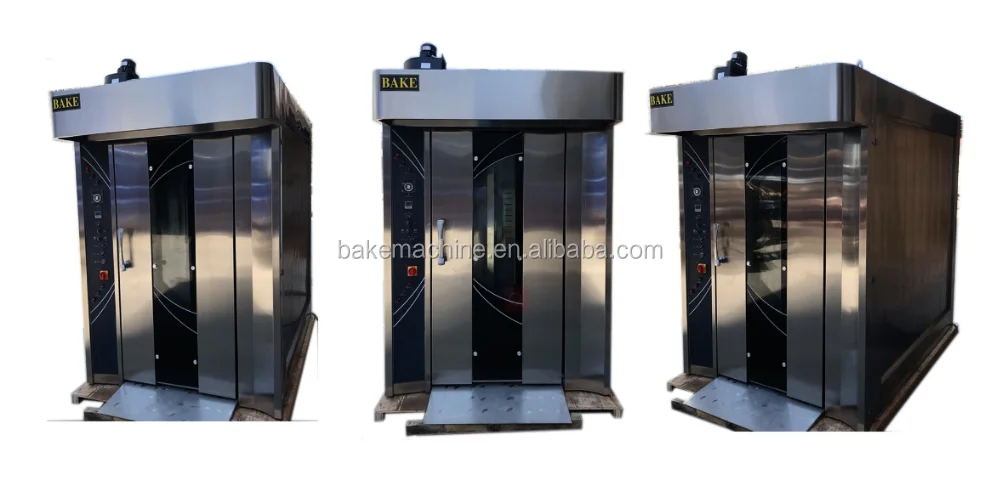

Industrial Bread Baking Machine rotary oven pizza baking oven


Model
tray dimension
BK-D16E
400*600mm&460*660mm&460*720mm/16
BK-D16D
400*600mm&460*660mm&460*720mm/16
BK-D16G
400*600mm&460*660mm&460*720mm/16
BK-D32E
400*600mm&460*660mm&460*720mm/32
BK-D32D
400*600mm&460*660mm&460*720mm/32
BK-D32G
400*600mm&460*660mm&460*720mm/32
HDR-T64E
400*600mm&460*660mm&460*720mm/64
HDR-T64D
400*600mm&460*660mm&460*720mm/64
HDR-T64G
400*600mm&460*660mm&460*720mm/64
Model
Energy
Voltage
Power
Max temperature
Dimension
N.W.
BK-D16E
electric
380V
52KW
400℃
1440*2290*2755mm
1680KG
BK-D16D
diesel
380V
3.3KW
400℃
1440*2290*2755mm
1680KG
BK-D16G
gas
380V
3.3KW
400℃
1440*2290*2755mm
1680KG
BK-D32E
electric
380V
54KW
400℃
1810*2270*2755mm
1900KG
BK-D32D
diesel
380V
3.5KW
400℃
1810*2270*2755mm
1900KG
BK-D32G
gas
380V
3.5KW
400℃
1810*2270*2755mm
1900KG
HDR-T64E
electric
380V
72KW
400℃
2390*3150*2755mm
2850KG
HDR-T64D
diesel
380V
5KW
400℃
2390*3150*2755mm
2850KG
HDR-T64G
gas
380V
5KW
400℃
2390*3150*2755mm
2850KG

Main Features


*the front material of the oven is stainless steel 304;the other side material is stainless steel201. the thickness is 1.2mm

*the oven can use various size of tray,the tray size can be 400*600mm, 460*660mm, 460*720mm etc.

*with slow wind and fast wind,can set the wind as your needs

*can automatic operate when close the door;can automatic adjustment in place when open the door

*the thickness of the insulation layer is more than 150mm

*the air outlet with adjustment system,thickened design ensure that the air outlet does not deform

*The combustion exchanger is made of open-die forging and the heat exchanger is welded with seamless stainless steel tubes.

*the burner is Olympia,which is imported from Japan.


*the temperature controller is CAHO.

*the AC contactor,thermal relay and intermediate relay all adopt France Schneider.

*Imported exhaust blower,can open the exhaust blower automatically.

*with timing alarm function,Lighting control system and malfunction detection system.can detect the abnormal condition for the oven quickly.





Detailed Images

Machine Parts

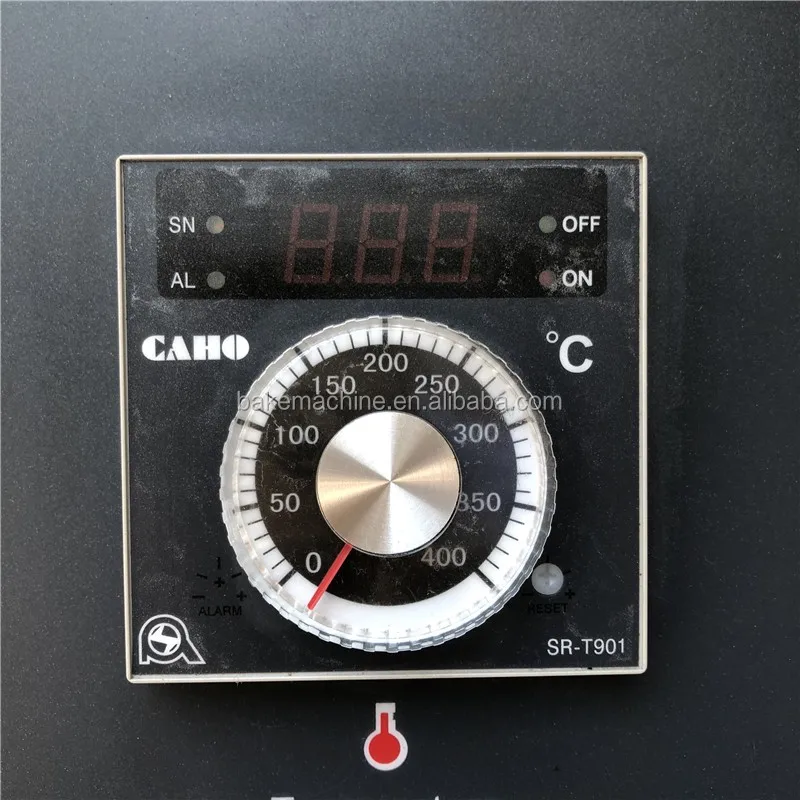

the temperature controller is CAHO,acurate in temperature.

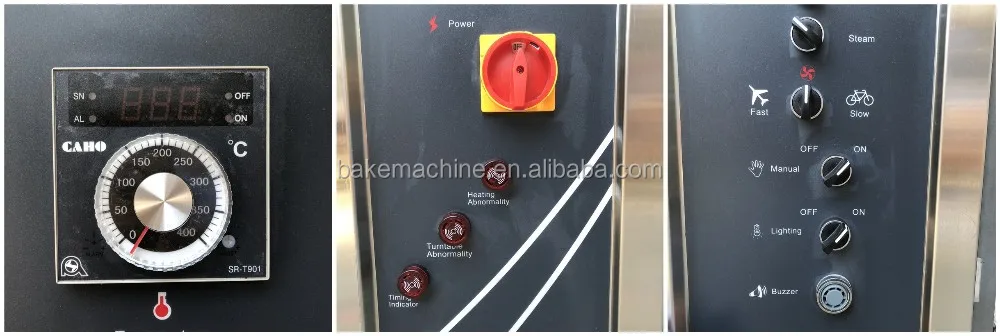

the control panel with timing alarm function,Lighting control system and malfunction detection system.can detect the abnormal condition for the oven quickly.

Main Parts

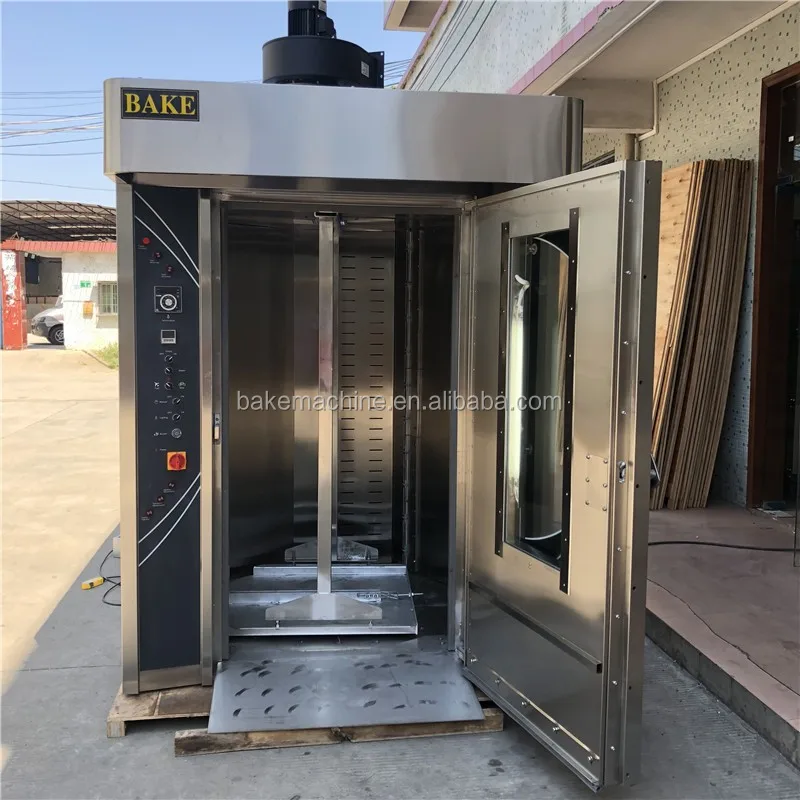

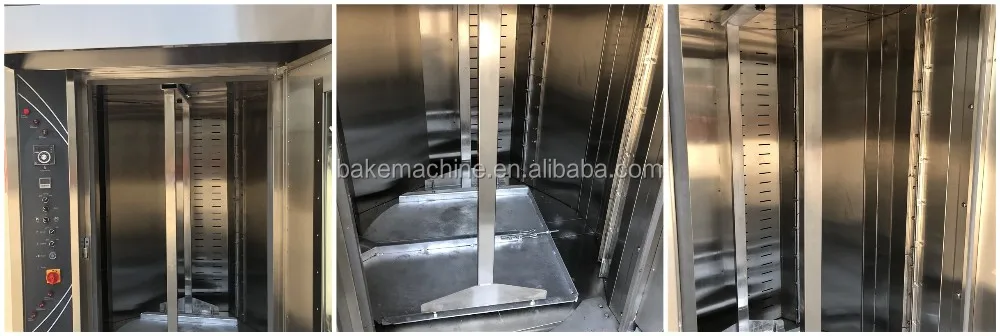

the front material of the oven is stainless steel 304;the other side material is stainless steel201. the thickness is 1.2mm.luxury and durable.


Machine Parts

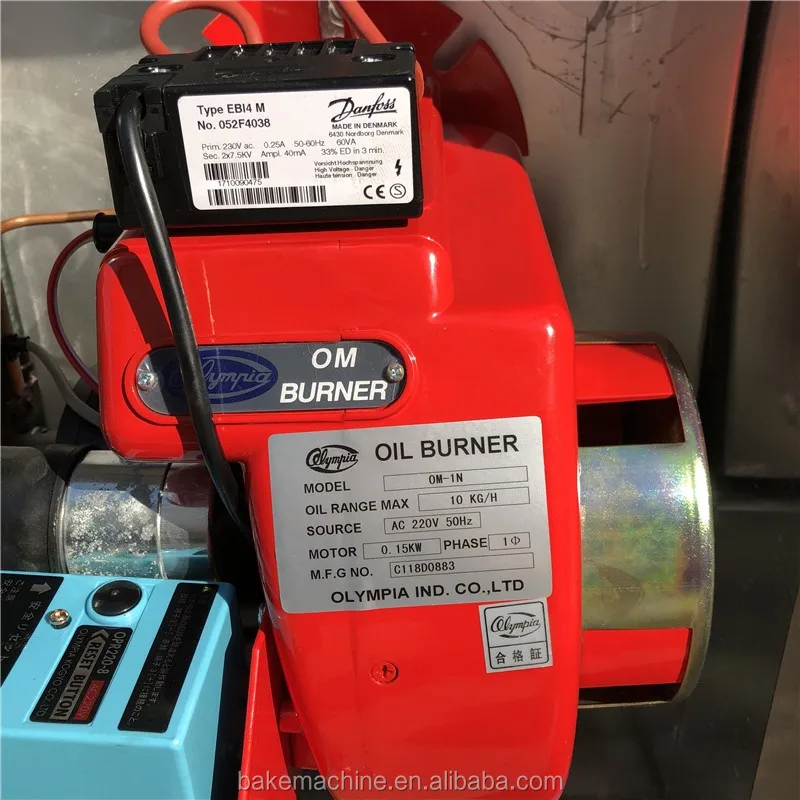

the burner is Olympia,which is imported from Japan.


Main Parts


the electrical parts is France Schneider.


Our Service

TWO YEARS WARRANTY

1.Our engineer can serve you a fully installed and operational line.

2. There is the basic instruction of the mechanical failure and the method how to solve it in the usage instruction clearly
I will provide you lots of spare parts free.

3.( This is only for the electric oven )
We make guarantee to free service within a year after selling. It is our responsibility to solve the problem when the machines have problem by itself, not by the artificialness. We try our best to solve it by phone, if failed, and then our technical engineer can come to your country, but you should pay for their travelling expenses, and we pay for their salary.

Packing & Delivery

1, mechanical surface coated with preservative solution (to protect stainless steel)

2, the plastic cushion packing machine (prevent bump)

3, plastic film packaging (to prevent ventilation)

4, wooden case/frame packaging (easy to transport)

5, tie the bandage outside of the wooden case (reinforcement overall)

Our Company

Shijiazhuang Bake Machine Tech Co., Ltd. has 10 years of experience in production and export of bakery equipment.We have our own senior engineers and skilled workers with rich experienced in bakery machine production. Here you can get complete perfect bakery lines from dough mixing, dough dividing/ moulding, proofing, baking, slicing to packing etc, which are all needed for big and small bakeries. Our people own the most advanced technology for the production of rotary oven, deck oven, convection oven, pizza oven, dough mixer, planetary mixer, baguette moulder, toast moulder, croissant moulder, dough divider rounders, cookie machine, cupcake filling machine, biscuit machine etc. Also We have all auxiliary items for bakeries like freezers, various baking pans, baking trolleys, working table etc. Our machines are with ISO9001:2000 and CE certification.

Related Products

spiral dough mixer


deck oven


convection oven


proofer


dough divider


dough divider rounder


FAQ

Q1. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery.

Q2. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU,DDP.

Q3. How about your delivery time?


A: Generally, it will take 5 to 20 days after receiving your advance payment.
