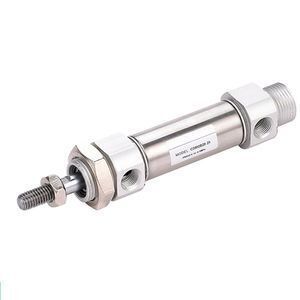

CM2 CDM2B SMC type Stainless Steel Pneumatic mini cylinder

Product details
Thread:BSP;Brand Name:mini cylinder;
Standard or Nonstandard:Standard;Body material:Aluminum ,Steel;
Package Preview:https://sc02.alicdn.com/kf/HTB1bsJDXjDuK1Rjy1zjq6zraFXaW.jpg_640x640.jpg;Package Type:Cartons for mini cylinder;
Model Number:CM2 series;Sealing materials:NBR;
Selling Units:Single item;Body Material:Stainless Steel;
Port:M5 M6 1/8" 1/4" 3/8";Power:Pneumatic;
Shaft Diameter:10, 20, 30, 50;Single gross weight:0.5 KG;
Working pressure:0-10bar;Operating Temperature:0~60°C;
Maximum Stroke:2000;For:mini cylinder;
Ensured Pressure Resistance:15bar;Place of Origin:Zhejiang China;
Can be customized:yes;Single package size:10X10X10 cm;
Fluid:Air;Structure:Series Cylinder;

CM2 CDM2B SMC type Stainless Steel Pneumatic mini cylinder





Specification



1.SMC Type CDM2B Mini Stainless Steel Pneumatic Air Cylinder

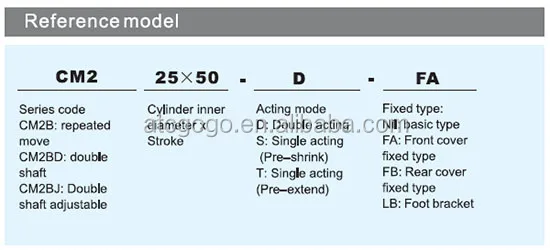

2.SMC CM2 series
3.Bore size: 20~40mm

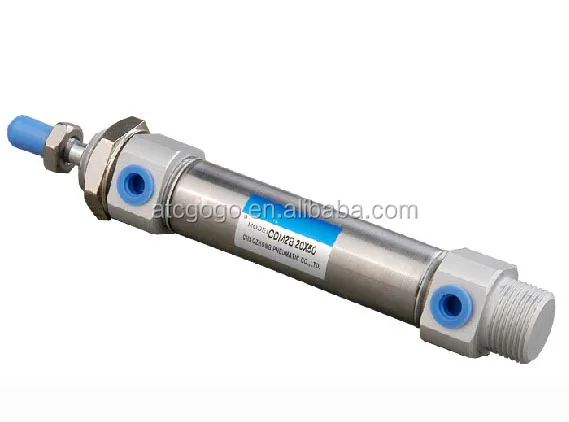

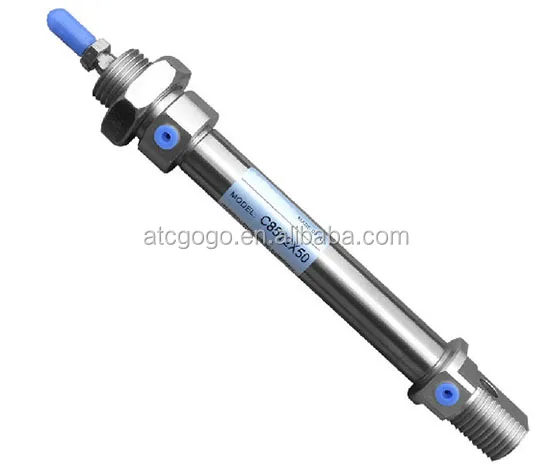

SMC Type CDM2B Mini Stainless Steel Pneumatic Air Cylinder


Features:
1.CM2 series Stainless Steel Cylinder Pneumatic .
2. SMC CM2 series Stainless Steel Cylinder Pneumatic , with the same appearance.
3.Bore size(mm): 20, 25, 32, 40.
4.Double acting, Single/Double rod
5.Rubber bumper, or with adjustable air cushion at both ends(Option).
6.Built-in magnet is optional.
7.Cylinder kits, barrel, piston is available.

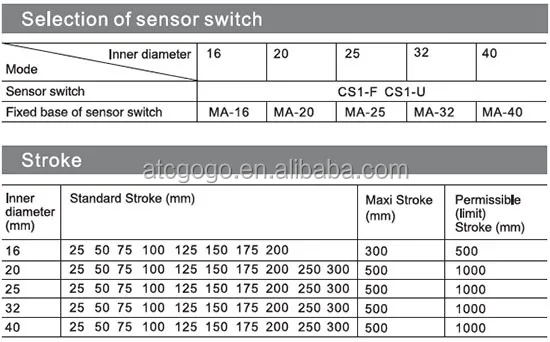

Bore size (mm)20253240
FluidAir
ActionCM2Double acting, Single/Double rod
CM2-S/TSingle acting, Single rod, Spring return/extend
Minimum operating pressureDouble acting0.05 MPa
Spring return0.18 MPa
Spring extend0.23 MPa
Maximum operating pressure1.0 MPa
Proof pressure1.5 Mpa
Ambient and fluid temperature -20 to 80°C (No freezing)
CushionDouble actingRubber bumper
Adjustable air cushion at both ends
Single actingRubber bumper
LubricationNon-lube
Piston rod dia.8 mm 10 mm 12 mm14 mm
Rod end threadM8x1.25M10 x 1.25M14 x 1.5
Port sizeG1/8G1/4

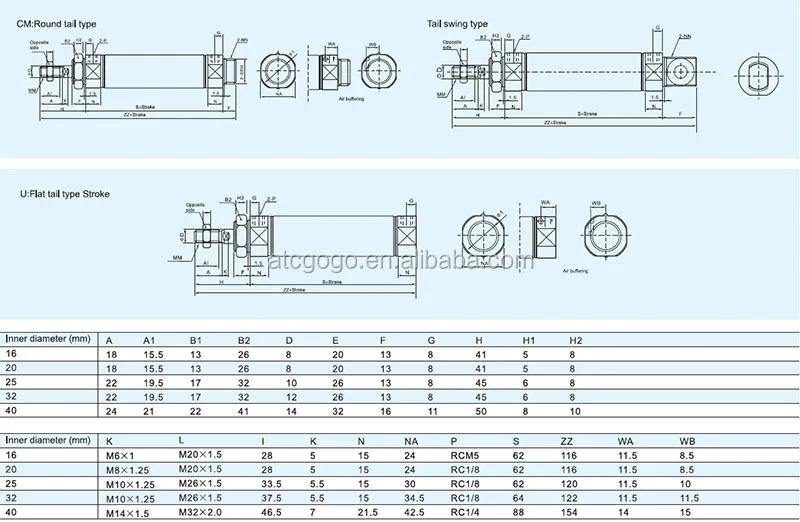

Dimensions

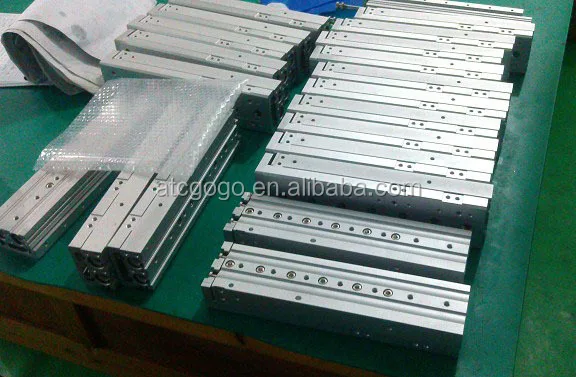

Packing



1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage







Shipment and Payment



1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.

4: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.







About us



1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service

Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
