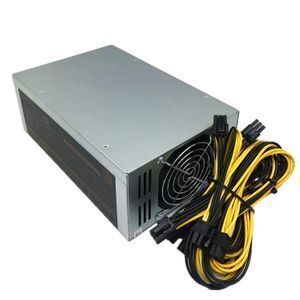

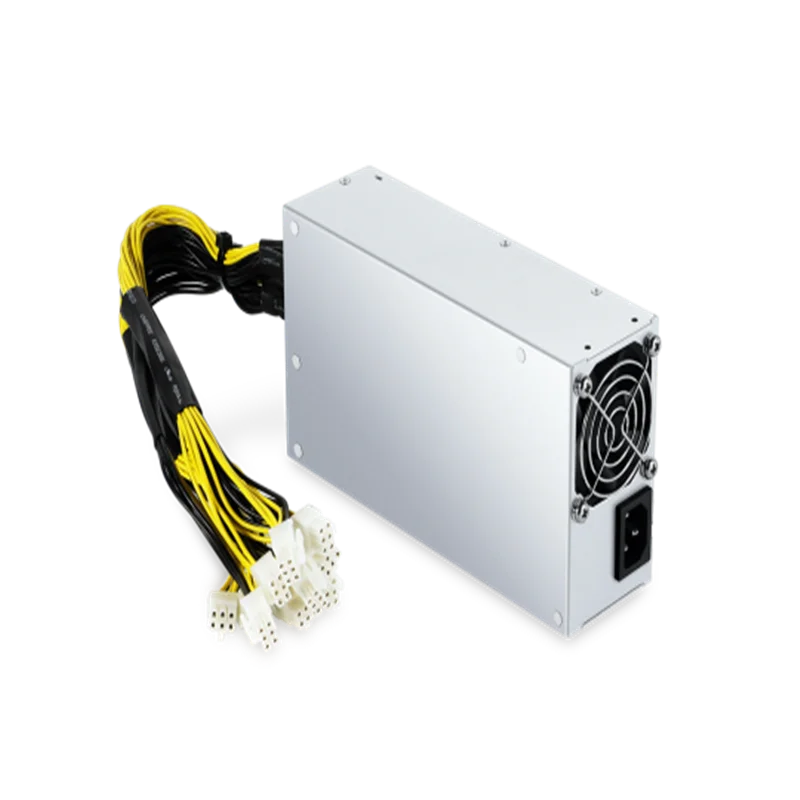

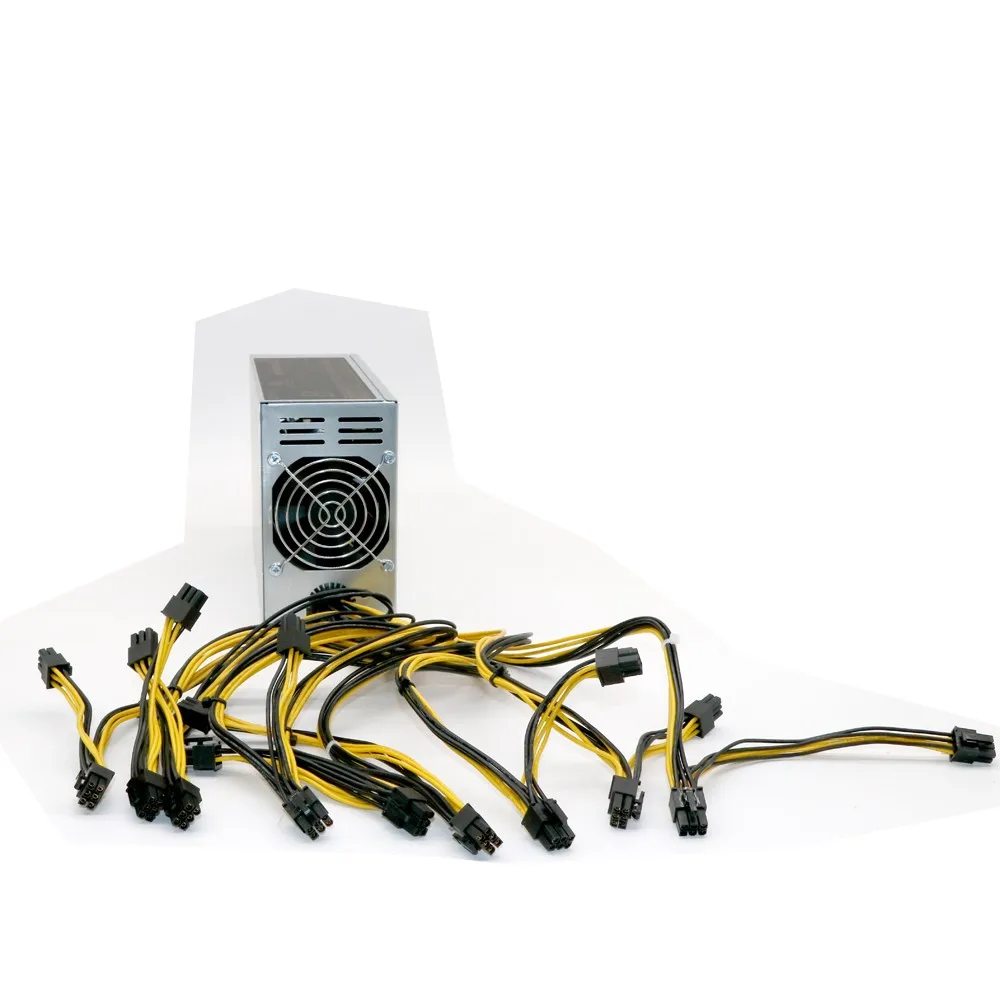

Wholesales Bitmain AntMiner APW7 1800W PSU for Asic Miner Power Supply Suitable for S9 S11 M3 Z11

Click here to contact
Product details
Power factor:>0.99(full load);Rated current (220V input):150A;
Package Preview:https://sc01.alicdn.com/kf/HTB1UapDd8aE3KVjSZLeq6xsSFXaS.jpg_640x640.jpg;Selling Units:Single item;
DC voltage (220V input):12.0V;Single package size:34X18X13 cm;
Start/rise time:<2s;Package Type:Poly Bag;
Power down hold time:>10ms;Single gross weight:3 KG;
Leakage current:<1.5mA(220V 50Hz);Ripple and noise:<1%;
Source adjustment rate:<1%;Rated power (220V input):1600W;
Rated power (110V input):1000W;
Product Description

Wholesales Bitmain AntMiner APW7 1800W PSU for Asic Miner Power Supply Suitable for S9 S11 M3 Z11


Product parameter
Output
DC voltage (220V input)
12.0
Rated current (220V input)
150A
Rated power (220V input)
1800W
Rated current (110V input)
83.3A
Rated power (110V input)
1000W
Ripple and noise
<1%
Voltage accuracy
12.0-12.5V
Source adjustment rate
<1%
 load regulation
<1%
Start/rise time
<2S
Power down hold time
>10mS
Input
Voltage range
100-264V AC
Frequency Range
47-63Hz
Power factor
>0.99(full load)

Leakage current
>1.5mA(220V 50Hz)
Protect
Input undervoltage protection value
80-89V AC
Output short circuit
YES
Output overcurrent protection value
150-200A MAX
Over temperature protection
YES
Surroundings
Operating temperature
-20-60℃
Altitude
<2000m

Working humidity
20%-90%RH
weight
Size
206mm(L)*110mm(W)*62mm(H)
Weight
2.5Kg
Cooling method
Forced air cooling
Noise
34dB
+
+
+
+
+

Power supply precautions:


1. Before purchasing the power supply, first determine whether the local power grid voltage meets the power supply requirements, whether the power supply output voltage and power specifications can meet the requirements of the matched load products, and whether the output terminal type, polarity, and quantity of the power supply are consistent with the requirements of the supporting load.

2. After turning on the power package, make sure that the appearance of the power supply is not abnormal. Otherwise, it is forbidden to use.


3. The ground wire of the power supply should be grounded reliably to ensure safe use of electricity and reduce electromagnetic interference.

4. Considering the differences in the power plug standards of various countries, the standard power supply is not equipped with an AC input cable. Please purchase the AC input cable that can be connected to the local power grid plug. The cable end interface type that is connected to the power panel is C13. The copper conductor of the cable shall have a cross-sectional area of not less than 1 mm2.

5. The installation environment of the power supply should ensure no dust and good air circulation. It is forbidden to have debris affecting the power supply air duct or install the power supply in a confined space. Installation of this power source is prohibited in environments where salt spray and condensation are present.

6. The method of installing the power supply normally is to connect the output line terminal first, and then connect the AC input cable after the load and the power output terminal are connected. It is forbidden to connect and disconnect the output terminals when the power is turned on. Arcs generated by excessive DC current may damage the DC output terminals and even cause fire hazard.

7. Maintaining a good working environment and derating the power supply can greatly extend the service life of the power supply. It is generally recommended that the load power not exceed 90% of the rated power of the power supply, the temperature does not exceed 50 degrees Celsius, and it is used in dust-free, non-acid-alkali and salt spray environments. Derating can also make the power supply work at a higher efficiency point, saving some electricity bills.

Our service

1)-Prompt Reply Within 12 Hours.

2)-Trial order with 1pc-100pcs is acceptable.

3)-FCC,CE,UL,ROHS,MSDS,UN38.3 etc. certificates are available.

4)-OEM/ODM are welcome.

5)-Competitive price.

6)-100% QC for all products and accessories.

7)-Cheap,fast and safe delivery service.

8)-Track order until you get the goods safely.

9)-Professional and excellent after-sale service.

Packing & Delivery
+
FAQ

1.Q: How could I get used Bitcoin Miner Antminer samples?

A: If you need to order sample for checking-up,we would like to ask you to pay for the samples and courier freight. We send the samples to you only after receipt of your payment.if you have an courier account,you can send your courier to collect samples from our company or send us the samples charge together with the courier cost.

2.Q: How much the Courier freight will be for the samples?

A: Courier freight depends on weight and carton size, destinations and other relating factors.

3.Q: How can I get your price list?

A: Please leave your contact way such as Email/Whatsapp/Skype/Trademanager to us. We will contact you and pass our quotation sheet to you as soon as possible.

4.Q:When can I get the price?

A: We usually quote within 12 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.


5.Q: How long can I expect to get the Bitmain Antminer S9i miner sample?

A: After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 2-3 days.


The samples will be sent to you via express and arrive in 3-5 workdays.


You can use your own express account or prepay us if you do not have an account.
