vertical mount B10K smooth shaft D shaft potentiometer

Supplier: Chengdu Cuanstar Union Technology Co., Ltd.
Region: Sichuan, China
Contact: Mr Li Wang
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

Max. Operating Voltage:	500V;	Brand Name:	CS;
Technology:	Carbon Composition;	Taper:	B, A, C;
Packaging Detail:	1000pcs/tray;	Place of Origin:	Sichuan China;
Product name:	vertical mount B10K smooth shaft D shaft potentiometer;	Type:	Rotary Potentiometer;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,trade assurance , paypal, credit card;	Rated Power:	0.05W;
Port:	shenzhen;	Advantage:	small moq;
Resistance:	10 ~5M;	Supply Ability:	10000 Piece/Pieces per Week;
Key words:	Carbon Potentiometer;	Resistance Tolerance:	10%;
shaft:	18T knurled , flat, smooth round shafts;	Operating Temperature:	55 ~+125;
Model Number:	09;

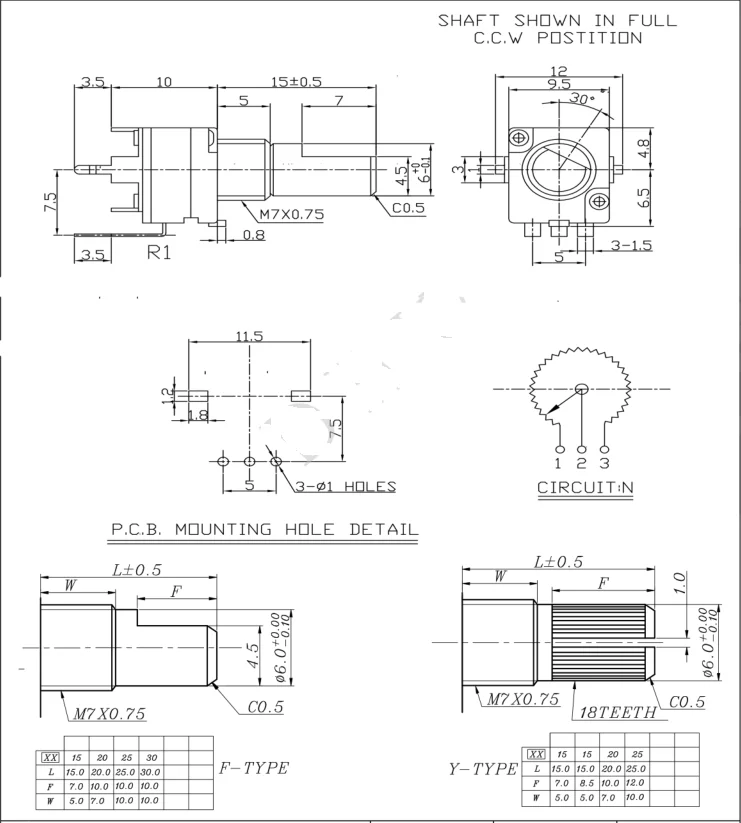

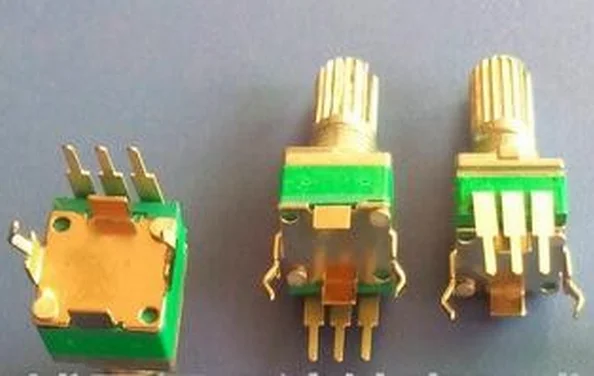

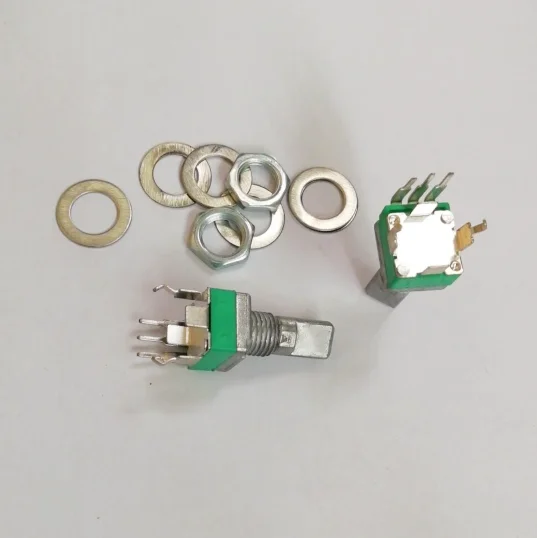

vertical mount B10K smooth shaft D shaft potentiometer

9mm single gang linear type single lap digital potentiometer with metal shaft
Highest working Voltage:B taper 50V AC other taper 25V AC
traveling noise: 100mv
Rotational torque:10~200gf.cm
Total Rotational angle:300°±10°
Rotation stop strength:3Kgf.cm
shaft strength:8Kgf max.
shaft shaking:0.6×L/20mm p-p max.
Resistance tolerance:±20%
resistance residue:R≤10KΩ 10Ω;10K
Power:B taper 0.05W other taper 0.025W
Insulation resistance:100MΩ min. at 250V DC
Voltage resistance:1 minute at 300V
