Product details

Min. Line Spacing:	4mil;	Place of Origin:	Guangdong China;
Equipments:	8 SMT and 3 DIP lines;	PCB Assembly process:	SMT THT DIP;
Product name:	Electronic Circuit Board;	Number of Layers:	1-18 layers;
Surface Finishing:	HASL;	Port:	Shenzhen/Hongkong;
Brand Name:	OEM;	Item:	PCBA Electronic;
Supply Ability:	10000 Piece/Pieces per Day pcb circuit board;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Copper Thickness:	1oz~4oz;	Board Thickness:	1.6mm;
Min. Hole Size:	0.15-0.2mm;	Min. Line Width:	0.1mm Gold/0.15mm(HASL);
Board Thickness:	0.5~3.2mm;	Surface Finishing:	HASL;
Application:	Electronics Device;	Packaging Detail:	Customized package for Printed Circuit Board;
Service:	One Stop Turnkey Service;	Certificate:	ISO/UL/RoHS/TS16949;
Solder mask color:	Blue.green.red.black.white.etc;	Model Number:	OEM/ODM PCB;
Base Material:	FR-4/aluminum/ceramic/cem-3;

pcb circuit boards Professional Design Induction Cooker PCB Board & Electronic PCB Manufacturer/electronic components

Who We Are

Established in 2003, SATECH is a professional manufacturer of PCB & PCBA and EMS (electronics manufacturing service) with nearly 15-year experience in PCB Design & Layout, PCB Fabrication, PCB Assembly, PCBA Prototype, PCBA Test, Electronic Part Sourcing and EMS for kinds of smart electronic manufacturing.

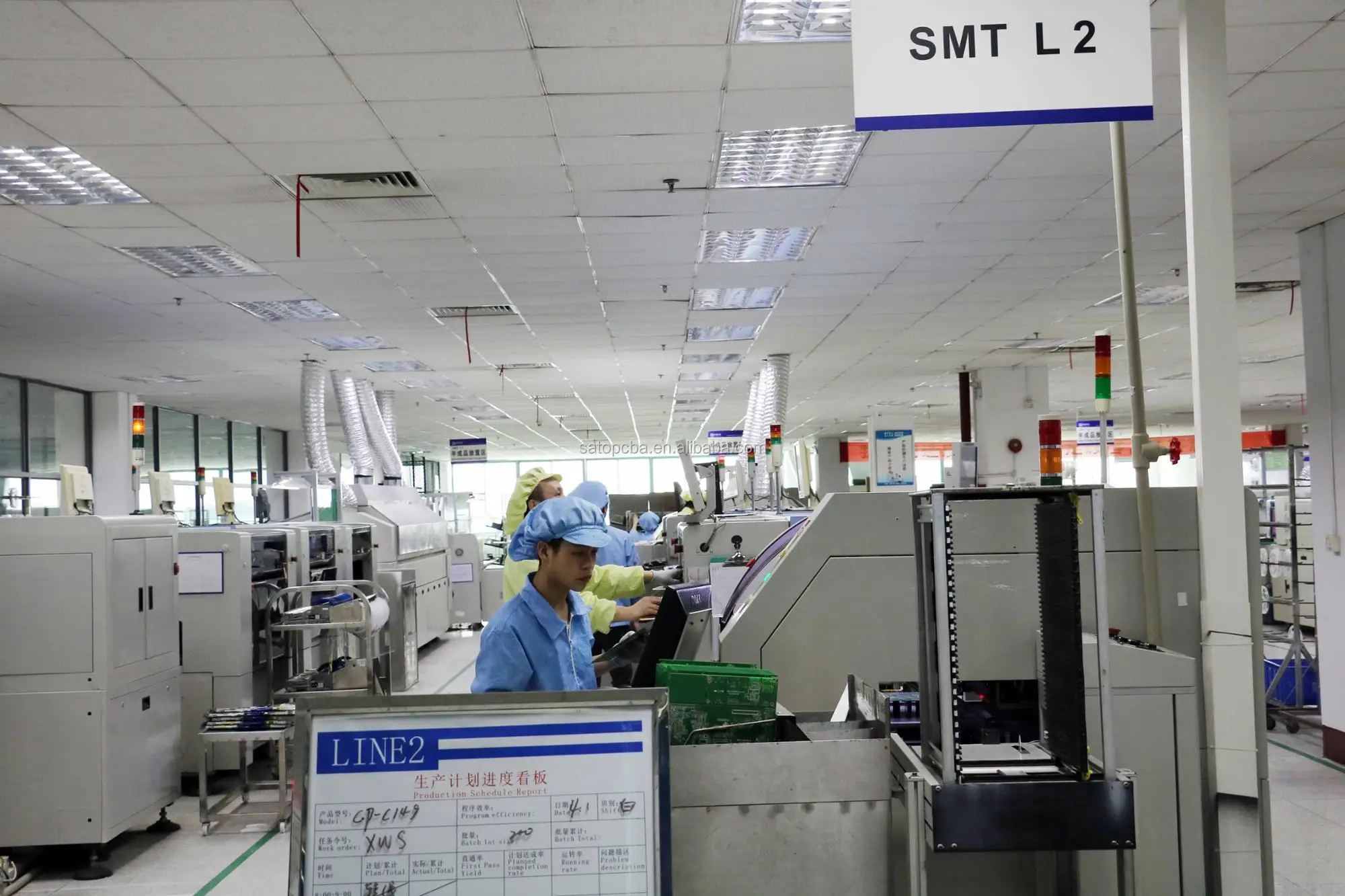

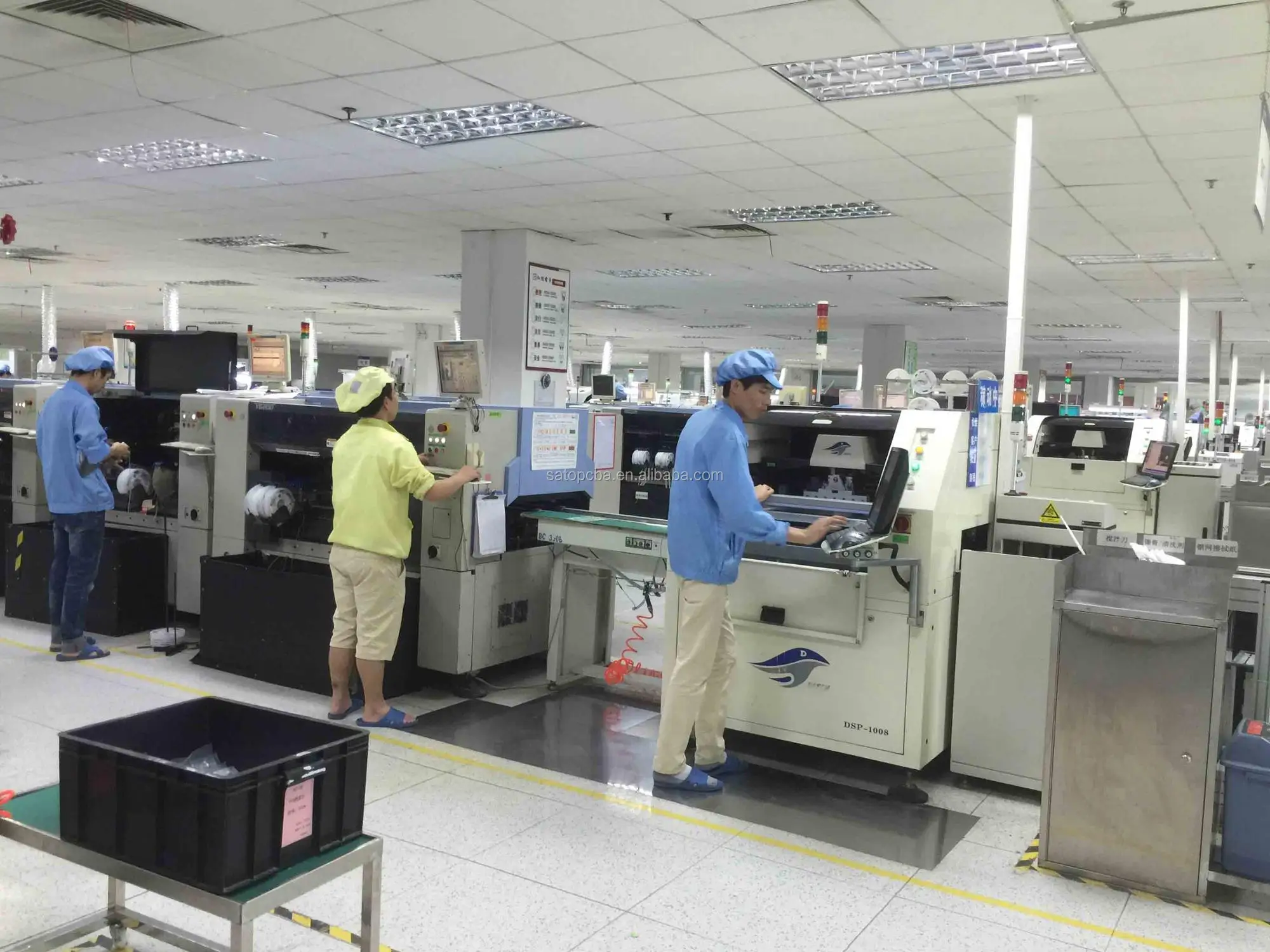

SMT Processing
Now we have 8 SMT Lines and 3 DIP Lines to perform PCB assembly. The precision of chip replacement is up to +0.1MM, this indicates we have professional skills in producing all kinds of printed integrated circuit boards such as SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA with surface-mount technology (SMT), thru-hole technology (THT) and merged tech components.

DIP Processing
SATECH has three DIP processing lines, professional working platforms and carriers, this ensures a output capacity of 1 500 000pcs per day. For every process, technical and standard operation guidelines are made to follow, with strict KPI, this makes sure of 99.8% of pass for every PCBA. Lower our rejects, create more value for clients.

PCB Design & Layout

» Excellent Expertise in design tools: Allegro, Pads, and Mentor Expedition.
» High density SMT designs (BGA, uBGA, PCI, PCIE, CPCI…)
» Flex PCB designs of all sorts
» Complete assembly drawings
» In-Circuit Test data generation (ICT)
» Drill, panel and cutout drawings designed
» Professional fabrication documents created
» High-speed, multi-layer digital PCB designs- Bus routing, differential pairs, matched lengths; Fast PCB design in 2-3 days.
» Concentrate on the PCB design Wi-Fi Module, BLE Module, GPS Tracking application.RF Modules,Medical-Care devices,LED PCB Boards.
» We come up with the design as per customer requirement,and take care for the RAW material cost at the outset of design.
» Full control for the PCB design, from requirement, Schematic, PCB Layout, SI/PI/EMI inspection, we will locate the design issues in the inspection processing.

PCB Fabrication Center

We have produced all kinds of PCBs including FR4, FR1, CEM1, FPC, Metal Core PCB and Rogers PCB, etc. With the advantage of material and component sourcing channels, we have the ability of fast PCB sample--48 hours after order confirmation.

PCB Specifications

PCB layer			1, 2, 4 or 6, up to 18 layers
Board shape			Rectangular, round, slots, cutouts, complex, irregular
Board type			Rigid, flexible, rigid-flexible
Board material			FR-4 glass epoxy, FR4 High Tg, RoHS compliant; Aluminum, Rogers, etc.
Board cutting			Shear, V-score, tab-routed
Board thickness			0.2 ~ 4.0 mm (±10%), Flex board: 0.01 ~ 0.25″ (±10%)
Copper weight			1.0, 1.5, 2.0 Oz (tolerance ±0.25 oz)
Solder mask			Double-sided green LPI, Also support red, white, yellow, blue, black
Silk screen			Double-sided or single-sided in white,yellow, black, or negative
Silk screen min. line width			0.006″ or 0.15mm
Max board dimension			20 inch 20 inch or 500mm500mm
Min. trace/gap			0.10mm, or 4 mils
Min. drill hole diameter			0.01”, 0.25mm, or 10 mils
Surface finish			HASL, Nickle, Imm Gold, Imm Tin, Imm Silver, OSP etc.
Min.slot width			0.12”, 3.0 mm, or 120 mils
V-score depth			20-25% of board thickness
Plated through holes			Yes
Design file format			Gerber RS274X, 274D, Eagle and AutoCAD’s, DXF, DWG, Protel 99se

What We Are Doing

PCB Fast Delivery

Order Types/PCB Layers	1/2-layer	4-layer	6-layer	Above 8-layer	HDI

Normal Sample Orders	5-6 days	6-7 days	7-8 days	10-12 days	15-20 days

Fast Sample Orders	48-72 hours	5 days	6 days	6-7 days	12 days

First Batch Orders	7-9 days	10-12 days	13-15 days	16 days	20 days

PCB Assembly Center

Supported Assembly Capabilities
Different types of Assembly
°THD (Thru-Hole Device)
°SMT (Surface-Mount Technology)
°SMT & THD combined
°2-sided SMT and THD assembly
Order Volume Allowed
°1 to 5,000 boards
Parts
°Passives parts, smallest size 0201
°Fine pitch to 8 Mils
°BGA, uBGA, QFN, POP and Zero-Lead chips
°Connectors and terminals
Component Package
°Reels
°Cut tape
°Tube and tray
°Loose parts and bulk
PCB Board Measurements
°Minimum measurement: 0.2″ x 0.2″ (5mm x 5mm)
°Largest dimension: 15″ x 20″ (381mm x 508mm)
Printed circuit board shapes
°Oblong
°Round
°Slots and Cut outs
°Complicated and Uncommon
PCB board kinds
°Rigid FR-4 boards
°Rigid-Flex boards
Assy procedures
°Leaded process
°Zero-Lead (RoHS)
Design file formatting
°Gerber RS-274X, 274D, Eagle as well as AutoCAD’s DXF, DWG
°BOM (Bill of Materials) (.xls, .csv, . xlsx)
°Centroid (Pick-N-Place Or XY file)
Testing Processes
°Visual Inspection
°X-ray Inspection
°AOI (Also known as: Automated Optical Inspection)
°ICT (AKA: In-Circuit Test)
°Functional testing
Turnaround time periods
°1 To 5 days for only printed circuit board assy
°10 To16 days for full Turnkey Circuit Card Assy

Turnkey PCB Board Assembly Solutions
•Rapid Turnaround •Prototype/Production Support •Blank Boards»Components»Assembly •Rapid On-line Quote

PCBA Testing

We equipped a team of 3 skilled technical engineers who have many years experience in the field to put our strict testing flows and standards into practice. In the whole testing flow, by AOI, flying test and testing jig test we first test the flows of circuit board production including through-hole status, short circuit and appearance, etc. For some complicated craft flows e.g. in high precision or blind via boards, even only wafer analysis can discover testing problems.

Our PCBA test is a complete system which includes FCT, ICT, AOI and so on, so that we make sure each product out of our factory are consistent with the designed parameters and specifications. Before the PCB assembly, we always need to communicate with customers for the confirmation of a test plan. Usually our testing team will help our customers copy if they are pleased to hand over IC program, and then make FCT by testing jig which is usually customized according to PCB functions. (For full idea about FCT, ICT and AOI, you may know about them by Google.)

Component Sourcing Center

•Global IC Sourcing •Strong & Stable Component Supply Channels •Fast Component Purchasing •Scientific Inventory Management System

Why Choose Us

•QUICK RESPONSE & DELIVERY

•CHEAPER WHILE GOOD QUALITY

•SMALL QUANTITY RUNS

•CERTIFIED MANUFACTURING CAPACITY

•GLOBAL IC & COMPONENT SOURCING

•ONE-STOP PCB & PCBA SERVICE
