Herbal Medicine Liquid Small Extraction Concentration Machine

Product details
Certification:ISO9001;Weight:Custom-made;
Applicable Industries:Manufacturing Plant,Food & Beverage Factory;Brand Name:OURUI;
After-sales Service Provided:Engineers available to service machinery overseas;Processing:Concentrator;
Packaging Detail:1. All the components are wrapped by cotton leather; 2. Electric control cabinet, pumps and other electrical elements packed by wooden case 3. All the components are fixed to the container.;Voltage:Customer's Requirements;
Place of Origin:Hubei China;Supply Ability:100 Set/Sets per Year;
After-sales Service Provided:Field installation, commissioning and training;Dimension(L*W*H):Actual Volumn;
Power(W):Custom-made;Condition:New;
Processing Types:Alcohol;Port:wuhan,shanghai;
Warranty:12 Month;Payment Terms:T/T;
Product Description

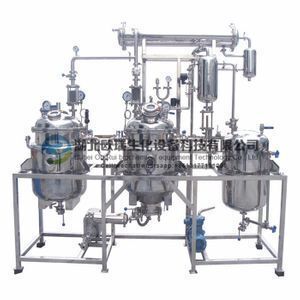

Description of Small Multi-function Extraction Concentration Machine

The unit is a new product developped by our company, it integrates extraction, vacuum concentration and solvent recovery, simplifies the operation procedure. Meanwhile, the whole extraction, concentration and recovery is finished in the enclosed flow path, avoiding the leakage. It uses electric lift discharge, improves the working environment, reduces energy consumption. The contact part of the unit and the material is made with the stainless steel, resistant to corrosion and meeting the standard of the GMP.


Usages:

It is suitable for the extraction and concentration of herbal medicine liquid and fruit juice and the recovery of organic solvent in hospitals, pharmaceutical factories and food industry.


Feathers:

1.The equipment has the advantages of small floor space, exquisite production, complete set and convenient operation.Especially suitable for small batch, multi - variety production methods.

2. The equipment is equipped with: vacuum pump, liquid pump, filter, receiving tank, control cabinet and other accessories.The equipment is steam heating and electric heating respectively. After purchase, the equipment can be used only after being connected with water, electricity or steam.

3. It is suitable for water-extraction and alcohol-extraction. It can extract under normal pressure and negative pressure and can recycle volatile oil. It equips with vacuum switch and control box, easy for operation. It can realize normal temperature extraction and low temperature concentration;Room temperature extraction and concentration;Low temperature extraction and concentration process requirements.

4. Electric heating structure design advanced, efficient, safe, heating and cooling fast, even heating.Tank is equipped with safety pressure relief device to ensure safe use.

5. Reflux extraction process can be realized to reduce extraction and concentration time and save solvent.

6. Unique oil-water separator design makes the oil-water separation effect better.Use glass material, easy to observe.

Technical parameters
Model
TNH-50
TNH-100
TNH-200
TNH-300
TNH-500
Extraction Tank
Volume (L)
65
125
250
375
550
Jacket Working Pressure (MPa)
0.15
60
80
100
130
Container Working Pressure (MPa)
≤0.09
Concentration Tank
Volume (L)
65
125
250
375
550
Vacuum Degree (MPa)
-0.08
Heater Working Pressure (MPa)
0.09
Working Reflux of Heat Reflux (L/H)
20
40
80
120
180
Vacuum Pump
Electric Voltage (V)
380
380
380
380
380
Power (KW)
1.5
1.5
2.2
3
3
Water Pump (MPa)
Power (KW)
0.75
0.75
0.75
0.75
0.75

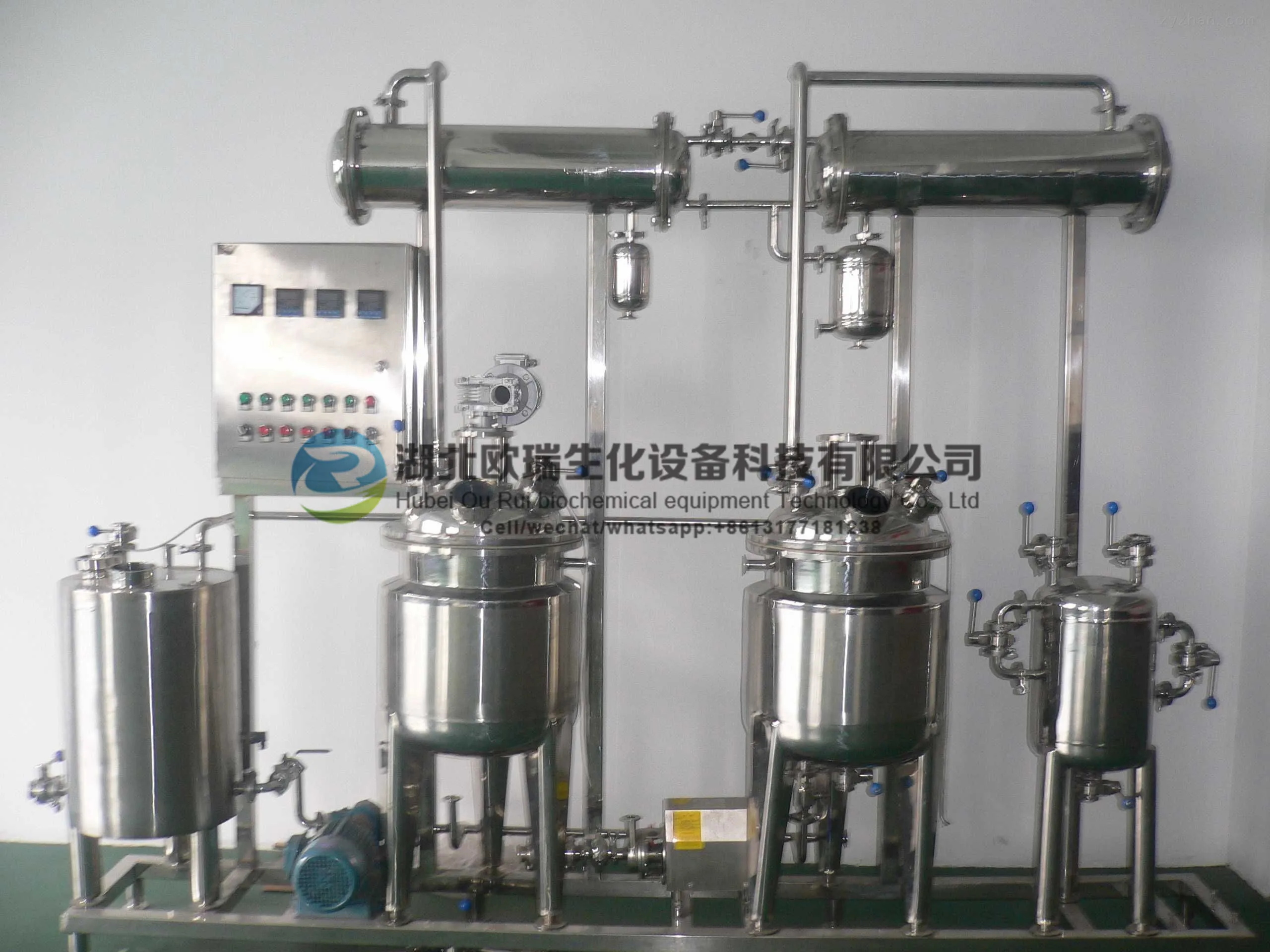

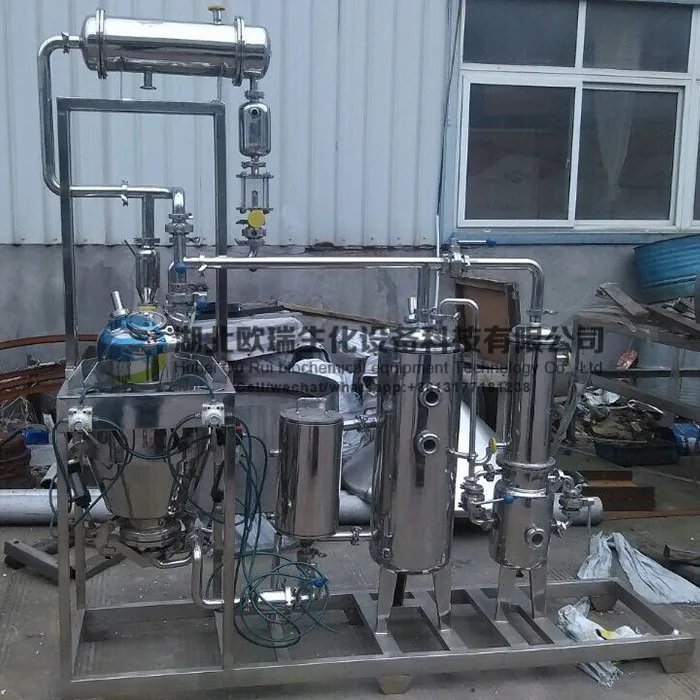

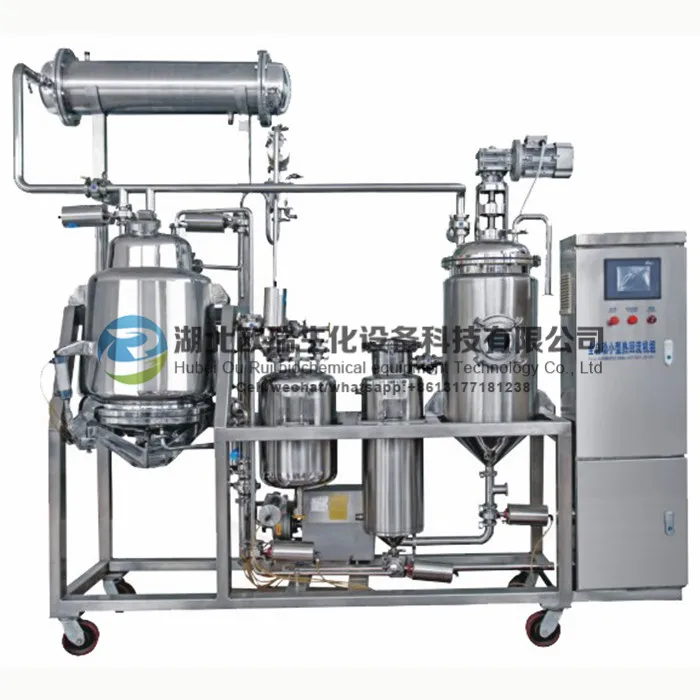

Detailed Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Provide technical proposal.

* View our Factory.

* View our projects.

After-Sales Service

* Training how to instal & how to use the equipment.


* Engineers available to service machinery overseas.

Company Information

          Hubei Ourui biochemical equipment technology co. LTD. was established in 2013 . We have rich experience in organic acid fermentation, starch sugar, pharmaceuticals, chemical industry, wastewater treatment, Relying on the technical support of Hubei University of Technology , under the leadership of several industry experts, We have built up a professional team of design, manufacture, construction and commissioning after 3 years efforts, have become one of well-known contractor of bio-fermentation industry.our company already have the certification of ISO9001 and ISO14001 . It has D1/D2 grade pressure container manufacturing qualifications and has obtained 6 national patents.

         We own a 5000 square meter standard factory for tank production and processing , with advanced processing methods which can provide the quality certification of the first and second class pressure vessel for the fermentation tank & supporting tank.

Certifications

ISO9001:2000 Certificate


Manufacturing license of Special equipment


             Strategic partner


Productivity&Partner

                 Automatic barrel welding

                       Welding effect photo

                   Automatic tube plate welding

                        Welding effect photo

Hydraulic brake shears machine

Digital display universal winding machine

Large automatic polishing machine

       CNC milling machine

            Large vertical lathe

         CNC machining center

Partners:
FAQ

Q.Are you manufacture or trading company?

 A.We are factory, we have our own design team and own workshop, with more than 5 year's OEM       experience.



Q.Can you make me quotation and send me your price list right now?

A.Sorry, our products are all none standards, need custom-made according to client's requirements, so pls let me know your requirements, we will make drawing and quotation for you.



Q. What's your MOQ?

A. 1PCS/SET.



Q.What's the payment terms?

A. 30%T/T as advance payment, 70% before shipment.



Q.What's your delivery time?

A.25-50 working days according to your Qty.



Q.Can you send the machine to my sea port?

A. Yeah, we can, we accept FOB, C&F, CIF, CIP, both by sea and rail way. And our nearest port is Wuhan.



Q.Where is your factory located?

A. Our address: Zengdu Economic Development Zone,Suizhou,Hubei,China.



Q.Do you provide installation&debugging service?

A. Yeah, if single machine, we will send you the installation drawing and documents first, if you still have problems, we will arrange our engineers go to your place for installation guiding.  If it is a production line, our engineer will go to your place do installation & debugging for you directly.



Q. Do you provide after-sale service?

A.  The warranty period is one year. If there's any problem of the equipment not caused by reasonable operation in one year,we will help you solve it (If it is small problem like spare part is broken, we will send you freely;other small problem we will guide  you to solve it by phone or e-mail;If the problem cannot be solved by guiding,we will arrange technician come to your place to mend it after confirmation).
