TMH8 piston air motor for Atlas

Product details
Delivery Detail:Shipped in 10 days after payment;Brand Name:VIOS;
Supply Ability:1000 Set/Sets per Month;Place of Origin:Shandong China;
Rated power:10;Port:Qingdao;
Working pressure:0.63;color:black, yellow, according to customer's requirement;
Payment Terms:T/T,Western Union,MoneyGram;Model Number:TMH8;
Packaging Detail:exported packing, hard wooden cases;Rated speed:800;



2018 Hot Sale                            High Quality

Cheaper Price                            Professional Service

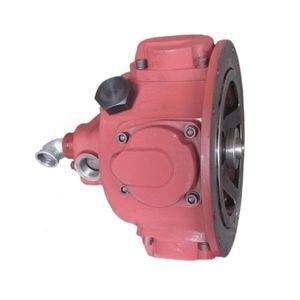

TMH8 piston air motor for Atlas



Working Principle:

TMH8 piston air motor is operated on the basis of the following principles. After entering into the air distribution system(valve core and valve sleeve), the compressed air is accordingly delivered into cylinders, expanding to push the piston reciprocating; the pistons then drive the shaft and crank journal reciprocation and finally output driving power.

Application places:

Widely used in mining, oilfields, constructions, smelting, paper making, pharmacy, chemicals, etc,. This motor is ideal mated driving machine for large-scale drilling machines.



Feacture:

1. Step less in speed, adjusting air volume to change rotate speed and power.

2. Change air-inlet and air-outlet direction to rotate and counter-rotate the motor in short time, with no impact and even not need to relieve the load.

3. The equipped anti-load function enables the motor to rotate at low speed when overload, and regain high speed when overload relived.

4. Stable under inflammable, explosive, outdoor, wet, damp and other extremely conditions.

5. Concise structure, compact in size and light in weight, easy to operate and convenient to maintain.

6. High starting torque enables starting with load, fast and reliable to start and stall.



Technical data:



      Working           Pressure

    No-load

     speed

      Rated

      Speed

      Rated

      Power

          Air

   Consumption

         MPa       r/min       r/min        kW           L/s
         0.4      1000       690        5.5          96.2
         0.5      1100       750        7.5          120
         0.63      1200       800        10          148
         0.7      1300       850        12          172

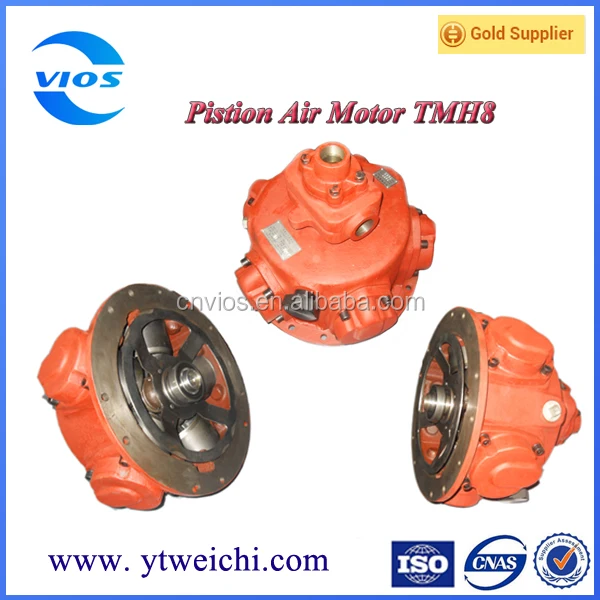

Products showing:

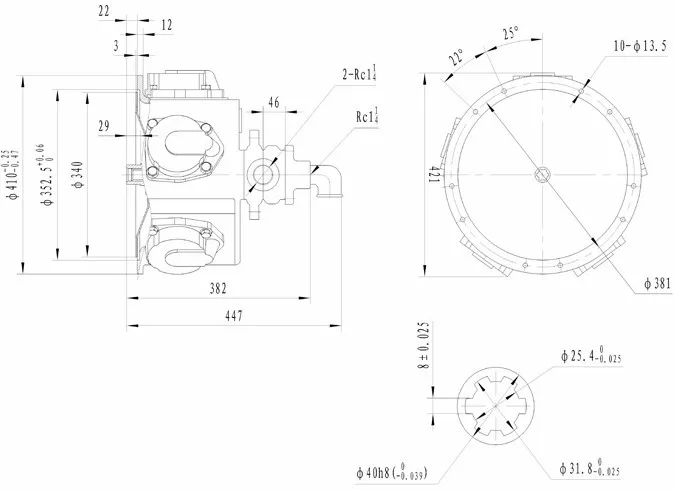

Outer Dimension:

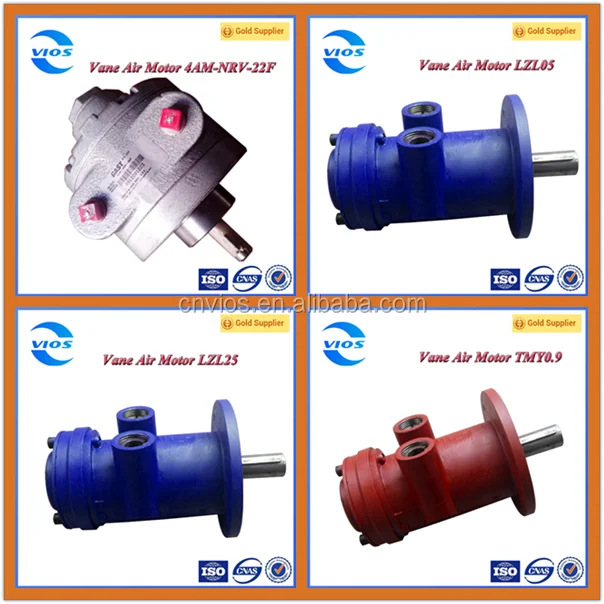

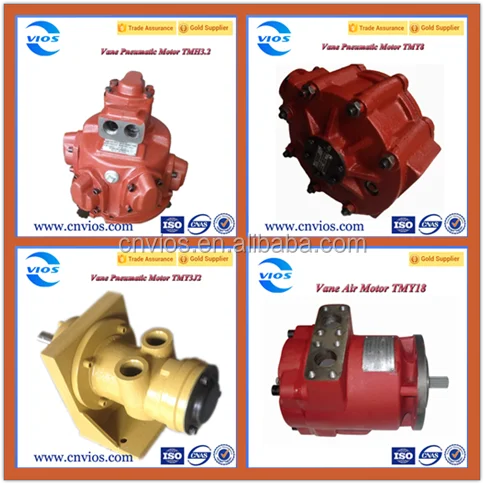

Related Products:

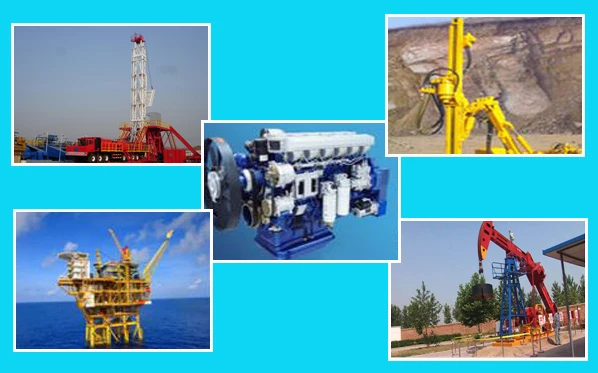

Application Fields:

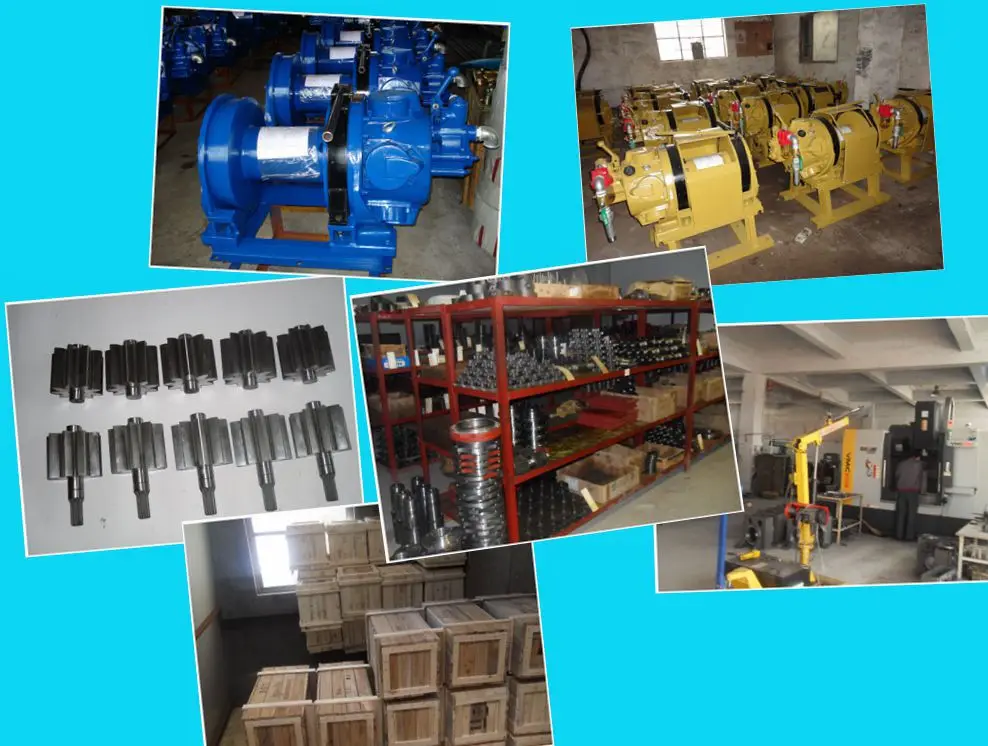

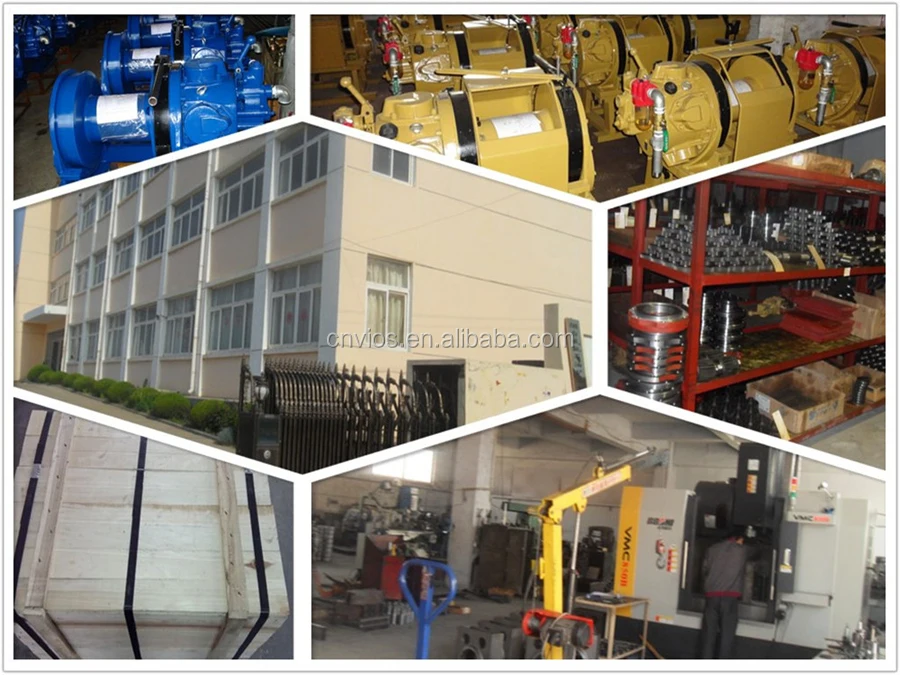

A corner of workshop:







Our Certificate:

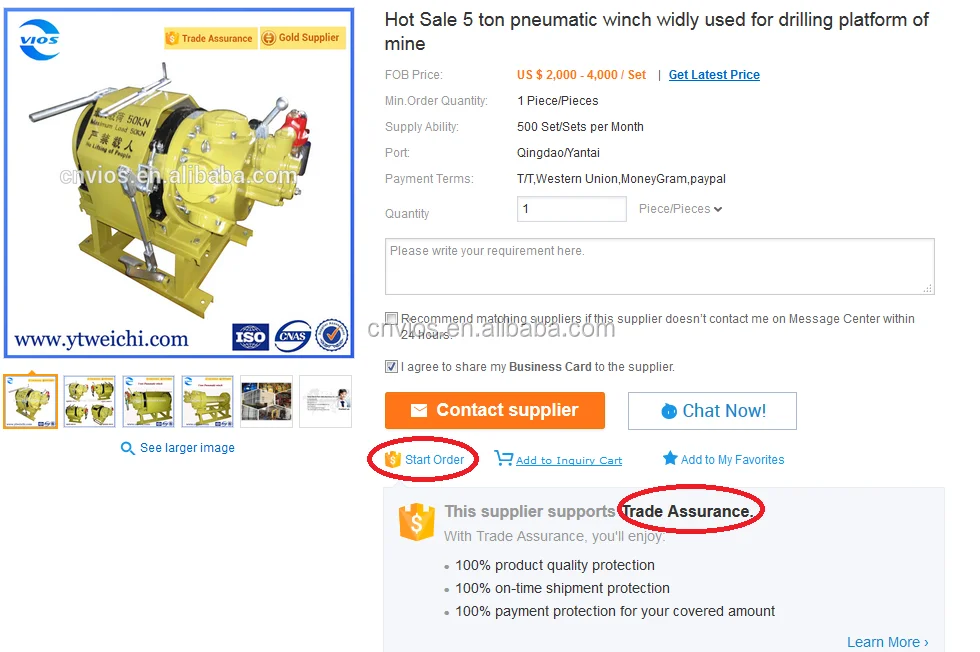

Trade Assurances
