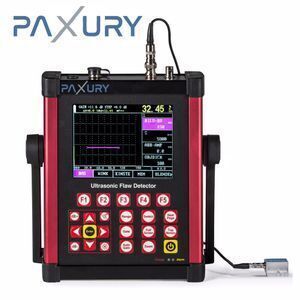

Portable Digital Ultrasonic Flaw Detector NDT Metal ultrasonic testing equipment for weld inspection

Supplier: PAXURY (Shenzhen) Technology Co., Ltd. - Ultrasonic Flaw Detectors, Ultrasonic Thickness Gauges
Region: China
Contact: Mr. Lucas Loo
Price: $2798.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Place of Origin:	CHINA;	Port:	SHEN ZHEN PORT;
Brand Name:	PAXURY;	Model Number:	PAXURY-UFD-132;
Packaging Detail:	Packaging Details Unit Type: piece Package Weight: 7.0kg (15.43lb.) Package Size: 45cm x 30cm x 22cm (17.72in x 11.81in x 8.66in);	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Product Description

Product Application

Models & Applications:
Application for quickly and accurately detection, positioning, evaluation and diagnosis of various flaws in the work-piece, such as cracks, welds, blowhole, etc. It Widely used in electric power, petrochemical, boiler and pressure vessel, steel, military, aerospace, railway transportation, automobiles, machinery, and other fields.

Overview
This is a portable industrial non-destructive flaw detector, which can rapidly, easily and accurately inspect, locate, evaluate and diagnose various defects (crack, inclusion, and pinhole, etc.) in a workpiece without destruction. It can be used both in a lab and field. The instrument can be widely used in many fields that need defect inspection and quality controlling e.g. manufacturing industry, iron & steel metallurgical industry, metalworking, chemical industry, etc., also be broadly used in the active safety inspection and service-life evaluation in such fields as aerospace, railway transportation, and boiler pressure vessels, etc. It is an essential instrument for the non-destructive inspection industry.
When the ultrasonic wave propagates in a job, one can detect the defect in it by the influence on the propagation of ultrasonic wave based on the acoustic characteristic demonstrated by the defect in the material. Based on this principle, by using ultrasonic wave one can measure such defects as crack, pinhole, and inclusion in such media as metal, non-metal and composite, etc.

*Technical Parameters*
Designation	Technical Data
Range of scanning (mm)	Range of scanning (mm):0~6000
	Steps: 2.5,5,10,20, 30,40,50,60,70,80,90, 100,150,200, 250, 300, 350, 400, 450,500,600,700,800,900,1000,2000,3000,4000,5000,6000
	Adjusting step: 0.1mm(2.5 mm~99.9mm),1mm(100mm~6000mm)
D-delay (ms)	D-delay (ms):-20~+3400
	Steps: -20,-10,0.0, 10, 20, 50,100,150,200,250,300,350,400,450,500, 600,
	700,800,900,100,015,000,000,000,000,000,000.00
P-delay (ms)	P-delay:0.0~99.99
	Adjusting steps: 0.01
MTLVEL(m/s)	MTLVEL:1000~15000
	22 Fixed levels: 100, 500, 1000,1500, 2260, 2730, 3080, 3230,4700,5920,6300,8000, 9000, 10000, 11000, 12000, 13000, 14000, 15000
Working mode	Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission (transmission probe)
Frequency Range (MHz)	0.5~20
Gain adjustment (dB)	0~110
Reject	0%~80% of screen height, step: 1%
Vertical linear error	Vertical linear error is not more than 3%
Horizontal linear error	Not more than 0.2% in the scanning range
Sensitivity Leavings	≥65 dB
Dynamic range	≥32dB
Alarm	Three modes, i.e. forbidden wave, loss wave and auto
A-Scan display area	Full screen or local
	A-Scan display freezing and de-freezing A-Scan filling
Data save	1000 A-Scan images (including setting of instrument)
Standard communication interface with PC	USB
Measuring unit	mm/inch
Battery	Li battery 7.4V 4800mAh
Power adaptor	Input 100V~240V/50Hz~60Hz
	Output 9VDC/1.5A
Working temperature	-20℃~50℃
Working humidity	20%~90%
Port type	BNC
Overall dimension (mm)	240×180×50
Weight (kg)	1.85

Main Features

Performance Features
Automated calibration of transducer Zero Offset and/or Velocity ;
Automated gain, Peak Hold, and Peak Memory;
Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф);
Automated switch three staff gauge ((Depth d, level p, distance s);
500 independence setup, any criterion can be input freely, we can work in the scene without the test block;
Big memory of 1000 A graph.
Gate and DAC alarm; Acoustic-Optical alarm;
The USB port, easy for communication with PC;
The software system can be online updated;
Li battery, continue working time up to 10 hours;
There are 14 standards of DAC in PAXURY-UFD-102.
Display freeze;
Automated echo degree;
Angles and K-value;
Lock and unlock function of system parameters;
Electronic clock calendar ;
Two gates setting and alarm indication;
High-speed capture and very low noise;
DAC,AVG,TCG,B Scan ; Solid metal housing (IP65);
Automated calculate the size of the flaw with wide bottom type in AVG function.
6dB DAC functions;
Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;
PC Software: reports can be export to excel;

Detailed Images

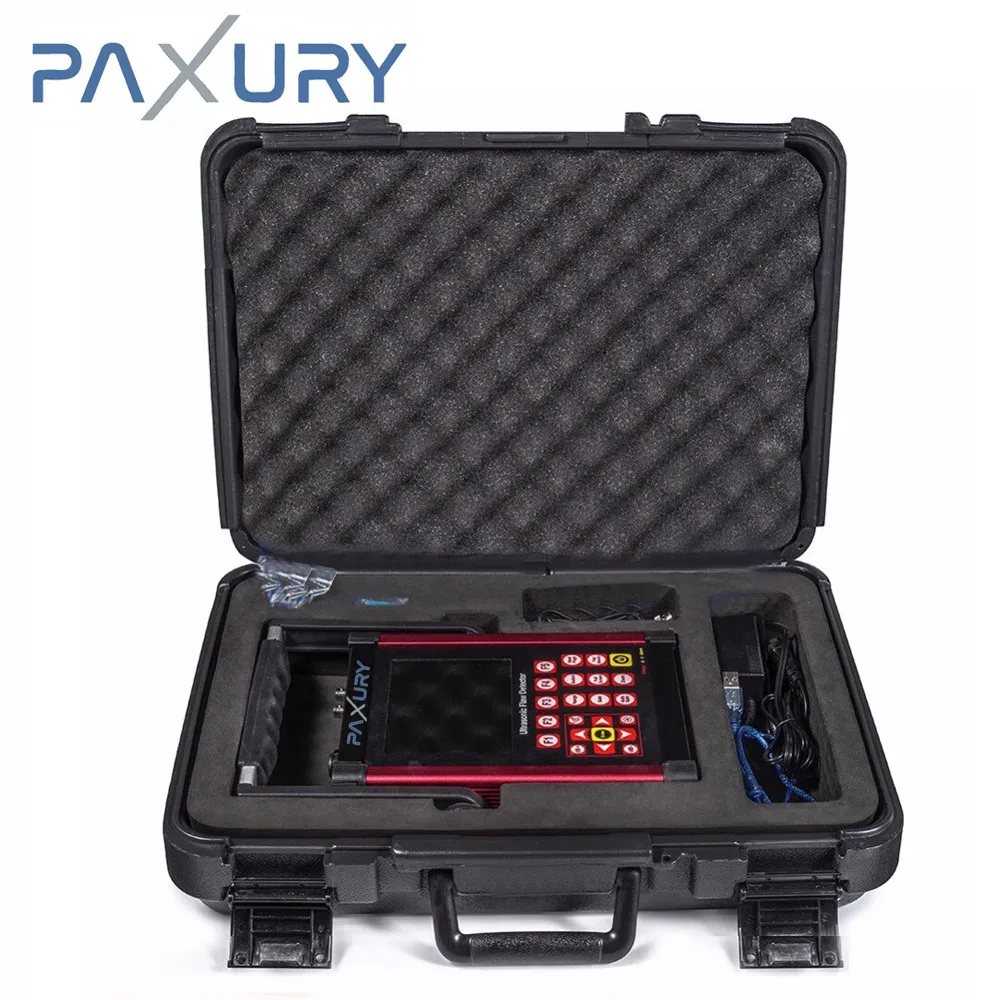

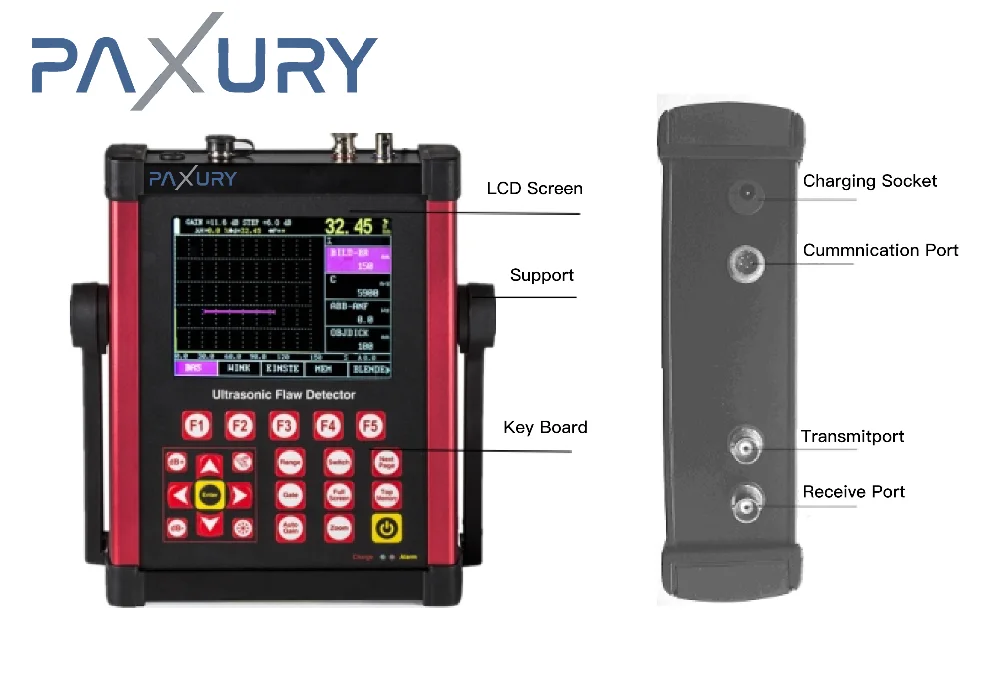

Designation of the instrument's Components

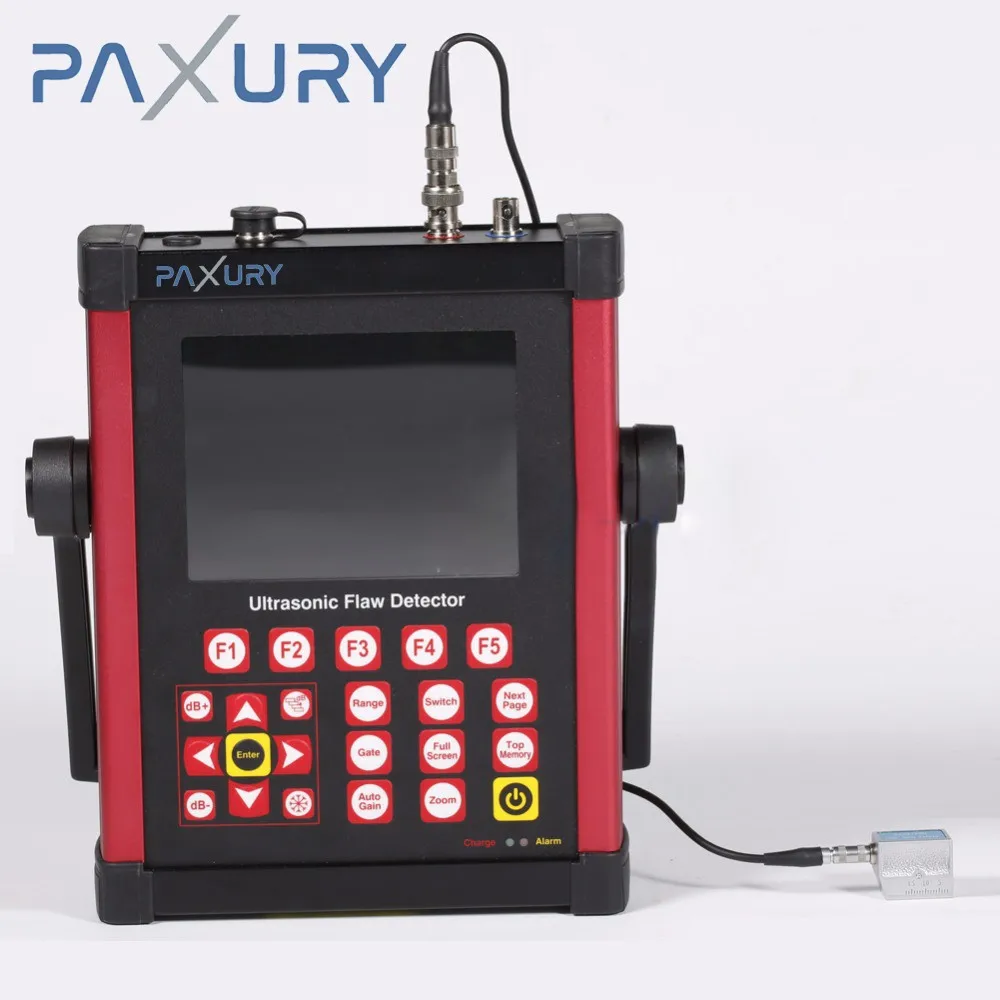

Name: UFD102

Brand: PAXURY

Original: CHINA

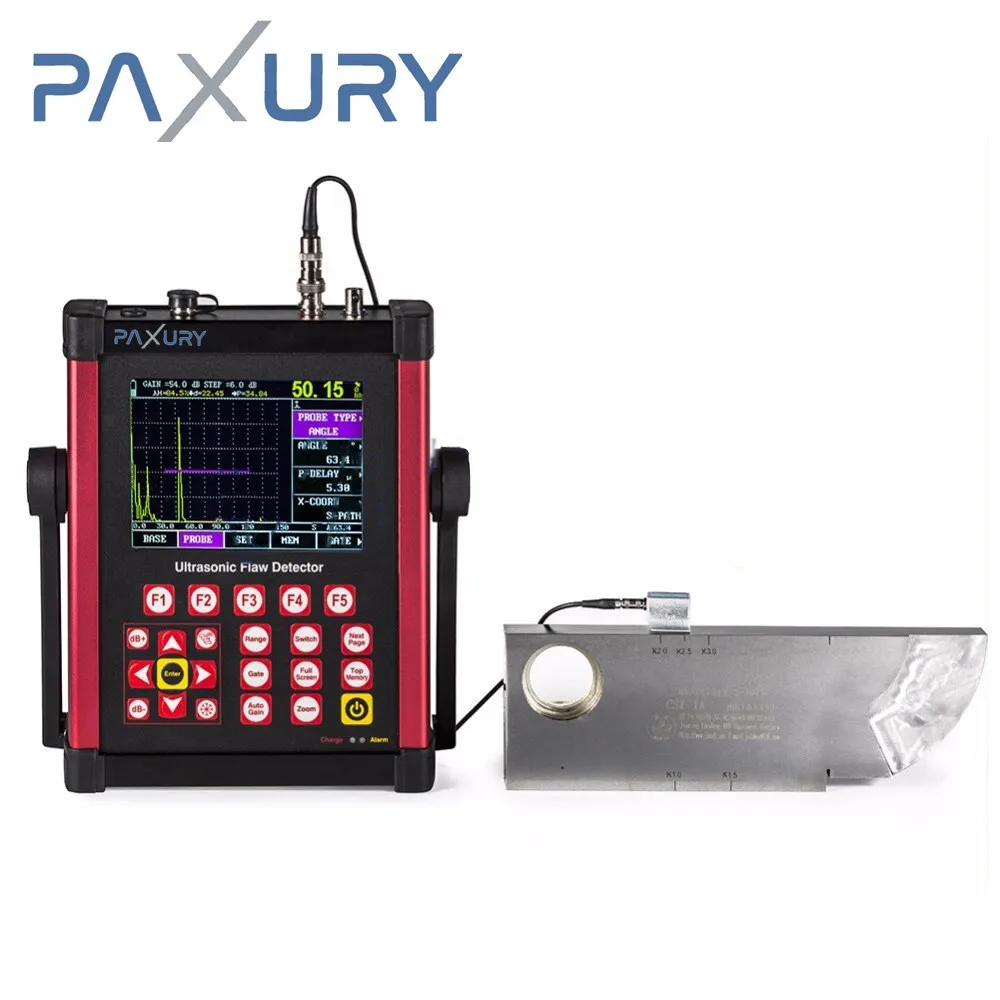

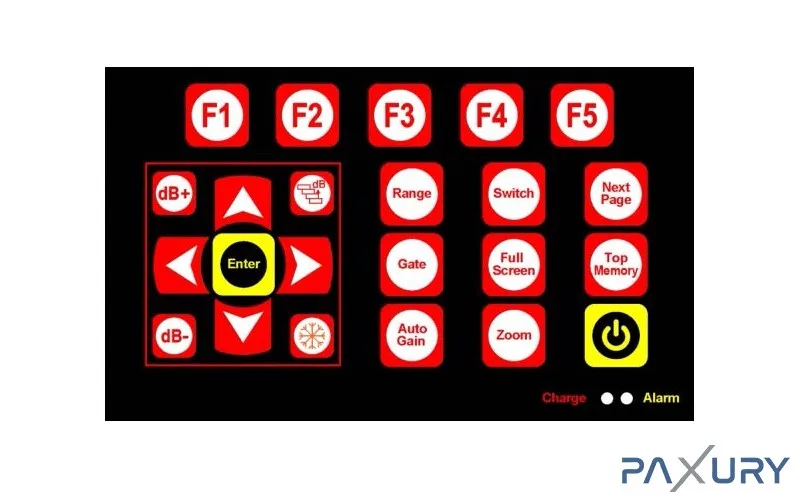

Functional Keyboard

keys of PAXURY UFD952 are included in three groups: Function group, usual key group, and special function group.

There are 6 keys in Functional group, in which F1, F2, F3, F4, F5 are corresponding with the 5 functional groups on screen and the key is used for switching of pages

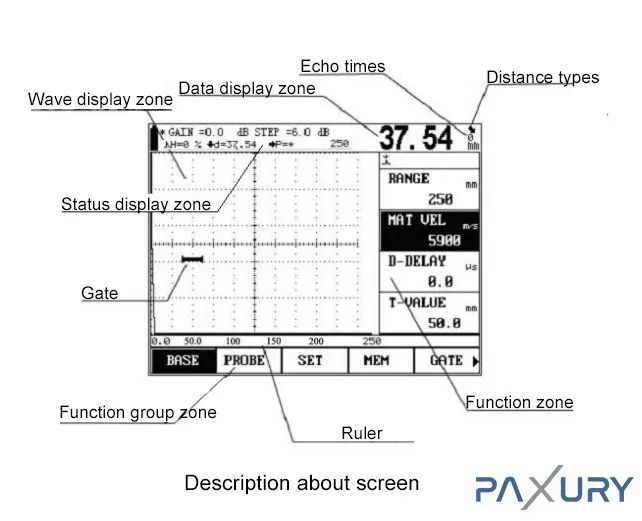

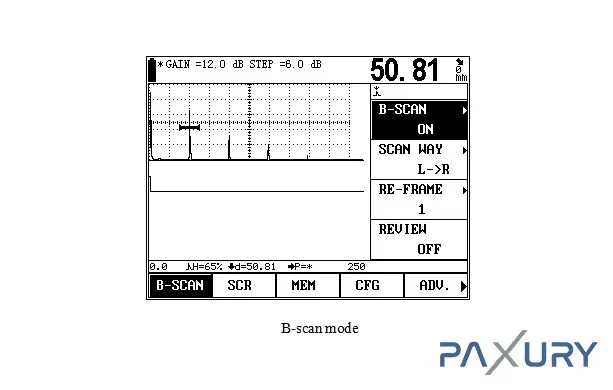

Description about screen

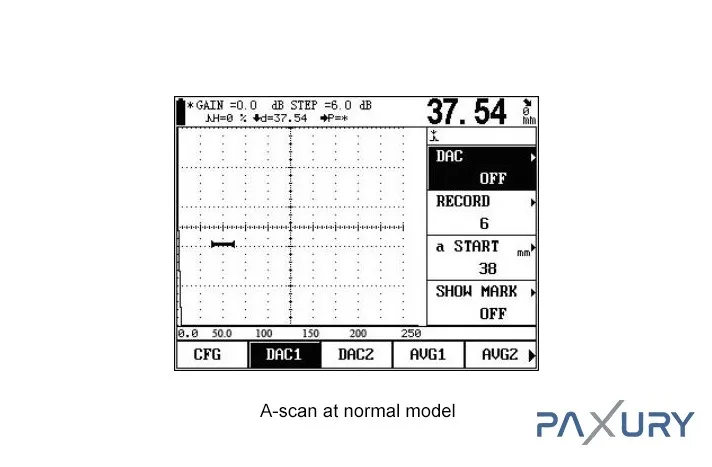

1. A-Scan at normal mode

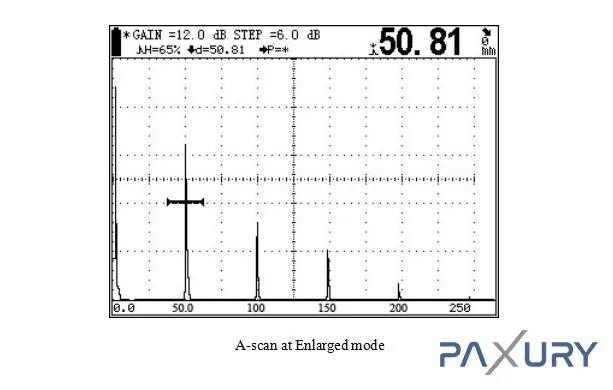

2. A-scan at enlarged mode

You can actively enlarge mode by button. The gain and selected dB step value will be always displayed on the screen. And at the same time, all other anointings are locked.
