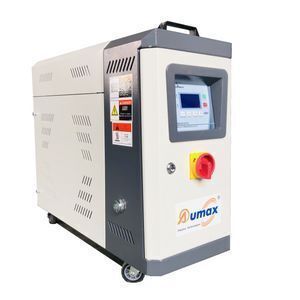

Water Type Oil Type Injection Mold Temperature Controller

Supplier: Ningbo Aumax Plastic Machinery Co., Ltd.
Region: Zhejiang, China
Price: $650.00 /set
Min. Order: 1 set

Click here to contact

Product details

Application:	Mold Heater;	Power(W):	6000/ 9000 /12000;
Brand Name:	Aumax;	Heating Capacity:	6 / 9 /12 KW;
Payment Terms:	L/C,T/T;	Condition:	New;
Internal Piping Size:	100;	Alert Function:	High Pressure Protection;
Item:	MTC-1210G Water Thermoregulator;	Voltage:	220V/380V/400V/415V;
Supply Ability:	200 Set/Sets per Month;	Heating Power:	6/9/12/18/24/30/90KW;
Heat Transfer Medium:	Heat Conducting Oil;	Weight:	150Kg;
Certification:	CE;	Heat Transfer Media:	Water / Oil;
Temperature Control Accuracy:	0.5C;	Warranty:	1 Year;
Place of Origin:	Zhejiang China;	Name:	Mold Temperature Controller;
Applicable Industries:	Manufacturing Plant;	Dimension(LWH):	900x315x700;
After-sales Service Provided:	Free spare parts,Online support;	Suitable for:	Plastic Injection Machine Mold Heater;
Packaging Detail:	wooden case packing Box;	Keyword:	Industrial Mold Temperature Controller;
Product name:	Plastic Industry Oil Circulation Mould Temperature Controller;	Port:	Ningbo / Shanghai / Yiwu / Shenzhen/ Guangzhou, China;
Temperature Range:	200C;	Type:	Water Temperature Machine;

Specification:

Name		Mold Temperature Controller / Mold Thermoregulator
Heating Type		Water Type						Oil Type
Model		AMTC-6-W	AMTC-9-W	AMTC-12-W	AMTC-6-WD	AMTC-9-WD	AMTC-12-WD	AMTC-6-O	AMTC-9-O	AMTC-12-O	AMTC-6-OD	AMTC-9-OD	AMTC-12-OD
Maximum Temp.		120℃						200℃
Cooling Method		Direct Cooling						Indirect Cooling
Heater Power	KW	6	9	12	6x2pcs	9x2pcs	12x2pcs	6	9	12	6x2pcs	9x2pcs	12x2pcs
Pump Power	KW	0.37	0.75	1.5	0.37x2pcs	0.75x2pcs	1.5x2pcs	0.37	0.75	1.5	0.37x2pcs	0.75x2pcs	1.5x2pcs
Max. Flowrate	L/min	35	60	90	35x2	60x2	90x2	35	60	90	35x2	60x2	90x2
Max. Pressure	Bar	3	4.5	4.5	3	4.5	4.5	3	4.5	4.5	3	4.5	4.5

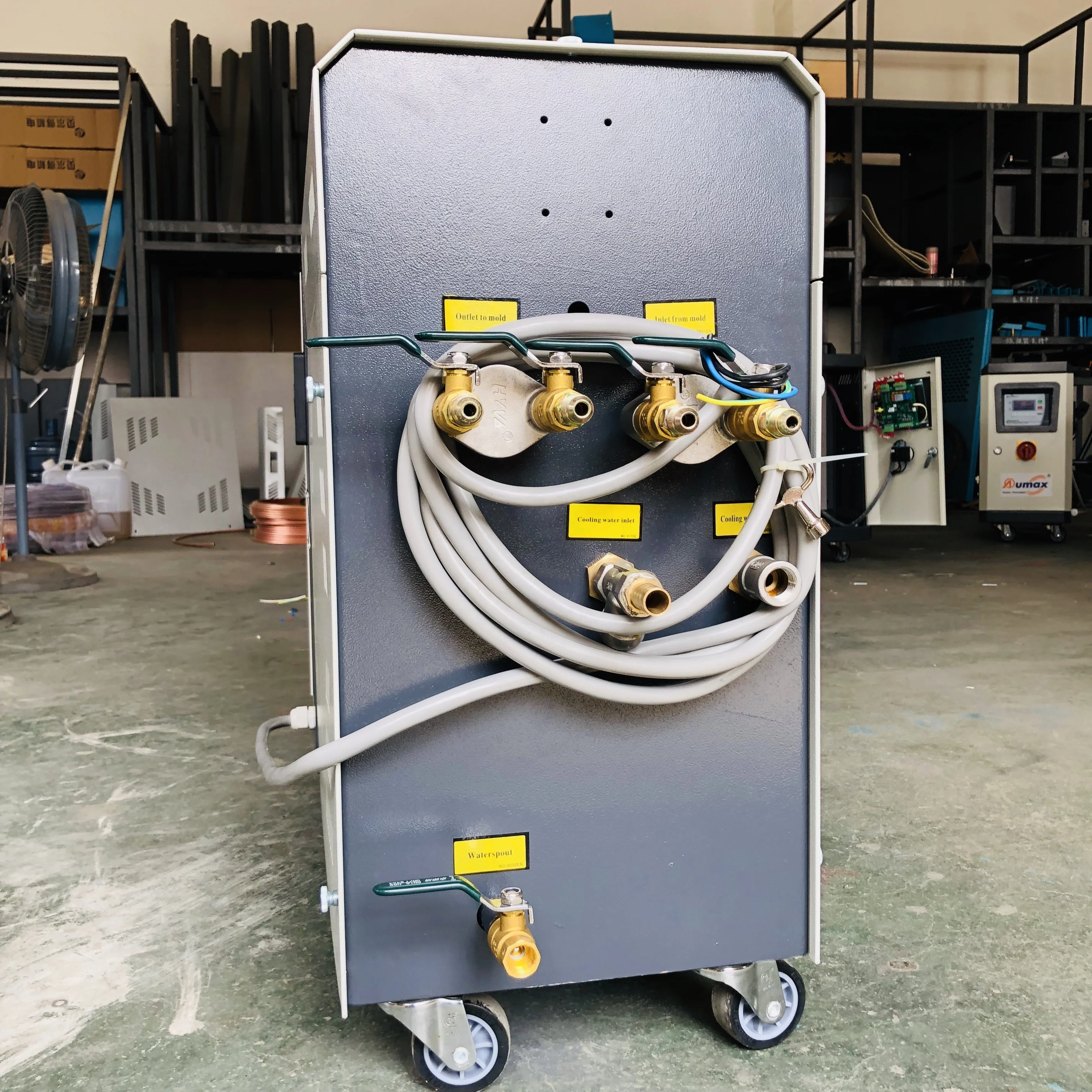

Mold Connector Size	Inch	3/8” (2x2)	3/8” (2x2)	3/8” (4x2)	3/8” (4x2)	3/8” (4x2)	1” (2x2)	3/8” (2x2)	3/8” (2x2)	3/8” (4x2)	3/8” (4x2)	3/8” (4x2)	1” (2x2)
Weight	kg	490				530				600	1050	1150	1250

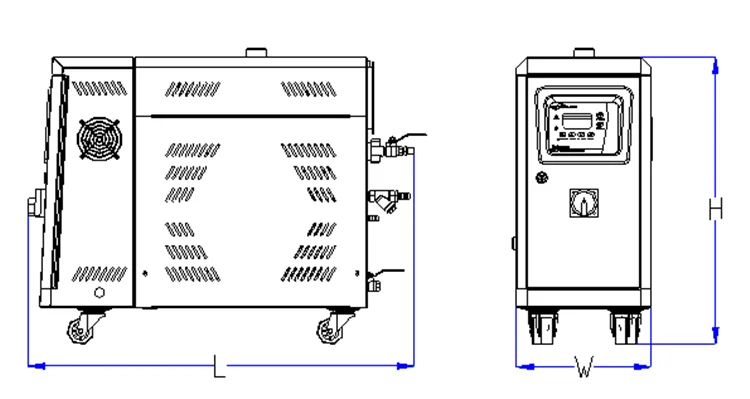

Dimensions:
L	mm	900	900	1000	900	900	1000	900	900	1000	900	900	1000
W	mm	315	315	350	650	650	720	315	315	350	650	650	720
H	mm	700	700	900	700	700	700	700	700	900	700	700	700

Please excuse for not note if some specifications of products are changed.

Note:
1)"W" means water type; "O" means oil type; “D” means Double units (2-in-1) type.
2)The standard power supply is 3Ø 380V 50Hz. Other power supply is available.

Application:

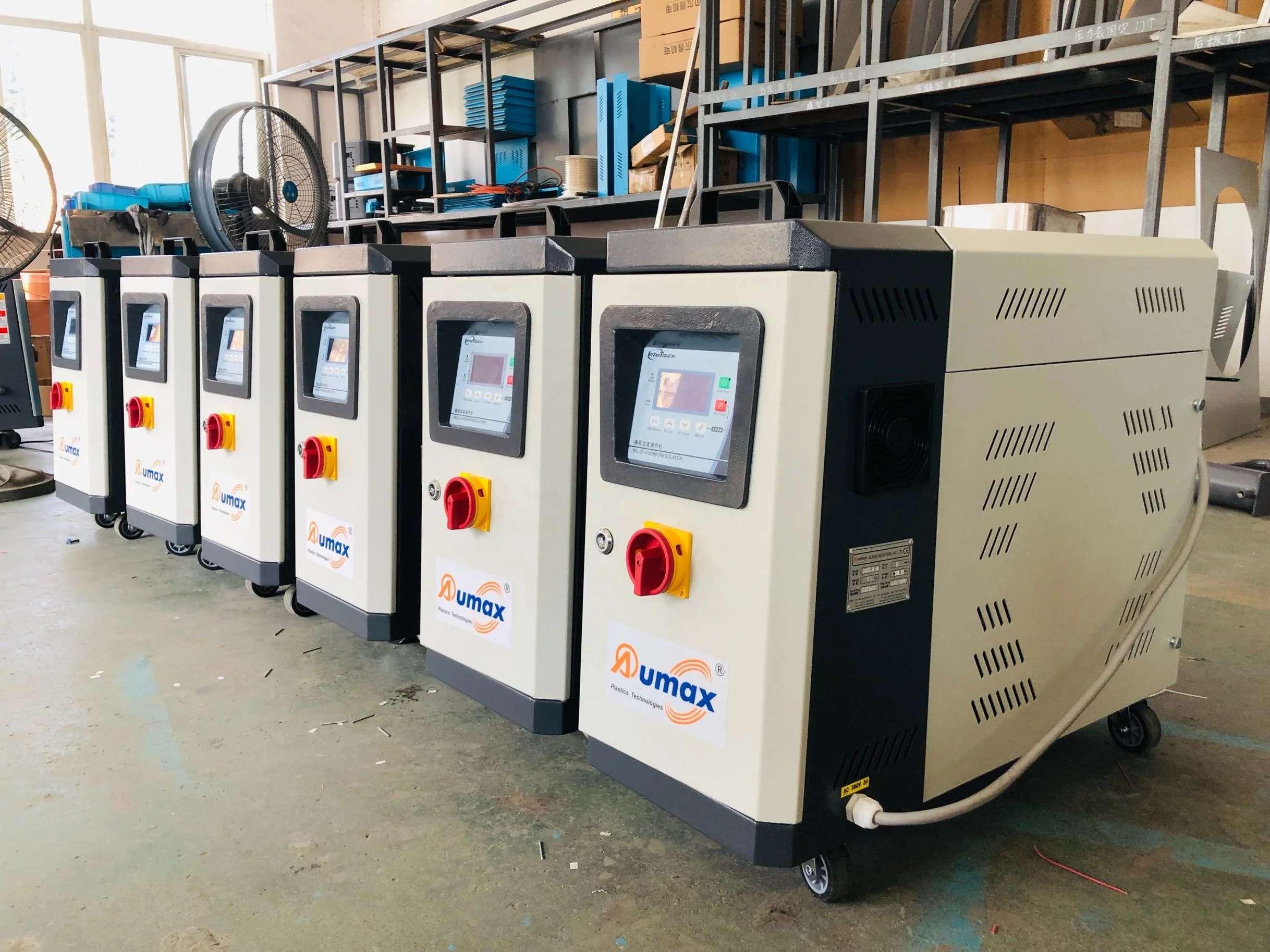

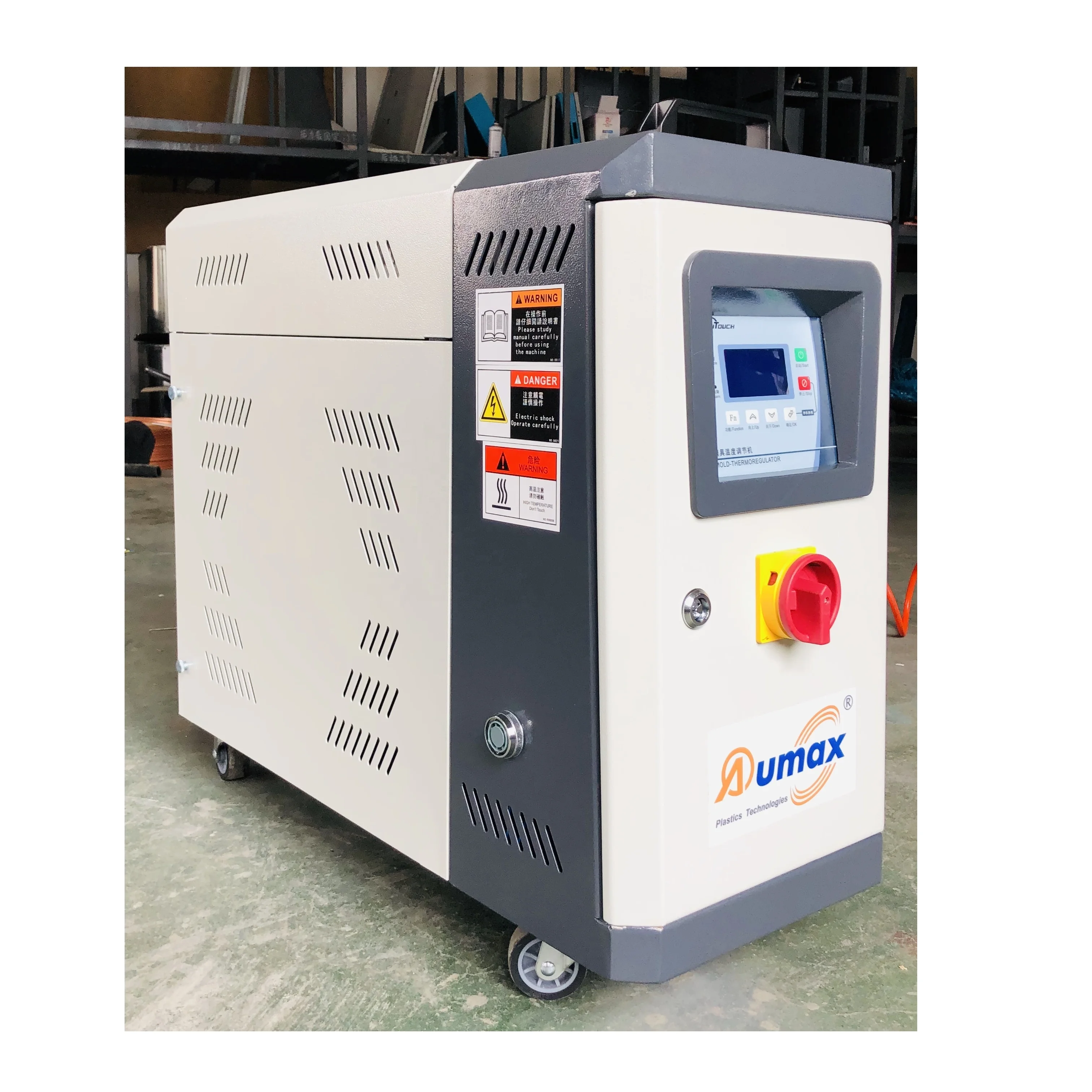

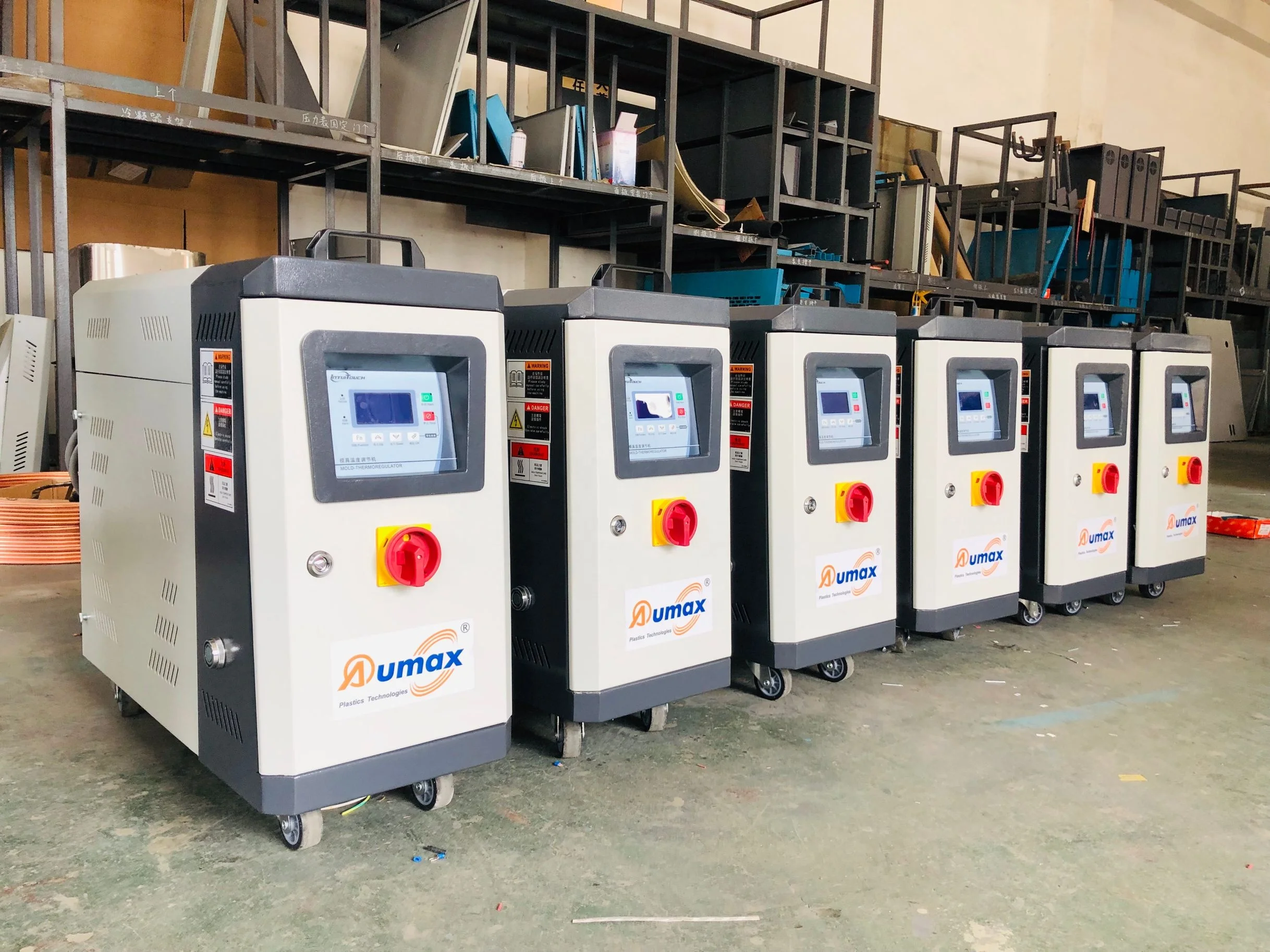

AMTC Series mold temperature controllers are mainly used to heat plastic injection mould and keep the mold temperature in a stable range. Use water or oil as intermediary, equipped with special designed heating and cooling unit, AMTC machine provide a stable temperature for plastic injection mould. The water type mould temperature controller can provide maximum temperature at 120℃; while oil type mold temperature controller can provide maximum temperature at 200℃.

Features:

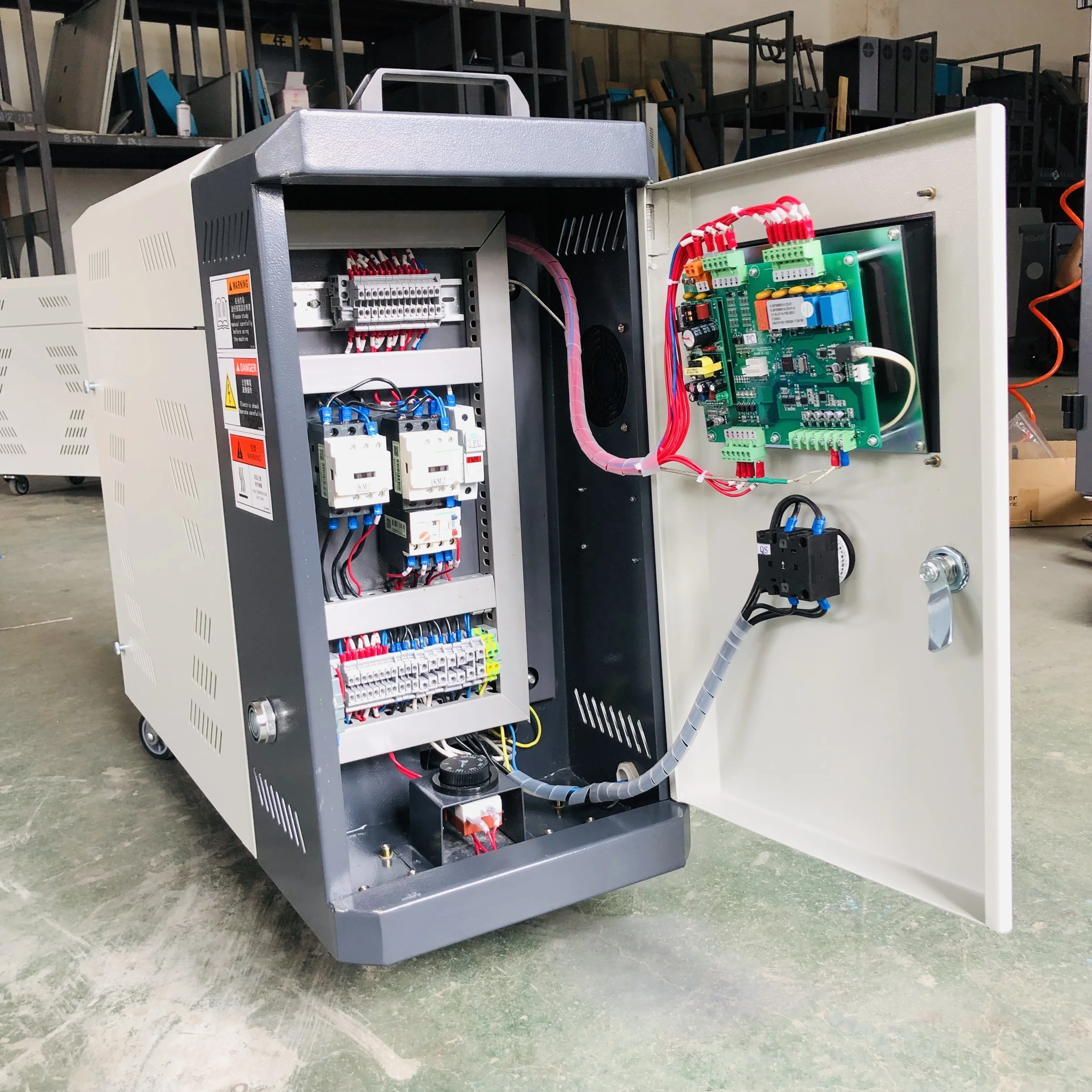

l Micro PLC with PID temperature controller provide a high precision temperature, easy to operate.

l Horizontal type water pump and oil pump provide a stable performance.

l Cylindrical type heating unit with high pressure resistance and explosion proof

l Automatic alarm system, stop machine when any error happened and give suggestion to solve the problem.

l European style appearance, easy to repair and maintenance

l Both water type and oil type for option

FAQ

1. Q: What is the MOQ?

A: The MOQ is 1 set for all products..

2. Q: Where is the loading port?

A: The nearest port to our factory is port of Ningbo, China, as well as we can send machine to Yiwu, Shanghai, Guangdong or any other Chinese city.

3. Q: What are the payment terms?

A: The preferential payment term is T/T, while other payment terms are negotiable.

4. Q: What are your terms of delivery?

A: We accept FOB, CFR, CIF, EXW, and DDU. You can choose the terms which is the most convenient and cost effective to you.

5. Q: How does your factory carry out quality control?

A: Powerful R&D teams and professional QC department take care of every detail during design, processing, assembling, testing and packing.

6 Q: Can you supply OEM and customized products?

A: Yes, we can supply OEM / ODM service. Our engineers have rich experience in design and production of plastic auxiliary equipment. We can supply special products according to your ideas and drawings.

7. Q: What about warranty terms?

A: We provide one year warranty for all of our products. During warranty period, if any machine parts damaged due to quality, we will send the new parts by courier immediately by free of charge. Also, we supply 24 hours online service and technical support.
