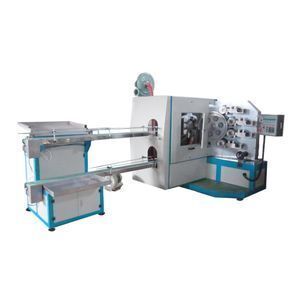

Heavy type industrial output cup offset printing machine price in india

Supplier: Wenzhou Pole Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms. CiCi Deng
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Printing circumference:	300mm;	Usage:	cup printer;
Touch screen:	Siemens;	Gross Power:	15.8KW;
Dimensions(LWH):	450025002200mm;	Cup diameter:	65-110mm;
Delivery Detail:	60 days;	After-sales Service Provided:	Engineers available to service machinery overseas;
Automatic Grade:	Automatic;	Condition:	New;
Plate Type:	Letterpress;	Warranty:	1year;
Suitable printing material:	PP, PS, PET, HIPS , etc;	Place of Origin:	Zhejiang China;
Color & Page:	Multicolor;	Supply Ability:	10 Set/Sets per Month;
Brand Name:	POLE;	Printing surface height:	20-95mm;
Payment Terms:	L/C,T/T,Western Union;	Weight:	4.2T;
Port:	Ningbo;	Type:	Offset Printer;
printing surface diameter:	50-100mm;	Printing angel:	3°--13°;
Certification:	CE Certificate;	Voltage:	customized as requirements;
Switch button:	Schneider;	Printing speed:	150-200 pcs/min;
Packaging Detail:	Wooden case package, applied oil and rust remover.;

Samples

Product Description

Product Application

The equipment adopts relief printing two-side color words and patterns in plastic products surface with letterset method,and it can print four colors pattern in one time. It is widely used for printing yoghurt cup, ice-cream cup, fast-food bowl, and other cylindrical form or conical plastic product.

TECHNICAL PARAMETER
Model	PLCP-4A
Printing color	4 colors
Suitable printing material	PP, PS, PET, HIPS , etc
Transmission control mode	touch screen
Printing speed (depending on different cup)	150-200 pcs/min
Printing circumference	300mm
Printing surface height	20-95mm
Cup printing surface middle diameter	50-100mm
Cup diameter	65-110mm
Printing roll diameter	100mm
Center roll (plate) diameter	600mm
Printing angel	3°--13°
Max. printed plates on the center roll (plate)	3pcs
Cup core shaft number	8pcs
Air pressure	6-8 Bar
Max. air consumption	48 m³/h
Rated power	15.8 kw
UV lamp power	6 kw x1
Aureole power	1 kw
Dimension	L4500W2500H2200 mm
Weight	About 4.20T

Detailed Images

Cup Feeding Hopper

Cup Transmission

Cup split into pcs by pcs

Corona treatment to active the active factors on plastic surface

Printing area applied UV ink in 4 colors

UV drying after printing

Cup counting and collection

All operation by Siemens touch screen

Packing & Delivery

Oil and rust remover application.

Every parts of the machine or mould will be applied oil and rust remover to avoid any rust during the ocean shipment. Then they will be pack with film and bubble film

Wooden case package.

Outside will be packed with wooden case to avoid any damage during ocean shipment.

FAQ

1. What kind of ink used in printing machine?
- UV ink, we can buy from our own country, or it can be offered by us.

2. How many colors I can print in this machine?
-This machine Max. printing color is 4, but it also can print 3 or 2 or 1 color.

3. How many samples can be shared in one machine, or one machine only one sample?
-If the cup dimension is not big difference and within its required range, it can share, only need to change mould. But we need to check all samples first.

4. What I need to prepare for machine working?
-UV ink, before shipment, we will clean or UV ink in the machine (for testing)
- UV resistant rubber cloth (Industrial use)
- Double faced adhesive tape (Industrial use)

5. Can you send to us the technician ?
-Yes, we will send prfessional technician to your factory if you need, he will help you for machine installation, trainning and adjustment.
