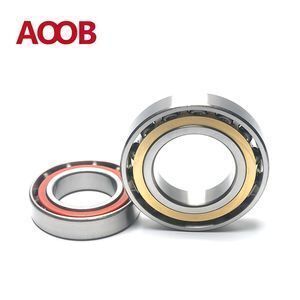

Trade Assurance Manufacturer Single Row Angular Contact Ball

Product details
Bore Size:0 - 50 mm;Vibration Level code:V1, V2, V3;
Sealed Cap:Rubber or Metal;Supply Ability:50000 Piece/Pieces per Week angular contact ball bearing;
China Old Model:46210;Packaging Detail:Standard packing and as your requirement.;
Number of Row:Single Row;Structure:Angular Contact;
Precision Rating:P6,P5,P4,P2,P1,P0, P6,P5,P4,P2,P1,P0;Cage:Steel Cage. Brass Cage. Nylon Cage;
Brand Name:AOBO;Bearing Service:OEM , ODM Customized Service;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;Place of Origin:Shandong China (Mainland);
Size:50*90*20 mm;Model Number:7210AC;
Product Name:angular contact ball bearing;Outside Diameter:0 - 90 mm;
Seals Type:ZZ/ZRS. RZ/RS. Open;Product Type:angular contact ball bearing;
Structure:Ball Bearing;Port:Qingdao, Tianjin, Shanghai or customer's need;
Weight:0.45kg;Type:Ball;
Delivery Detail:3-25 working days;

 angular contact ball bearing , single row angular contact ball bearing , ball bearing , bearing , bearings

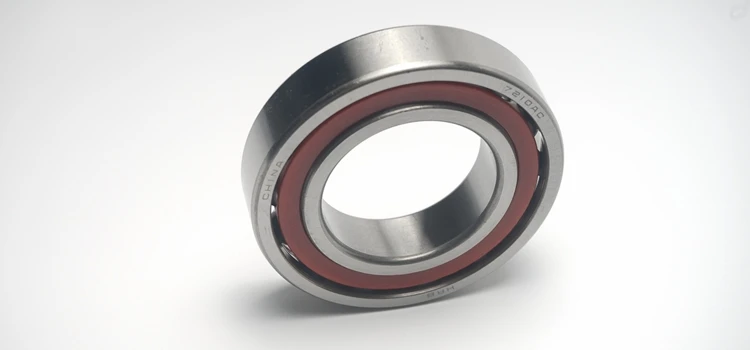

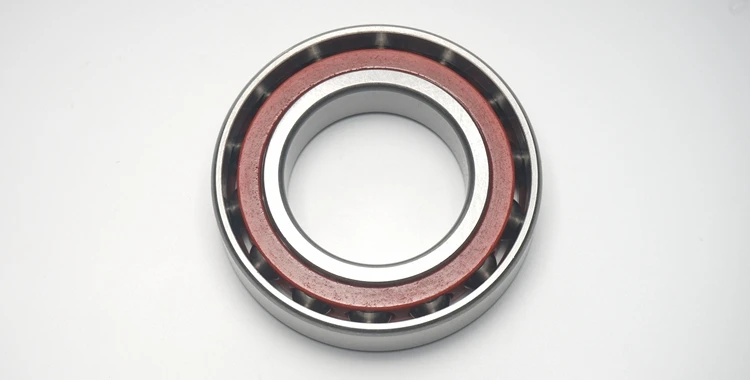

Trade Assurance Manufacturer Single Row Angular Contact Ball Bearing

angular contact ball bearing

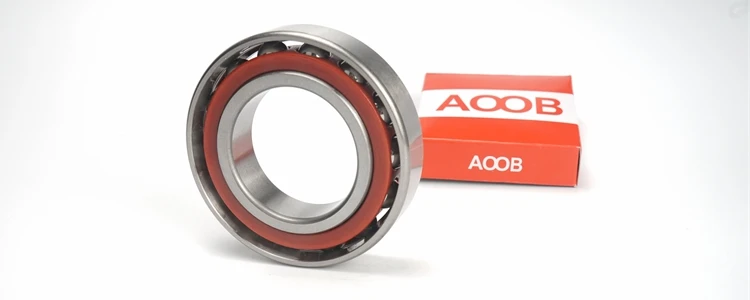

angular contact ball bearing , single row angular contact ball bearing , ball bearing , bearing , bearings   (9).JPG



Product Description



 angular contact ball bearing , single row angular contact ball bearing , ball bearing , bearing , bearings

Product Description:



Angular Contact Ball Bearing, which is similar to other ball bearings, angular contact ball bearing are compose of inner and outer races, ball complement and bearing cage; however, different to other ball bearings like a deep groove ball bearing, an angular contact ball bearing is designed with axially asymmetric race.

As a result, angular contact ball bearings are more suitable for supporting "combined loads" (loading in both the radial and axial directions); pure axial-load supporting in one direction is also possible. Generally speaking, the supporting capability for an axial load; and at the same time, the smaller the supporting capability for a radial load.

According to angular contact ball bearing manufacturers, single-row, and double-row angular contact ball bearings are both popular ones in the market. A single row angular contact ball bearing is suitable for carrying axial-load acting in one direction only; as a result, they are usually used in pairs or multi-arrangement in many applications. A double row angular contact ball bearing, however, is suitable for both an axial-load and a radial-load in both directions.




 angular contact ball bearing , single row angular contact ball bearing , ball bearing , bearing , bearings

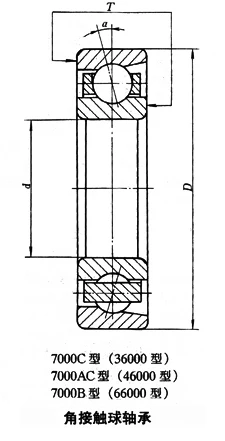

Drawing:

angular contact ball bearing , single row angular contact ball bearing , ball bearing , bearing , bearings

Feature:
Angular Contact Ball bearings are composed of Inner rings,Outer Rings,Balls and Cage.
1. Ring 's Material: Bearing Steel ZGCr15/GCr15
2. Balls' Material: Carbon chromium steel/Si3N4
3. Cage Material: Phenolic,Nylon,Plastic,Brass etc.
4. Angle: C -15°contact angle, AC-25°contact angle, B-40°contact angle
5. Tolerance Class: ABEC7,ABEC9 (P4,P2)
6. Preload: A-Light Preload , B-Medium Preload, C-Heavy Preload

angular contact ball bearing , single row angular contact ball bearing , ball bearing , bearing , bearings




Application:



Single row angular contact ball bearings, machine tool spindle, high frequency motor, gas turbine, centrifugal separator, small car front wheel, differential pinion shaft, booster pump, drilling platform, food machinery, dividing head, filling machine, low noise type cooling tower, electrical equipment, coating equipment, machine tool trough plate, arc welding machine



Double row angular contact ball bearing, oil pump, roots blower, air compressor, all kinds of transmission, fuel injection pump, printing machinery, planetary reducer, extraction equipment, cycloid reducer, food packaging machinery, electric welding machine, electric, square box, gravity type spray gun, wire stripping machine, axle shaft equipment, chemical machinery, testing analysis

angular contact ball bearing , single row angular contact ball bearing , ball bearing , bearing , bearings

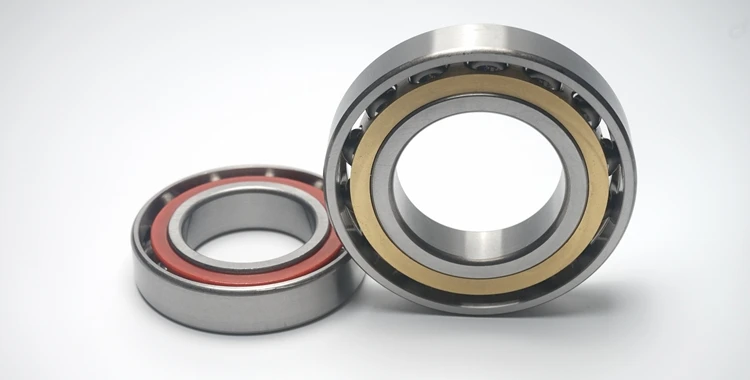

angular contact.JPG

angular contact ball bearing , single row angular contact ball bearing , ball bearing , bearing , bearings



Products Name

Angular Contact Ball Bearing

Brand Name

AOBO Brand or OEM Brands

ID Size

Standard and non-standard sizes available

Material

Carbon Steel / Chrome Steel

Closures

Open, metal Sealed, rubber sealed, Nylon sealed

Types

For non standard bearing, there are many different types with various sizes for our clients and we can alsodesign or develop customized products as per the samples or drawings provided by our clients.

Delivery Date

3-25 working days

Payment Terms

1. TT. 30% payment in advance as deposit, balance before delivery.

2. L/C at sight. (high bank charges, not suggest , but acceptable )

3. 100% Western Union in advance. (specially for air shipment or small amount)

Package

A.Polybag +Box+Carton

B.Tube+Box+Carton

C.As per customer's request

About Us

Shandong AOBO Bearing Co., Ltd

Professionally customized bearings perfectly solutions for customers. AOBO is one of the leading bearing manufacturers in China. With 20 years’ experience, advanced manufacturing facilities and excellent management staff, we can produce products that are equivalent to the world leading brand bearings. We have our own bearing brand AOBO and also distribute bearings of global brands

 Product Categories

Deep Groove Ball Bearings , Self-aligning Ball Bearings , Cylindrical Roller Bearings , Spherical Roller Bearings , Needle Roller Bearings , Angular Contact Bearings , Tapered Roller Bearings , Thrust Ball Bearings , Thrust Roller Bearings , Automobile Bearings , Pillow Block Bearings , we also supply world famous brands bearings and so on.

 Bearing Application

Metallurgy, mining, petroleum, chemical, coal, wind power, paper, medicine, textile, motor, sports equipment, cement manufacturing, automobile manufacturing, machinery and equipment, factory machinery, port machinery, shipbuilding and so on.



Product Catalogue



New Models

China Old Models

Specification (mm)

Weight (kg)

7210AC

46210

50×90×20

0.45

7210AC

46210J

50×90×20

0.572

7210ACJ

46210

50×90×20

0.47

7210ACJ

46210F

50×90×20

0.47

7210ACM

46210H

50×90×20

0.572

7211AC

46211

55×100×21

0.61

7211ACJ

46211

55×100×21

-

7211ACJ

46211F

55×100×21

0.6

7211ACM

46211H

55×100×21

0.6

7212AC

46212

60×110×22

0.81

7212AC

46212J

60×110×22

0.81

angular contact ball bearing , single row angular contact ball bearing , ball bearing , bearing , bearings

Please Note:
The above models, are only show some products, only for your reference. Other models, please send inquiry to us.

angular contact ball bearing , single row angular contact ball bearing , ball bearing , bearing , bearings

Production Process



production process

Payment & Delivery



Packaging Details:
1. industrial tube packing + cartons + pallets
2. Individual colorful or white box + carton + pallets
3. As the clients' requirement

Transportation:
1. Less than 45 KGS, we will send by express. (Door to Door, Convenient)
2. Between 45 - 200 KGS, we will send by air transport. (Fastest and safest, but expensive )
3. More than 200 KGS, we will send by sea. (Cheapest and usual)

Payment:
1. TT. 30% payment in advance as deposit, balance before delivery.
2. L/C at sight. (high bank charges, not suggest , but acceptable )
3. 100% Western Union in advance. (specially for air shipment or small amount)

angular contact ball bearing , single row angular contact ball bearing , ball bearing , bearing , bearings
