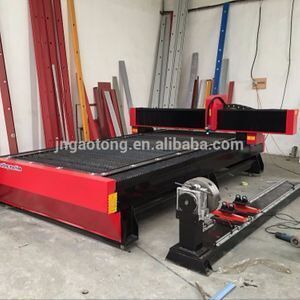

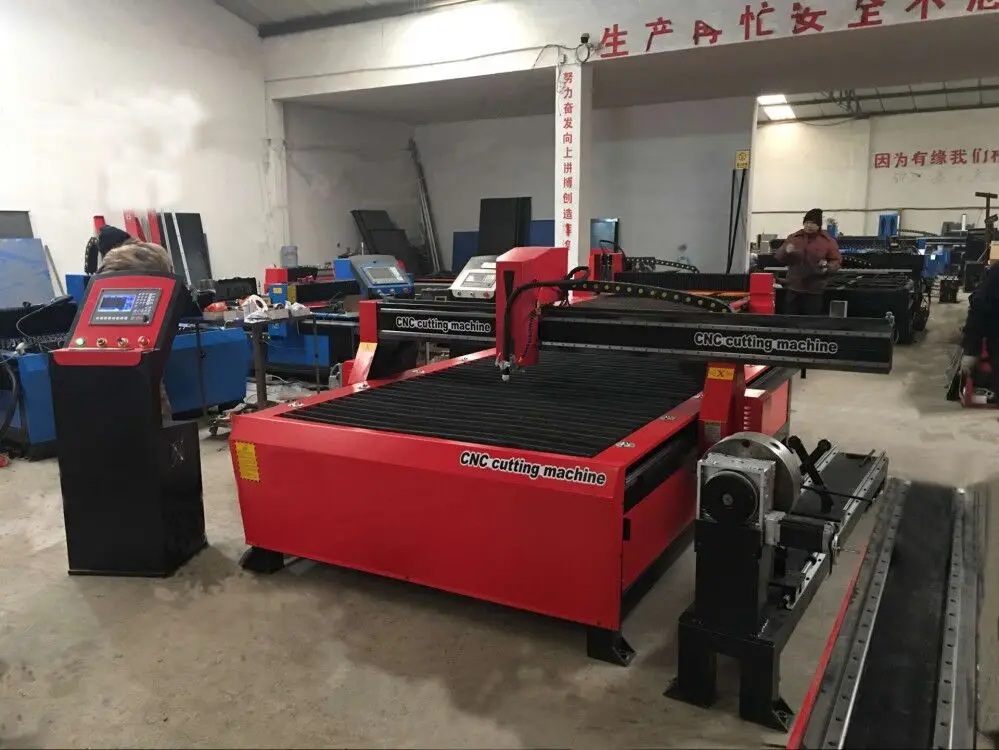

Automatic CNC Plasma pipe cutting machine / cnc plasma cutter for pipe and tube

Supplier: Jinan Gaotong Mechanical Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Sherry chen
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shandong China;	Model:	1530;
Certification:	FDA CE;	Cutting thickness:	0-30mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Control system:	Startfire;
Type:	metal cutting machinery;	Rated Power:	8.5KW;
Voltage:	220V/380V;	Delivery Detail:	About 7 day after get payment;
Brand Name:	Gaotong;	Dimension(LWH):	30001500300mm;
Cutting mode:	Plasma Cutting or Flame Cutting;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alipay;
Model Number:	1530;	Warranty:	2 Years;
Application:	Sheet Metal Industry;	Rotary diameter:	according to the pipe diameter;
Weight:	1100kg;	Name:	CNC Plasma pipe cutting machine cnc plasma cutter for pipe and tube;
Packaging Detail:	1. Packing details: Wooden box, Automatic CNC Plasma pipe cutting machine / cnc plasma cutter for pipe and tube 2. Dimension: 150030001350mm.;	Material:	Steel Material;
Supply Ability:	280 Set/Sets per Month Automatic CNC Plasma pipe cutting machine / cnc plasma cutter fo;	Condition:	New;
Port:	Qingdao, Shanghai, Automatic CNC Plasma pipe cutting machine / cnc plasma cutter for pipe and tube;	Power:	100A 120A 160A 200A;

Automatic CNC Plasma pipe cutting machine / cnc plasma cutter for pipe and tube GT1530

Product Description

Brief introduction

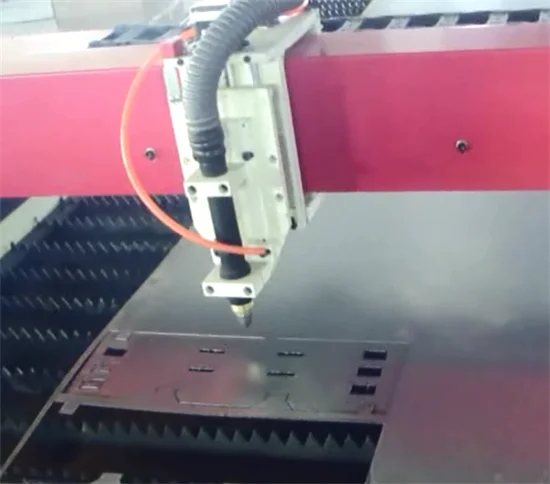

This machine adopts integrated design as well as a combination of CNC, mechanical transmission and thermal cutting. That makes it to be a high technology, high precision and high reliability cutting machine. Excellent human interface guarantees the easy operating and quick processing for various workpiece.

Parameter

Name	Specification
Working Area(X*Y)	1500×3000mm
Machine Structure	Welded
X Y Guide Rail	Ball rail
X Y Transmission	Imported Rack gears
X\Y\Z Axis Driver	Stepper Motor

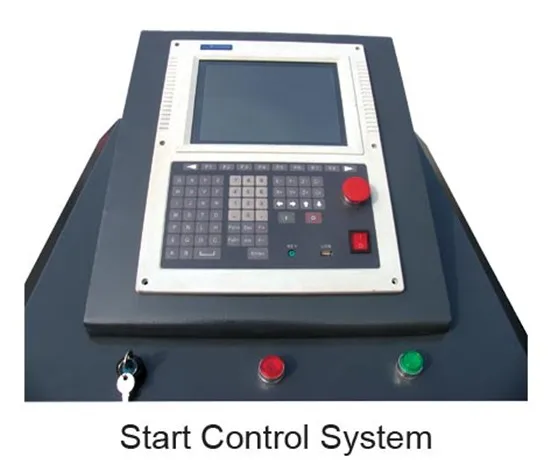

Control System	startfire
Working Dictate	G Code
Cutting thickness	0-30mm

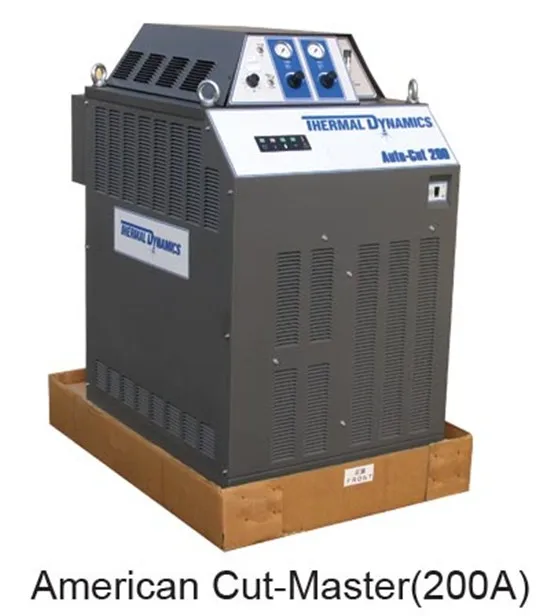

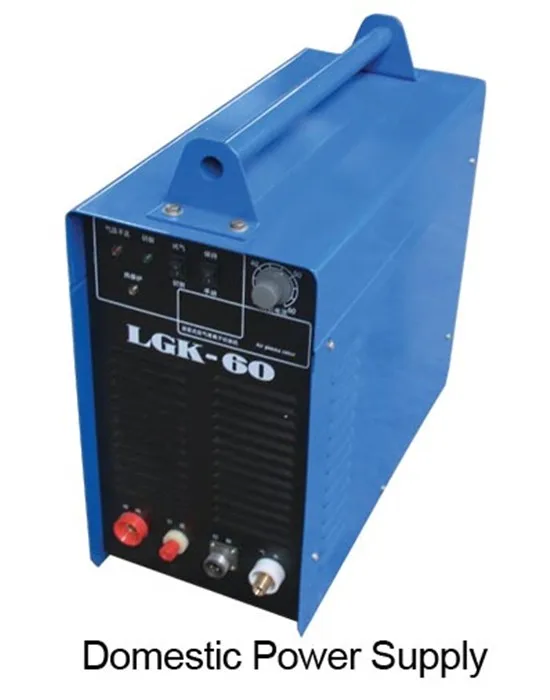

Plasma Generator	China Power 60A-200A
Cutting Speed	0-5000mm/min
Document Transmission Form	USB Interface
Working Form	Untouched Arc Striking
Working Voltage	3-Phase 380V or 220V 60 HZ
G.W.	1200KGS
Packing Size	14 CBM
Warranty	2 years

Features
1. The beam uses light structural design, with good rigidity structure, light deadweight and small movement inertia.

2. The gantry structure, X, Y, Z axis all use straight rail that make the machine driving smoothly with high-precision.

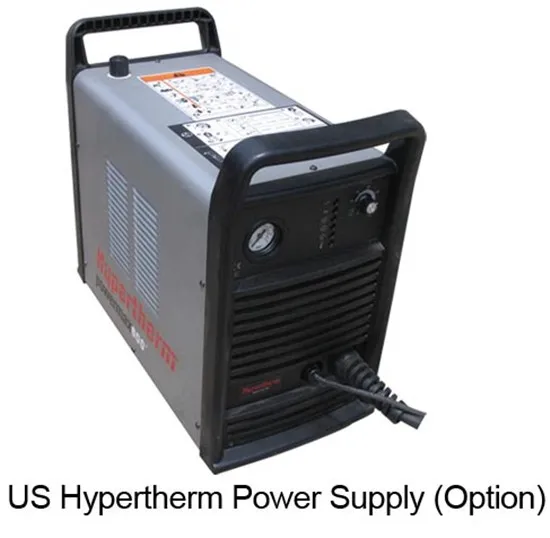

3. Aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators. If it equipped with United States HYPERTHERM plasma source the machine can reach threshold.

4. Equipped with other advertise equipment (blister machine,engraving machine), forming the advertising word processing pipeline. Completely solve the traditional manual processing methods. Improve the efficiency of several times.

5. Cutting mouth is small, tidy and avoid a second dressing processing.

6. It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates , metal plates and so on.

7. High cutting speed, high precision, and low cost

8. The numerical control system disposes high, the automatic striking arc, the performance is stable.

Applicable

Outer frame processing of electromechanical products, advertising signs, decoration, garden iron art,vehicle manufacturing, ship building, electric appliances, metal plate materials cutting and other industries.

Detailed massege

Parts

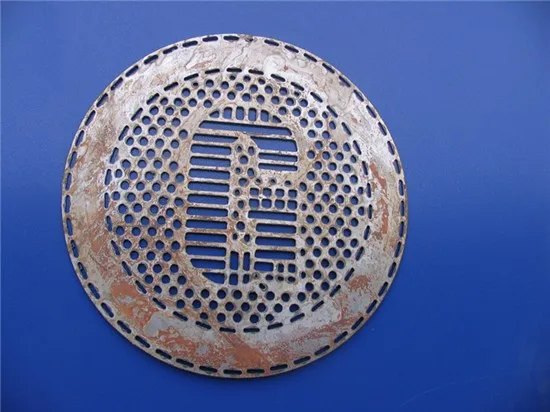

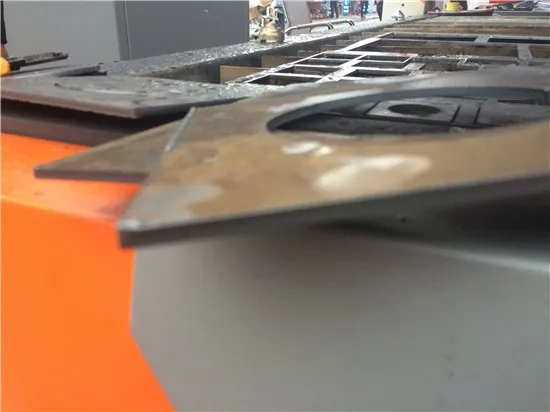

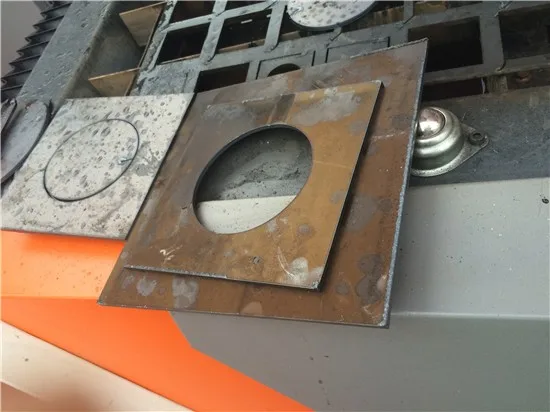

Samples

Packaging & Shipping

1. Packing details: Wooden box, High Quality Plasma Cutter Cutting Machine Price for Metal 1530.

2. Dimension: 1500*3000*1350mm

3. Packing size: 14CBM.

Our Services

1. we offer 2 years warranty for whole machine.

2. 24 hours technical will be support when you need by e-mail/phone.

3. Provide Instructions support.

4. Welcome to our factory to learn operation of the machine.

FAQ

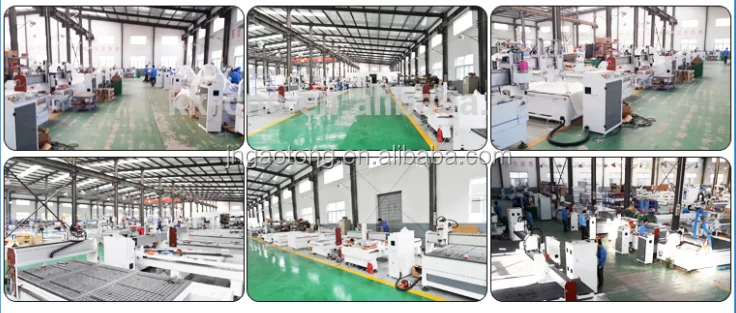

1. Where is your factory located? How can I visit there?

Our facrory is located in No.114 Liudong village liupu town, licheng District,Jinan City.You can fly to Jinan airport directly,We'll pick you up.

2. How does your factory do regarding quality control?

Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE/FDA authentication.

3. How about the payment?

T/T,Western Union,30% deposits;70% The rest before deliverying.

4. Why choose us?
a. We are China leading laser machine / CNC router machine manufacturer.
b. Our machines are inspection before shipment.

c. We have a comprehensive after-sales service system.

5. How to contact us?
Send your Inquiry Details in the below, Click "Send" Now.
