Check-in counter belt weighing scale conveyor for airport

Supplier: Shanghai Heling Automation Equipment Co., Ltd.
Region: Shanghai, China
Contact: heaven zheng
Price: $3000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product name:	Baggage Check-in Conveyor;	Structure:	Belt Conveyor;
Material:	Stainless Steel;	Packaging Detail:	Standard export packing or according to customer's request;
Port:	shanghai;	Supply Ability:	300 Set/Sets per Month;
Keyword:	Airport Baggage Conveyor;	Condition:	New;
Model Number:	CKI;	Power(W):	According to requirements;
Delivery Detail:	Shipped in 30 days after payment;	Belt material:	Metal;
Dimension(LWH):	According to requirements;	Scale Brand:	METTLER TOLEDO;
Control:	Automatic control system;	Feature:	High quality;
Material Feature:	Heat Resistant;	Brand Name:	HELING;
After-sales Service Provided:	Engineers available to service machinery overseas;	Type:	Baggage airport conveyor;
Motor brand:	NORD or SEW;	Payment Terms:	L/C,T/T;
Place of Origin:	China;	Color:	According to requirements;
Voltage:	110V/220V/380V;	Load Capacity:	100kg;

Product Description

DESCRIPTION.

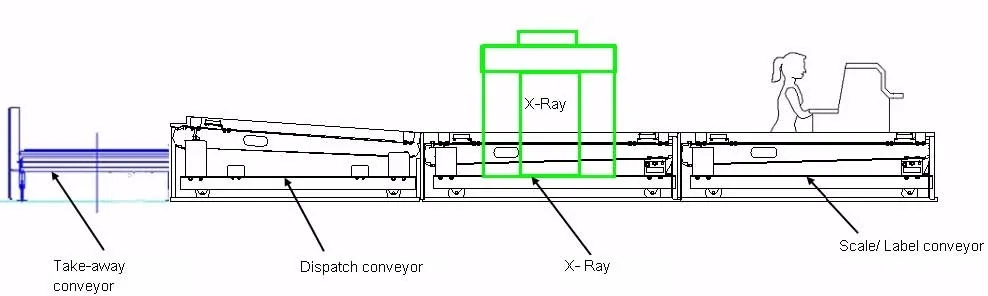

Check in conveyor is part of the HELING conveyor family of airport baggage handling solutions. Check in conveyor is composed of scale conveyor, X-ray conveyor or Queue conveyor and induction (dispatch) conveyor, which are oriented 90° to a take-away conveyor. Check-in conveyors are designed to be capable of start/stop operation. The check-in conveyors shall have wheels that run in tracks mounted on the floor, allowing the units to be removed and/or serviced more easily

Detailed lmage

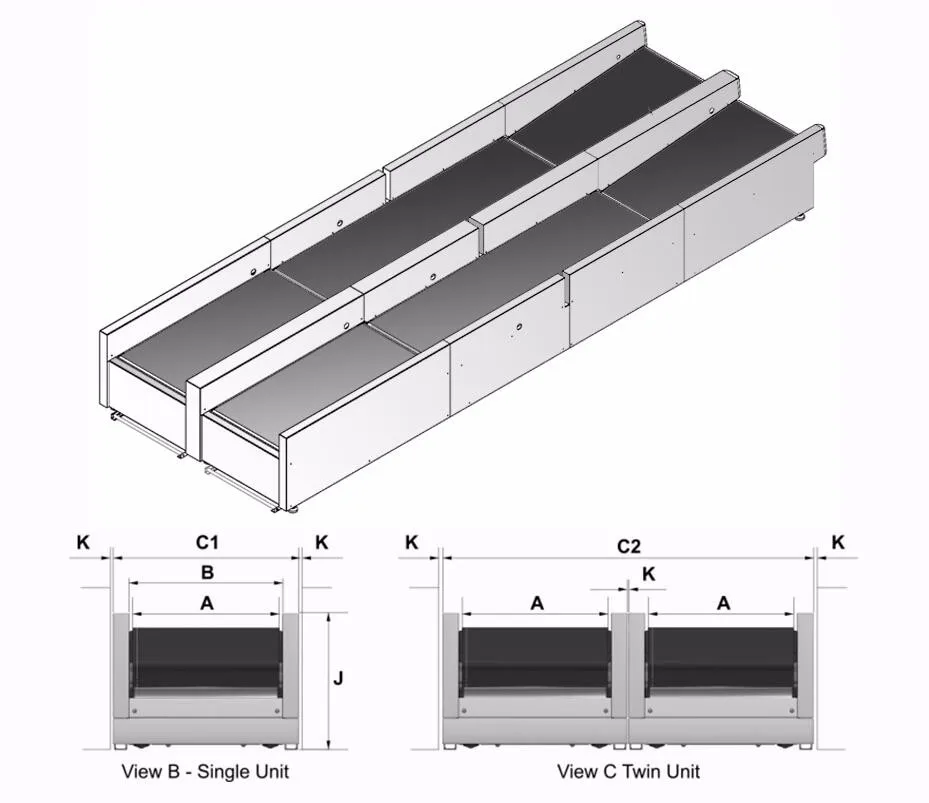

SPECIFICATIONS

Drive	Industry Standard Drum motor
Belt	pattern belt
Speed	21 ~ 38 m / min
HP	0.37KW
Side guards	optional (standard 500mm)
Length	according to customer requirements (standard 1200mm) Customizable for various length
Belt width	optional width 550mm to 650mm
Dynamic load	50kg/m

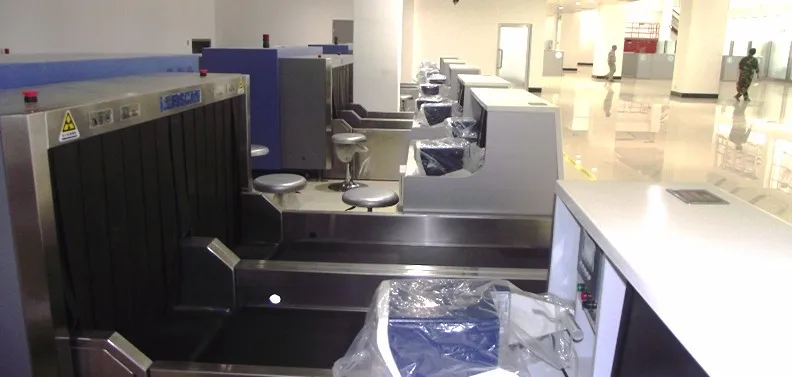

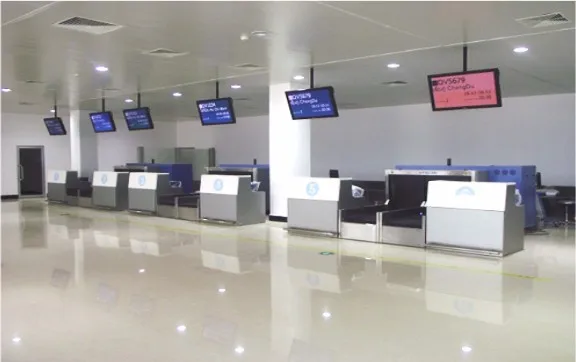

Reference Case

Project Name	Luangphabang International Airport reconstruction (Lao)
Project Date	2012.08
Project Delivery Date	2013.02 (exclude equipment installation)
Equipment provided:	Check-in counter x6, Weighing Conveyor x 6, x-ray conveyor x 6, Queuing Conveyor x 6, Carousel (Flat) x 2, Collecting Conveyor x 1, transport Conveyor x 3, Gravity Roller x 1. Electrical Control x 2

Features

Can provide different lengths, width and height of the choice
Safe and reliable design
Component standardized design, easy assembly
Can be frequent start and stop operation,

the conveyor is located on the track frame to facilitate the movement, maintenance and maintenance;

Benefits

Simple structure
Low noise, energy saving
The conveyor is placed on a movable carriage for easy maintenance
304 stainless steel wire drawing fence
After programming can be achieved check-in function

FAQ

Why choose us

1. We supply high quality products with reasonable price;
2. We are the professional manufacturer;
3. Advanced Production machine;
4. Strict quality control system;
5. Ten people research&develop team;
6. We have professional sales team;
7. Experienced exporting for all over the world;
8. We supply one-step solution service.
