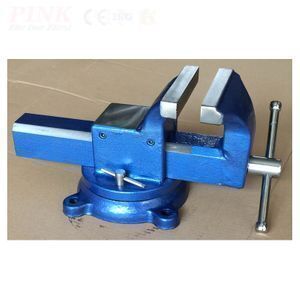

Bench Table Vise NEBHV-16
-
Supplier: Jiaxing Pink Electronic Technology Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Jack Zhang -
Price: $6.22 /piece -
Min. Order: 1 piece
| Open length: | 75,100,125,150,200mm; | Place of Origin: | Zhejiang China; |
| Jaw Surface Type: | smooth,Serrated & Smooth; | Application: | Industrial; |
| Port: | Shainghai; | Feature: | Durable; |
| Base Type: | weighted,Stationary,Swivel; | Product name: | Bench Vise; |
| Application: | Clamping workpiece; | Material: | Cast Iron; |
| Certificate: | CE; | Supply Ability: | 15000 Piece/Pieces per Month; |
| Jaw Width: | 3",4",5",6",8",10"; | Clamp Force: | 600,900,1000,1200,1500,2000,2500kg; |
| Model: | NEBHV-16; | Payment Terms: | L/C,D/P,T/T,Western Union; |
| Weight: | 5.5,7.5,10,17.5,24.5kg; | Packaging Detail: | Carton Box packing; |

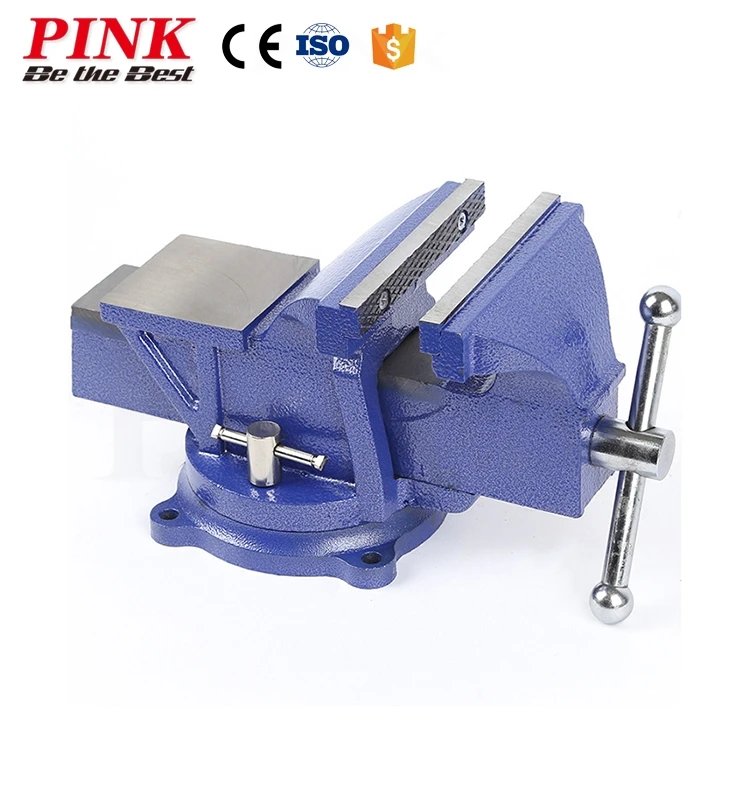

Bench Vise Product Features:
1.Jaw Width:3",4",5",6",8",10"
2.Open length:75,100,125,150,200mm
3.Clamp Force:600,900,1000,1200,1500,2000,2500kg
4.Weight:5.5,7.5,10,17.5,24.5kg
5.Apply: Workshop,Clamping workpiece
6.Certificate:CE
Bench Vise Details & Function:
1.Our Bench Vise Jaw Width:3",4",5",6",8",10", Open length:75,100,125,150,200mm, Weight:5.5,7.5,10,17.5,24.5kg; Clamp Force:600,900,1000,1200,1500,2000,2500kg.
2.A vise is a universal fixture used to hold a workpiece. The device is placed on the workbench to clamp the workpiece and is an indispensable tool in the bench shop.
3.The rotary caliper can be rotated to rotate the workpiece to the proper working position.
4.The vise is an indispensable tool for the fitter and the source of the fitter's name, as most of the work of the fitter is done on the vise, such as saws, rakes, hoes, and assembly and disassembly of the parts.
5.Installed on the bench, with the width of the jaws as the calibration specification. Common specifications range from 75mm to 300mm.
6.It is made by cast iron and heat-treated with plain surfaces, it could have long life under heavy working conditions.
| Model | Product Name | Jaw Width | N.W (kg) | Open length(mm) | Clamp Force(kg) | Packing Size(cm) | G.W/N.W (kg) | PCS/CTN | Loading 20GP(pcs) |
| NEABV-01 | Bench Vise | 3"(75mm) | 5.25 | 75 | 400 | 30*25*31 | 22/21 | 4 | 4472 |
| NEABV-02 | Bench Vise | 4"(100mm) | 5.5 | 75 | 600 | 30*25*31 | 23/22 | 4 | 4472 |
| NEABV-03 | Bench Vise | 5"(125mm) | 7.5 | 100 | 900 | 38*34*18 | 16/15 | 2 | 2234 |
| NEABV-04 | Bench Vise | 6"(150mm) | 11.5 | 125 | 1000 | 41*36*22 | 24/23 | 2 | 1600 |
| NEABV-05 | Bench Vise | 8"(200mm) | 18 | 150 | 1200 | 41*21*22 | 19/18 | 1 | 1372 |
| NEABV-06 | Bench Vise | 10"(250mm) | 27 | 200 | 1500 | 47*28*26 | 28/27 | 1 | 759 |
| NEABV-07 | Bench Vise | 3"(75mm) | 5.5 | 75 | 600 | 30.5*25*31 | 23/22 | 4 | 4396 |
| NEABV-08 | Bench Vise | 4"(100mm) | 7.5 | 100 | 900 | 31*31*18 | 16/15 | 2 | 3006 |
| NEABV-09 | Bench Vise | 5"(125mm) | 10 | 125 | 1000 | 40*38*22.5 | 21/20 | 2 | 1554 |
| NEABV-10 | Bench Vise | 6"(150mm) | 17.5 | 150 | 1200 | 41*21*22 | 18.5/17.5 | 1 | 1372 |
| NEABV-11 | Bench Vise | 8"(200mm) | 24.5 | 200 | 1500 | 50*25*26.5 | 25.5/24.5 | 1 | 800 |
| NEABV-12 | Bench Vise | 3"(75mm) | 6 | 75 | 1000 | 30*28*16 | 13/12 | 2 | 3868 |
| NEABV-13 | Bench Vise | 4"(100mm) | 10.5 | 100 | 1200 | 35*36*20 | 22/21 | 2 | 2062 |
| NEABV-14 | Bench Vise | 5"(125mm) | 16.5 | 125 | 1500 | 41*20*22 | 17.5/16.5 | 1 | 1441 |
| NEABV-15 | Bench Vise | 6"(150mm) | 22.5 | 150 | 2000 | 47*22*26 | 23.5/22.5 | 1 | 967 |
| NEABV-16 | Bench Vise | 8"(200mm) | 41 | 175-200 | 2500 | 50*26*30 | 42/41 | 1 | 666 |
Jiaxing Pink Electronic Technology CO., LTD. is an enterprise that specializes in electric tool, we export during the past 10 years.
We emphasize and concentrates on professional services to our clients. We believe that excellent quality of products, timely delivery of goods, and competitive prices are the keys to establish and maintain the long term business relationships with our customers in a mutual beneficial way.
Our company is about 120km far from Shanghai in the east and 90km far from Hangzhou in the west, it enjoys very convenient transportation. Sincerely welcome every customer to visit our factory.
If you are interested in our Bench Vise, Casting Anvil, please don't hesitate to contact us.
-
