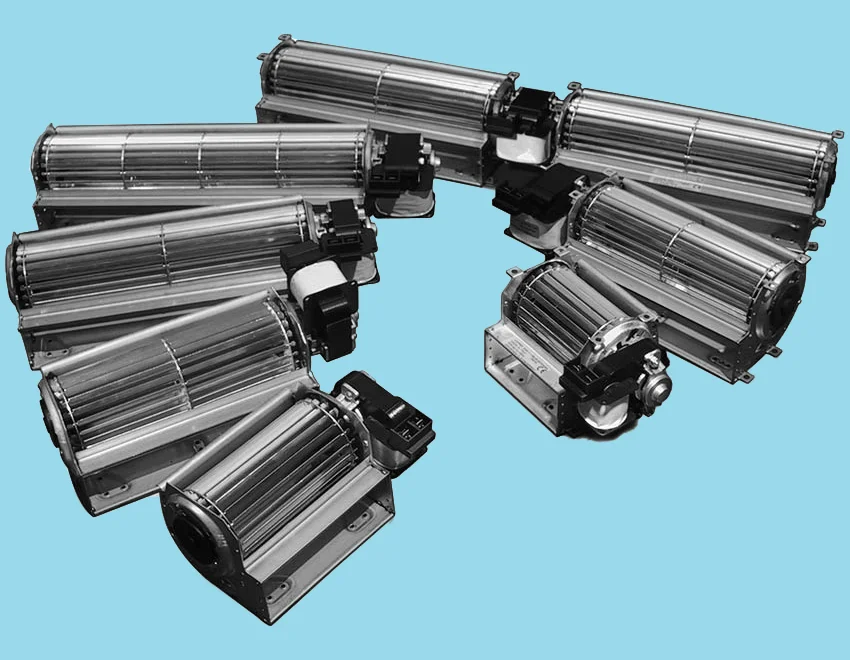

Ventilation fans - Cross flow fans series diam 60 mm

Product details
Housing:Black Cataphoresis Painting (on request);After-sales Service Provided:No after-sales service;
Packaging Detail:Carton boxes over pallet;Voltage:12-24-115-230-400V;
Brand Name:Coprel;Place of Origin:Italy;
Port:Genoa - Livorno - Venice;Payment Terms:L/C,T/T;
Warranty:Unavailable;Motor type:Shaded Pole;
Supply Ability:400000 Piece/Pieces per Year;Type:Cross Flow Fan;
Rated Voltage:115V or 230V or 400V;Blade Material:Alluminium;
Impeller length:from 90 mm up to 480 mm;Frequency:50/60 Hz;
Insulation Class:B, F or H (on request);Certification:CE,ROHS,ATEX;
Air Volume:form 80 up to 350 mc/h;Power:Form 15W up to 65W;
Impeller material:Alluminum;Input power:Form 15W up to 60W;
Ambient temperature:-30 / +100 °C;Impeller diameter:60 mm;
Product Description

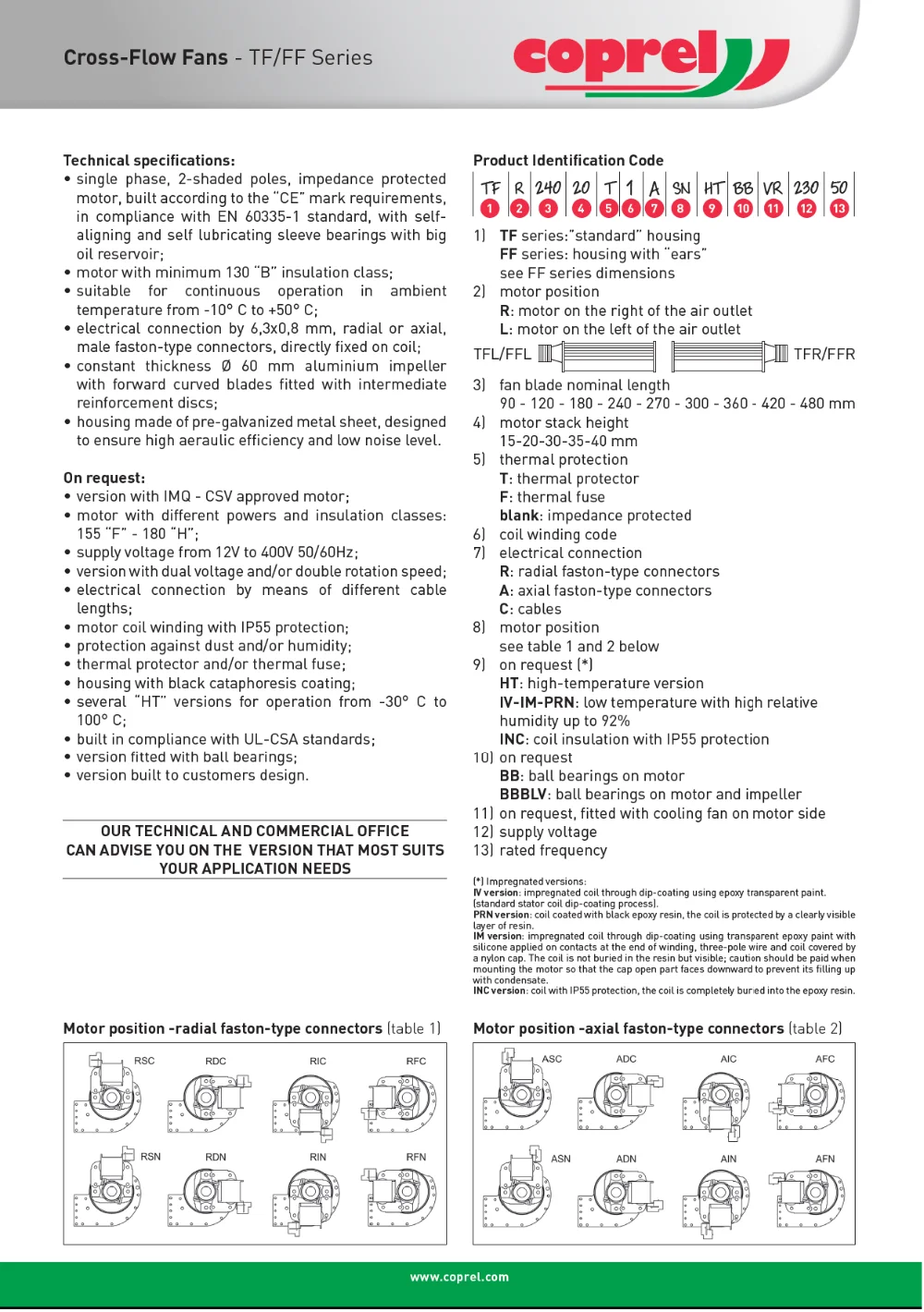

Technical specifications:

- Single phase, 2-shaded poles, impedance protected motor, built according to the "CE" mark requirements, in compliance        with EN 60335-1 standard, with self-aligning and self lubricating sleeve bearings with big oil reservoir;

- Motor with minimum 130 "B" insulation class;

- Suitable for continuous operation in ambient temperature from -10°C to +50°C;

- Electrical connection by 6,3x0,8mm, radial or axial, male faston-type connectors, directly fixed on coil;

- Constant thickness Ø 60 mm aluminium impeller with forward curved blades fitted with intermediate reinforcement discs;;

- Housing made of pre-galvanized metal sheet, thanks to the high aeraulic efficiency it guarantees an excellent yield in terms of air flow, static pressure and low noise level.

On request:

- Version with IMQ - CSV approved motor;
- Motor with different powers and insulation classes: 155 "F" - 180 "H";
- Supply voltage from 12V to 400V 50/60Hz;
- Version with dual voltage and/or double rotation speed;
- Electrical connection by means of different cable lengths;
- Motor coil winding with IP55 protection;
- Protection against dust and/or humidity;
- Thermal protector and/or thermal fuse;
- Housing with cataphoresis coating;
- "HT" version for operation from -30° C to 100° C;
- Built in compliance with UL-CSA standards;
- "BB" version with 2 626 ZZ type ball bearings on the motor.
