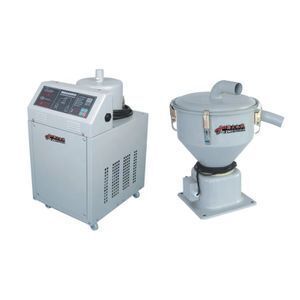

plastic material auto loader for blow molding injection machine

Product details
Absorb material:Plastic Ganules;Usage:Blowing Molding Machine;
Single gross weight:12 KG;Brand Name:Kinggle;
Package Type:Wooden case;Keywords:Industrial Vacuum Loader;
Dimension(L*W*H):50*40*72CM;Weight:66KG;
After-sales Service Provided:Engineers available to service machinery overseas;Certification:CE/ISO9001;
After-sales Service Provided:Free spare parts,Online support,Video technical support;Voltage:380V;
Condition:New;Product name:Pellet Materials Automatic Feeder;
Power(W):1.5KW;Place of Origin:Zhejiang China;
Application:Plastic Industry;Warranty:One Year;
Single package size:34X34X59 cm;Selling Units:Single item;
Used for:Molding Injection Machine;Key words:Automatic Hopper Loader;



  • Material hopper separates with main controller,safety and more convenient.
  • With isolated filter,it is easy to clean.
  • It is equipped with the speceal device to redue the working niose.
  • Material hopper is made of aluminium,light and durable.
  • Separately design control box is operated by microcomputer.
  • It is equipped with motor auto protection device.
  • Warning device works automatically when lacking material.
  • Motor can rotate anti-closewise to get rid of dust.
Technology
ModelZDAL-300GZDAL-700GZDAL-800GZDAL-800G2
MotorTypeCarbon brushInduction
Specification

1KW/1.3HP

1KW/1.3HP

1.1KW/1.5HP

1.5KW/2HP

Conveying capacity (kg/h)300310450590
Loading distance (m)3.5445
Static wind pressure (mm/HO)1300130021002900
Reservoir vloume (L)7.57.57.57.5
Conveying tube inner dimater (mm)

Φ38

Φ38Φ38Φ38
Specification of the attached hoses (mm)

Φ38x3.5 1ps

Φ38x3.5 2psΦ38x3.5 2psΦ38x3.5 2ps
DimensionsMain frame34x34x5937x30x5642x38x6450x40x70
Hopper 28x34x4345x32x4545x32x45
Net weightMain frame12144766
Hopper 61010





 l Other auxiliary machine

Our Services

The warranty period for Kinggle machine is one year with a life long maintenance

 If the user requires special quality guarantee, other stipulated warranty period may be made after

 mutual agreement.

1. Reply the email and take action in 24 hours.

2. 100% Quality inspection before the shipment.

3. Can trainning clients operator for free in seller`s factory.

4. Engineer overseas is avilable. Introduce our engineer come to customer’s factory working.

5. Blowing mould and injection mould made orginal.

6. Auxiliary machines for complate line.

7.Custimized design as requirements.

Certifications

FAQ

[1] Q: Are you a factory or trading company?
A: We are a factory. Our factory is near Shanghai & Ningbo port, Ningbo ,zhejiang .

[2] Q: Do you provide blow molding machine ,mold and auxiliaries equipments?
A: Yes, we can provide full blow molding machine line. The machine can produce Max 10,000L items, our
factory have patent for the multilayers and multi-colors!

[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers need” . Kinggle machinery factory focuses on quality, quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.

[4] Q: How about guarantee ?
A: One year guarantee, oversea service is avaliable.

[5] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,or other languages to make sure you will have an easy operation .
