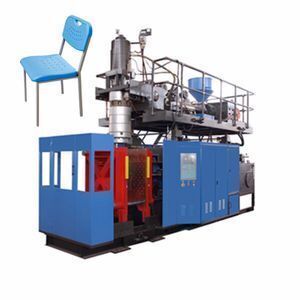

PP/PE extrusion blow molding plastic machine chair making machine
-
Supplier: Ningbo Kinggle Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Sam Zhang -
Price: $58000.00 /set -
Min. Order: 1 set
| Key words: | Automatic Extrusion Blow Moulding Machine; | Blow Moulding Type: | Extrusion Blow Moulding; |
| Port: | shanghai port; | Condition: | New; |
| Weight: | 14Ton; | Name: | Plastic seat floding chair gym seat Blow Moulding Machine; |
| Voltage: | 380V; | Packaging Detail: | wooden case; |
| Payment Terms: | L/C,T/T; | After-sales Service Provided: | Free spare parts,Online support,Field installation, commissioning and training,Video technical support; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Suitable bottle: | 30L to 60L drum; |
| Brand Name: | Kinggle; | Warranty: | 1 Year; |
| Application: | seat, floding chair, gym seat; | Applicable Industries: | Manufacturing Plant,Retail; |
| Supply Ability: | 20 Set/Sets per Month; | Certification: | CE ISO; |
| Place of Origin: | Jiangsu China; | Material: | HDPE LDPE LLDPE; |
| Plastic Processed: | PE,PP,ABS,HDPE,HDPE/PP,ABS/PP; | Dimension(L*W*H): | 5.7*3.6*4.3(m); |
| Year: | latest; | Automation: | Automatic; |
| Machine type: | Hydraulic Driven; | Key Selling Points: | Energy saving; |
| Type: | Semi-automatic Botte-blowing Machines; | Power(W): | 37KW; |
| Product name: | Automatic Blowing Molding Machine; |
This model is fixed open-closing and accumulator die head series which adopts double drawbar clamping mechanism, mold clamping by oil cylinder pressure directly, It suits for making 30/60L chemical packing drums, medium size toys, auto parts pipes, water container, toolcase, sprayer and so on. Technical characteristics: Hydraulic servo system control, quick action response, energy saving.

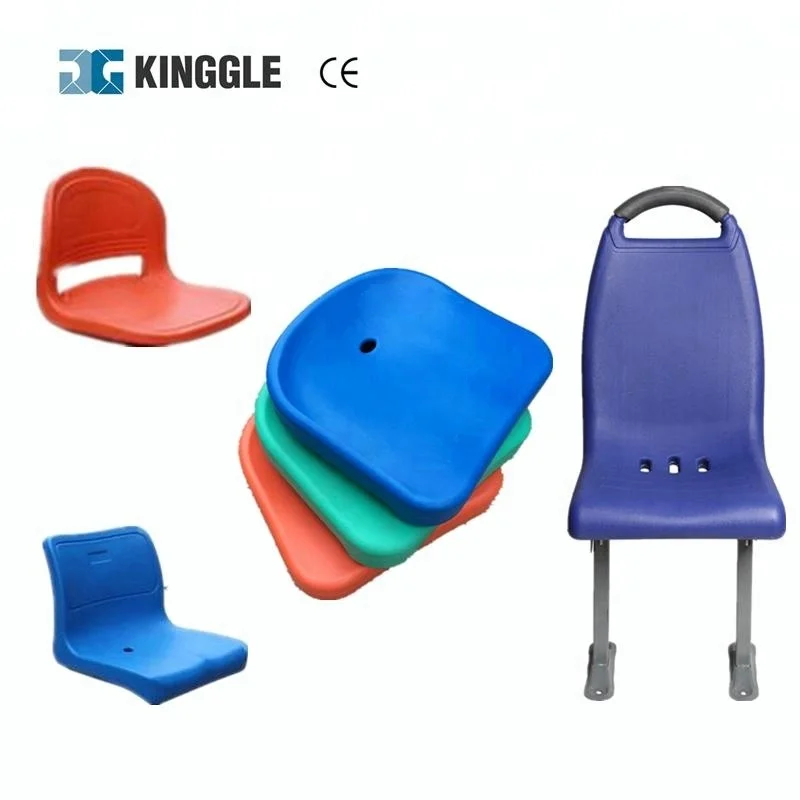

Suit product
best price plastic furniture folding chair seat blowing moulding machine
| Specifications | Unit | Fixed open-closing type | ||
| Machiner model | PXB70A | PXB80A | PXB90A | |
| Material | PE,PP,ABS etc. | |||
| Max container capacity | L | 20 | 30 | 60 |
| Machine dimension ( L×W×H ) | M | 4.3×1.7×3.9 | 4.8×3.4×4 | 5.7×3.6×4.3 |
| Machine Weight | T | 7.8 | 12 | 14 |
| Clamping unit | ||||
| Mold platen size ( W×H ) | MM | 680×600 | 750×860 | 960×980 |
| Max mold size ( W×H ) | MM | 460×600 | 520×860 | 700×981 |
| Power | ||||
| Servo oil pump motor power | KW | 15 | 15 | 18.5 |
| Average energy consumption | KW | 18-22 | 28-32 | 35-40 |
| Blow pressure | Mpa | 0.8 | 0.8 | 0.8 |
| Extruder unit | ||||
| Screw diameter | MM | 70 | 80 | 90 |
| Screw L/D ratio | L/D | 24:1 | ||
| Melting capacit for HDPE | KG/HR | 80 | 120-140 | 130-160 |
| Extruder power | KW | 22 | 30 | 37 |
| Die head | ||||
| Max die-pin diameter | MM | 200 | 250 | 350 |
| Accumulator capacity | L | 3 | 5 | 6.6 |
| Accumulator weight ( HDPE ) | KG | 2.25 | 3.75 | 4.9 |
Die head: verticality first-in first-out system;
best price plastic furniture folding chair seat blowing moulding machine
Extruder unit: adopt automatic temperature control unit of import,the screw united by hard tooth surface gear box and frequency motorto achieve stepless speed regulation;
best price plastic furniture folding chair seat blowing moulding machine
Clamping device: the clamping device of double draw bar is a type of hydraumatic and fixed , draw bar of new type through template,this type is accommodate large size of mould,smooth action,high stability,clamping mould force is uniformly,template is not distortional;
best price plastic furniture folding chair seat blowing moulding machine
Hydraulic system: whole system adopt imported components,proportional pressure,flow,pressure feedback,system response is faster,action is more smoothly,lowest power loss,and the output of torque is big.
best price plastic furniture folding chair seat blowing moulding machine
Electric controlling system: it adopts Japan programmable controller,touch screen,the characteristic of it has direct manipulation and large information on board.
best price plastic furniture folding chair seat blowing moulding machine
Main component brand
Other Product types
best price plastic furniture folding chair seat blowing moulding machine
 |  |  |
|  |  |
best price plastic furniture folding chair seat blowing moulding machine
The warranty period for Kinggle machine is one year with a life long maintenance.
If the user requires special quality guarantee, other stipulated warranty period may be made after
mutual agreement.
1. Reply the email and take action in 24 hours. |
2. 100% Quality inspection before the shipment. |
3. Can trainning clients operator for free in seller`s factory. |
4. Engineer overseas is avilable. Introduce our engineer come to customer’s factory working. |

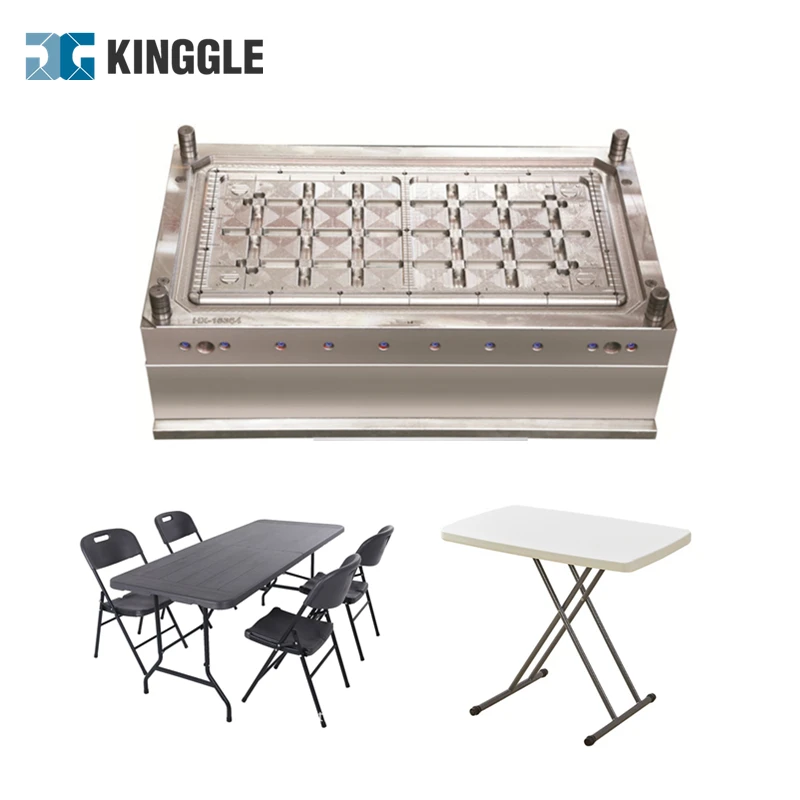

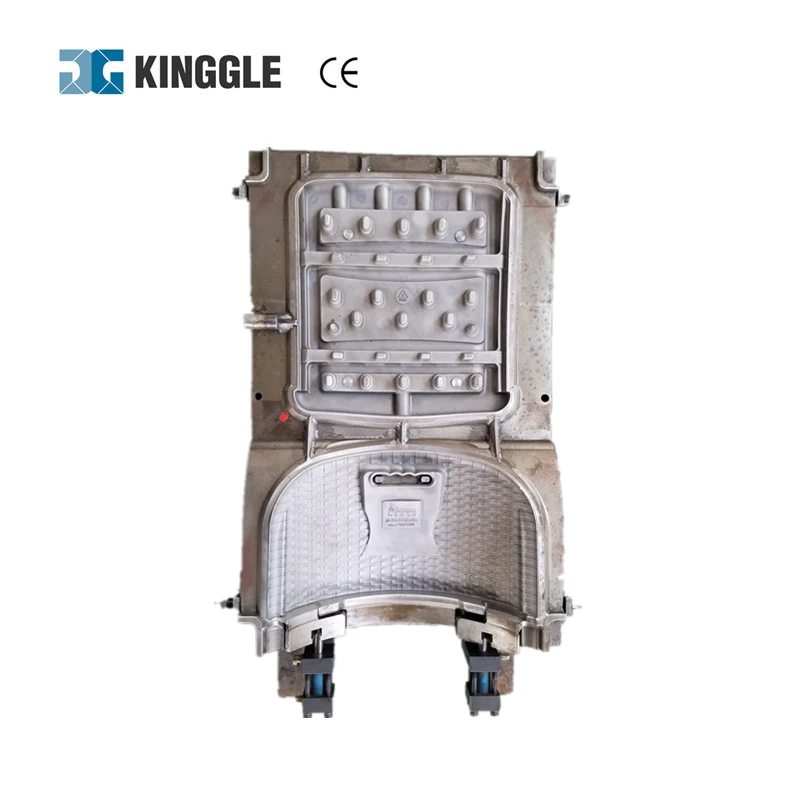

5. Blowing mould and injection mould made orginal. |
6. Auxiliary machines for complate line. |
7.Custimized design as requirements. |
[1] Q: Are you a factory or trading company?
A: We are a factory. Our factory is near Shanghai & Ningbo port, Ningbo ,zhejiang .
[2] Q: Do you provide blow molding machine ,mold and auxiliaries equipments?
A: Yes, we can provide full blow molding machine line. The machine can produce Max 10,000L items, our
factory have patent for the multilayers and multi-colors!
[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers need” . Kinggle machinery factory focuses on quality, quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
[4] Q: How about guarantee ?
A: One year guarantee, oversea service is avaliable.
[5] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,or other languages to make sure you will have an easy operation .
