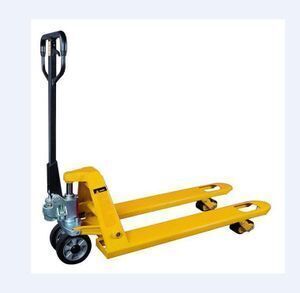

High Quality Load Capacity 5000 kg 3 Ton Hand Pallet Truck

Supplier: Baoding Huaxin Hoisting Machinery Manufacturing Co., Ltd.
Region: Hebei, China
Contact: Mr. Max Cai
Price: $30.00 / >=100 units
Min. Order: 100 units

Click here to contact

Product details

Load capacity:	2500kg-5000kg Hand Pallet Truck;	Fork Length:	915/1100/1150/1220;
Fork Width:	520/550/685;	Handle:	3-position Handle;
Steering wheel:	Dia 180x50 MM;	Product name:	China Forklift Truck Palet Jack;
Supply Ability:	1000 Unit/Units per Month;	Color:	Customized;
Packaging Detail:	WOODEN CASE;	Brand Name:	HUAXIN;
Place of Origin:	Hebei China;	Pump:	Casting Integral Pump;
Wheels:	PU Wheel;	Payment Terms:	L/C,T/T,Western Union;
Material:	Steel Hand Pallet Truck;	Model Number:	HXPJ-B;
Port:	TIANJIN PORT;	Lift Drive / Actuation:	Hand;

High Quality Load Capacity 5000 kg 3 Ton Hand Pallet Truck

Model No.		HXPJ2000		HXPJ2500		HXPJ3000
Capacity	kg	2000		2500		3000
Min.fork height	mm	85	75	85	75	85	75
Max.fork height	mm	200	190	200	190	200	190
Steering wheel	mm	Φ200×20	Φ180×50	Φ200×50	Φ180×50	Φ200×50	Φ180×50
Single load wheel	mm	Φ82×93	Φ74×93	Φ82×93	Φ74×93	Φ82×93	Φ74×93
Tandem load wheel	mm	Φ82×70	Φ74×70	Φ82×70	Φ74×70	Φ82×70	Φ74×70
Size of fork	mm	160×50				160×60
Overall fork width	mm	520		540		685
Fork length	mm	800	900	1000	1100	1150	1220

Learn More>>>

Hand pallet truck also known as manual pallet truck, hand pallet truck when use the carrying
goods fork into the tray hole,by the ability to drive hydraulic system to realize the pallet load
lifting and falling, and pulled by human complete handling operations.
2.It is the simplest and most effective tray in the transport, the most common type of loading
and unloading, handling tools,widely used in logistics,warehouses, factories, hospitals, schools,
shopping malls, airports, stadiums, station, airport and so on

1. Color : red/ yellow/ blue/ green/ black etc.
as per customer request
2. Capacity: 2500kg, 3000kg
3. Fork Width: 520/550/685mm, can be customized
4. Fork Length: 800/900/1150/1220 or other size customer need
5. Packing: 6pcs/pallet, pallet size: 210*70*70cm
6. Advanced Robot welding ensure high strength, good finish, no bubble in the welding
7. With CE certificates, waiting for your order!

hydraulic pallet truck trolley
Safety is enhanced by the special high visibility 2 tone safety color scheme in durable powder coat paint.
The reinforced, fully welded steel chassis is durable yet light.
The high efficiency cast-pump jack has a one year manufacturer's limited warranty.
Heavy duty iron steer wheels deliver superior durability.
Heavy duty cast iron tow bars withstand high pulling stresses.
Multiple grease fittings at pivoting and wear points make maintenance easy and deliver long component life.
The high strength cushioned steel loop handle has a cast iron control lever with lift, neutral, and lowering positions.
The neutral position eliminates premature wear on the hydraulic components in the jack.
The handle automatically returns to vertical upon release.
Fork tip entry wheels give smooth, easy pallet entry when handling fragile loads and are protected by built-in skid plates for greater durability and longer life.
Hydraulic hand pallet truck . Easy roll pivot wheel tires, urethane load rollers, and guide wheels are durable and easily replaceable.
Square section connecting rods have better bending resistance for increased durability in demanding applications.
