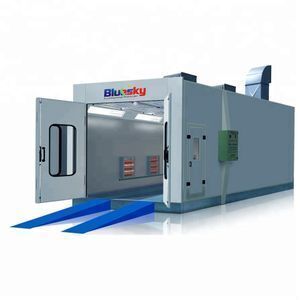

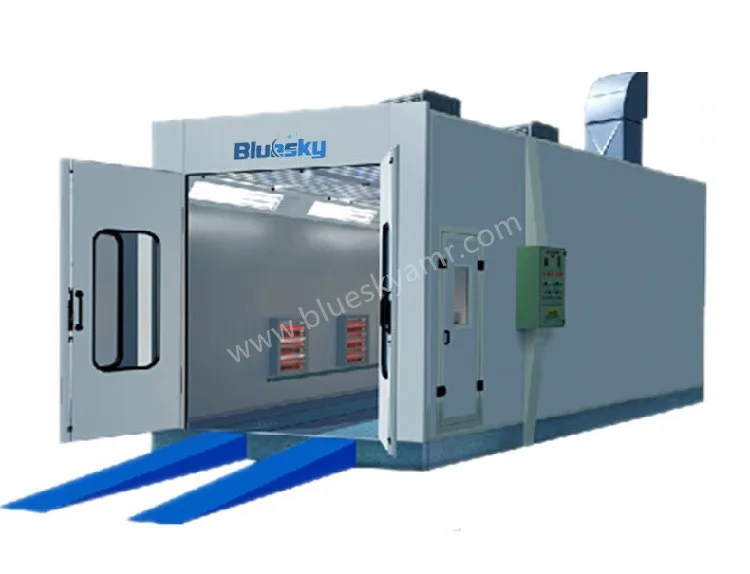

wholesale water curtain automotive car spray paint booth price

Supplier: Shandong Lantian Huaer Environmental Protection Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Caesar Liu
Price: $3999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Wall Panel:	50/75mm EPS;	External Size:	800040004200;
Model Number:	BSH-SP9100A;	Disc Dia.:	Non;
Supply Ability:	50 Set/Sets per Month;	Baking method:	infrared heat lamp;
Warranty:	one year.service for ever;	Air Velocity:	0.30m/s;
Product name:	water curtain automotive car spray paint booth price;	Environmental certificate:	CE approved;
Power:	30kw;	Payment Terms:	T/T,Western Union,MoneyGram;
Port:	Qingdao;	Certification:	CE;
Color:	Cutomized;	No Load Speed:	Loaded Booth;
Internal Size:	690039002650;	Voltage:	380V/ 3PH/ 50HZ;
Place of Origin:	Shandong China;	Usage:	car painting and baking;
Packaging Detail:	Loading situations: a 20GP container, Export standard packaging.;	Packing detail:	20ft container, FCL;
Special design:	can do all special design according your requirement;	Type:	Spray Booths;
Brand Name:	BLUESKY;

Alibaba verified manufacturer wholesale water curtain automotive car spray paint booth price

Product Description

♥ Tips:We also can produce the machine as your requirments .

Dimensions:	Length(mm)	Width(mm)	Height(mm)
Outer Size	8,000	4,000	4,200
Internal Size	6,900	3,900	2,650
Entrance Door	Adopt with handle and lock	3,000	2,600
Operatior’s Door	Adopt with handle and Anti-Explosion	800	2,000

Spray Booth Configuration:

Features:	Total power 30 kw; 380V/3ph/50hz; Noise < 80db
I. Wallboard & Roof board	Adopt high quality EPS panel, thickness: 50mm, socket type assembling. Ramps×2pcs, 630 mm with slope. Roof board with 0.7mm zinc plated steel sheet, single layer.
II. Foundation System	All around with welded 1.2mm zinc plated steel sheet, Bearing bracket with welded zinc plated steel is full of hot dip galvanized steel. Two rows of grid and three rows of diamond plate.
III. Heating System	Adopt surface type infrared heat lamp,10 group×3pcs, 1kw/pc.
IV. Filtration System	Inlet with high grad fiberglass filter, which filtered the dust larger than 10um, roof with EU5 CC-600G filter, TSP value: ≤1.4mg/m3.
V. Light System	With Philips lamps and electronic ballast, with 45 degree installation at inner side of roof, it can still work under 180v.
VI. Ventilation System	Adopt two pcs energy saving fan, power 1.5kw, Air volume: 24000m3/h; Rated air speed: 0.3m/s, air changes; 260 times/h. With 3 pcs straight air ducts, 1pc ellow airduct.
VII. Control Panel	One unit, including lighting switch, painting switch, warm painting, baking temperature, time setting, urgent stop switch. All components with famous domestic brand .
VIII. Other Include	All sets of hardware, fasteners and sealants

Customer Feedback

Packaging & Shipping

Our Services

1. OEM ODM service.

2. Customized service: The color and size of the product can be customized.

3. One Year Quality warrant service, during the period spare part supplied free if you pay for shipping.

4.Professional team supply service for life long time.

Why Choose Us

WHY CHOOSE US

• We are a professional auto maintenance equipment manufacture since 2000 with brand “BLUESKY”, in Chinese Lantian means Bluesky.

• Our factory covers an area of more than 2,500 squares metters.

• With our up-today manufacturing facilities, high tech industrial, product developing manufacturing sales and perfect after-service with total capital of more than ten millions

•For many years our copany have been awarded as”Enterprise with high reputation” ”Enterpris with high credit in quality” and “China national grade AAA enterprise” ....etc.

• We have passed ISO9001, authenticated by 2000 international quality control system.

FAQ

1. Are you trading company or manufacturer?

We are powder coating line / spray booth / frame machine, car lift, aligner, tire changer etc. manufacturer from Shandong province and we have our own trade company can deal with all other machine you need.
2.How about your delivery time for one spray booth?
Usually one standard spray booth need 7 workdays after receiving deposit.
3.How many color do you have?
We have blue+gray; Red+gray and pure gray three colors.
4.If cusotmer have some special requirement, can you change your standard spray booth?
Of course we can, if our standard model can't meet your requirement, we can design it for you according to your need.
