CE ISO approval inflatable spray booth/ car paint booth/ auto baking oven

Product details
Application fields:Bakery;Condition:New;
Weight:1000kg;Supply Ability:50 Set/Sets per Month CE ISO approval inflatable spray booth/ auto paint booth/ baking;
Packaging Detail:Loading situations: a 20GP container, Export standard packaging. CE ISO approval inflatable spray booth/ auto paint booth/ baking oven;Brand Name:Bluesky;
Special design:can do all special design according your requirement;Color:Customized;
Warranty:1 year;Packing detail:20ft container, FCL;
Payment Terms:T/T,Western Union,MoneyGram;After-sales Service Provided:Online support;
Certification:CE;Port:Qingdao;
Dimension(L*W*H):7000*5200*3600mm;Air Velocity:0.30m/s;
Place of Origin:Shandong China;Power Source:Diesel;
Applicable Industries:Manufacturing Plant,Machinery Repair Shops;Power(W):38KW;
Usage:Baking;Type:Deck Baking Oven;
Voltage:380V;Baking method:diesel;

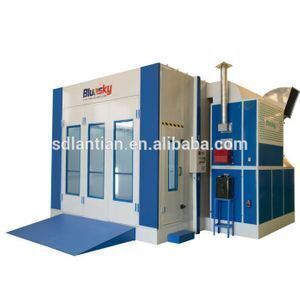

BSH-SP9200A CE ISO approval inflatable spray booth/ car paint booth/ auto baking oven



Specifications

1. Professional manufacturer of spray booth
2. Spray paint booth approved by CE and ISO

3. Car body spray paint with high quality and competitive price
4. European Design

Product Description

 ♥ Tips:We also can produce the machine as your requirments .





Main technical performance and parameter of Spray booth:



 Dimensions:

 Length(mm)

 Width(mm)

 Height(mm)

 Outer Size

 7,000

 5,200

 3,600

 Internal Size

 6,900

 3,900

 2,750

 Entrance Door

 Adopt with handle and lock

 3,000

 2,700

 Operatior’s Door

 Adopt with handle and Anti-Explosion

 800

 2,000

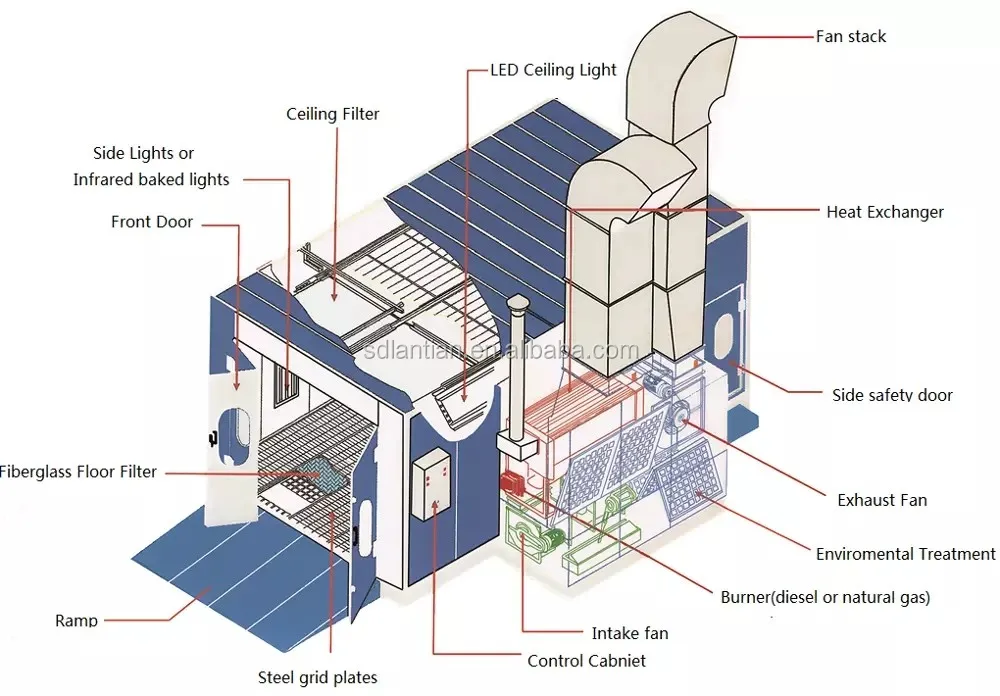

Features:

Total power 14.5 kw;  380V/3ph/50hz;  Noise < 80db

I. Wallboard

Adopt high quality fireproof insulation EPS panel, thickness: 75mm (Rock wall optional)  Density is 12kg/m3   0.476mm thick colored steel on both side.

II. Foundation System

Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates, the grids are twisted steel for the cross bar steel grating.

Galvanized and beautiful, durable and better force bearing.

III. Heating System

Adopt one unit of Italy Riello diesel burner G20 (Gas burner and Electrical heating optional);

One set of heat exchanger, high efficient heat-resistant stainless steel as cycling ;

4-6 minutes (from 20-60℃) underbaking status, max baking temperature is 80℃;

One unit of Cabinet(Rock-wool insulation), Two pcs Air ducts.

IV. Filtration System

Pre-filters Can Capture Granules Larger than 10μm;

Ceiling filter can Capture Granules Bigger than 4μm.

Floor filter multilayer glass fiber, air cleanliness in room can reach 98%

V. Light System

Ceiling light, 8 group×4pcs = 32pcs×36w;

Bottom light, 8 group×4pcs = 32pcs×36w;

With light fixture, anti-explosion design.

VI. Ventilation System

Air -inlet fan 2 sets×4kw, Centrifugal, Air outlet fan 1 set 4kw, Centrifugal. Air flow speed in cabin 0.3m/s.

One set of Painting and baking exchange system

One set of Cabinet for the fans and three pcs air ducts

VII. Control Panel

One unit, including spray switch, baking switch, emergency stop, etc.

VIII. Other Include

All sets of hardware, fasteners and sealants



Detailed Pictures











Packaging & Shipping

BSH-SP9200A car body spray paint/ portable spray booth/ high quality spray booth packaging



Our Services

1. OEM ODM service.

2. Customized service: The color and size of the product can be customized.

3. One Year Quality warrant service, during the period spare part supplied free if you pay for shipping.

4.Professional team supply service for life long time.



Company Information

Shandong Lantian Huaer Environmental Protection Equipment Co.,Ltd is professional auto maintenance equipment manufacture since 2000 with brand “BLUESKY”, in Chinese Lantian means Bluesky.

Our factory covers an area of more than 2,500 squares metters and with our up-today manufacturing facilities, high tech industrial, product developing manufacturing sales and perfect after-service with total capital of more than ten millions.

For many years our copany have been awarded as”Enterprise with high reputation” ”Enterpris with high credit in quality” and “China national grade AAA enterprise” ....etc. Besides, we have passed ISO9001, authenticated by 2000 international quality control system.





FAQ

1. Can you make the machine size and color as our request?

Yes, we can make the machine size and color according to your request.

2. What’s the Min order to your company?

1 set.The sample order, if we have stocks, we will send out the products within 1 week.

3. OEM is available?

Yes, we can put your logo on the machine if needed.And we can make the machine structure as your design request.

4. What kind of measuring system do you have?

We have the two dimension measuring,three dimension measuring and CHEIF electric measusing system for your choice.

5.What’s the advantage of your company?

We have exported our lifts and service to more than 100 countries. We have specialized team work for you, you will get our feedback within 24 hours./ Germany and Italian advanced technology.
