Fully Automatic potato chips production line french fries cutter machine potato cutting

Product details
Production Capacity:100-2000kg/h;Packaging Detail:as wooden case;
Port:Qingdao;Certification:BV SGS TUV CE ISO;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Applicable Industries:Manufacturing Plant;
Usage:Sancks Food;Weight:1500kg;
Type:Fully Automatic or Semi-Automatic;Dimension(L*W*H):Customzied;
After-sales Service Provided:Video technical support;Voltage:220V/380V;
Raw material:Fruit,Vegetables;Warranty:1 year;
Application:Chips, french fries production;Raw material:Potato;
Application fields:Vegetable processing plant,Fruit processing plant;After-sales Service Provided:Engineers available to service machinery overseas;
Color:White;Brand Name:Taizy;
Function:Fried potato;Name:potato chips production line;
Power(W):68.2kw;Place of Origin:Henan China;
Supply Ability:100 Set/Sets per Month;Material:304 Stainless Steel;
Product Description

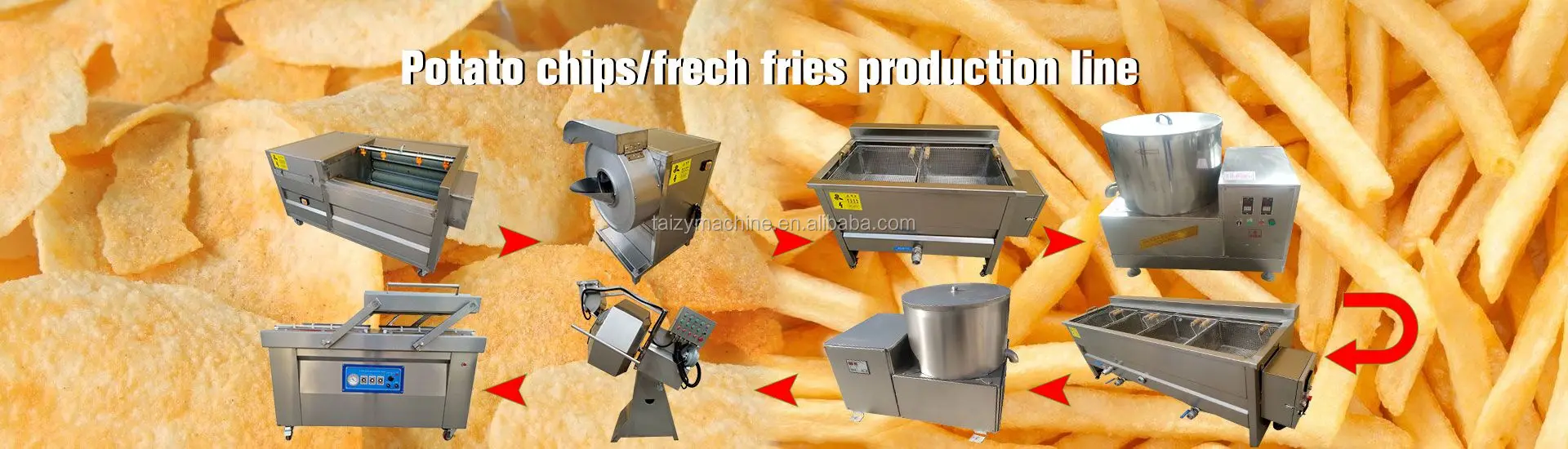

Introduction of potato chips production line

Frozen fries with it's fast, simple and delicious, and has become one of the most popular foods for consumers. It is also fast-food snacks in fast-frozen foods. The cleaned and peeled fresh potatoes pass through the picking line and enter the slitter. The size of the fries can be adjusted according to customer requirements. After removing the starch on the surface of the potato strips, the color of the potato strips is kept, so that it does not black. After blanching, the air line can effectively remove the moisture on the surface of the potato strips and then enter the frying line. The frozen fries are fried for a short time, then cooled by air-cooled oil, and then enter the quick-freezer and packaging machine.

Specifications of potato chips production line
Equipment

Voltage(V/Hz)
Power(Kw)
Dimension(mm)
1.Washing and Peeling Machine
380v/50Hz
1.10kw
710x630x840
2.Cutting Machine
380v/50Hz
0.75kw
745x590x885
3.Blanching Machine
380v/50Hz
18.0kw
2500x1100x1300
4.De-watering Machine
380v/50Hz
1.10kw
1050x660x930
5.Frying Machine
380v/50Hz
36.0kw
4000x1200x2400
6.De-oil Machine
380v/50Hz
1.50kw
1050x660x930
7.Air Drying Machine
380v/50Hz
15.0kw
4000x1200x1400
8.Seasoning Machine
380v/50Hz
0.75kw
1500x600x1400
9.Packing Machine
380v/50Hz
2.00kw
2600x3000x2600

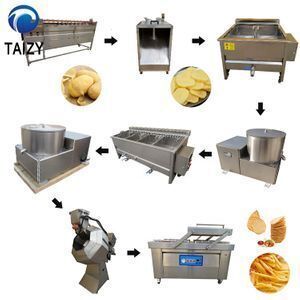

Potato Chips Processing

 Fresh Potato→→washing&peeling→→cutting→→blanching→→dewatering→→frying→→de-oiling→→flavoring →→packing

1.Washing and Peeling Machine


First connect the machine to the power, open water pipes, and then Add potatoes to the hopper, about 3-5 minutes later, move the baffle at the expect mouth , potatoes will be out automatically.


2.Potato Cutting Machine


Switch on the power, put the peeled clean potatoes into the feed continuously, then they will be cut into chips automatically.

3.Blanching Machine

This machine is used to deactivate the activity of the oxidase, take off the overmuch starch, separate out the reducing sugar, also after blanching,it will get inner soft taste of french fries.



4.De-watering Machine

The cooling action removes moisture from the surface of the chips and sends it to the frying machine


5.Frying Machine

The frying time is 2-5minutes at the frying temperature is 170-180 ℃for potato chips; Frying temperature is about 180-190 °C, and the frying time is about 1 minutes for frozen French fries.



6.De-oil Machine

Put the fried chips into the De-oiling machine, then the chips will be ok for one minutes.



7.Air Drying Machine

Use fan to blow off the water on stick surface, then deliver sticks into the freezer.


8.Seasoning Machine

Put the de-oiled chips into the seasoning machine, adding spices according to the tastes of your choice, switch on the power, spices will be evenly attached to the French fries on potato chips.






9.Packing Machine

Used to pack the french fries potato chips automatically .

Our Service

1. MOQ (Minimum Order Quantity)

 One set is welcome, and mix products for order are welcome.

 2. Delivery Time

Depending on your quantity, for goods we have in stock. Delivery takes few days to comply with your request to replace the plug or other configurations. For regular order, by ocean shipping takes 20-40 days. For small machines, express delivery for 3-8 days.

 3. Deviation

There might be sightly difference in color, because of the computer monitor settings .

With the difference in the measurement method, please allow 1-3cm in size deviation.

 4. Package

Standard export wooden case or other packages depending on products packaging weight is subject to the actual pack.

 5. Service

 welcome your compliments and suggestions. Any inquiries or complaints will be respond within 24 hours.
