Engraving Speed: | 30MM~40MM/S; | Impact Frequency: | 300 times/s; |
Brand Name: | kuntai; | Material hardness: | below HRC58; |
Selling Units: | Single item; | Package Preview: | https://sc01.alicdn.com/kf/H45c19db32e8f4e15b8e39b5006538993E.jpg_640x640.jpg,https://sc01.alicdn.com/kf/H0f8fa7726fe44bb69ba55010c7c035a9G.jpg_640x640.jpg; |
Product name: | KT-PH02 Hot sale Handheld pneumatic vin number marking machine; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Retail,Construction works ,Energy & Mining,Advertising Company; |
Air power request: | 0.2Mpa~0.6Mpa; | Dimensions: | 120x40mm; |
Single gross weight: | 22 KG; | Certification: | ISO; |
Single package size: | 38X46X36 cm; | Application: | 120MMX40MM; |
Rated Power: | 220V / 110V; | Marking Depth: | 0.1mm~2mm(depends on materials); |
Warranty: | 1 Year; | Feeding Height: | around 5mm between needle point to work piece; |
Place of Origin: | Jiangsu China; | Repeated Accuracy: | 0.001mm; |
After-sales Service Provided: | Field maintenance and repair service,Video technical support,Online support; | Base support: | Electromagnetic basement; |
Condition: | New; | compatible system ( computer needed): | Win7 32bit; |
Package Type: | shrink film / poly foam/ plywood case; | Power Supply: | 600watt; |
Weight: | 5-15kg(marking Head); | Milling Cutter Diameter: | 3mm to 4mm; |

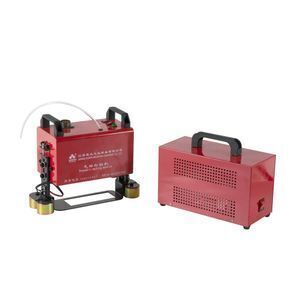

KT-PH series handheld dot peen marking machine is designed for use with large and heavy metal parts such as car chassis,vin numbers etc.it allows direct part marking on product surfaces using hard marking pins that handle of up to HRC60.
KT-PH series features:
- Light weight marking head,easy to move
-Electromagnetic and frame basement
-Versatile and suits a wide range of application
-Superior marking on Large and heavy parts
-Deep and clear marking
-Imported stepper motor offers stability
-Customization is avaiable
Technical Parameter

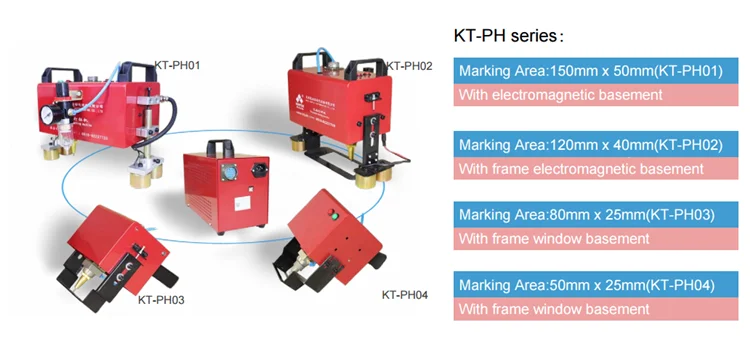

Model | KT-PH01 | KT-PH02 | KT-PH03 | KT-PH04 |
Standard Marking Area | 150MMX150MM | 120mmx40mm | 80mmx25mm | 50mmx20mm |
Base support | Electromagnetic basement | frame and electromagnetic basement | frame window basement | frame window basement |
Marking speed | 30mm~40mm/s | 30mm~40mm/s | 30mm~40mm/s | 30mm~40mm/s |
Impact Frequency | 300times/s | 300times/s | 300times/s | 300times/s |
Repeated Accuracy | 0.001mm | 0.001mm | 0.001mm | 0.001mm |
Marking Depth | 0.1mm~2mm(depends on material) | 0.1mm~2mm(depends on material) | 0.1mm~2mm(depends on material) | 0.1mm~2mm(depends on material) |
Power Supply | AC 220V 50Hz or AC110V 60Hz | AC 220V 50Hz or AC110V 60Hz | AC 220V 50Hz or AC110V 60Hz | AC 220V 50Hz or AC110V 60Hz |
Air Power Request | 0.2Mpa~0.6Mpa | 0.2Mpa~0.6Mpa | 0.2Mpa~0.6Mpa | 0.2Mpa~0.6Mpa |
Humidity | 0~90%(Non-condensing) | 0~90%(Non-condensing) | 0~90%(Non-condensing) | 0~90%(Non-condensing) |
Temperature | From 0 to 40 Centigrade Degree | From 0 to 40 Centigrade Degree | From 0 to 40 Centigrade Degree | From 0 to 40 Centigrade Degree |
Making content | English characters ,number,all kinds of graphic,logo,dot matrix 2D codes, Barcode,Serial Number,circle letter and etc. | English characters ,number,all kinds of graphic,logo,dot matrix 2D codes,Barcode,Serial Number,circle letter and etc. | English characters ,number,all kinds of graphic,logo,dot matrix 2D codes,Barcode,Serial Number,circle letter and etc. | English characters ,number,all kinds of graphic,logo,dot matrix 2D codes,Barcode,Serial Number,circle letter and etc. |
Software Compatible | Windows 98/XP/7 32 bit(KT-PH series need connect to PC) | Windows 98/XP/7 32 bit(KT-PH series need connect to PC) | Windows 98/XP/7 32 bit(KT-PH series need connect to PC) | Windows 98/XP/7 32 bit(KT-PH series need connect to PC) |

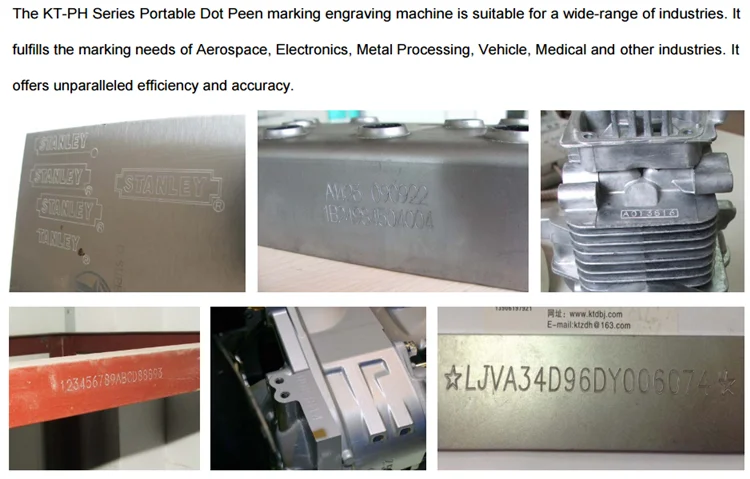

Application:
- Vin code/Chassis number marking
-Direct part marking(DPM)
-Data Matrix coding
-Programmable marking
-Component Identification
-Component Traceability
-Serial Numbering
-Lot Numbering
Accessories:
Video link:
https://www.youtube.com/watch?v=w3Op-nUloaI (KT-PH02)
https://www.youtube.com/watch?v=ffMcu6Vjzxg (KT-PB01, handheld marking machine with touch screen)

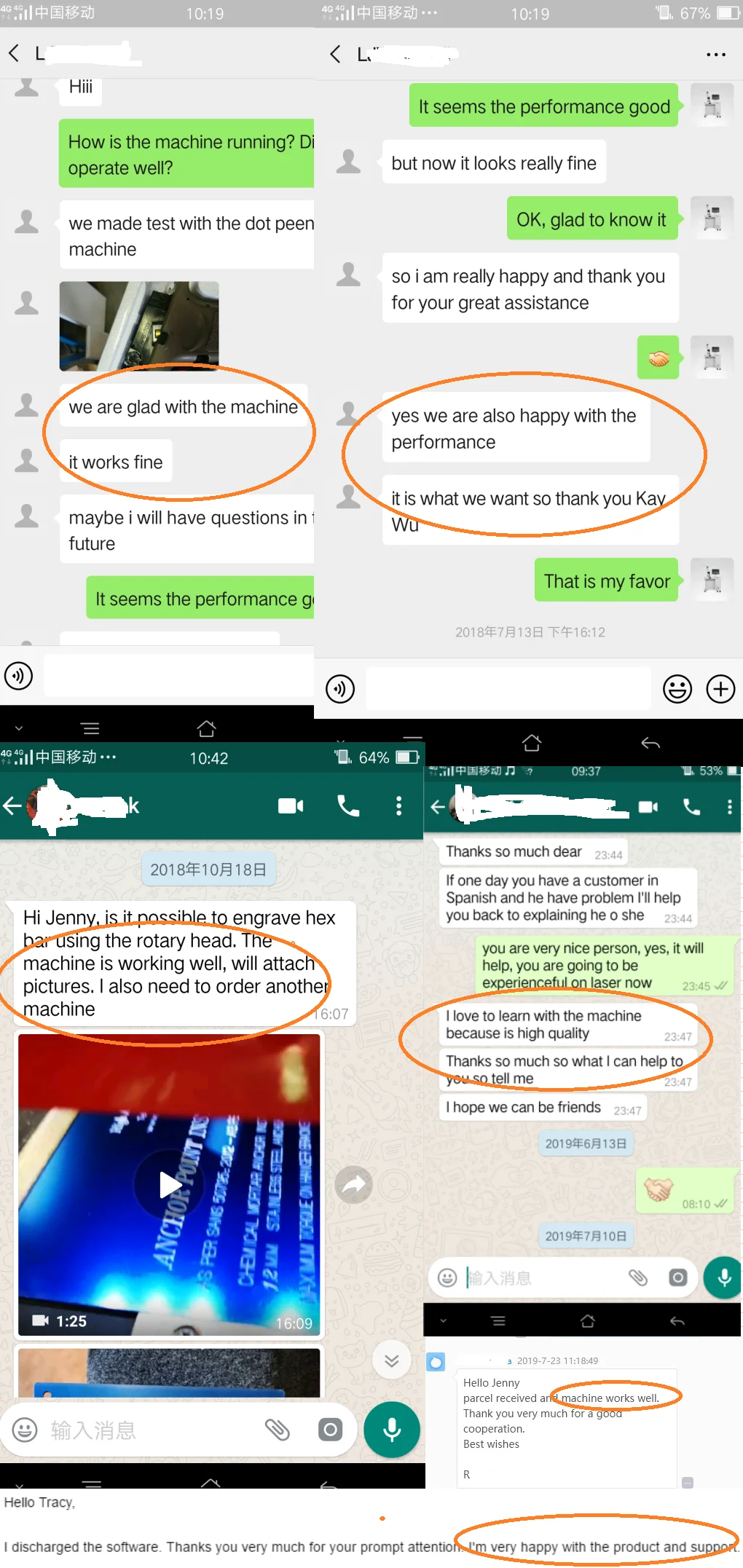

Customer feedback:
Other optional accessories:
If you want to explore more informations about the products or prices , pls kindly contact us , let's talk the details.
